Description

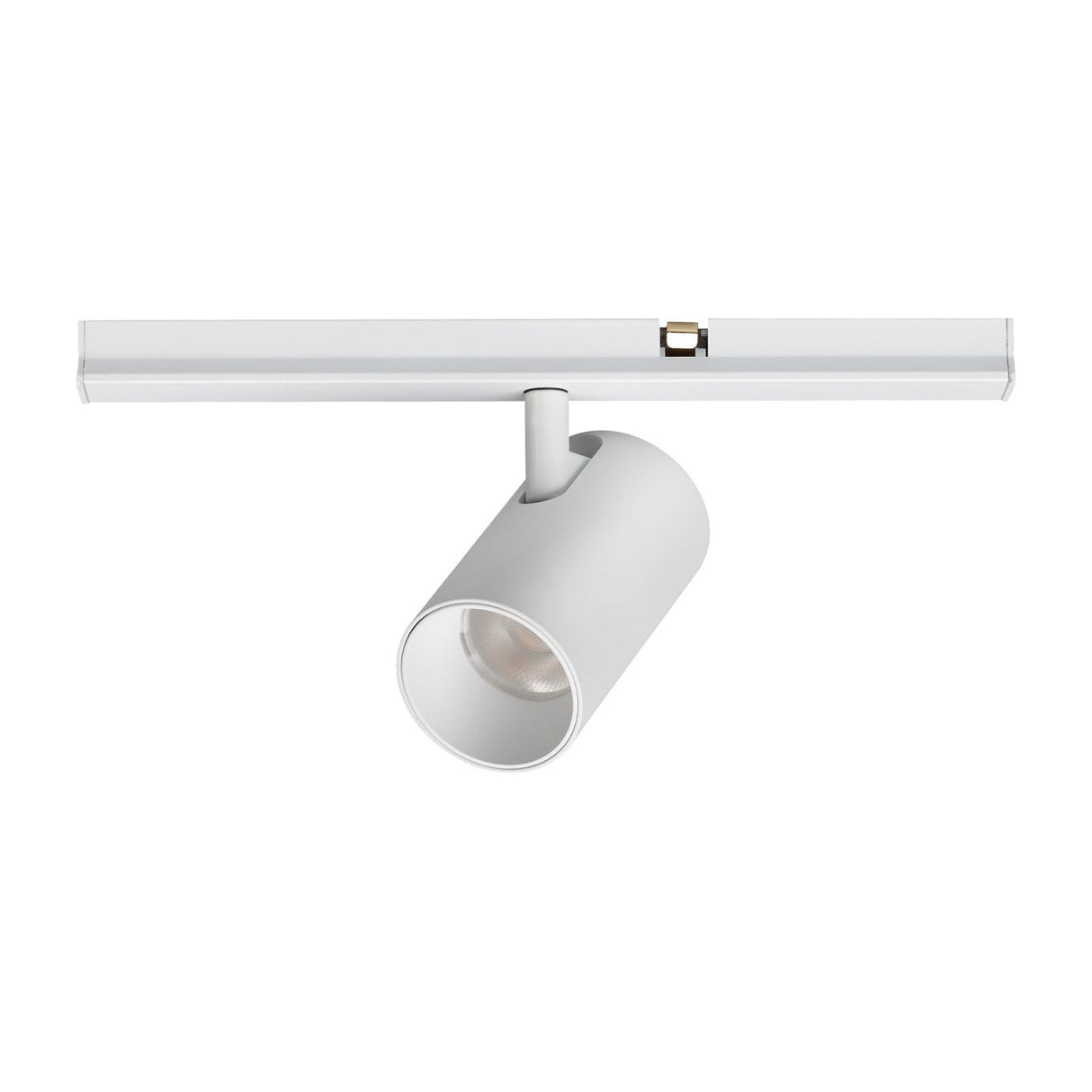

The Stick is a compact aimable spotlight that fixes magnetically to the Stick low-voltage rail, giving you one directed integrated-LED head you slide along the run and lock where light is wanted. The head tilts and turns on its mount, and a 30 degree beam covers a slightly wider area than the smallest head, so it lights a picture with a little margin or picks out a grouped display. Lit, it reads as a clean warm 3000K pool; off, the slim 150mm matt white body sits low on the rail.
Its LED runs at 5W and gives about 400 lumens from the 48V line, with a colour rendering above 90 so artwork, timber and fabric keep their true tone under the beam. Because the head lives on the magnetic track, several can share one recessed or surface rail and each aim at a separate target, then reposition by hand whenever a hang or layout shifts, which suits a gallery wall, a shelf run or a retail bay.
The body is extruded aluminium in matt white and the fitting is rated IP20 for dry indoor rooms. The LED module is built in and rated to 50,000 hours, so there is no bulb to fit or replace. It dims by PWM through a compatible driver, and it needs the Stick rail and a remote 48V supply, neither of which is included, all of which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 5W total (50,000h) |
| Luminous flux |
400 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
30 degrees |
| Length |
150mm |
| Height |
72.5mm |
| Projection |
32mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Head tilts and rotates |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt white aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 5W spotlight give?
One directed beam of warm 3000K light at about 400 lumens, with a colour rendering above 90. The 30 degree spread lights a picture with a little margin or covers a small grouped display rather than a single point.
Does it use a bulb?
No, the LED module is built in and rated to 50,000 hours. There is nothing to fit or replace; the head fixes magnetically to the Stick rail and runs from its 48V supply.
Can it be dimmed?
Yes, it dims by PWM through a compatible 48V driver, so the accent level can be set to suit the room. The driver is remote and supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The head clips to the track and can be slid and re-aimed later, so we can supply the rail, feed and driver to build the run.
