Description

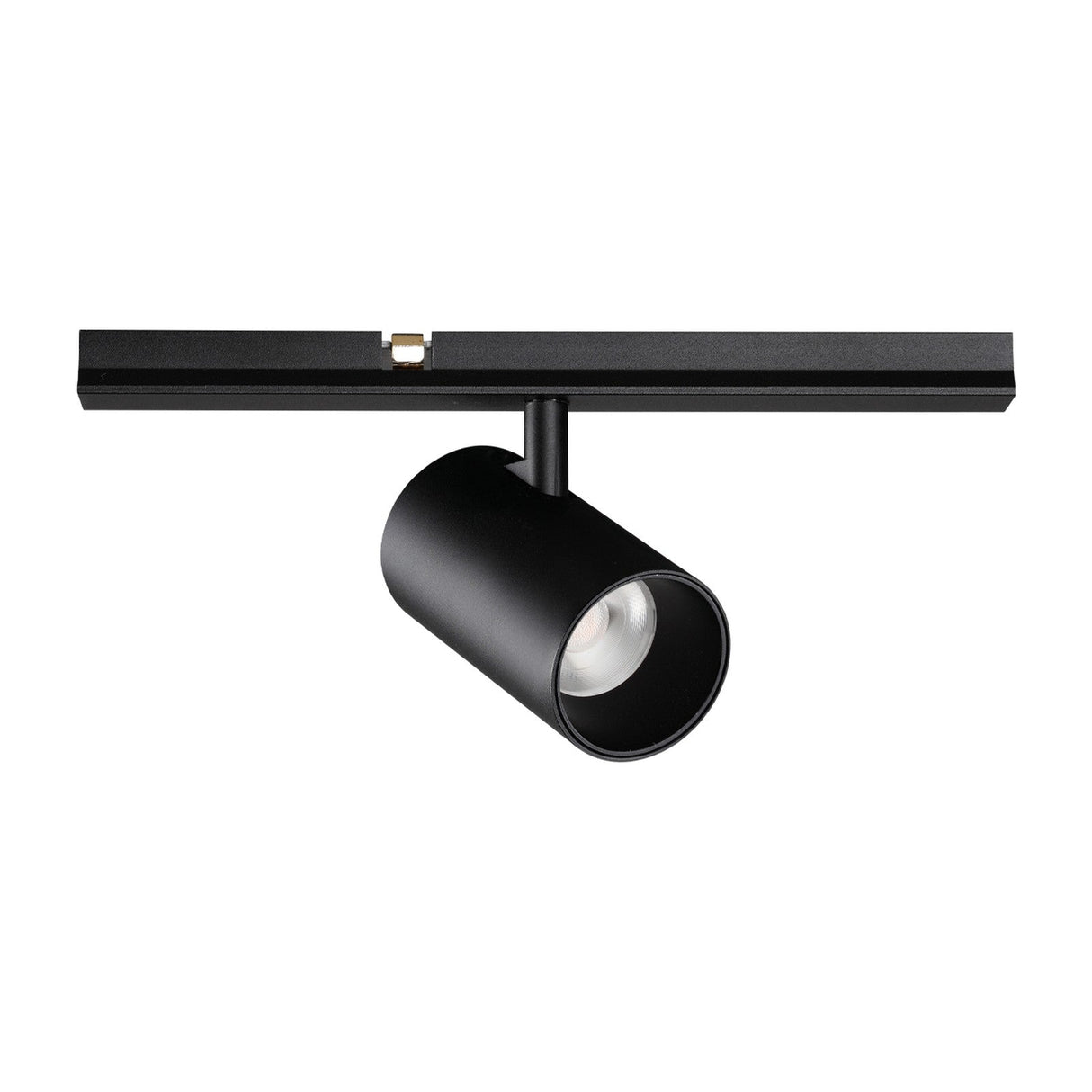

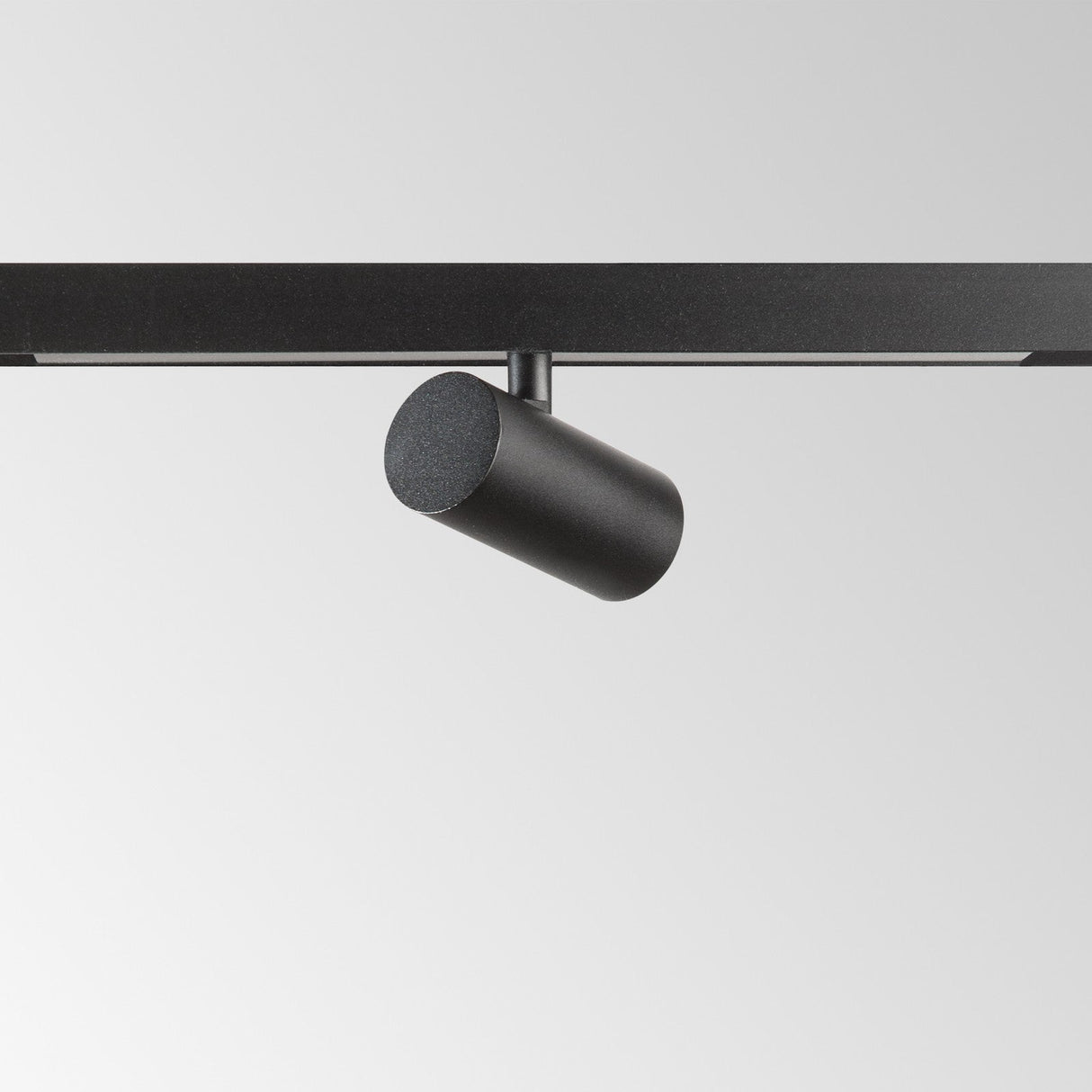

The Stick is a small aimable spotlight that fixes magnetically to the Stick low-voltage rail, giving you one directed integrated-LED head you can slide along the run and lock where light is wanted. The head sits on a short stem so it tilts and turns to aim at a target, and its tight 24 degree beam keeps the light on one object rather than washing the wall around it. Lit, it reads as a clean pool of warm 2700K light; off, the slim 150mm matt black body sits low and quiet on the rail.
Its LED runs at 3W and gives about 200 lumens from the 48V line, with a colour rendering above 90 so artwork, timber and fabric hold their true tone under the beam. Because the head lives on the magnetic track, several can share one recessed or surface rail and each aim at a separate point, then reposition by hand whenever a hang or layout changes, which suits a narrow alcove, a shelf run or a single framed piece.
The body is extruded aluminium in matt black and the fitting is rated IP20 for dry indoor rooms. The LED module is built in and rated to 50,000 hours, so there is no bulb to fit or replace. It dims by PWM through a compatible driver, and it needs the Stick rail and a remote 48V supply, neither of which is included, all of which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 3W total (50,000h) |
| Luminous flux |
200 lumens |
| Colour temperature |
2700K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
24 degrees |
| Length |
150mm |
| Height |
61.6mm |
| Projection |
22mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Head tilts and rotates |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 3W spotlight give?
One narrow beam of warm 2700K light at about 200 lumens, with a colour rendering above 90. The 24 degree spread is the tightest in the range, so it picks out a single picture, object or shelf rather than lighting the whole wall.
Does it use a bulb?
No, the LED module is built in and rated to 50,000 hours. There is nothing to fit or replace; the head fixes magnetically to the Stick rail and runs from its 48V supply.
Can it be dimmed?
Yes, it dims by PWM through a compatible 48V driver, so the accent level can be set to suit the room. The driver is remote and supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The head clips to the track and can be slid and re-aimed later, so we can supply the rail, feed and driver to build the run.
