Description

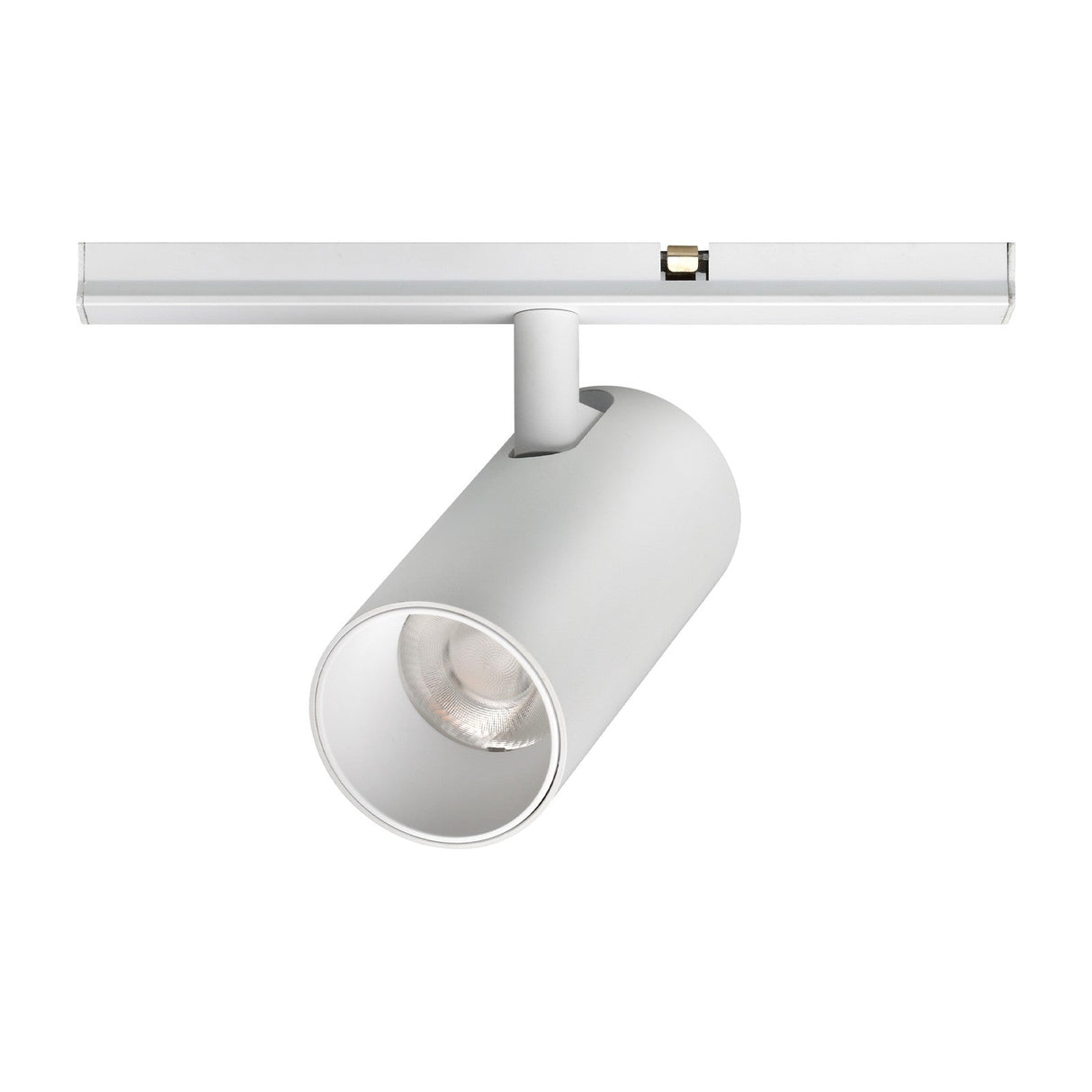

The Stick is an aimable spotlight that fixes magnetically to the Stick low-voltage rail, giving you one directed integrated-LED head you slide along the run and lock where light is wanted. This is the brightest single head in the range, throwing a 36 degree beam that covers a wide span of wall or a full work surface. It tilts and turns on its mount to aim at the target. Lit, it lays a clean warm 3000K wash; off, the 150mm matt white body keeps a low profile on the rail.
Its LED runs at 10W and gives about 860 lumens from the 48V line, with a colour rendering above 90 so artwork, timber and stone hold their true tone under the beam. Because the head lives on the magnetic track, several can share one recessed or surface rail and each light a separate zone, then reposition by hand whenever a layout shifts, which suits a kitchen island, a large feature wall or a retail display.
The body is extruded aluminium in matt white and the fitting is rated IP20 for dry indoor rooms. The LED module is built in and rated to 50,000 hours, so there is no bulb to fit or replace. It dims by PWM through a compatible driver, and it needs the Stick rail and a remote 48V supply, neither of which is included, all of which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 10W total (50,000h) |
| Luminous flux |
860 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
36 degrees |
| Length |
150mm |
| Height |
109.2mm |
| Projection |
42mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Head tilts and rotates |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt white aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 10W spotlight give?
One strong beam of warm 3000K light at about 860 lumens, with a colour rendering above 90. The 36 degree spread washes a wide span of wall or a full work surface, the brightest output among the single Stick heads.
Does it use a bulb?
No, the LED module is built in and rated to 50,000 hours. There is nothing to fit or replace; the head fixes magnetically to the Stick rail and runs from its 48V supply.
Can it be dimmed?
Yes, it dims by PWM through a compatible 48V driver, so the level can be set to suit the room. The driver is remote and supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The head clips to the track and can be slid and re-aimed later, so we can supply the rail, feed and driver to build the run.
