Description

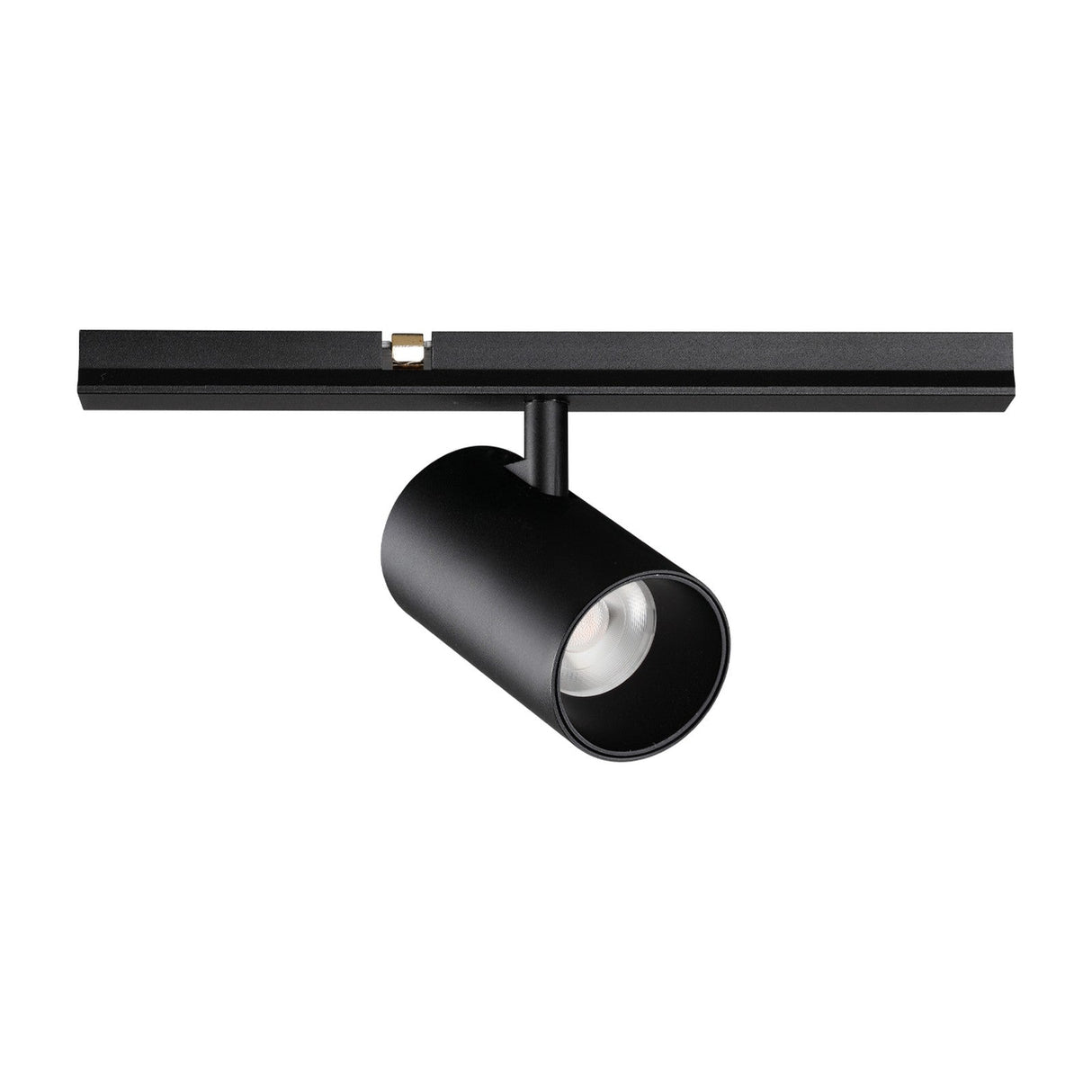

The Stick is an aimable spotlight that fixes magnetically to the low-voltage rail, giving you one directed integrated-LED head you slide along the run and lock over whatever needs lighting. The head tilts and turns on its mount, and a 36 degree beam picks out a larger canvas or a wider grouped display with a soft edge. Lit, it reads as a warm 3000K pool; off, the slim matt black body stands 150mm long on the track.

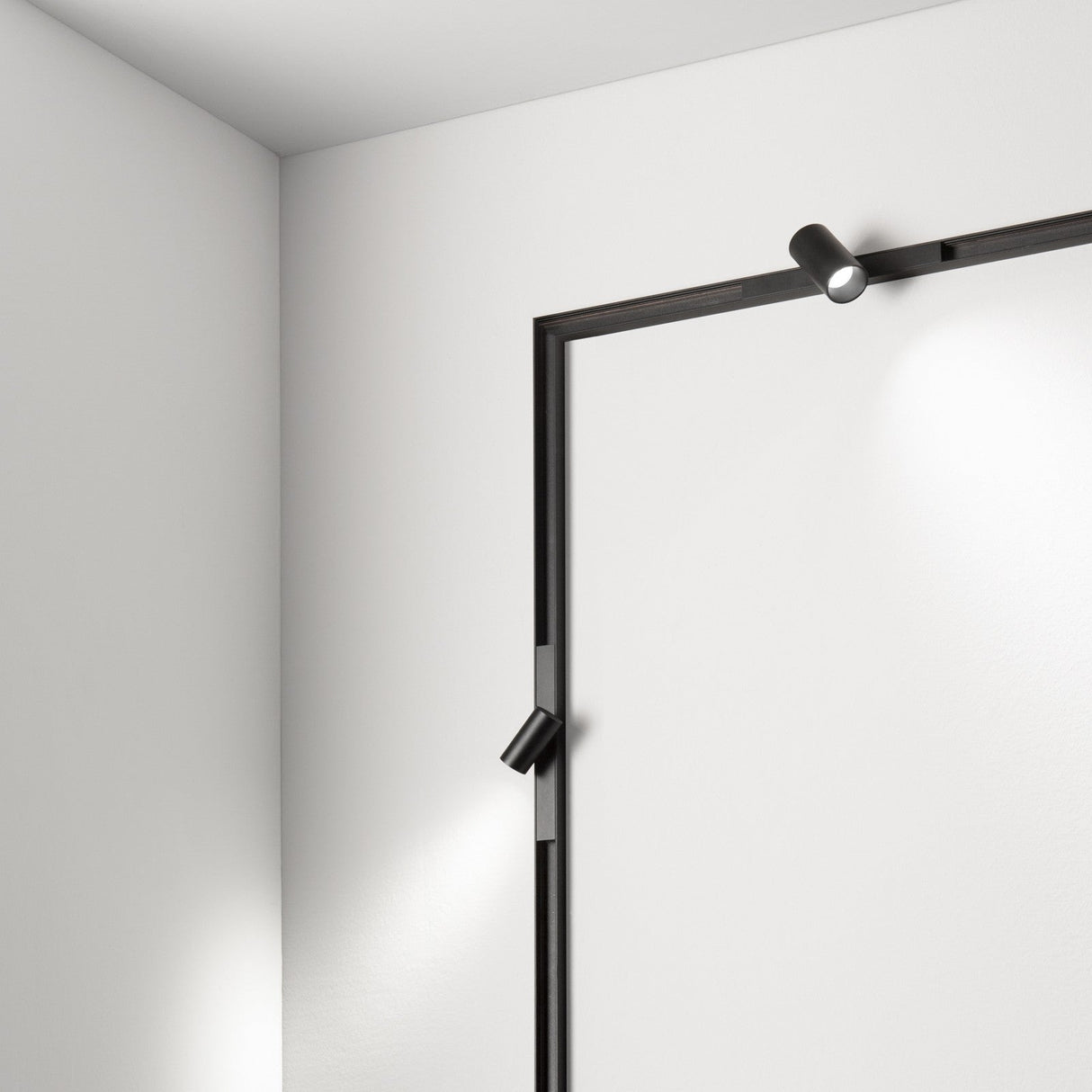

Its module runs at 10W and gives 860 lumens from the 48V line, a step up in output over the 7W head for taller walls or brighter rooms, with colour rendering above 90 so paint, timber and fabric keep their true tone under the beam. Because the head lives on the magnetic rail, several can share one recessed or surface run and each aim at a separate target, then reposition by hand when a hang or layout shifts, which suits a gallery wall, a shelf bay or a retail fit-out.
The body is extruded aluminium in matt black and the fitting carries an IP20 rating for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the head, both of which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 10W total (50,000h) |
| Luminous flux |
860 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
36 degrees |
| Length |
150mm |
| Height |
109.2mm |
| Projection |
42mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Head tilts and rotates |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 10W spotlight give?
One directed beam of warm 3000K light at 860 lumens, with colour rendering above 90. The 36 degree spread and higher output suit a larger picture, a taller wall or a wider grouped display.
How does it compare with the 7W Stick spotlight?
Same 36 degree beam and 150mm body, but 860 lumens against 620, so the 10W head reaches further and covers more wall. We would pick it for higher ceilings or brighter surroundings.
Can it be dimmed, and does it use a bulb?
It dims by PWM through a compatible 48V driver, supplied separately. The LED is built in and rated to 50,000 hours, so there is no bulb to fit or replace.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The head clips to the track and can be slid and re-aimed later, so we can provide the rail, feed and driver to build the run.
