Description

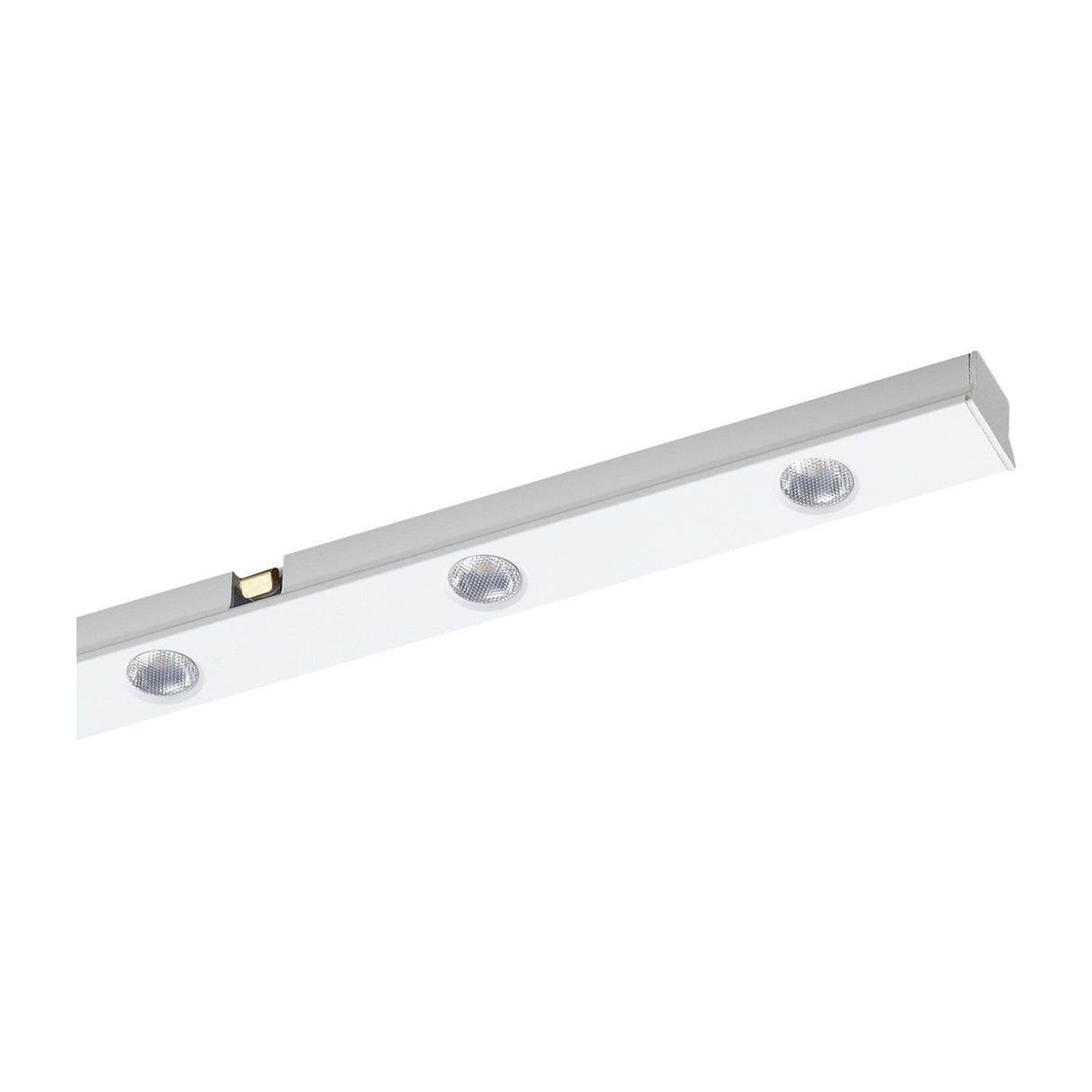

The Stick accent is a slim graze bar that fixes magnetically to the low-voltage rail, laying a long even line of integrated-LED light rather than a single spot. At 300mm it draws a continuous band across a wall or down a shelf, and a 40 degree spread keeps the wash smooth from end to end. Lit, it gives a clean warm 3000K glow; off, the very low matt white bar all but disappears against a light wall at just 11.5mm tall.
The bar runs at 6W and gives 630 lumens from the 48V line, with colour rendering above 90 so plaster, timber and fabric hold their true tone under the wash. Its slender profile is built for grazing close to a surface, several bars sharing one recessed or surface rail to run an unbroken line of light along a longer wall, then repositioned by hand when a layout changes, which suits a hallway, an alcove or a joinery reveal.
The body is extruded aluminium in matt white and the fitting carries an IP20 rating for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the bar, both of which we can supply alongside.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 6W total (50,000h) |
| Luminous flux |
630 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
40 degrees |
| Length |
300mm |
| Height |
11.5mm |
| Projection |
15mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Fixed line; repositions on the rail |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt white aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 6W graze bar give?
A long, even line of warm 3000K light at 630 lumens across a 40 degree spread, with colour rendering above 90. At 300mm it lays a continuous band along a wall or shelf rather than picking out a single point.
How is it different from the Stick Wide?
This accent keeps a tighter 40 degree line for a contained graze along a shelf or reveal, where the Wide opens to a broad 110 degree spread that floods a whole wall. Choose the accent for a controlled band, the Wide for an even sheet.
Does it use a bulb, and can it be dimmed?
The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible 48V driver, which sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The bar clips to the track and several can be lined up into a longer line, so we can provide the rail, feed and driver to build the run.
