Description

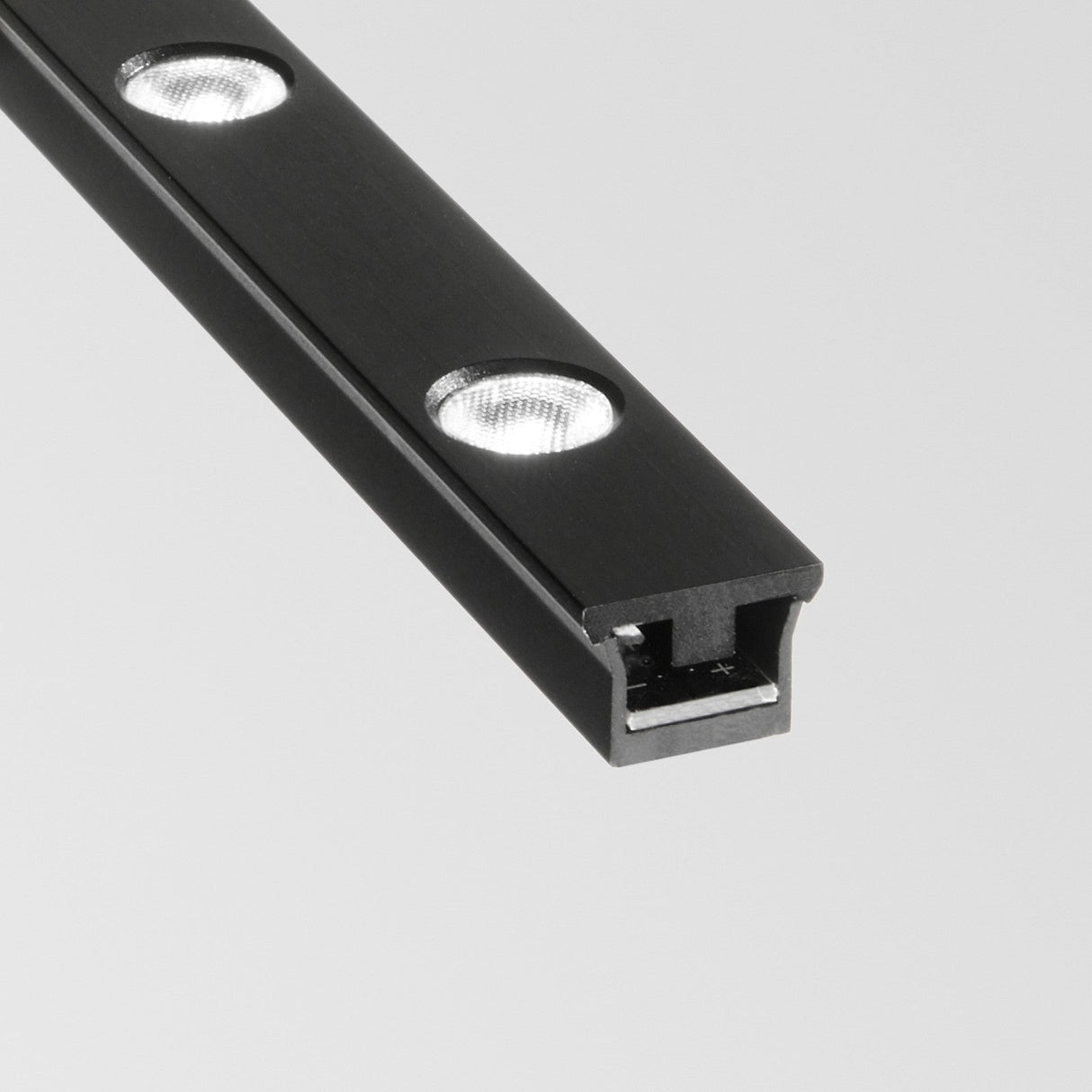

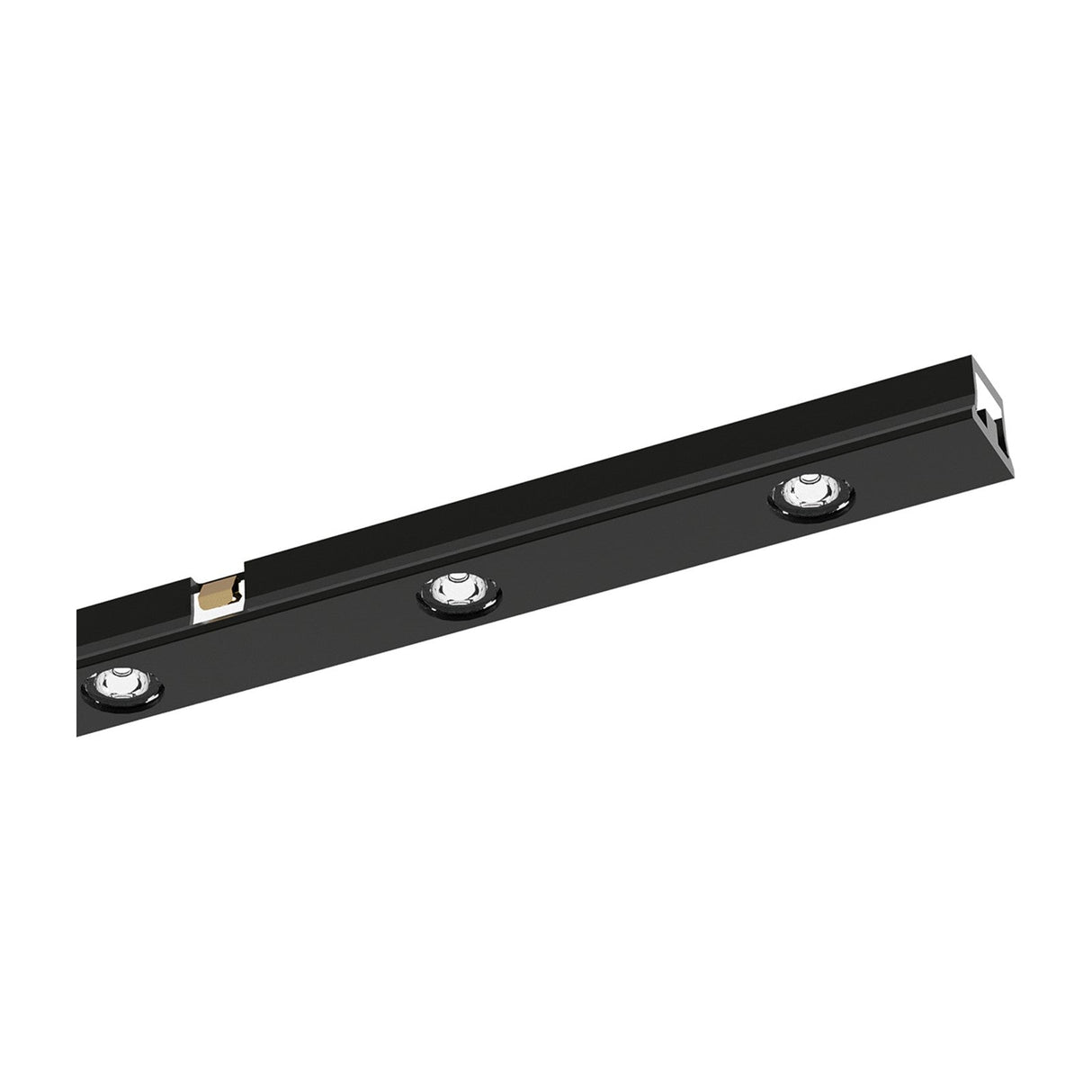

The Stick accent is a slim graze bar that fixes magnetically to the low-voltage rail, laying a long even line of integrated-LED light rather than a single spot. At 300mm it draws a continuous band across a wall or down a shelf, and a 40 degree spread keeps the wash smooth from end to end. Lit, it gives a warm 2700K glow; off, the very low bar all but disappears against the track at just 11.5mm tall.
The bar runs at 6W and gives 600 lumens from the 48V line, with colour rendering above 90 so plaster, timber and fabric hold their true tone under the wash. Its slender profile is built for grazing close to a surface, several bars sharing one recessed or surface rail to run an unbroken line of light along a longer wall, then repositioned by hand when a layout changes, which suits a hallway, an alcove or a joinery reveal.
The body is extruded aluminium in matt black and the fitting carries an IP20 rating for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the bar, both of which we can supply alongside.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 6W total (50,000h) |
| Luminous flux |
600 lumens |
| Colour temperature |
2700K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
40 degrees |
| Length |
300mm |
| Height |
11.5mm |
| Projection |
15mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Fixed line; repositions on the rail |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 6W graze bar give?
A long, even line of warm 2700K light at 600 lumens across a 40 degree spread, with colour rendering above 90. At 300mm it lays a continuous band along a wall or shelf rather than picking out a single point.
How is it different from the 8W accent bar?
This bar is longer and much slimmer at 11.5mm tall, made to graze close to a surface as a low line of light. The 8W bar is shorter and taller in profile, so choose this one for a discreet run along joinery or a reveal.
Does it use a bulb, and can it be dimmed?
The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible 48V driver, which sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The bar clips to the track and several can be lined up into a longer line, so we can provide the rail, feed and driver to build the run.
