Description

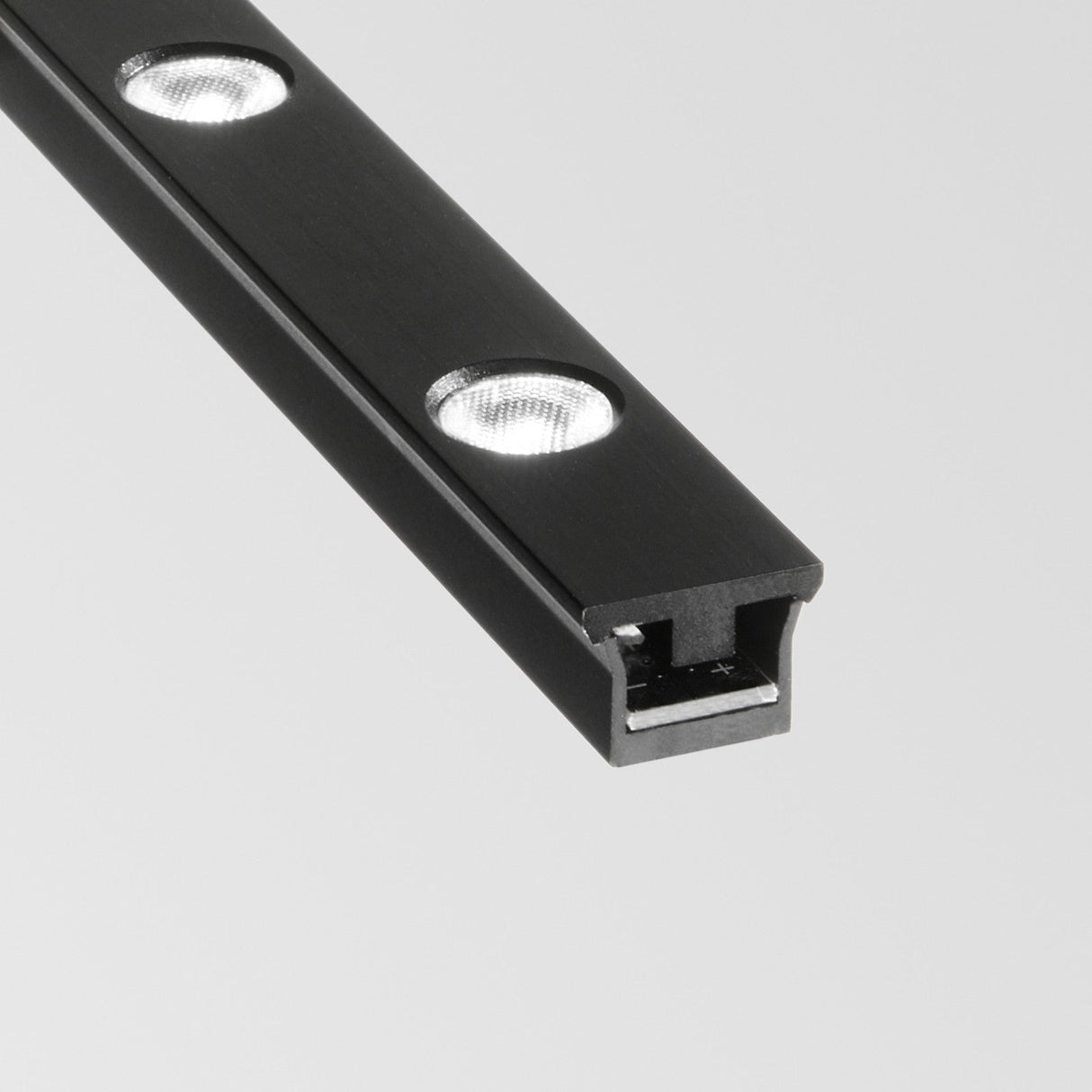

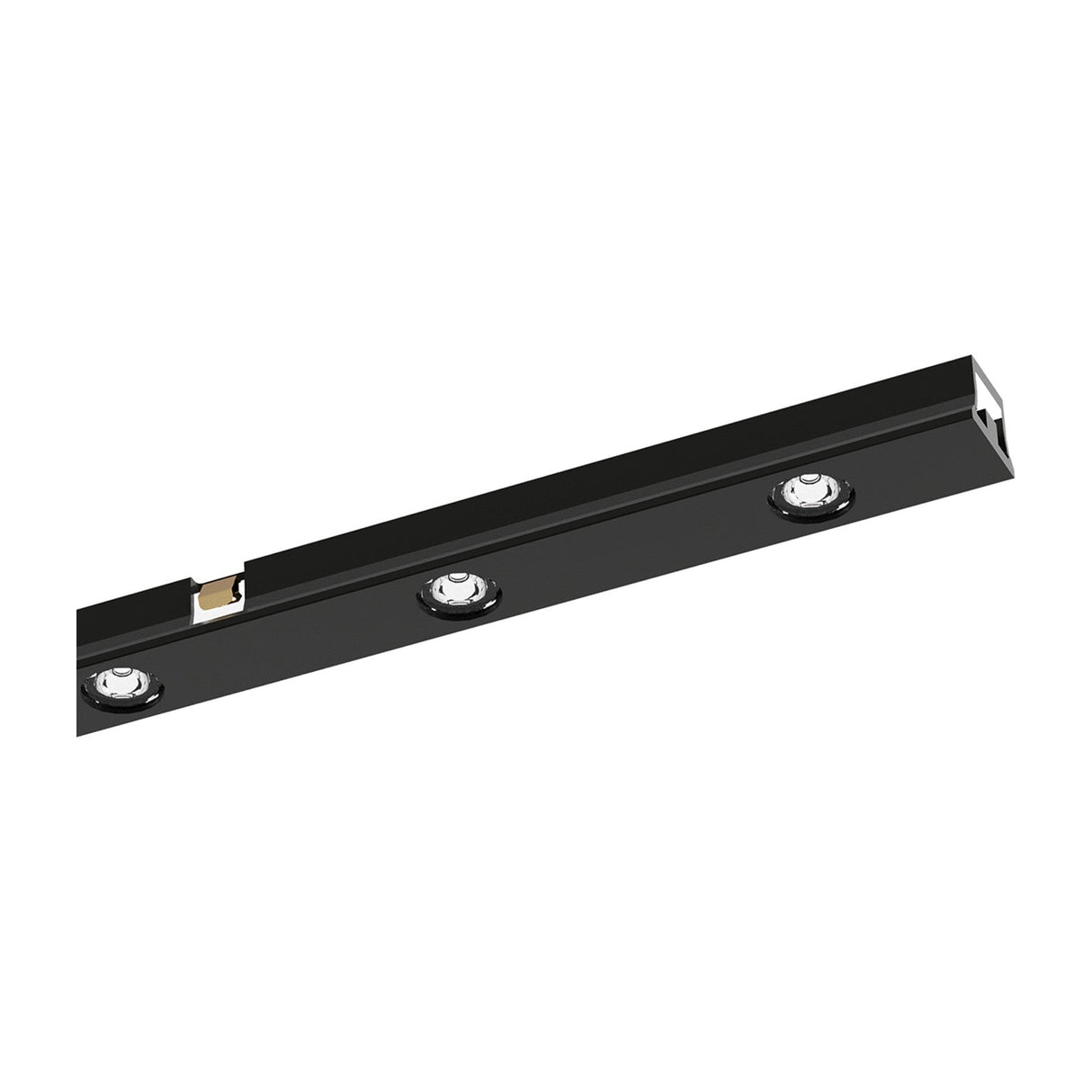

The Stick accent is a slim graze bar that fixes magnetically to the low-voltage rail, laying a long even line of integrated-LED light rather than a single spot. At 600mm it draws a generous continuous band across a wall or along a run of joinery, and a 40 degree spread holds the wash smooth over its full length. Lit, it gives a warm 2700K glow; off, the very low bar sits tight to the track at just 11.5mm tall.
The bar runs at 12W and gives 1200 lumens from the 48V line, twice the length and output of the 300mm graze bar for covering a wider span in one piece, with colour rendering above 90 so plaster, timber and fabric keep their true tone. Its slender profile is built for grazing close to a surface, and bars can be joined end to end on one recessed or surface rail to run light along a whole wall, repositioned by hand when a layout changes, which suits a hallway, a stairwell or a kitchen upstand.
The body is extruded aluminium in matt black and the fitting carries an IP20 rating for dry indoor rooms. The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible driver, and it needs the Stick rail with a remote 48V supply, neither of which comes with the bar, both of which we can supply alongside.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 12W total (50,000h) |
| Luminous flux |
1200 lumens |
| Colour temperature |
2700K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
40 degrees |
| Length |
600mm |
| Height |
11.5mm |
| Projection |
15mm |
| IP rating |
IP20 |
| Dimmable |
Yes, PWM |
| Voltage |
48V DC (remote driver required, not included) |
| Mounting |
Stick magnetic rail (recessed or surface) |
| Adjustment |
Fixed line; repositions on the rail |
| Insulation class |
Class III |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Frequently Asked
What kind of light does the Stick 12W graze bar give?
A long, even line of warm 2700K light at 1200 lumens across a 40 degree spread, with colour rendering above 90. At 600mm it lays a wide continuous band along a wall or joinery in one piece rather than picking out a point.
How does it compare with the 6W graze bar?
Same slim 11.5mm profile and 40 degree wash, but twice as long at 600mm and 1200 lumens against 600, so it covers a wider span without joining two bars. We would pick it for a longer wall or a full upstand.
Does it use a bulb, and can it be dimmed?
The LED is built in and rated to 50,000 hours, so there is no bulb to fit. It dims by PWM through a compatible 48V driver, which sits remote and is supplied separately.
What does it need to run?
The Stick recessed or surface rail and a remote 48V driver, not a standard mains ceiling point. The bar clips to the track and units can be joined into a longer line, so we can provide the rail, feed and driver to build the run.
