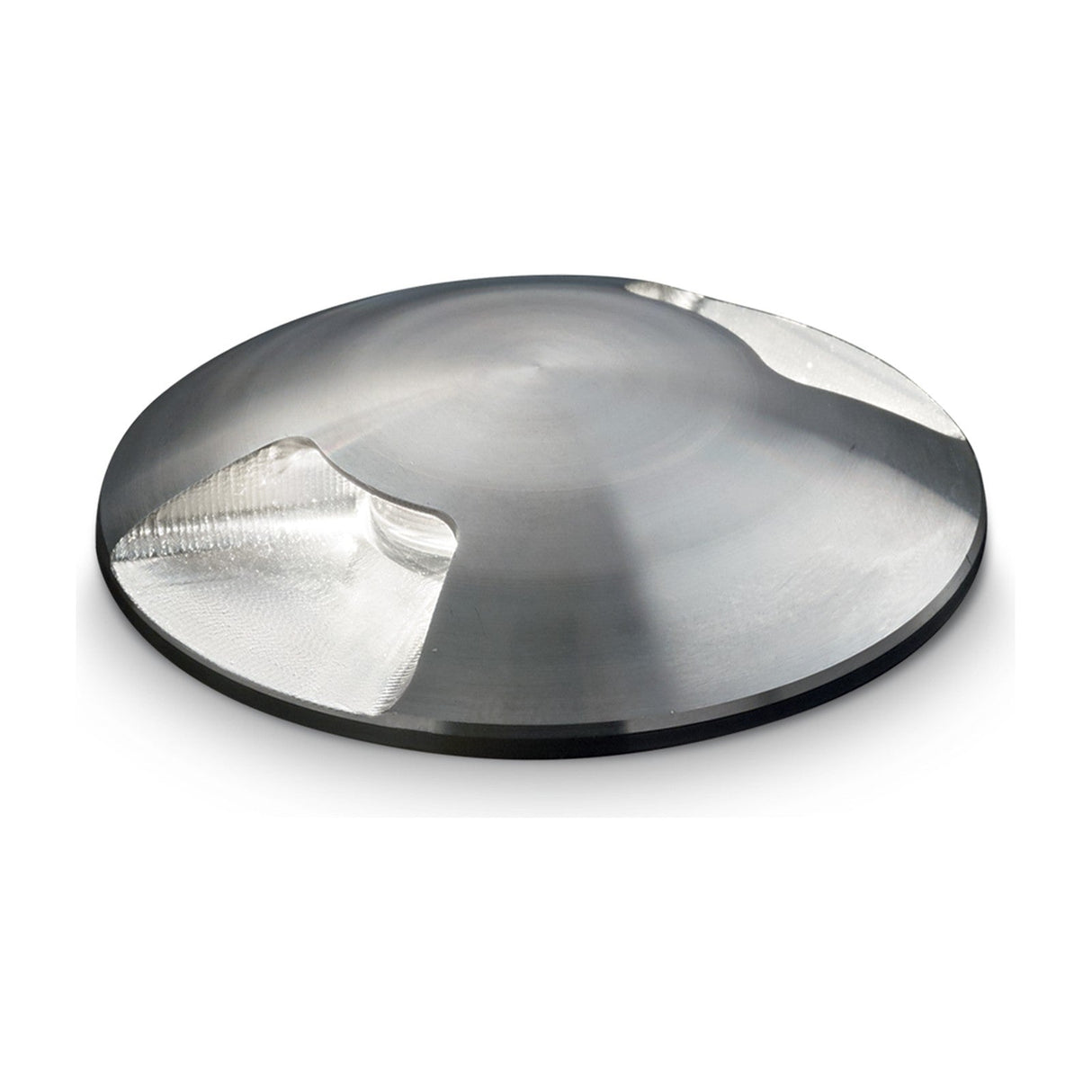

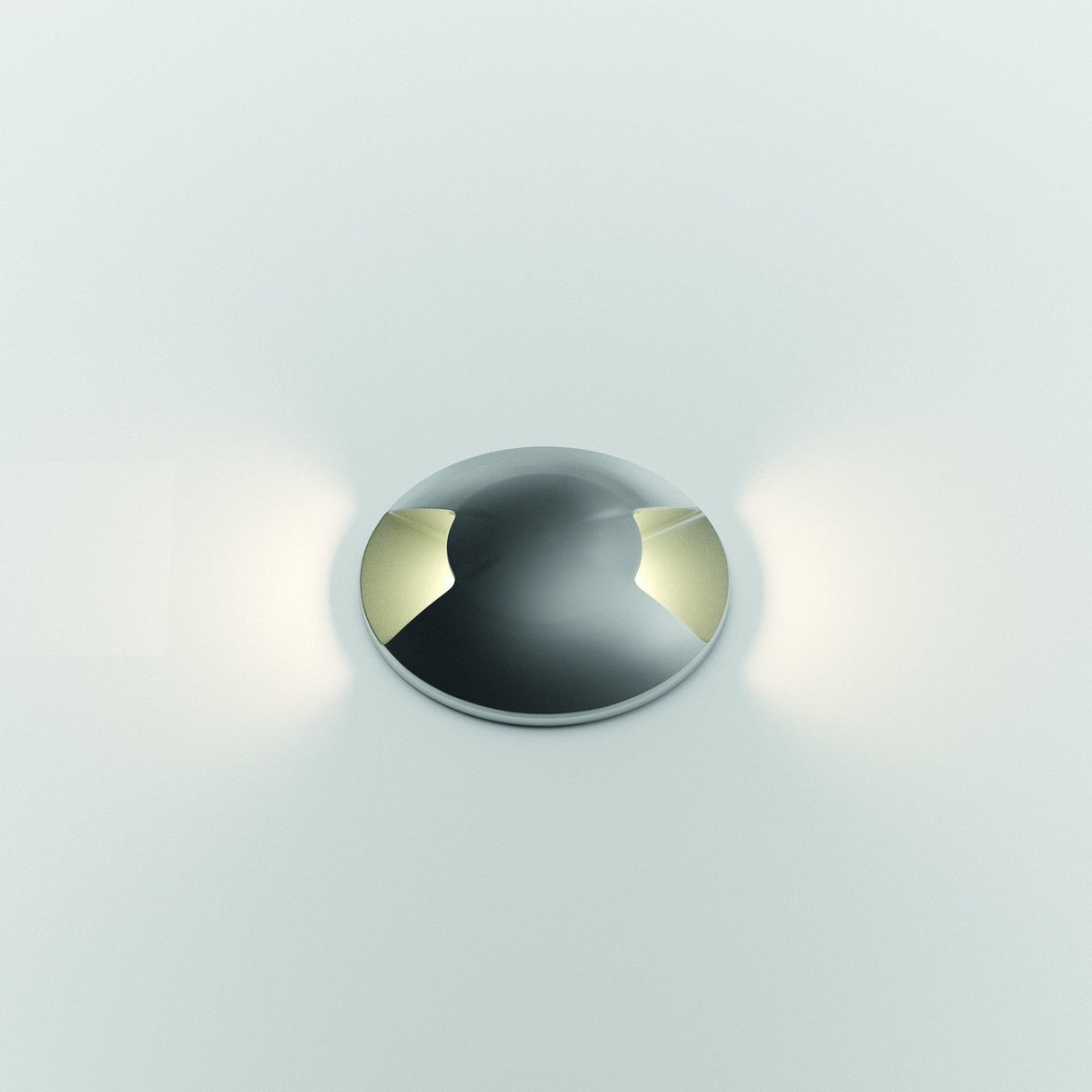

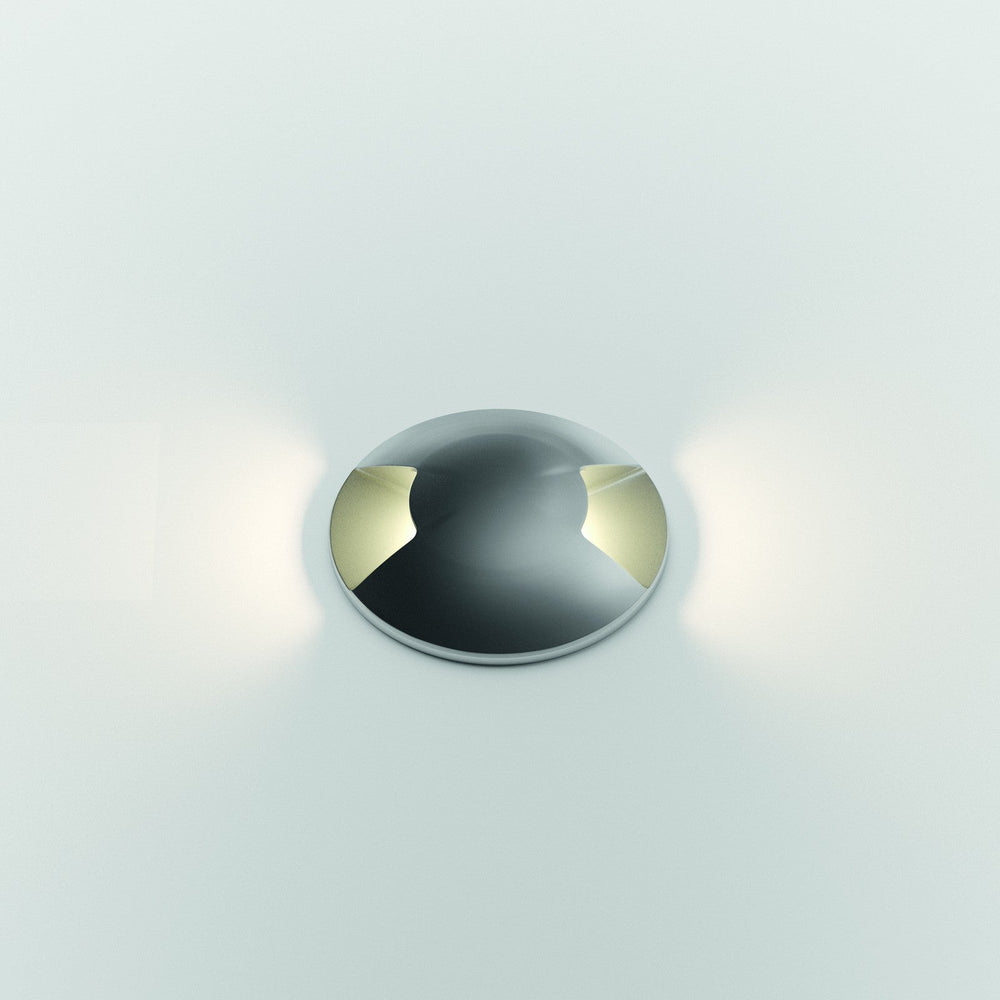

The Rocket D55 Double is a small recessed marker built to sit flush into a path, deck or step and throw a low glow out from two sides at once. It is a round brushed-steel disc about 55mm across with two opposed apertures behind a tempered-glass lens, so light spills both ways along a route rather than in one direction only. Set into the surface it can be walked over and driven over, reading as a discreet twin glow of warm 3000K light; unlit, the small steel ring sits nearly flush and stays quiet.
The LED is built in and draws just 2W, split across the two apertures for about 130 lumens of beam, aimed to graze the ground on either side rather than to light a whole area. This is marker-scale light, well suited to the middle of a path or a driveway where a two-way wash guides the eye in both directions, set in a row along the run. Colour is a warm 3000K with a colour rendering above 90. The Single version emits one way for edges, and the larger Rocket heads step up in output where more light is wanted.
The body is brushed steel with a tempered-glass lens, rated IP67 for full burial in wet ground and rated to be walked on, so it handles rain, standing water and foot traffic. The LED is fixed and rated to 50,000 hours, with nothing to fit or replace. It runs on 12-24V DC from a remote driver, which is not included and is ordered to match the run, so we supply the fitting and can add the correct driver alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 2W total (50,000h) |
| Luminous flux |
130 lumens (beam flux) |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Emission |
Double aperture (two opposed directions) |
| Diameter |
55mm |
| Height |
100mm (recessed depth) |
| IP rating |
IP67 |
| Dimmable |
No |
| Power supply |
12-24V DC, remote driver required (not included) |
| Installation |
Recessed in-ground / walk-over, outdoor |
| Frame / Structure finish |
Brushed steel |
| Materials |
Steel body, tempered glass diffuser |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Rocket D55 Double give?
A low glow thrown from two opposed apertures, so light washes both ways along a route. The built-in 2W LED gives about 130 lumens of warm 3000K light, marker-scale for a path or driveway centre rather than lighting a whole area.
What is the difference between Double and Single?
The Double emits from two opposed apertures for a two-way wash; the Single emits one way for a path or step edge. Both are the same 55mm brushed-steel body at 2W and 3000K.
Is it suitable for full outdoor exposure?
Yes. It is rated IP67 in brushed steel with a tempered-glass lens, so it withstands rain and standing water and can be buried in the ground. It is rated to be walked on once installed.
Does it need a separate driver?
Yes. It runs on 12-24V DC from a remote driver that is not included, ordered to suit the run. We can supply the matching driver alongside the light. The LED is built in and non-replaceable, rated to 50,000 hours.
