Description

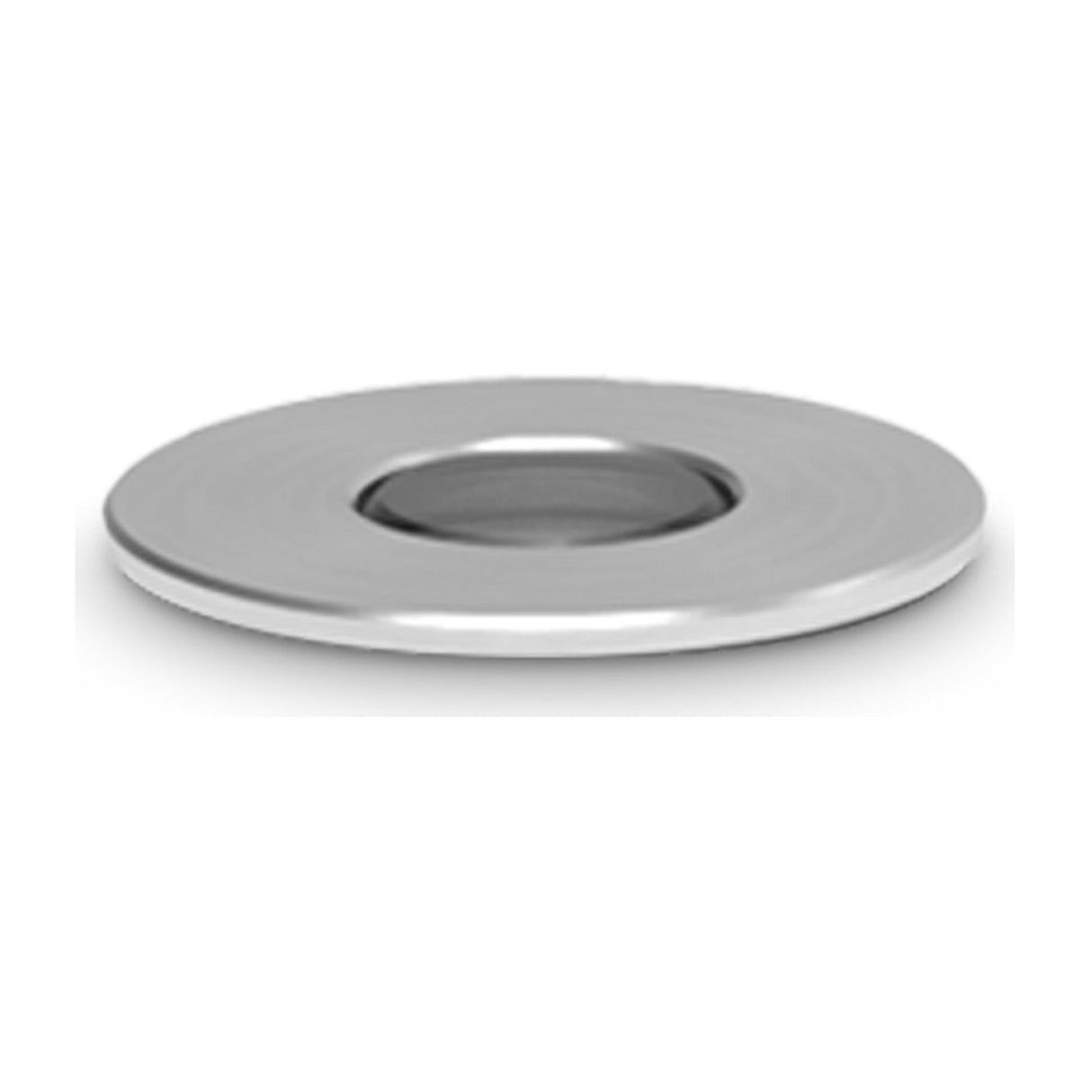

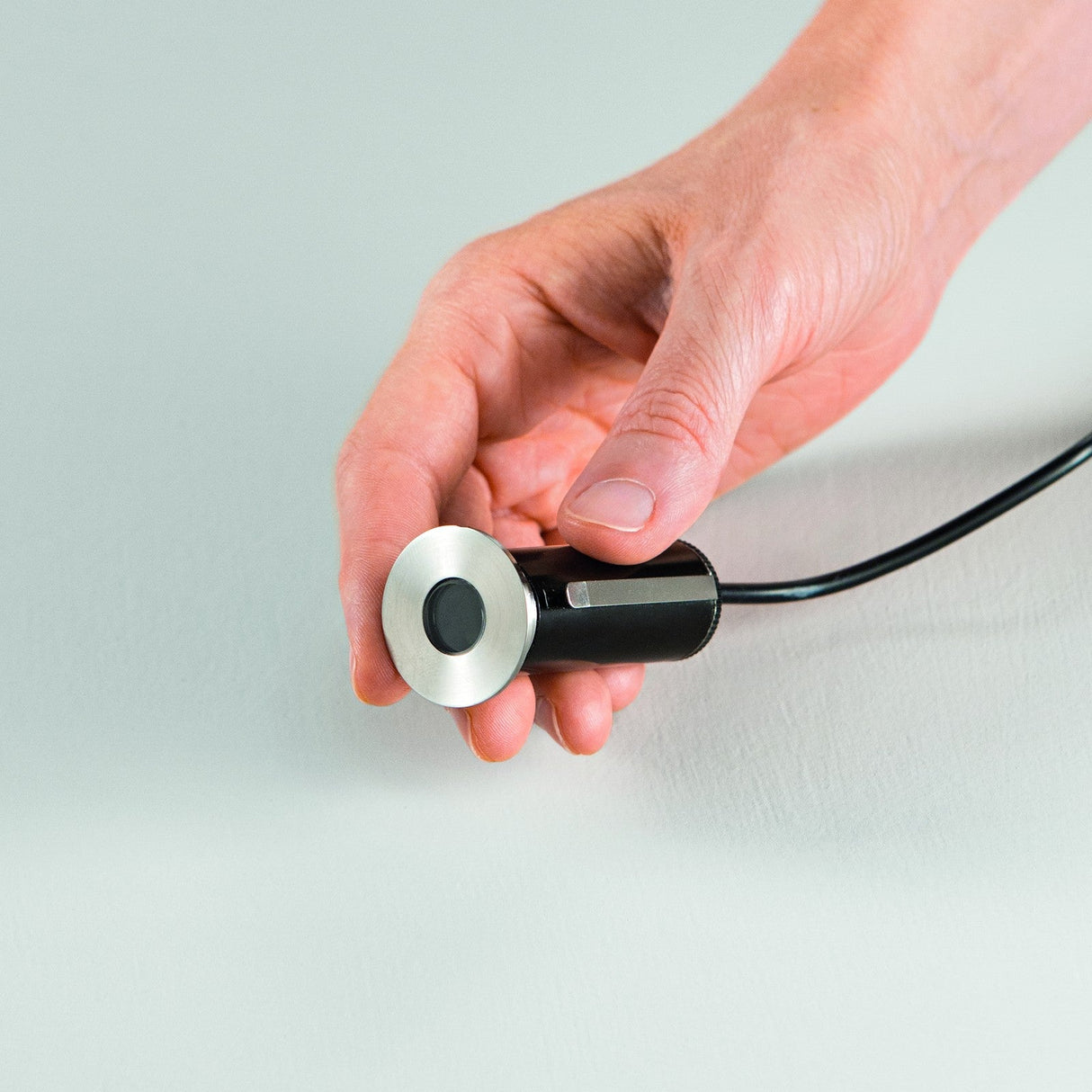

The Rocket is a very small in-ground light that sets flush into the ground and gives a warm point of light underfoot. This is the 28mm version, with an aluminium body and a tempered glass lens set behind a brushed steel rim, so it reads as a neat steel dot in paving, a deck or a step rather than a raised fitting. Rated to be walked over, it is made to mark a route or an edge from ground level.
The LED is built in and gives 100 lumens at a warm 3000K through a narrow 10 degree beam, so it throws a tight, contained pool close to the fitting rather than a wide wash. That makes it a marker light: a line of them picks out the run of a path, the tread of a step or the edge of a terrace after dark without glare into the eye. With a colour rendering above 90 the light stays warm and natural against stone or timber.
The LED is built in and rated for around 35,000 hours, so there is no bulb to fit or replace. Rated IP67, it is sealed against dust and immersion for outdoor floor and ground use, and its tempered glass lens takes foot traffic. It runs from a driver, which we can supply alongside so it arrives ready to wire in.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 1.3W total (100lm, CRI>90, 35,000h) |
| Luminous flux |
100 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Beam angle |
10 degrees |
| Diameter |
28mm |
| Height |
50mm (recess depth) |
| IP rating |
IP67 |
| Dimmable |
Depends on driver fitted |
| Walkable |
Yes, floor and ground mounting |
| Frame / Structure finish |
Brushed steel |
| Materials |
Aluminium body and tempered glass lens |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Rocket give?
A small, warm marker light. The built-in LED gives 100 lumens at 3000K through a narrow 10 degree beam, so it makes a tight pool close to the fitting to pick out a path, step or edge rather than lighting a whole area.
Can it be walked on and used outdoors?
Yes. It is a walkable in-ground fitting with a tempered glass lens, rated IP67 against dust and immersion, so it suits paving, decks, steps and terraces as well as indoor floors.
Is there a bulb to fit?
No. The LED is built in and rated for around 35,000 hours, so there is nothing to fit or replace. It wires to a driver, which we can supply alongside so it arrives ready to install.
How big is it and where does it suit?
It is a 28mm brushed steel disc, 50mm deep, the smallest in the range. Rated IP67 and walkable, it suits marking a path, a step tread or a deck edge, run singly or in a line.
