Description

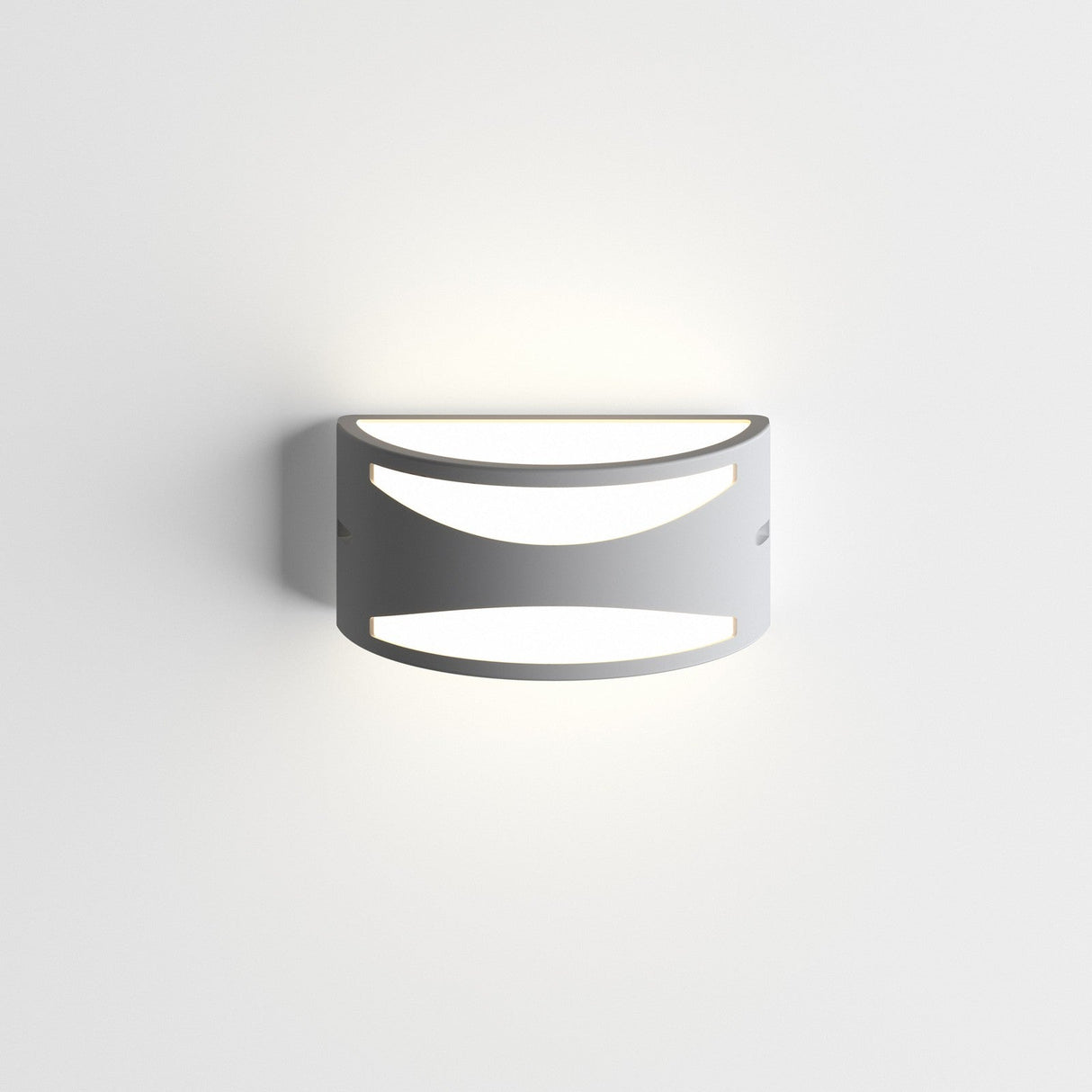

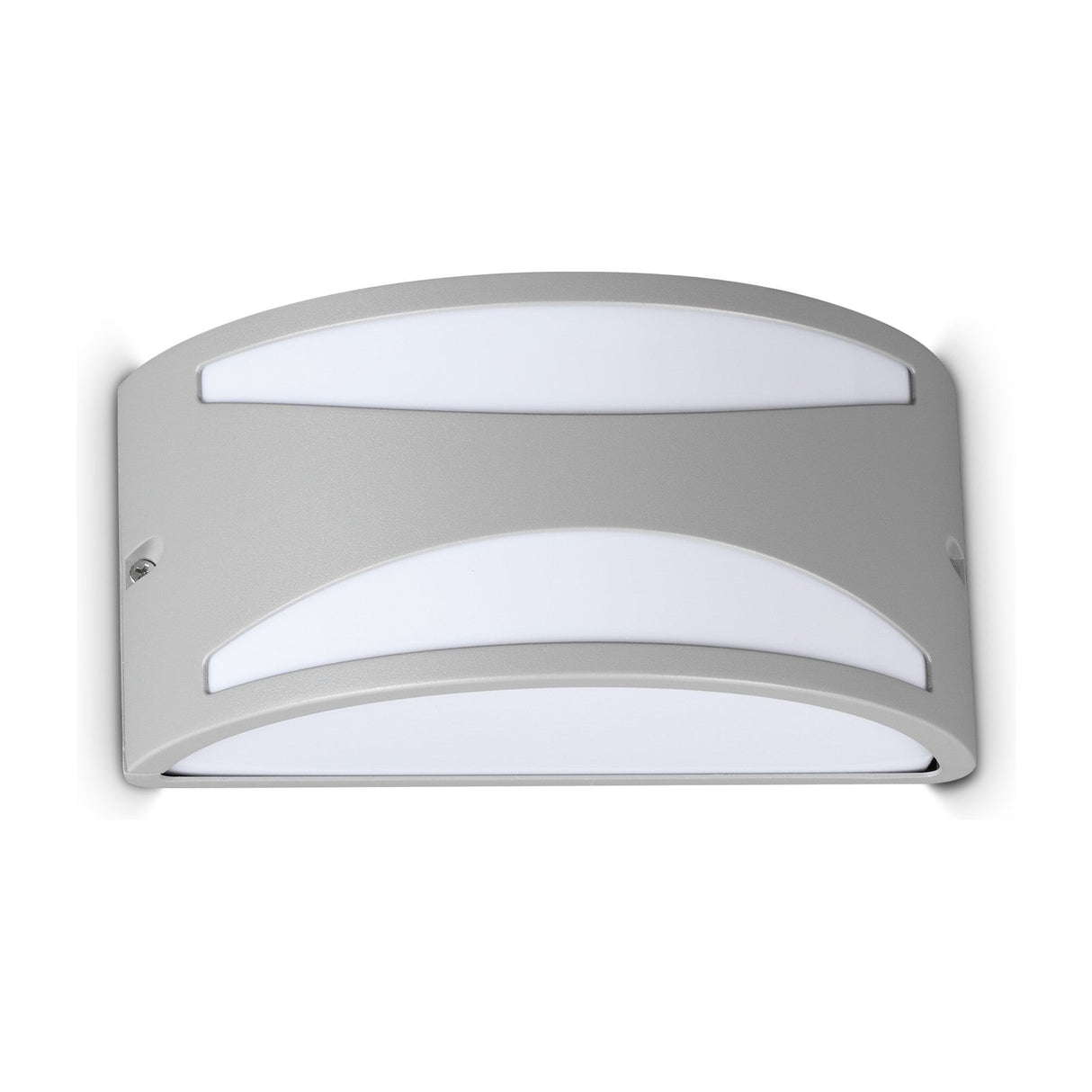

The Rex is a curved half-cylinder for an outside wall with two slot openings cut across the face, one bowing up and one bowing down. Lit at night it shows two bright curved bands on the fitting, backed with white acrylic, while light also spills from the top rim and bottom lip to graze the wall above and below. By day the pair of slots reads as a graphic detail on a rounded grey block, 250mm wide and 130mm proud.
This is the grey version, a mid-tone die-cast aluminium body that settles against concrete, render or pale stone while the lit slots and twin wash do the work. It takes a standard E27 bulb, so brightness and warmth are set by the lamp you choose, which suits a modern facade or a softer garden wall. Its patterned face works on a porch, a carport, a patio or a line spaced along a boundary.
The body is powder-coated die-cast aluminium with white acrylic behind two curved slot apertures and along the edges, and it is rated IP54 against dust and splashing water for outdoor use. It accepts one E27 bulb up to 60W, which is not included, so you can fit an LED lamp at the colour temperature you want. It wires straight to the mains.
Specification
| Number of lights |
1 |
| Light source |
1 x E27 (max 60W, bulb not included) |
| Colour temperature |
Depends on bulb fitted |
| Width |
250mm |
| Height |
120mm |
| Projection |
130mm |
| Emission |
Two slot apertures plus up and down wash |
| IP rating |
IP54 (outdoor, splash resistant) |
| Dimmable |
Depends on bulb fitted |
| Frame / Structure finish |
Grey powder-coated die-cast aluminium |
| Diffuser / Glass |
White acrylic diffusers |
| Materials |
Powder-coated die-cast aluminium body, acrylic diffusers |
Downloads
Datasheet
Assembly Instructions
Frequently Asked
What kind of light does the Rex give?
Two glowing curved slots on the face plus a wash up and down the wall from the edges. The slot apertures make it a lit graphic rather than the plain closed version, so the fitting itself shows a pattern of light.
Does it take a bulb or is one included?
It takes one standard E27 bulb up to 60W, and a bulb is not included. You can fit an LED lamp at the output you prefer, from a warm 2700K glow to a crisper 4000K white for a modern facade, and the slots pick up that colour.
Is it suitable for outdoors?
Yes. It is rated IP54, sealed against dust and splashing water, so it suits a porch, a carport or a patio wall. As with any outdoor fitting it should be wired by a qualified electrician.
How big is it and where does it suit?
It measures 250mm wide, 120mm tall and 130mm off the wall. The lit slots and up and down wash suit a doorway, a carport, a patio or a run along a boundary, where a little pattern is wanted alongside the light.
