Description

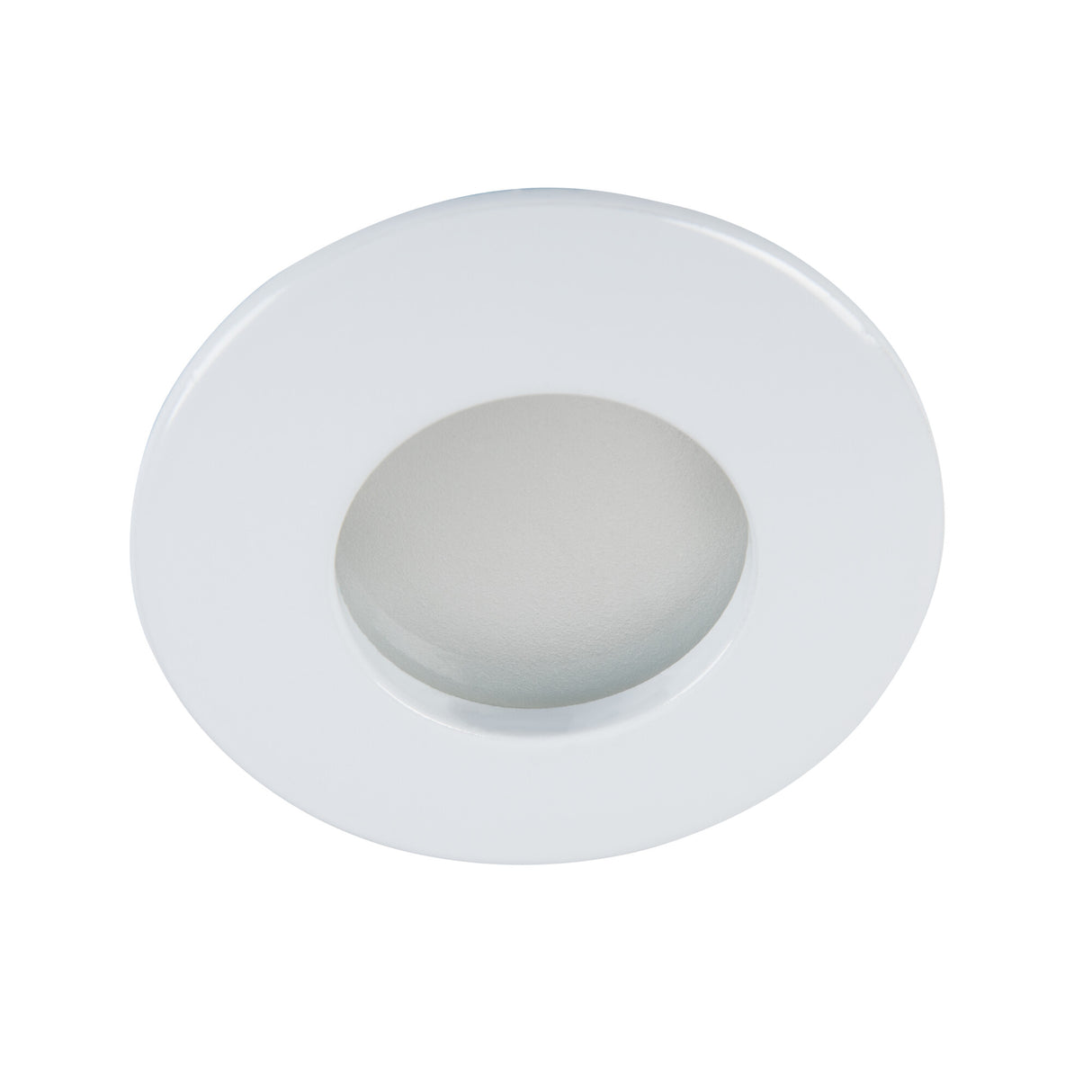

The Qules AC O-W is a round recessed downlight that drops into the ceiling to give a clean, flush finish with no visible housing. It takes a single GU10 lamp up to 10W, so the exact brightness, beam and colour temperature follow whichever PAR16 bulb you fit, which makes it easy to match to an existing scheme or change later. Running on 220 to 240V AC mains, it needs no separate transformer. US buyers will recognise the recessed format as a small can light, here sized for the compact GU10 fitting common across UK and European installations.
Measuring just 83mm across, the Qules suits rooms where a small, low-profile recessed point is wanted rather than a large fitting. Several units in a line or grid work well over a hallway, landing, kitchen run or bathroom, with spacing and lamp output chosen to set the level you need. Because the light it gives depends on the GU10 lamp you choose, coverage is best judged by the bulb's stated beam and lumen output rather than a fixed figure for the fitting. For ceiling-height planning, the recessed body sits within the void above, so check the depth clearance before fitting.
The body is aluminium alloy in a white finish, with an overall depth of 44mm and a weight of 178g. It carries an IP44/20 rating, which makes it splash-resistant and suitable for bathroom zones and covered, sheltered outdoor spots such as a porch or carport; keep it clear of fully exposed positions, direct water jets and submersion. The fitting recesses into the ceiling and holds the GU10 lamp directly, so dimming and colour temperature are set by the bulb. The Qules range includes matching fittings in the same finish for a consistent run across several rooms.
Specification
| Power |
max 10W |
| Voltage |
220-240 AC |
| IP rating |
IP44/20 |
| Mounting |
Recessed Mount In The Ceiling |
| Cap / base |
GU10 |
| Light source |
PAR16 |
| Shape |
Round |
| Dimensions |
Ø83 × 44 mm |
| Weight |
178 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
What size cut-out does it need?
The Qules has an overall diameter of 83mm, so the recessed body and the ceiling cut-out sit just inside that. Always cut to the figure on the supplied template rather than the overall trim diameter, as the trim laps over the edge of the hole. Check the 44mm depth clears any joists or wiring in the ceiling void before you cut.
Can I use it in a bathroom?
Yes, within the right zone. The IP44 rating makes it splash-resistant and suitable for sheltered bathroom areas, but it is not rated for direct water contact such as inside a shower enclosure. Confirm the correct bathroom zone for your installation before fitting.
Is it dimmable?
The fitting itself simply holds a GU10 lamp, so dimming depends entirely on the bulb you fit and the dimmer used. Choose a GU10 lamp marked as dimmable and pair it with a compatible trailing-edge LED dimmer for smooth control. A non-dimmable lamp will not dim regardless of the switch.
How do I clean it?
Switch off and let any lamp cool, then wipe the white trim with a soft, dry or slightly damp cloth. Avoid abrasive pads or harsh solvents, which can mark the aluminium finish over time. Take care not to disturb the lamp while cleaning around the trim.
