QTX Pixelator 144 RGB Pixel LED Effects Bar

£8699
RRP £8900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

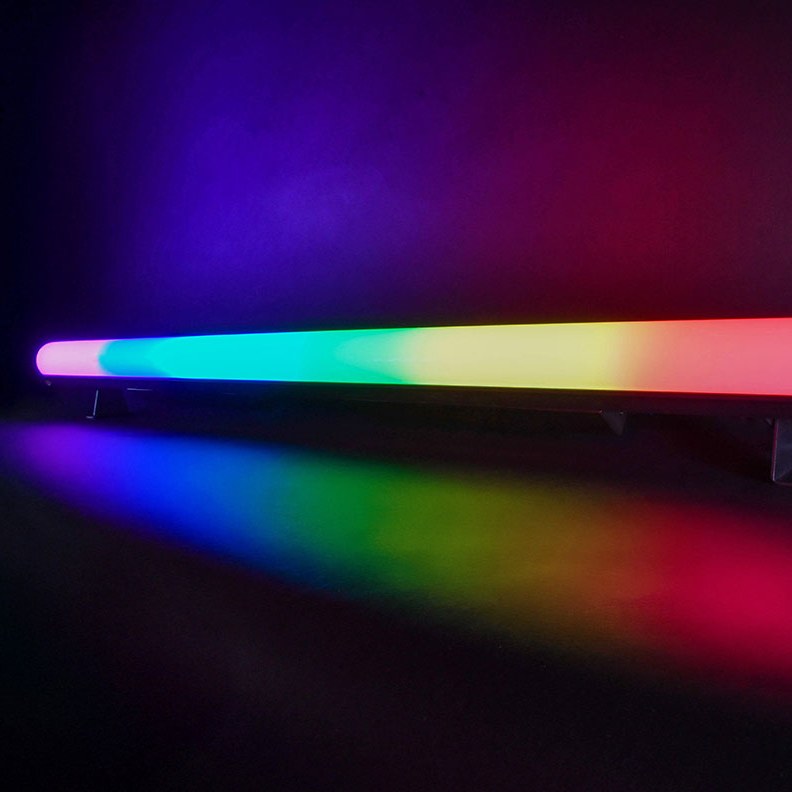

The QTX Pixelator is an LED effects bar fitted with 144 high output SMD5050 3-in-1 RGB LEDs, giving you a wide range of bright, colourful patterns, moving effects and washes. The LEDs are split across 12 independent control zones, so you can run chases and gradients along the length of the bar rather than a single flat colour. With a 90 degree beam angle, it covers a good spread whether you point it at a stage, a wall or a dancefloor.

You can run the Pixelator straight from the unit using automatic, show and sound-to-light modes, each of which can be tailored with speed, sensitivity and strobe settings. For fuller control, connect it via DMX (DMX512) in 3, 5, 8, 36 or 40 channel modes, and link multiple units together in master/slave or DMX to build a wider effect across a rig. The twist and lock power connections make in and out cabling secure and quick, and DMX runs on standard 3-pin XLR in and out.

It runs on 110-240Vac at 50/60Hz and draws 60W, so it sits happily alongside other fixtures without straining a supply. The bar measures 60 x 80 x 1010mm and weighs 1.54kg, making it easy to handle for a single person. It comes supplied with a twist and lock power lead and dual tilt-adjustable mounting brackets, so you can hang it, mount it on truss or stand it on the floor to suit the venue.

Specification
Power supply 110-240Vac, 50/60Hz
Power consumption 60W
LED : type 144Pcs SMD 5050 3IN1 RGB LEDs
DMX channels 3, 5, 8, 36 or 40CH
Beam angle 90°
Modes Auto, Show, Sound, Master/Slave, DMX
Connections Power in/out (twist and lock), DMX in/out (3pin XLR)
Dimensions 60mm x 80mm x 1010mm
Weight 1.54KG
Downloads

Product Manual

Frequently Asked

How many LEDs does the Pixelator have?

It has 144 SMD5050 3-in-1 RGB LEDs, arranged across 12 independent control zones for chases and moving effects.

What DMX channel modes are available?

You can run it in 3, 5, 8, 36 or 40 channel DMX modes, with DMX in and out on 3-pin XLR.

Can I control it without a DMX desk?

Yes. Automatic, show and sound-to-light modes run directly from the unit, with adjustable speed, sensitivity and strobe settings.

How do I mount it?

It comes with dual tilt-adjustable brackets for hanging, truss mounting or free-standing use.

Can I link several units together?

Yes. Connect multiple units in master/slave or DMX for a wider effect across your rig.

What are the power requirements?

It accepts 110-240Vac at 50/60Hz and consumes 60W, using twist and lock power in and out connections.
