QTX DuplexBar 48 x 3W RGBA Double LED Wall Bar

£13899
RRP £13900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

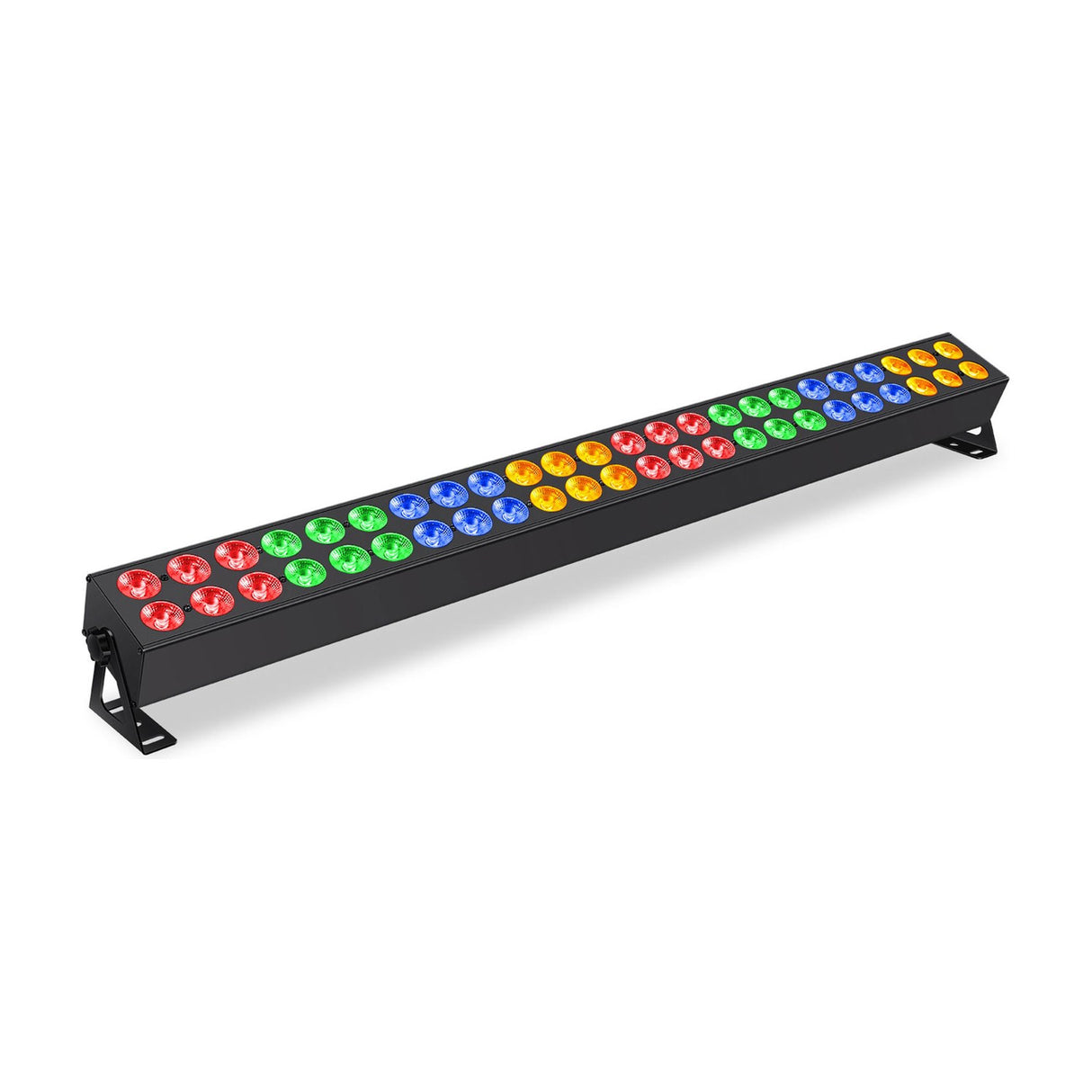

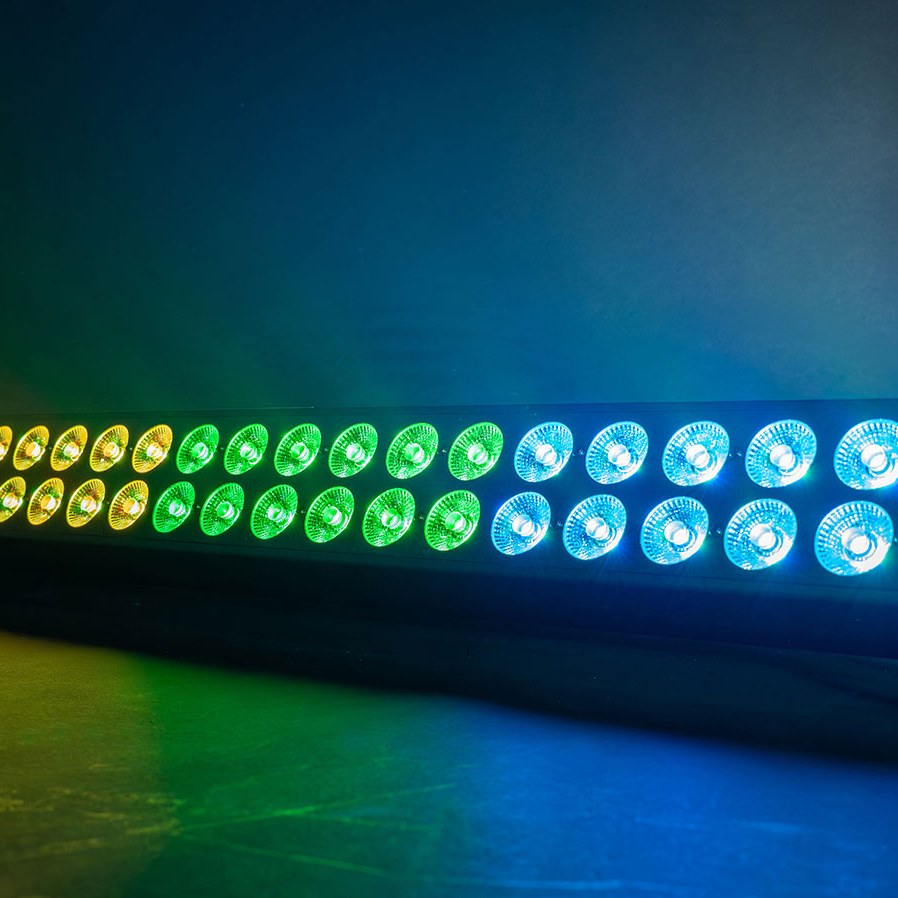

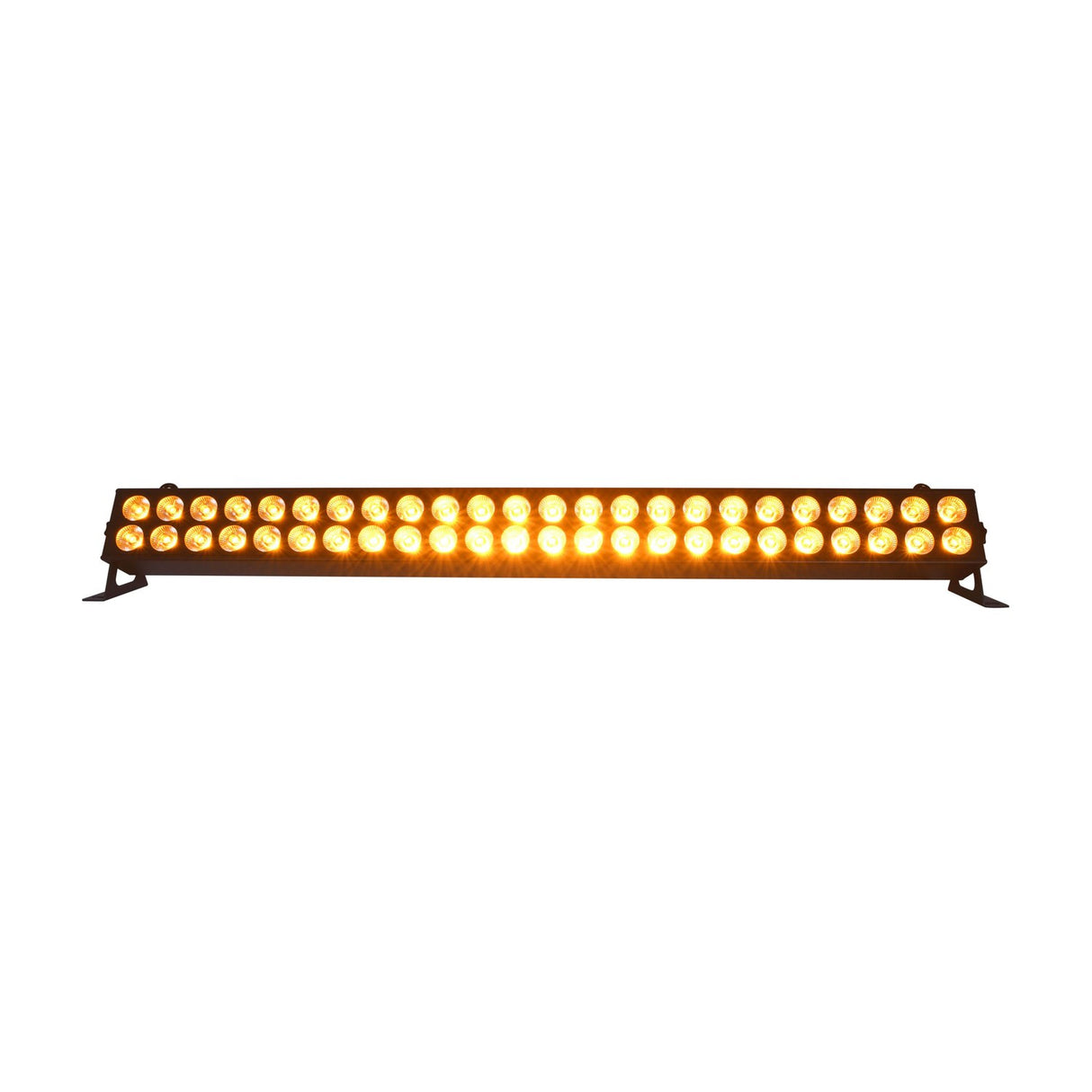

The QTX DuplexBar is an LED beam and effects bar built around 48 high output RGBA 3W LEDs, arranged in two rows of 24. It puts out colour washes and moving patterns across walls, ceilings or floors, and the four-in-one RGBA chips are capable of producing up to 16.7 million colours. With two rows working independently, you get more depth and layering than a single strip of the same length.

Control is flexible. You can run the bar from preset internal colour sequences using auto or sound activated modes, or set static colours by hand in manual mode. Two sound to light modes react to the room, with microphone sensitivity adjustment so you can tune how it responds to music. For fixed shows, automatic and show modes can be tailored with extra speed and strobe settings. When you want full control, DMX (the standard lighting protocol) runs in 4, 6, 9, 32 or 36 channel modes, and units can be linked in master/slave.

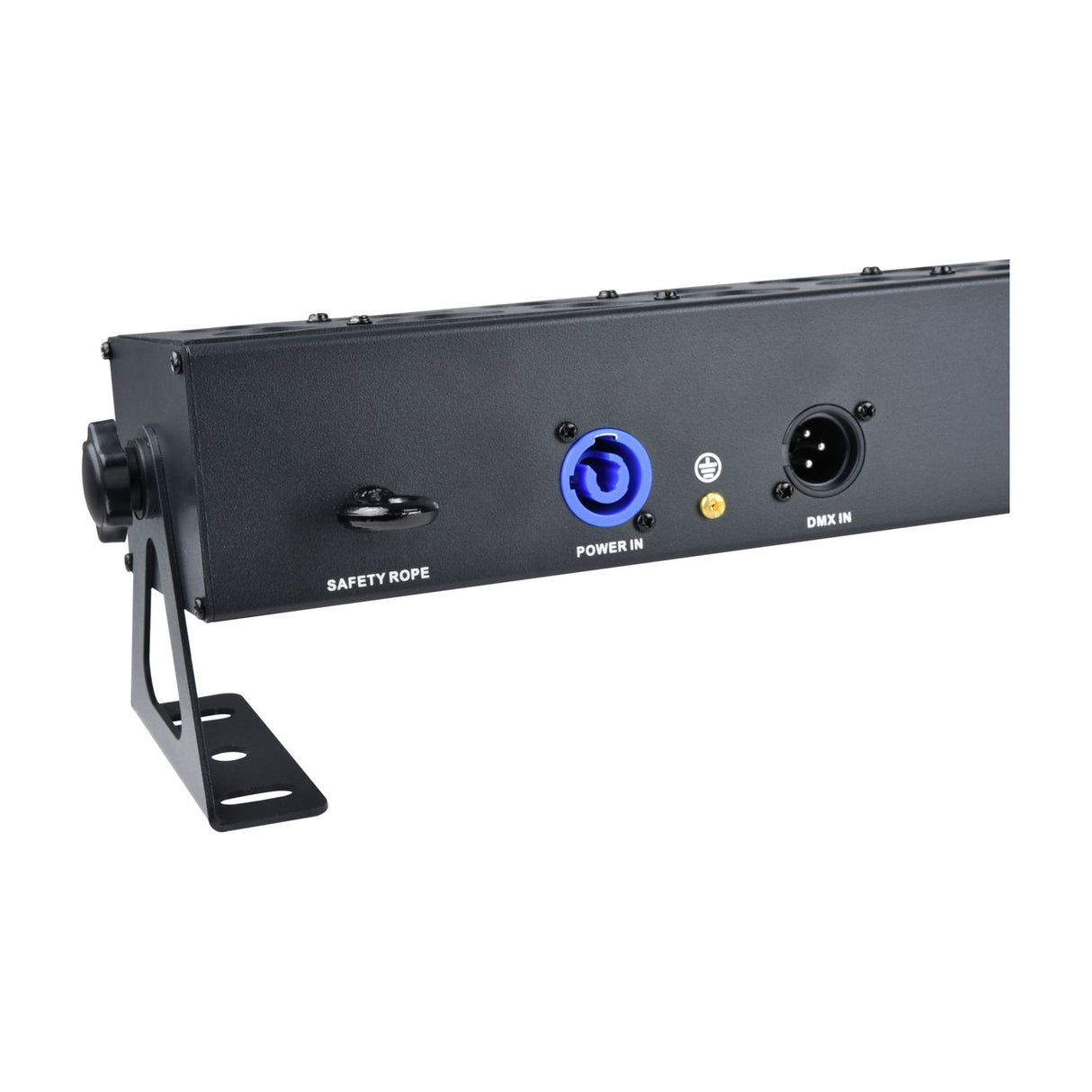

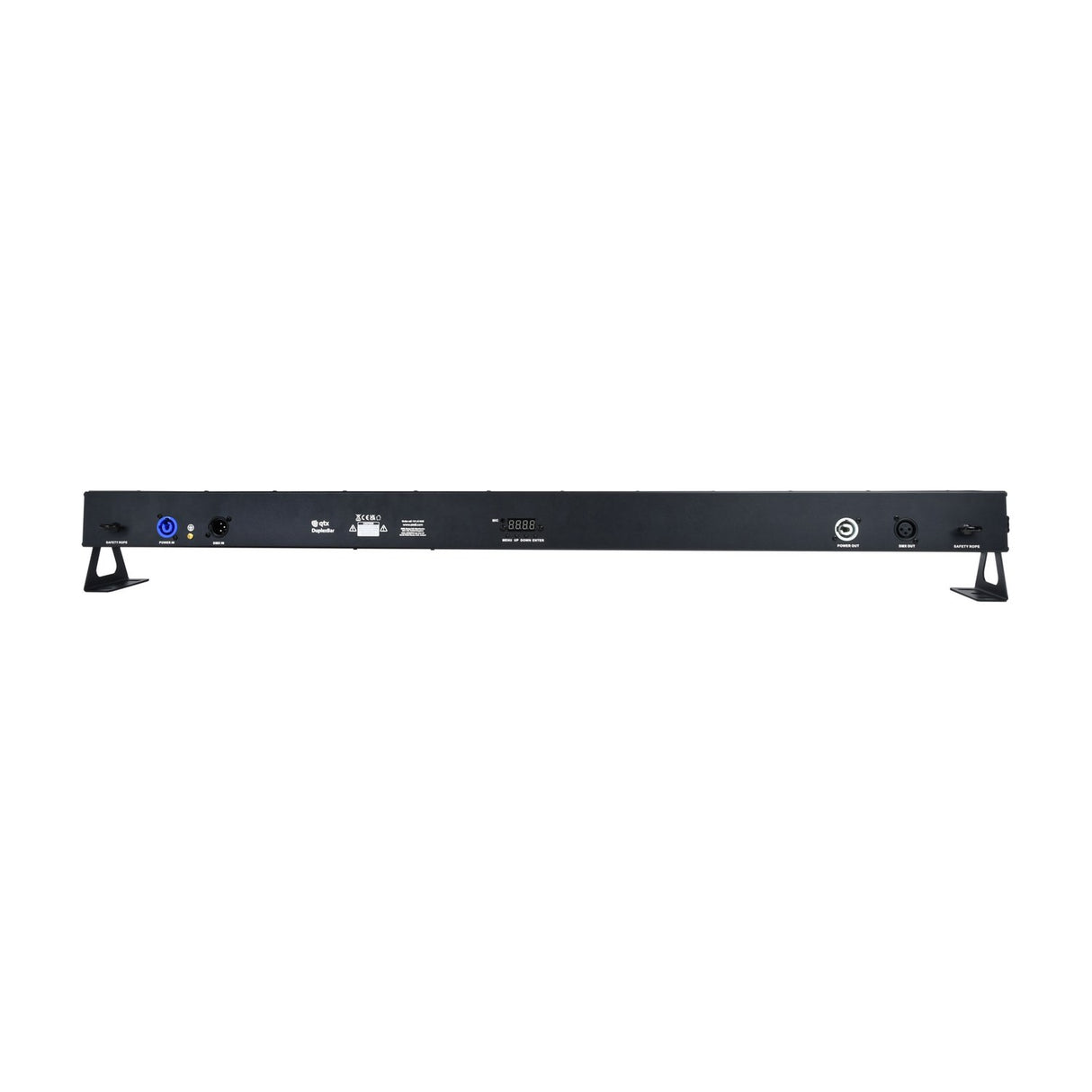

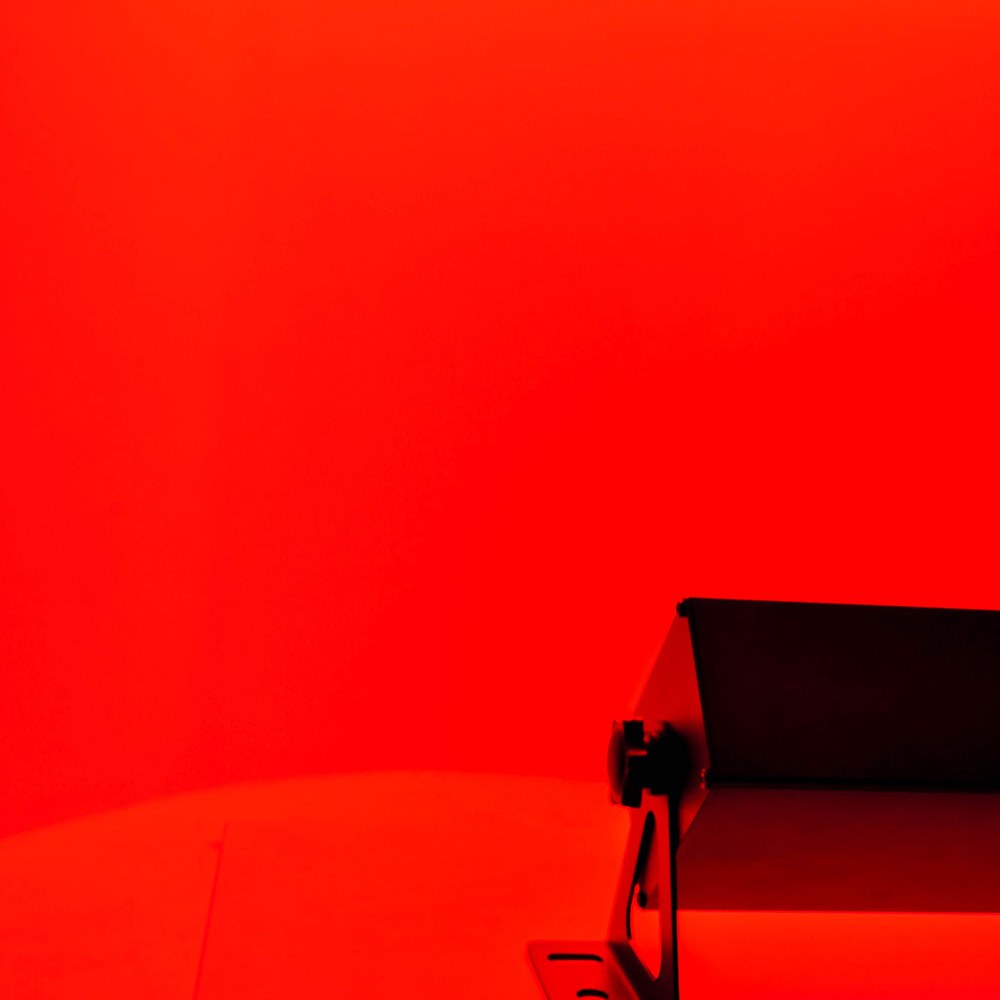

Connections cover power in and out on twist and lock sockets and DMX in and out on 3-pin XLR, so you can chain several bars from one feed. It runs on 110-240Vac and draws 120W, with a 25 degree beam angle for a defined spread. The bar measures 62 x 90 x 1000mm and weighs 2.75kg. Tilt-adjustable wall mount and floor standing brackets are supplied, so you can fix it to a wall or ceiling or stand it on the floor for uplighting.

Specification
Power supply 110-240Vac, 50/60Hz
Power consumption 120W
LED : type 48x 3W RGBA 4-in-1 LEDs
Beam angle 25°
Modes Auto, Show, Sound, Master/Slave, DMX512
DMX channels 4, 6, 9, 32 or 36CH
Connections Power in/out (twist and lock), DMX in/out (3pin XLR)
Dimensions 62mm x 90mm x 1000mm
Weight 2.75KG
Downloads

Product Manual

Frequently Asked

How many LEDs does the DuplexBar have?

It has 48 high output RGBA 3W LEDs, arranged in two rows of 24 that can be controlled independently.

What DMX modes are available?

You can choose 4, 6, 9, 32 or 36 channel DMX modes, so you can match the level of control to your desk and setup.

Can I use it without a DMX controller?

Yes. It runs auto, show and two sound activated modes from preset internal colour sequences, plus a manual mode for static colours and master/slave linking.

How do I mount it?

It comes with tilt-adjustable wall mount and floor standing brackets, so you can fix it to a wall or ceiling or stand it on the floor.

What connections does it use?

Power in and out on twist and lock sockets, and DMX in and out on 3-pin XLR, so multiple bars can be daisy-chained.

What are the dimensions and weight?

The bar measures 62 x 90 x 1000mm and weighs 2.75kg.
