Description

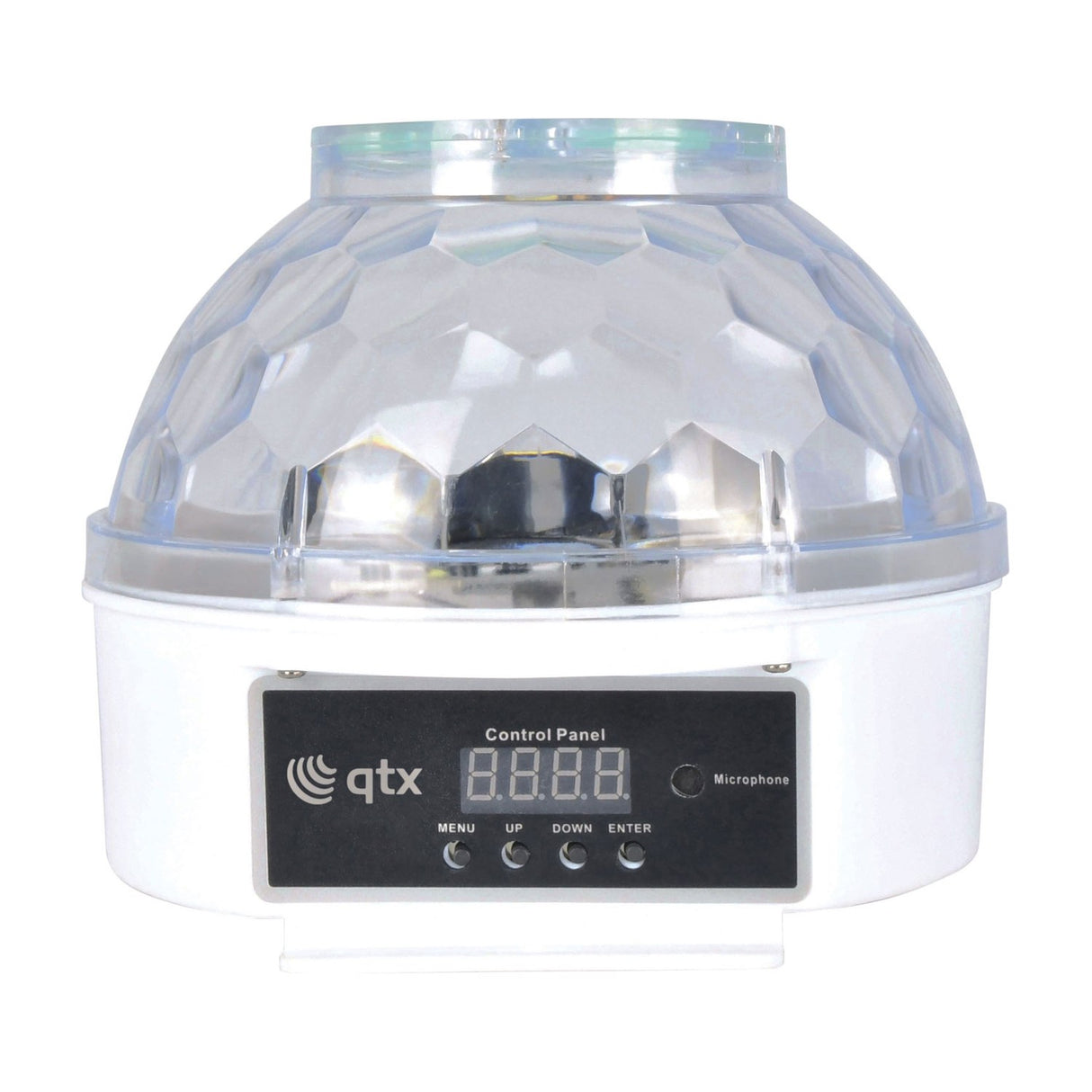

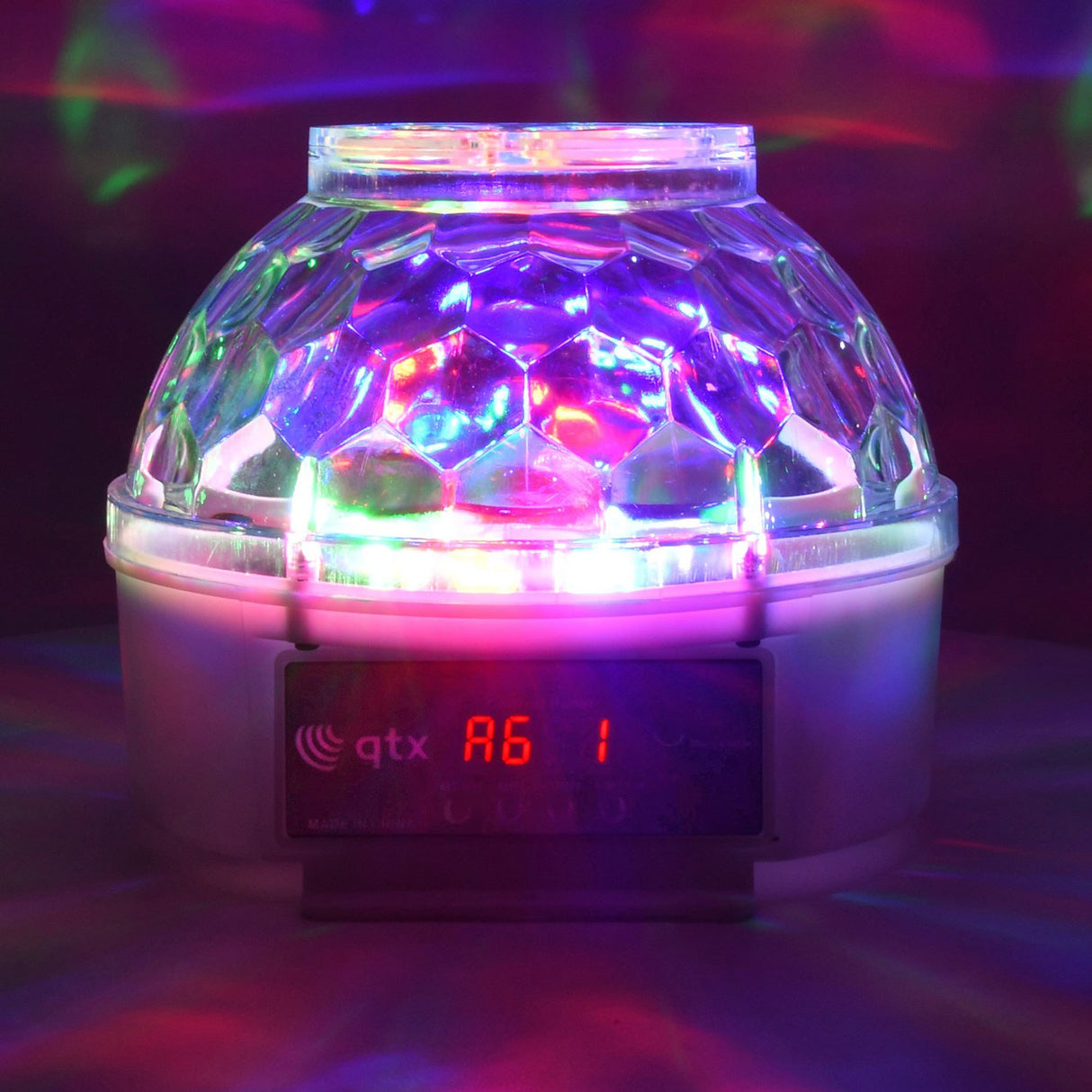

The QTX Crystal Blaze is a tabletop LED light effect built around eight 3W RGBW LEDs. These produce coloured beams and four GOBOs, which are sent through a rippled dome to spread bright, colourful patterns over a wide area. It is a simple unit that does a useful job, throwing multicoloured light across a room without taking up much space.

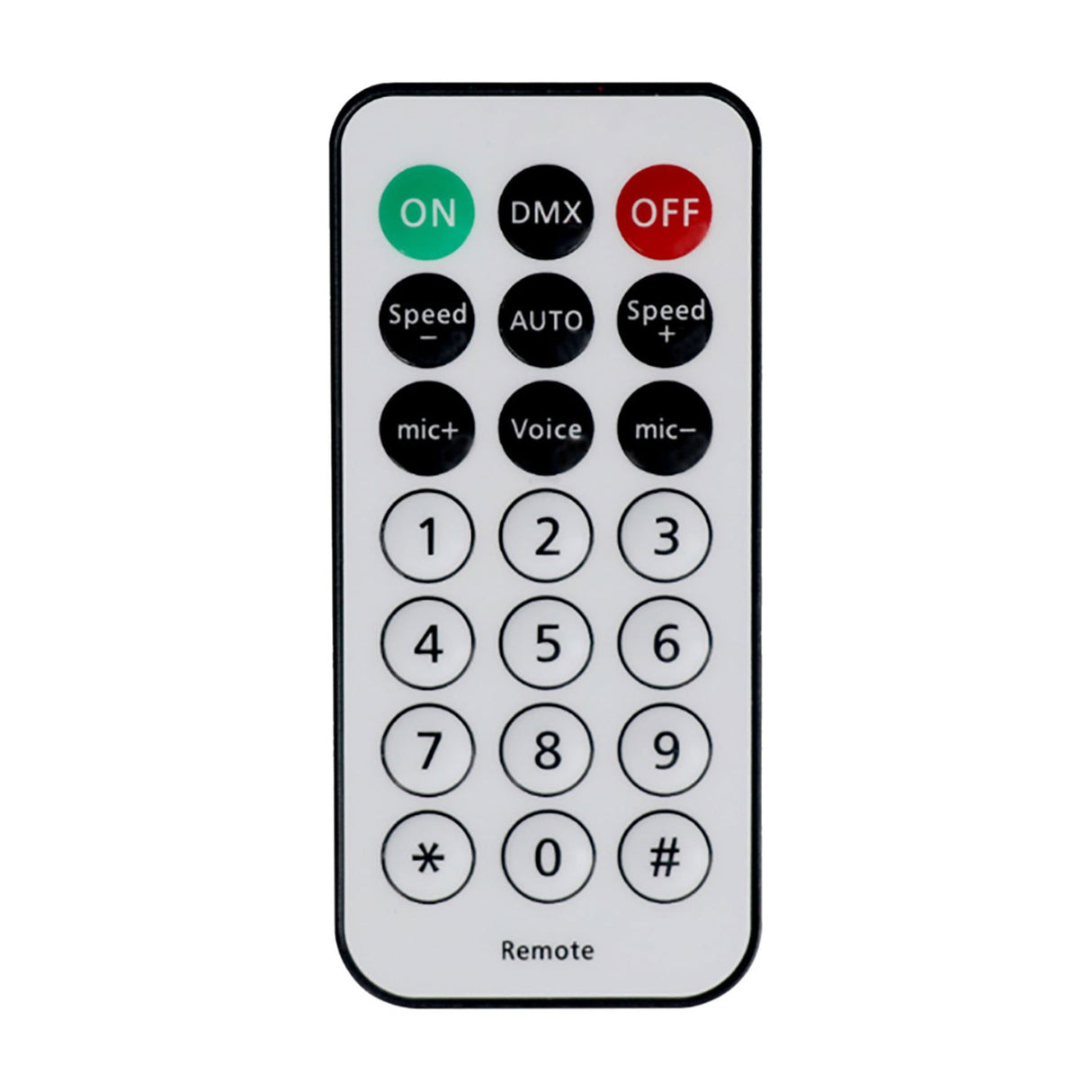

You get three ways to run it. Auto mode cycles through effects on its own, sound to light reacts to the music, and you can also pick a fixed colour when you want something steadier. Control is handled by the buttons on the unit, the supplied RF remote, or 8 channel DMX if you want to tie it into a wider rig. The remote takes a CR2025 battery, which is included in the box.
At 190 x 190 x 175mm and 640g, the Crystal Blaze sits neatly on a table or shelf and is easy to carry between jobs. It draws 30W from a 100-220Vac supply and connects over 3-pin XLR for DMX in and out, so you can chain several units together in master/slave. It suits smaller venues, home discos and parties where you want plenty of colour and movement from one compact effect.
Specification
| Power supply |
100-220Vac, 50/60Hz |
| Power consumption |
30W |
| LED : quantity |
8 x 3W RGBW |
| DMX channels |
8CH |
| Modes |
Auto, Sound, DMX, Master/Slave |
| Connections |
DMX in/out (3pin XLR) |
| Remote : battery |
CR2025 (supplied) |
| Dimensions |
190mm x 190mm x 175mm |
| Weight |
0.64KG |
| Fuse rating |
F3A |
Downloads
Product Manual
Frequently Asked
How do I control the Crystal Blaze?
You can use the buttons on the unit, the supplied RF remote control, or an 8 channel DMX signal. There is also a master/slave option for linking units.
What running modes does it have?
It offers Auto, Sound to light, DMX and Master/Slave modes, plus a fixed colour selection when you want a steady output.
Does it come with a remote control?
Yes, an RF remote is included along with the CR2025 battery it needs.
How many GOBOs does it project?
It projects four GOBOs, combined with the RGBW beams through a rippled dome to create patterns over a wide area.
Can I link more than one unit together?
Yes. Using the DMX in/out on 3-pin XLR, you can chain units in master/slave so they run in sync.
Is it suitable for home use?
It is well suited to smaller venues, home discos and parties, being compact at 190 x 190 x 175mm and weighing just 640g.
