Description

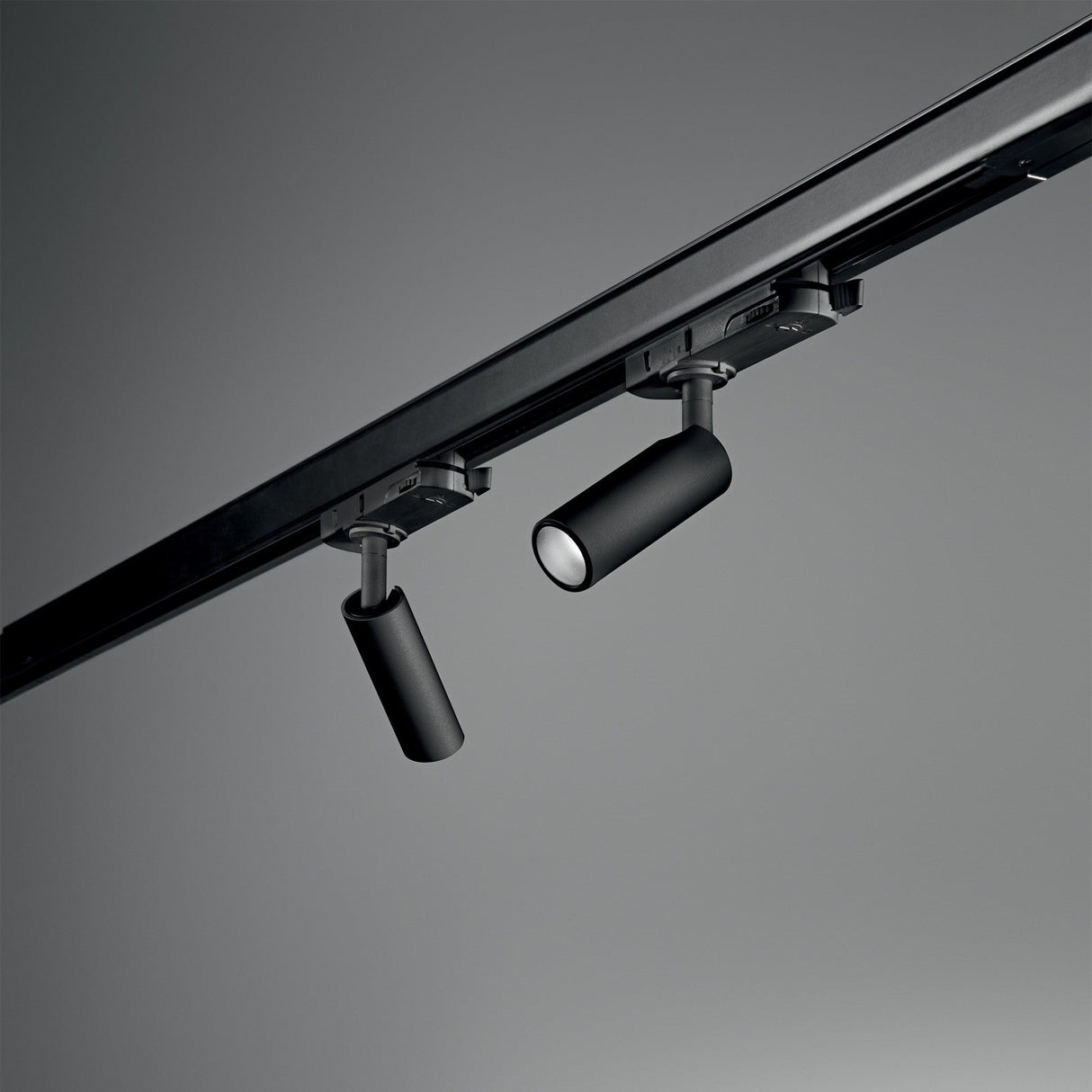

The Play is a small orientable spotlight that clips onto a three-phase track and puts a tight circle of light exactly where you aim it. The head swivels on its base so the beam can follow a picture, a product on a shelf or a run of artwork, and it slides along the rail to sit wherever it is needed. Lit, it reads as a precise pool of warm 3000K light; unlit, the compact white body sits neatly against a pale ceiling.

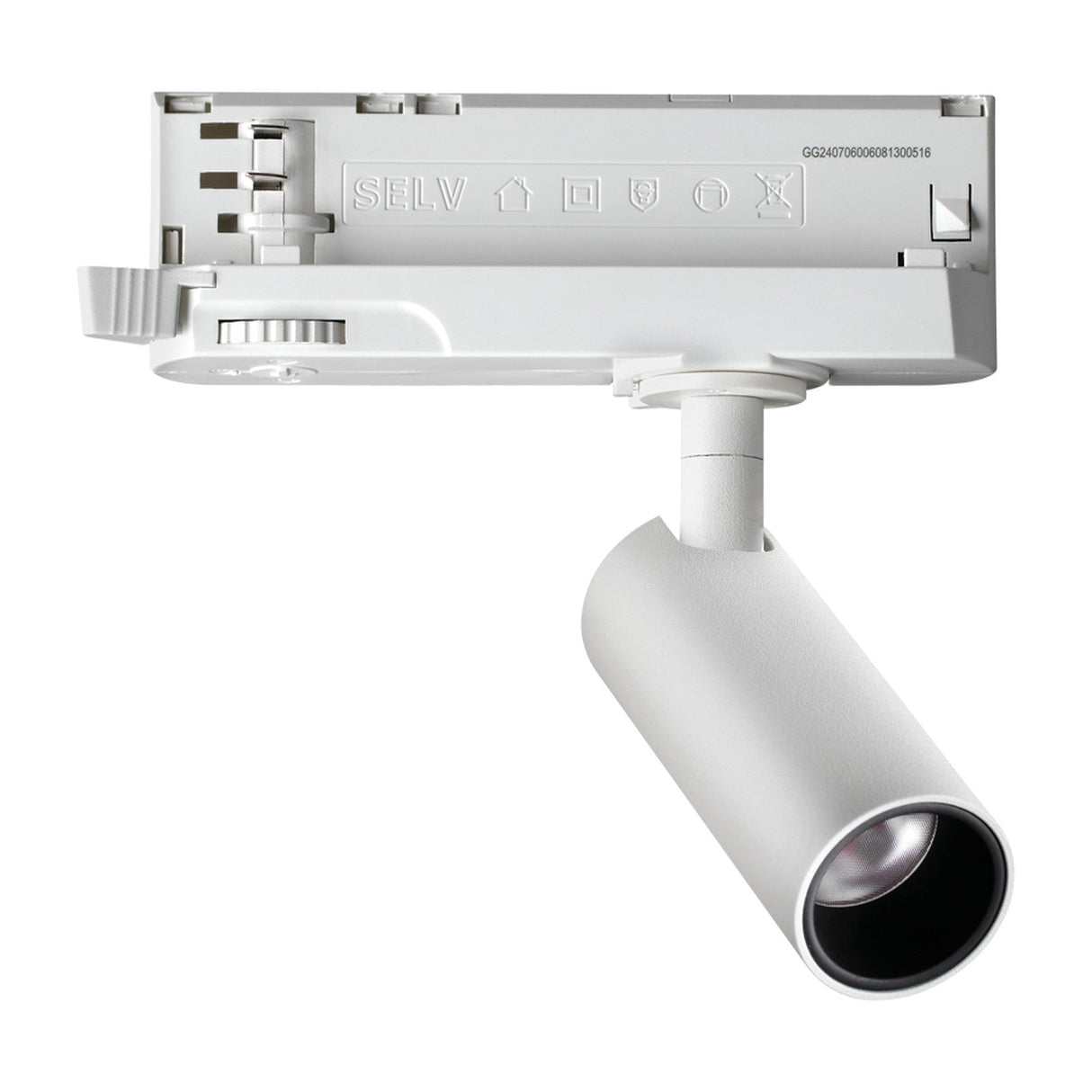

This is the 7W head in white, its die-cast aluminium body carrying a black rear cover and a black inner ring at the front, which shades the source and keeps glare off the eye. It draws 520 lumens through a narrow 16 degree beam, with a colour rendering index above 90 so tone stays true on whatever it lights, and a knurled clear acrylic diffuser sharpens the beam. At 128mm long and 164mm tall it is small enough to run several along a rail, each aimed at a separate target, which makes it a tidy way to accent shelving, art or a display run.
The source is a built-in LED rated to 50,000 hours, so there is no bulb to fit or replace. It runs at a fixed output from the three-phase track and carries an IP20 rating for dry indoor rooms. It needs a live three-phase track to seat on, which we can supply alongside with the feeds and connectors.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 7W total (520lm, 3000K, CRI>90, 50,000h, included) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
520lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
16 degrees |
| Length |
128mm |
| Height |
164mm |
| Projection |
47mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off) |
| Control |
On-off, via track circuit |
| Mounting |
Three-phase track |
| Adjustment |
Orientable head, swivels |
| Frame / Structure finish |
White powder-coated die-cast aluminium, black rear cover and inner ring |
| Diffuser / Glass |
Knurled clear acrylic diffuser |
| Materials |
Die-cast aluminium body, acrylic diffuser |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Play spotlight give?
One precise beam of warm 3000K light with a colour rendering index above 90, so colours stay true. This head runs a tight 16 degree spread and draws 520 lumens at 7W, placing a small pool exactly on a picture or a product. The orientable body swivels to aim the beam.
Does it use a bulb?
No. The LED is built in and included, rated to 50,000 hours, so there is nothing to source or replace. The head clips onto a three-phase track and lights from the rail once seated.
Can it be dimmed?
No. The 7W head runs at a fixed 3000K output on the track circuit and is not dimmable. For dimming, the 13W Play head takes an optional DALI or push control. We are happy to advise before you order.
What does it look like and where does it suit?
A compact white head 128mm long and 164mm tall, with a black rear cover and inner ring that shade the source. The tight 16 degree beam suits shops, galleries and studios wanting precise accent light on shelving or art. Rated IP20, it is for dry indoor rooms.
