Description

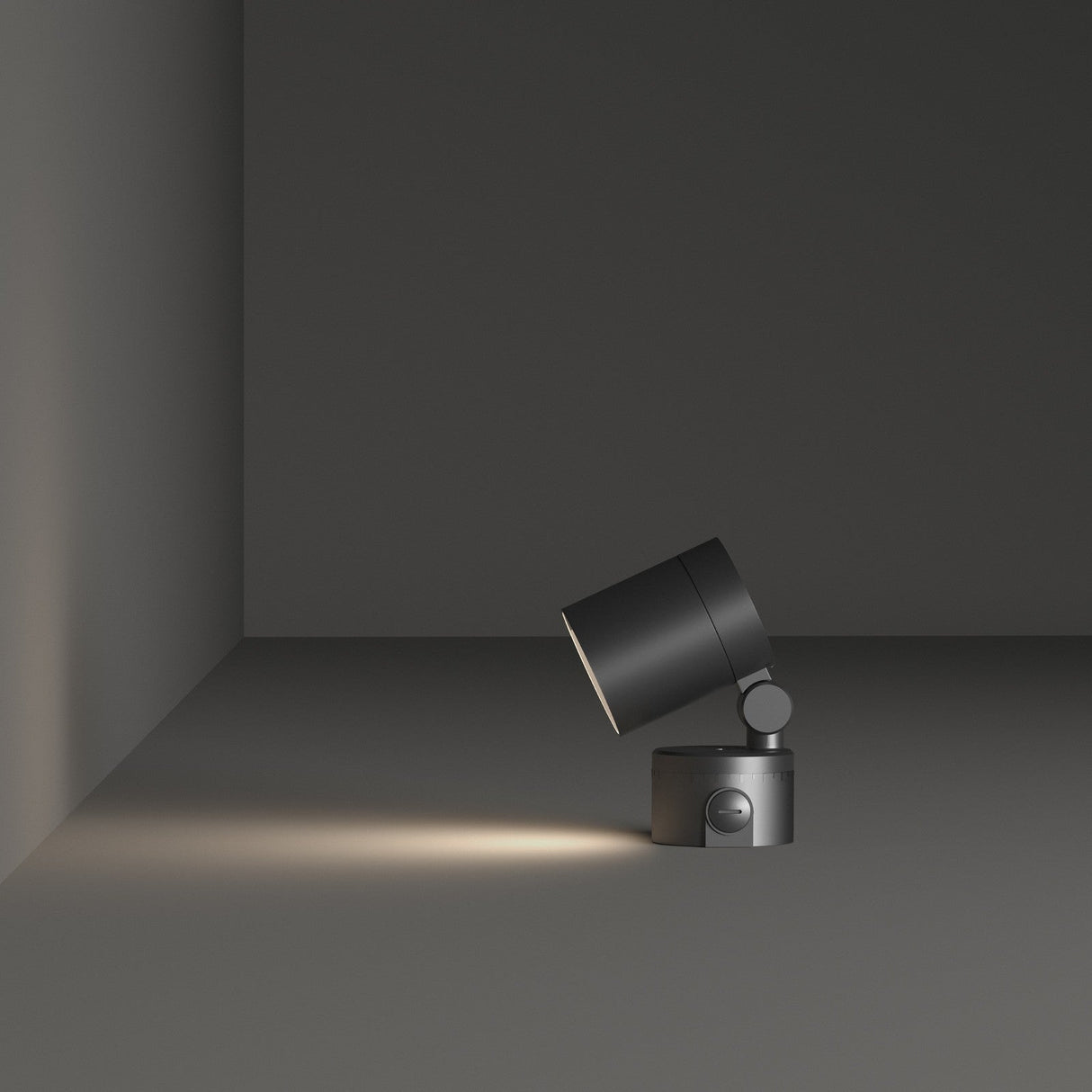

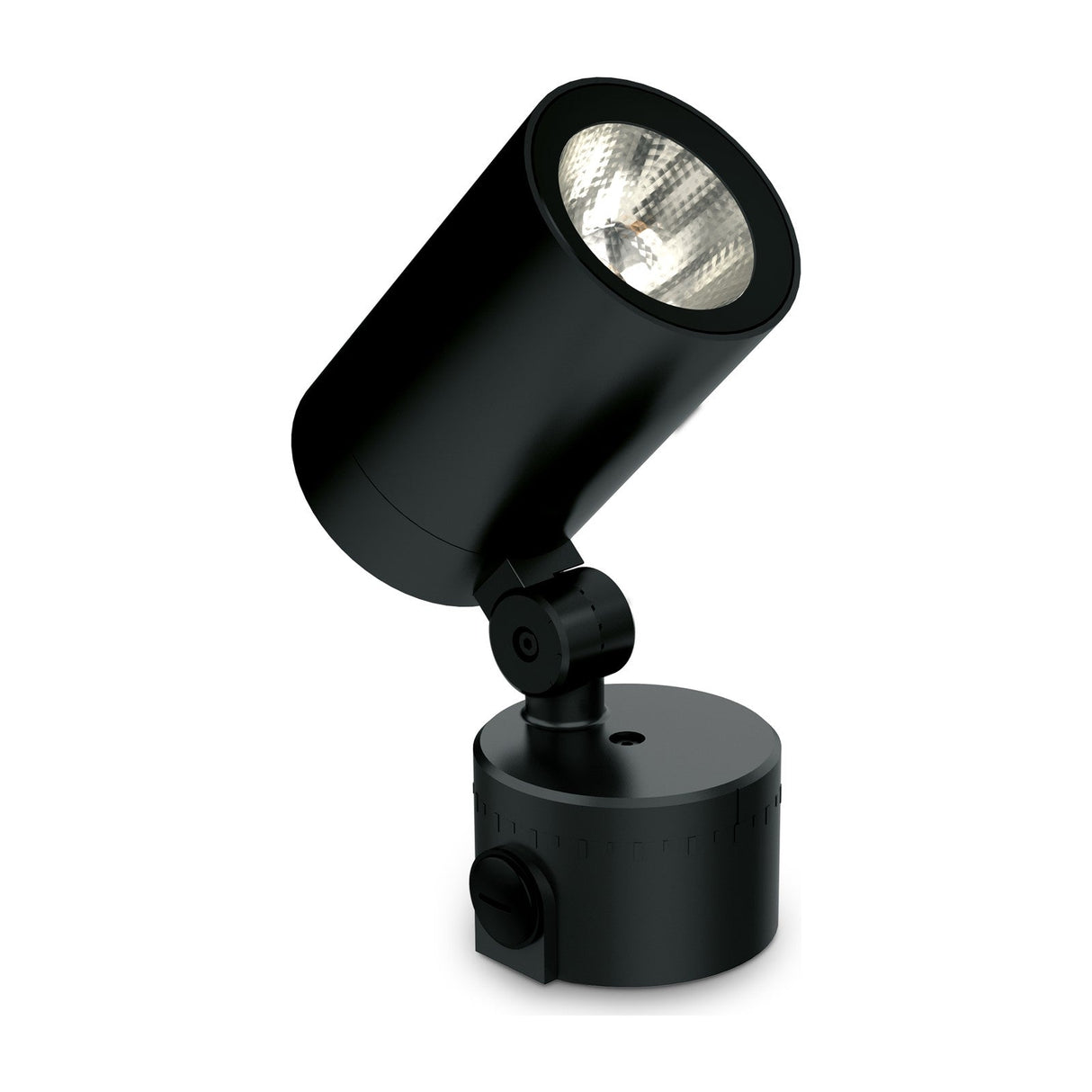

The O-Zone is an adjustable outdoor spotlight on a wall bracket, built to aim a strong directed beam at a facade, tree or feature rather than flood a whole space. The head swings on its bracket so the light can be set up a tall wall, down over an entrance or across a planted area, and the adjustable glass diffuser directs the output where it is wanted. Lit, it reads as a firm warm 3000K wash on the surface; off, the squared black body sits neatly on its bracket and holds a low profile.
This is the larger of the two O-Zone projectors, with an integrated LED running 19W for about 1700 lumens and a colour rendering above 90, so brick, render and foliage keep their true colour after dark. The extra output gives it more reach up a taller elevation or a longer throw across a garden, and it pairs with the smaller 13W head for nearer targets, which suits building facades, feature trees and larger walls.
The body is powder-coated die-cast aluminium in black with a clear tempered-glass diffuser, and the fitting is rated IP66 for driving rain and washdown. The LED module is built in and rated to 50,000 hours, so there is no bulb to fit or replace. We supply it with the adjustable wall bracket ready to mount on a suitable outdoor supply.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 19W total (50,000h) |
| Luminous flux |
1700 lumens |
| Colour temperature |
3000K (warm white) |
| CRI |
Ra > 90 |
| Length |
84mm |
| Height |
184mm |
| Projection |
132mm |
| IP rating |
IP66 |
| Dimmable |
No |
| Mounting |
Adjustable wall bracket |
| Adjustment |
Head tilts on the bracket; adjustable diffuser |
| Frame / Structure finish |
Black die-cast aluminium |
| Materials |
Die-cast aluminium, tempered glass diffuser |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the O-Zone 19W give?
One adjustable beam of warm 3000K light at about 1700 lumens, with a colour rendering above 90. It is a directed spotlight, so it washes a facade, uplights a tall tree or picks out a feature rather than flooding the whole garden.
How does it compare with the 13W O-Zone?
It is the larger head. The 19W gives about 1700 lumens for a taller facade or a longer throw, while the 13W gives 1100 lumens for a moderate wall or a single specimen. We would pair them where a scheme mixes near and far targets.
Is it suitable for full outdoor exposure?
Yes, it is rated IP66 in powder-coated die-cast aluminium with a tempered-glass diffuser, so it withstands driving rain on an exposed elevation. It runs from a suitable outdoor mains supply.
Does it use a bulb?
No, the LED is built in and rated to 50,000 hours, so there is nothing to fit or replace. It arrives with the adjustable wall bracket ready to mount and wire.
