Description

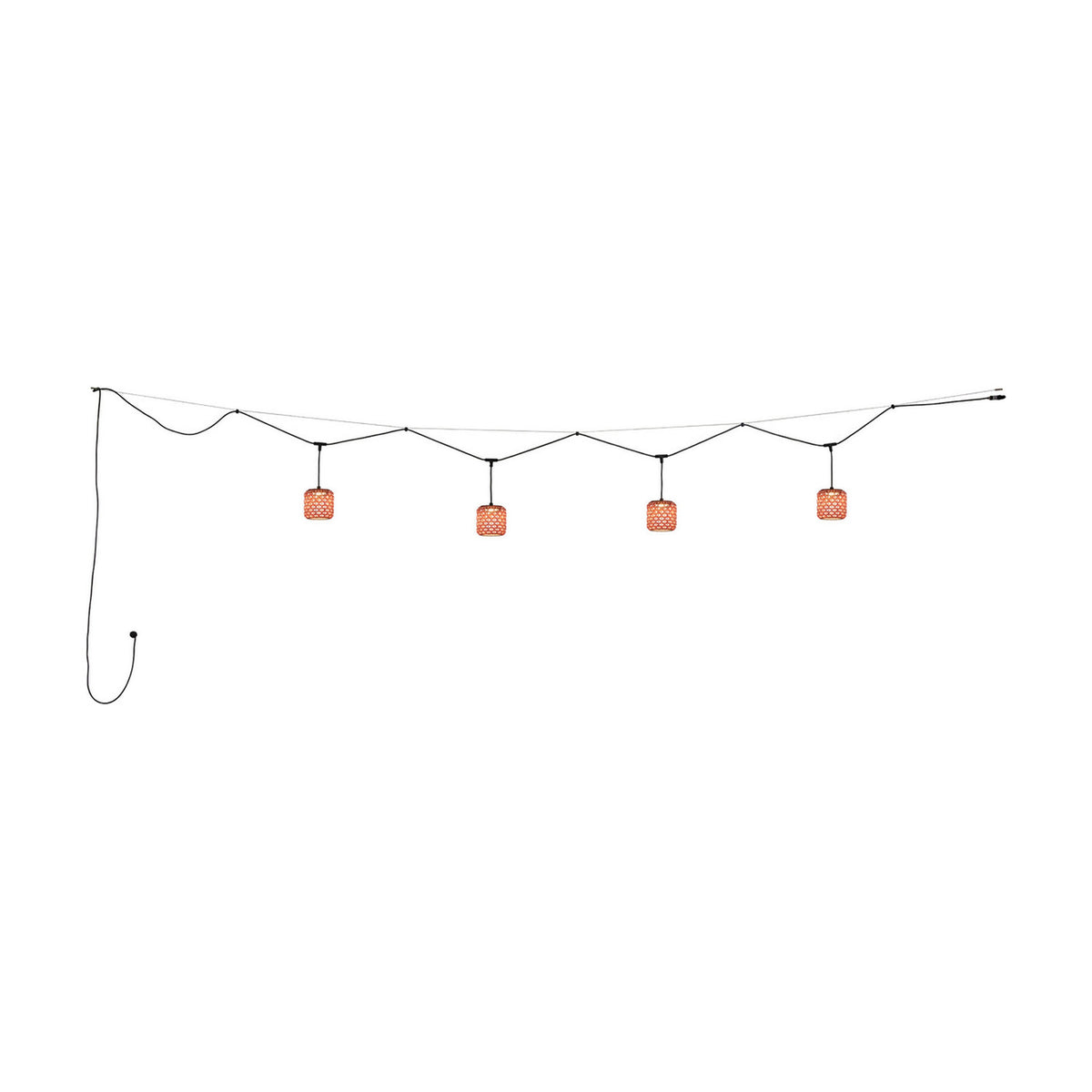

The Nans Catenary S/16/4L is an outdoor pendant light with four small woven shades hung from one cable that runs in a gentle zigzag, like a line of lanterns. Each shade is a neat cylinder 16.5cm tall and 16.7cm across, in Red (with Orange and Beige) synthetic fibre on a Graphite Brown structure. The light is integrated LED, so there is no bulb to buy or change. Its LED power is 32W and it gives 1140 lumens of warm 2700K light with a CRI of 90, so food, faces and planting keep their true colour.
Rated IP54, it is made for outdoor use, so it is a natural fit over a dining table on a patio, along a terrace or strung across a garden where you sit out on summer evenings. It works indoors too, in a long dining room or a generous living room where one fitting needs to light a wide table or seating area. The run is 500cm long, with the shades spaced 100cm apart, end spans of 50cm and 100cm, and drops of 70cm and 83cm, so the lanterns hang at slightly different heights along the line. A tensor 400cm long runs from each end.
The structure is stainless steel and aluminium, finished in Graphite Brown, and the shades are synthetic fibre, with an open weave that lets the light through each one. It is a Class I fitting that runs at 230V, and it plugs in, so there is no hardwiring to arrange. Before you order, measure the stretch you want to cover: the 500cm run, with a 400cm tensor at each end, will tell you whether it fits between your two points. It has a plug on its cable, and we include a UK adaptor in the box, so it is ready for a UK socket. Outdoors, the plug and the adaptor must sit in a covered, weatherproof outdoor socket.
Specification
| Structure |
Graphite Brown |
| Shade |
Red (with Orange and Beige) |
| Material |
Stainless steel, Aluminium & Synthetic fibre |
| Length |
500cm |
| End Span |
50cm and 100cm |
| Drop |
70cm and 83cm |
| Spacing |
100cm |
| Tensor Each End |
400cm |
| Shade Height |
16.5cm |
| Shade Diameter |
16.7cm |
| Light Source |
Integrated LED |
| LED Power |
32W |
| Luminous Flux |
1140lm |
| Colour Temperature |
2700K |
| CRI |
90 |
| Power |
Plug-in |
| Voltage |
230V |
| IP Rating |
IP54 |
| Protection Class |
Class I |
| Lead time |
Made to order, usually delivered in 4 to 8 weeks |
Frequently Asked
Can the Nans Catenary S/16/4L be used outside?
Yes. It is rated IP54 and made for outdoor use, so it suits a patio, a terrace or a garden as well as a dining room or living room.
Does it need bulbs?
No. The light source is integrated LED with an LED power of 32W, giving 1140 lumens of warm 2700K light with a CRI of 90.
How long is the catenary and how far apart are the shades?
The run is 500cm long with the shades spaced 100cm apart. The end spans are 50cm and 100cm, the drops are 70cm and 83cm, and there is a 400cm tensor at each end.
What size and material are the shades?
Each shade is 16.5cm tall and 16.7cm across, woven in synthetic fibre in Red (with Orange and Beige), on a Graphite Brown structure of stainless steel and aluminium.
How is it powered?
It plugs in and runs at 230V. It is a Class I fitting, so there is no hardwiring to arrange before you can use it.
How long will it take to arrive?
It is made to order for you, so it is usually delivered in 4 to 8 weeks.
