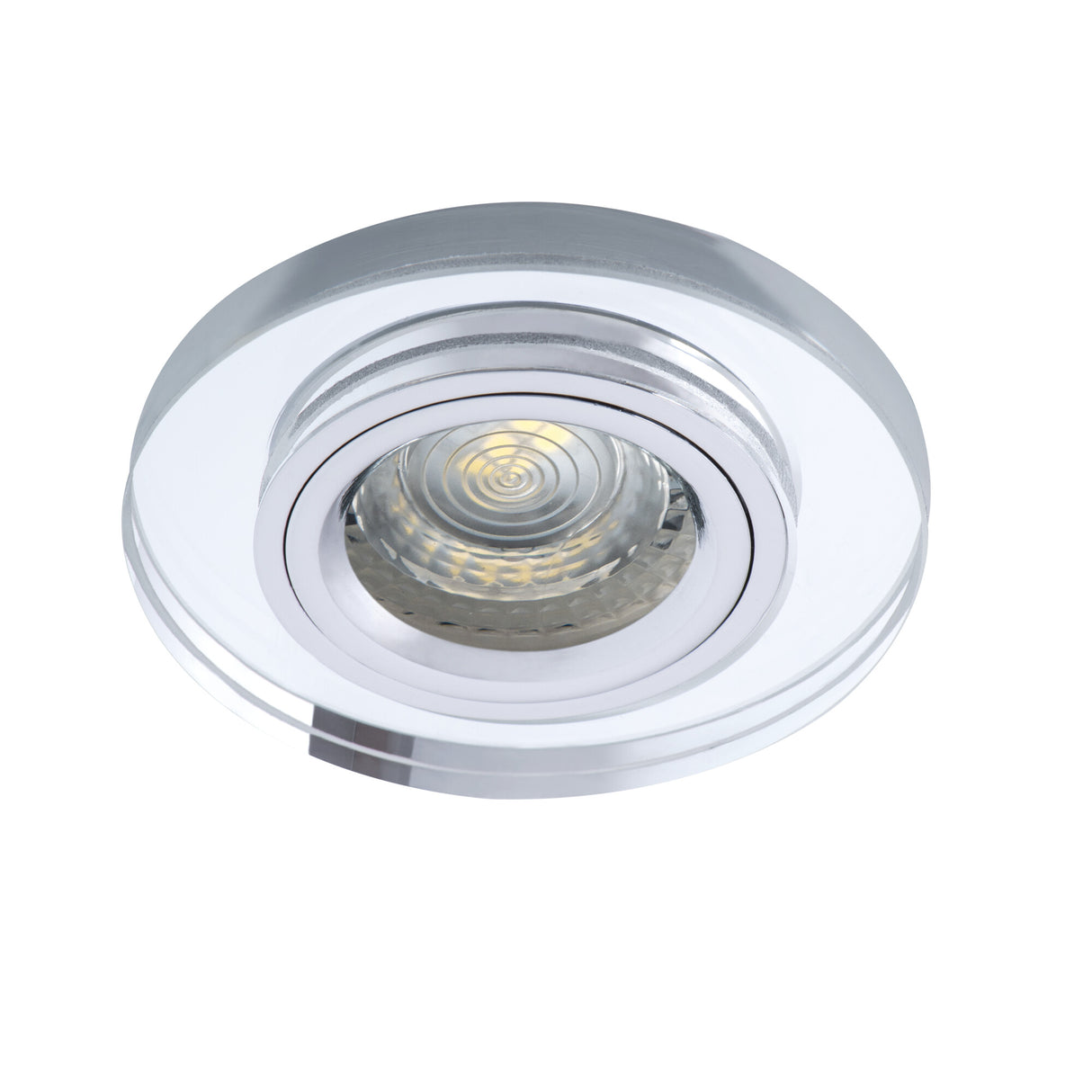

MORTA SR Round MR16 Recessed Downlight - Silver

The MORTA SR is a round recessed downlight that drops flush into the ceiling, taking a single MR16 reflector lamp on a Gx5.3 cap. It runs at low voltage, accepting either 12V AC or 12V DC supply, and carries a lamp rated up to 10W. In US terms this is the recessed can light format, here scaled to a compact trim measuring 90mm across so it reads as a neat point of light rather than a bulky housing. The MR16 source lets you choose the beam and output to suit, with the fitting providing the surround and ceiling fixing.

The MORTA SR suits indoor rooms where a clean, low-profile downlight is wanted, such as hallways, landings, kitchens and living spaces, and works well in runs to wash a ceiling evenly. Because output depends on the MR16 lamp fitted rather than an integrated panel, the light it gives covers more or less area depending on the bulb you choose, so plan spacing around the beam angle of that lamp and your ceiling height. Lower ceilings benefit from a wider-beam MR16 to keep coverage even, while taller rooms can use a tighter beam for accent. It is an IP20 fitting, so keep it to dry indoor positions and clear of bathrooms, porches and any damp or exposed location.

Build is a round glass trim in a silver finish, giving a slim 28mm depth above the ceiling line and a light weight of 134g. The downlight recesses into the ceiling via the standard cut-out for this size, with the MR16 lamp seating on the Gx5.3 holder behind the trim. Low-voltage operation means it pairs with a 12V supply, so factor a suitable transformer or driver for the lamp rated to the 10W maximum. Dimming follows whatever the chosen MR16 lamp and its transformer support. The silver glass face sits neatly against most ceiling colours and keeps the fitting unobtrusive once installed.

What size cut-out does it need?

The MORTA SR has an overall trim diameter of 90mm, which is the visible face at the ceiling. The recessed hole, or cut-out, sits just inside this, so measure to the trim and cut a clean round aperture that the body drops into with the trim sitting flush. Allow for the 28mm depth above the ceiling and clearance for the lamp behind it.

Is the MR16 lamp included?

No, the downlight is supplied as the fitting with a Gx5.3 holder for an MR16 lamp, so you choose the LED MR16 to suit your beam angle, output and colour temperature. Pick one rated up to the 10W maximum for this fitting. Buying the lamp separately lets you set the exact look you want.

Does it need a transformer?

Yes, it runs at low voltage on 12V AC or 12V DC, so it needs a suitable transformer or driver between the mains and the fitting. Match the transformer to the MR16 lamp you fit and to the 10W rating. Use one rated for LED loads to avoid flicker or minimum-load issues.

How do I clean the fitting?

Switch off and let the lamp cool, then wipe the silver glass trim with a soft, dry or barely damp cloth. Avoid abrasive cleaners and solvents that could mark the finish, and do not let moisture reach the lamp holder. A gentle wipe now and then keeps the glass clear and the light output consistent.
