Description

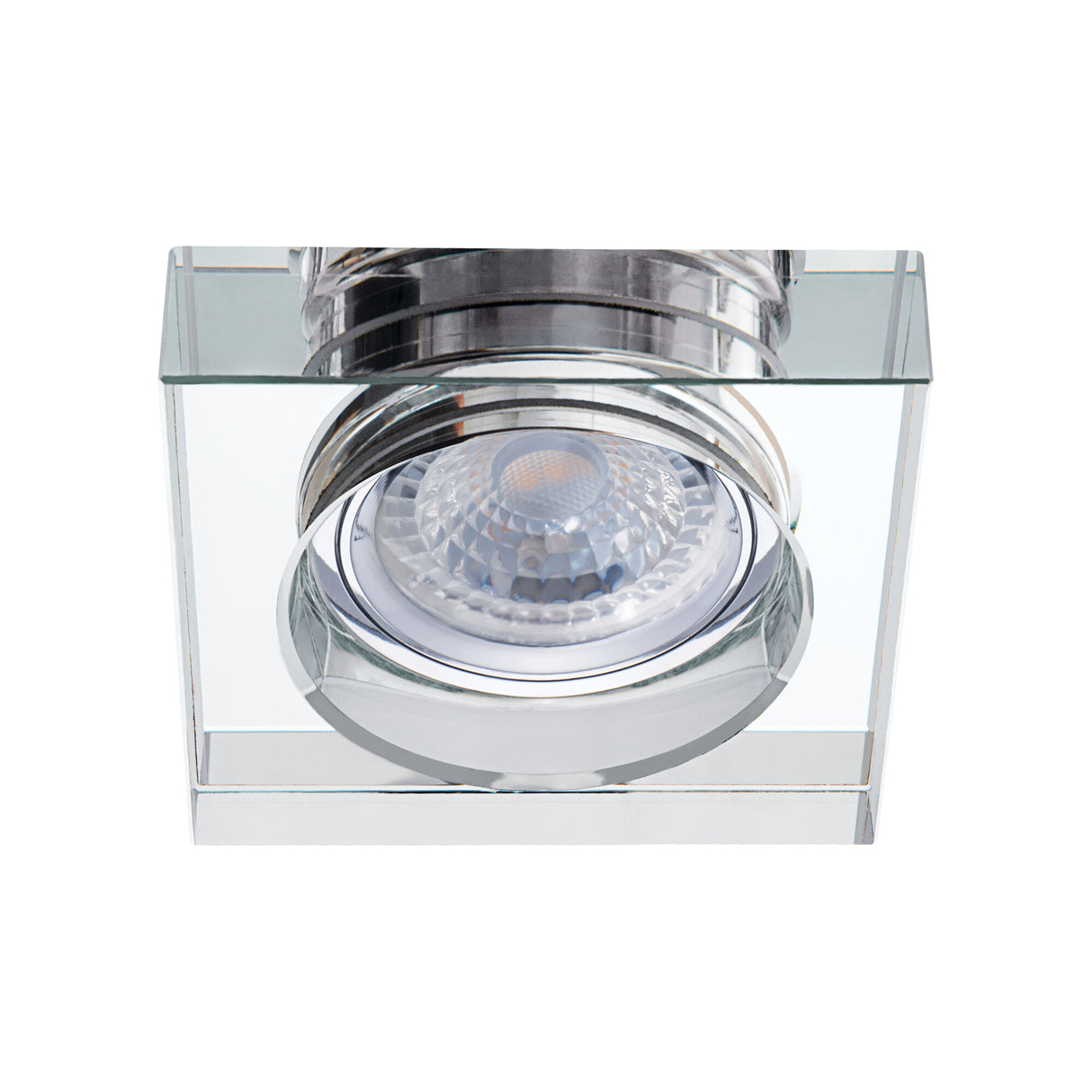

The Morta SR B is a square recessed ceiling light that drops flush into the ceiling for a neat, low-profile finish. It takes a single MR16 lamp on a GX5.3 cap, running at 12V AC or DC and rated up to 10W, so the brightness depends on the MR16 lamp chosen rather than being fixed in the fitting. The compact 90 by 90 mm body, set 36 mm into the ceiling void, makes it a tidy fixed downlight option, the recessed counterpart to the flush mount ceiling lights US buyers tend to ask for.
Used in numbers, the Morta SR B suits hallways, landings, kitchens and living spaces where a clean run of square ceiling lights gives even, unobtrusive light. As a single MR16 point its individual spread is modest, so it works best planned across a ceiling rather than as a sole source for a whole room, letting you build the level you want by spacing several fittings. The shallow 36 mm depth helps it sit in ceilings without a deep void, though it does need clearance above for the lamp and connection.
The fitting is built with a glass element and finished in silver, giving a crisp square frame at the ceiling. It is rated IP20 for dry indoor use only, so it should be kept to rooms away from damp and splashing. Installation is recessed into the ceiling through a cut-out, and the lamp is supplied separately so you can match wattage and colour temperature to the room. The Morta range offers further fittings in matching styles to keep a coherent look across a space.
Specification
| Power |
max 10W |
| Voltage |
12 AC; 12 DC |
| IP rating |
IP20 |
| Mounting |
Recessed Mount In The Ceiling |
| Cap / base |
Gx5.3 |
| Light source |
MR16 |
| Shape |
Square |
| Dimensions |
90 × 90 × 36 mm |
| Weight |
290 g |
| Material |
Glass |
| Finish |
Silver |
Downloads
Frequently Asked
What size cut-out does the Morta SR B need?
The fitting measures 90 by 90 mm at the ceiling and sits 36 mm into the void, so you will need a square aperture sized to suit and around 36 mm of clearance above the ceiling for the lamp and wiring.
Is the lamp included?
No, the Morta SR B takes a separate MR16 lamp on a GX5.3 cap, rated up to 10W. This lets you choose the wattage, beam angle and colour temperature that best suit the room.
Can it be used in a bathroom or outdoors?
No. The Morta SR B is rated IP20, which means dry indoor use only. Keep it clear of bathrooms, damp areas and any outdoor or sheltered-outdoor location.
How do I clean the fitting?
Switch off the power and let the lamp cool, then wipe the glass and silver frame with a soft, dry or slightly damp cloth. Avoid harsh solvents or abrasive cleaners, which can mark the finish.
