Description

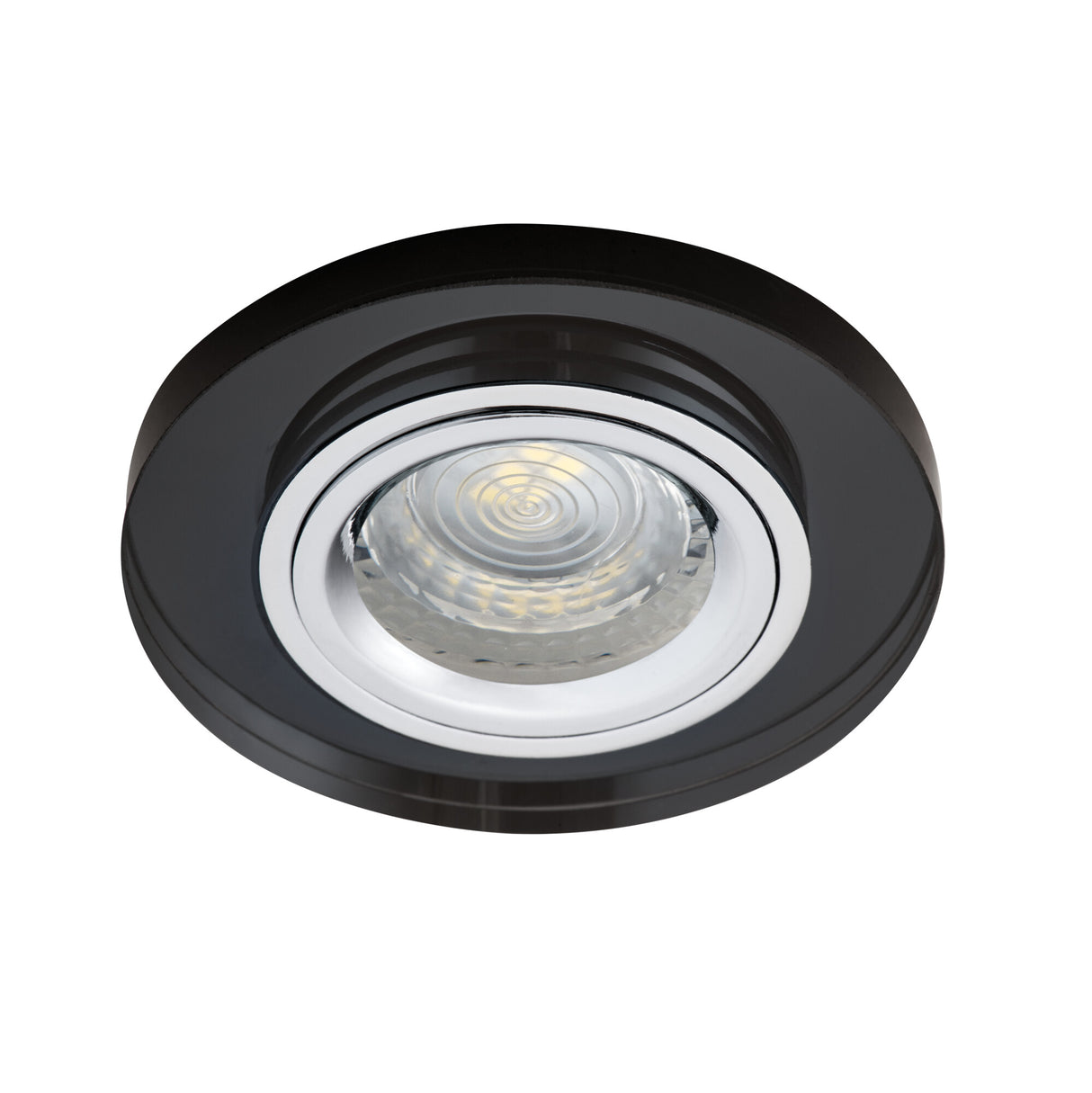

The MORTA BL is a recessed downlight built around a round glass frame that drops flush into the ceiling for a neat, minimal finish. It holds a single MR16 lamp on a GU5.3 (Gx5.3) bicolour-pin base rated up to 10W, running on 12V (12 AC or 12 DC) low voltage. Buyers in the US will recognise the format as a recessed can light, and the round profile suits a clean ceiling line where the trim sits close to the plaster. The lamp itself is supplied separately, so the beam spread and brightness are set by whichever 12V MR16 you fit.

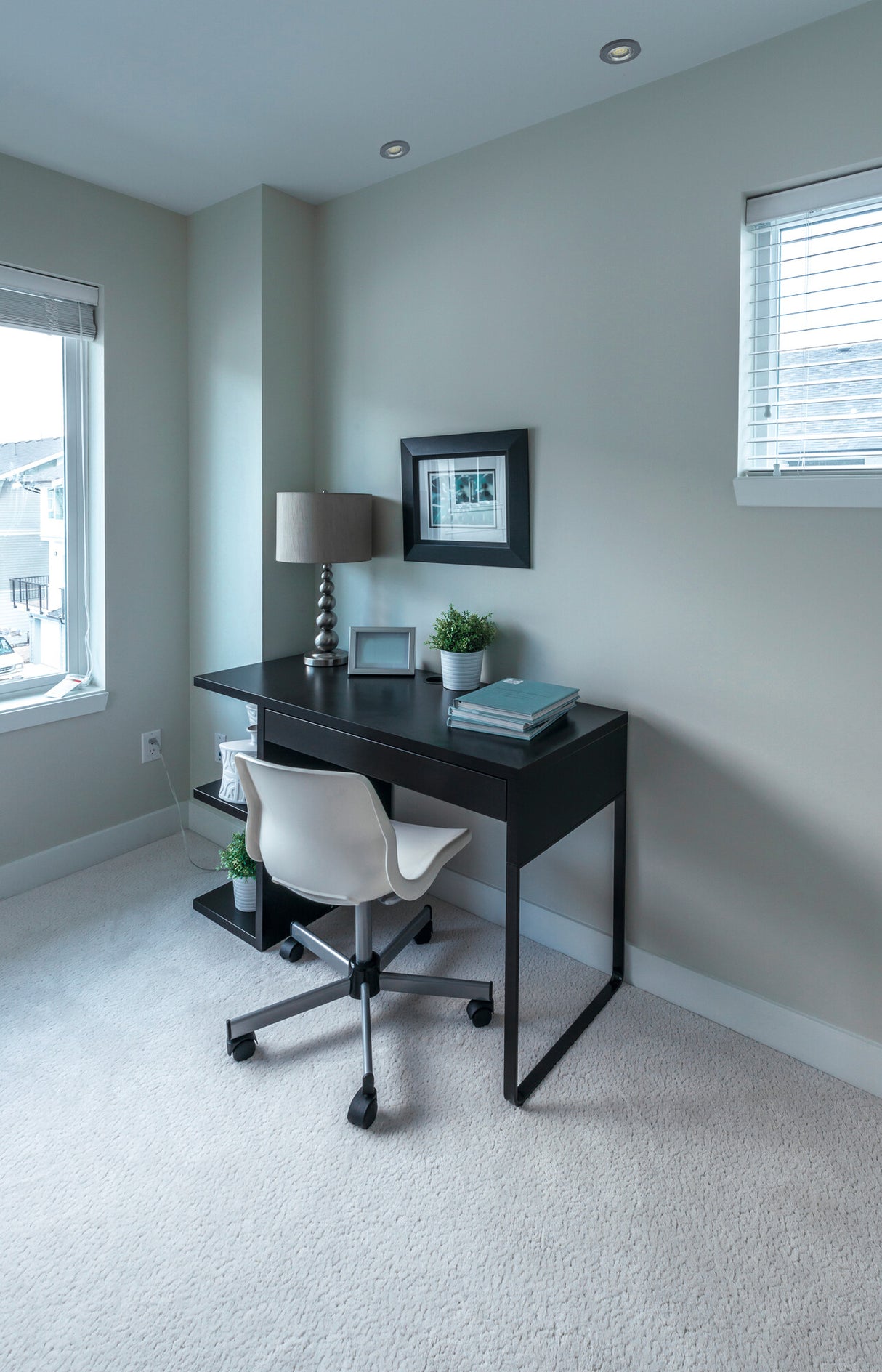

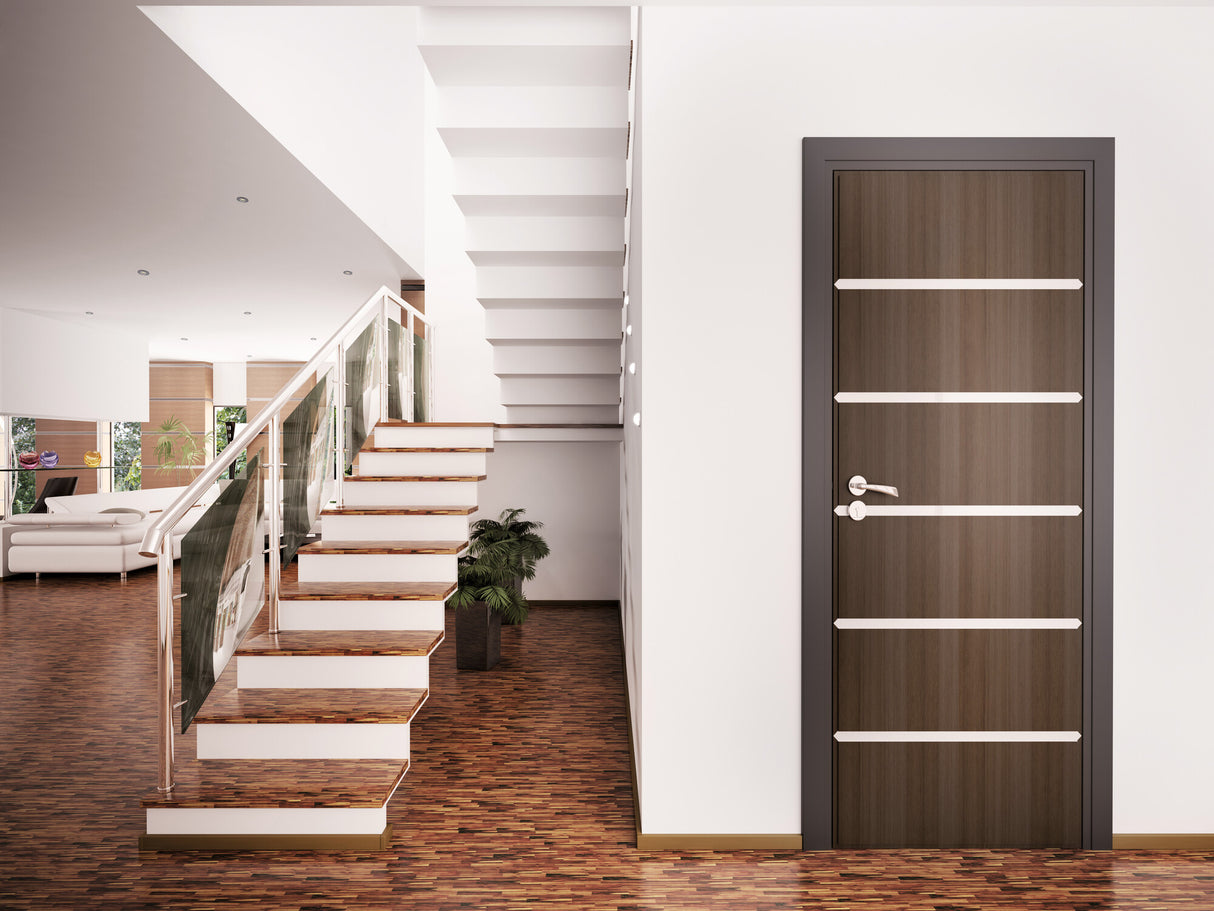

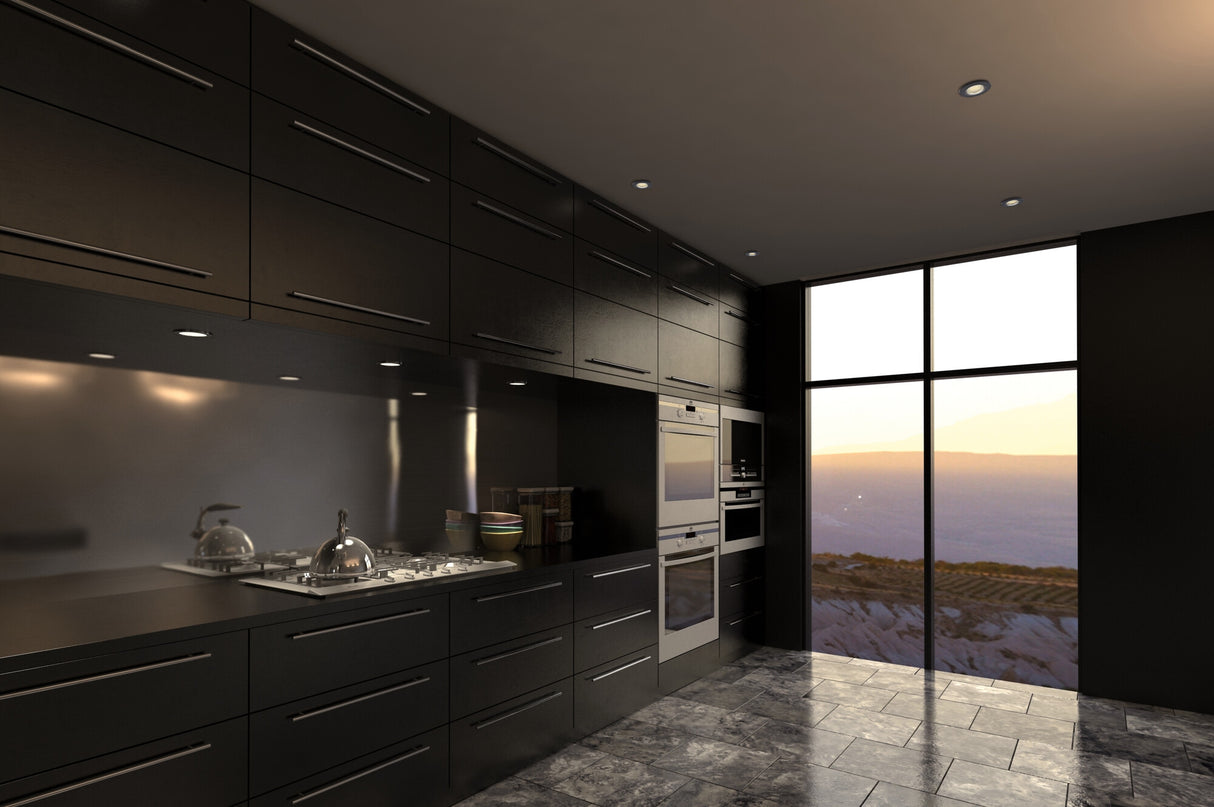

Compact at Ø90mm with a 28mm body depth, the MORTA BL works well as a repeated array across kitchens, hallways and living spaces, or as accent lighting over a worktop or display. Because the light output depends on the MR16 lamp chosen, plan the layout on lamp count and beam rather than a fixed lumen figure: a tighter beam gives focused pools for accenting, a wider one a more even wash for general cover. Space the fittings evenly across the ceiling for consistent light, and keep the shallow 28mm depth in mind when planning around joists or services in the void above.
The frame is glass with a black finish, giving a defined edge against a pale ceiling. It carries an IP20 rating, so this is a dry indoor fitting only and should be kept clear of bathrooms, porches and any damp or exposed positions. Installation is a standard recessed ceiling mount, dropping the body into a prepared cut-out and connecting the 12V supply, with the GU5.3 lamp then pushed into the holder. The MORTA range includes further finish and lamp-base options if you are matching fittings across a scheme.
Specification
| Power |
max 10W |
| Voltage |
12 AC; 12 DC |
| IP rating |
IP20 |
| Mounting |
Recessed Mount In The Ceiling |
| Cap / base |
Gx5.3 |
| Light source |
MR16 |
| Shape |
Round |
| Dimensions |
Ø90 × 28 mm |
| Weight |
134 g |
| Material |
Glass |
| Finish |
Black |
Downloads
Frequently Asked
What size cut-out does the MORTA BL need?
The fitting has an overall trim diameter of Ø90mm, so prepare a recessed ceiling cut-out slightly smaller than this so the trim seats against the surface. Always check the supplied template against your ceiling material before cutting. The body is only 28mm deep, which helps where ceiling void space is tight.
What bulb does it take and is one included?
It uses an MR16 lamp on a GU5.3 (Gx5.3) two-pin base, running at 12V and rated up to 10W maximum. The lamp is not included, so you can choose the beam angle and colour temperature that suit the room. A 12V transformer or driver is required to power it.
Can the MORTA BL be used in a bathroom or outdoors?
No. This fitting is rated IP20, which means it is for dry indoor use only. Keep it clear of bathrooms, showers, porches and any damp or exposed locations, and choose a higher IP-rated downlight for those areas.
How do I clean and maintain it?
Wipe the black glass frame with a soft, dry or slightly damp cloth once the lamp has cooled and the power is off. Avoid abrasive cleaners that could mark the finish or the glass. Check the lamp seating occasionally to keep the connection secure.
