Description

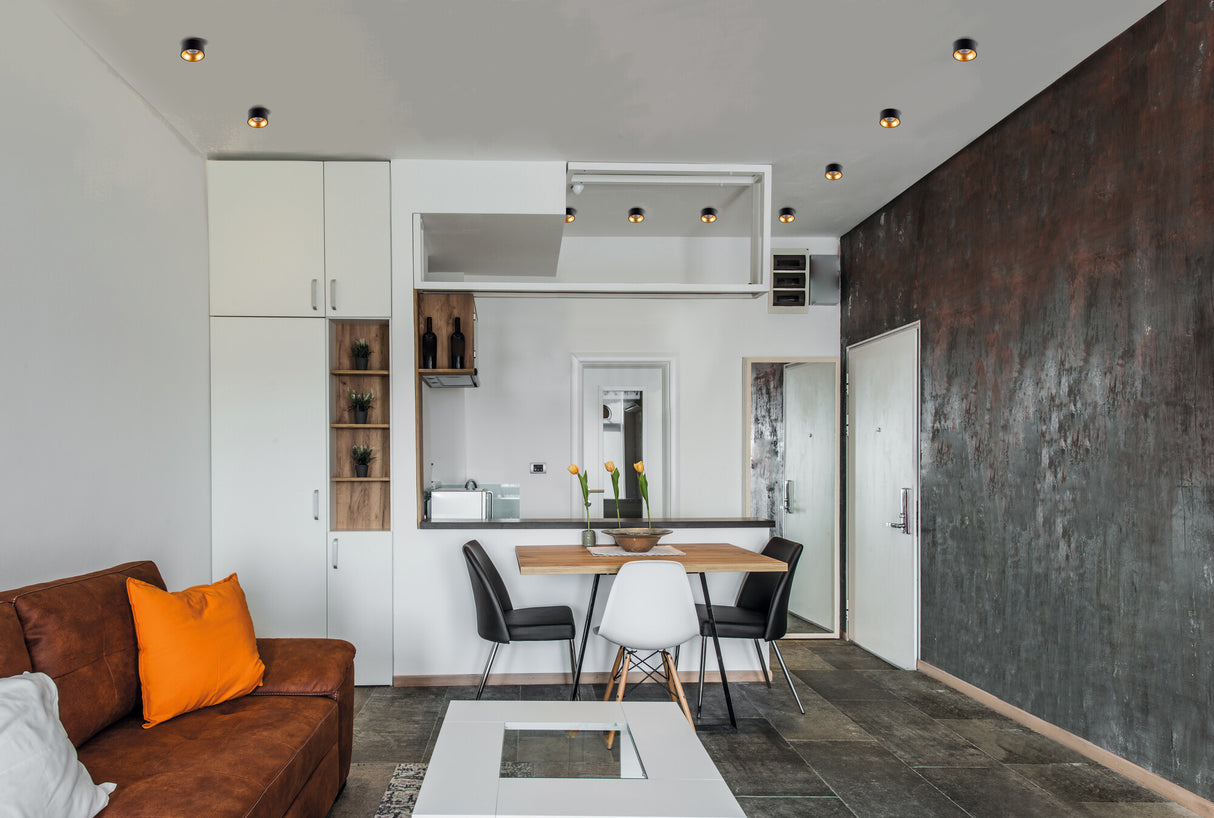

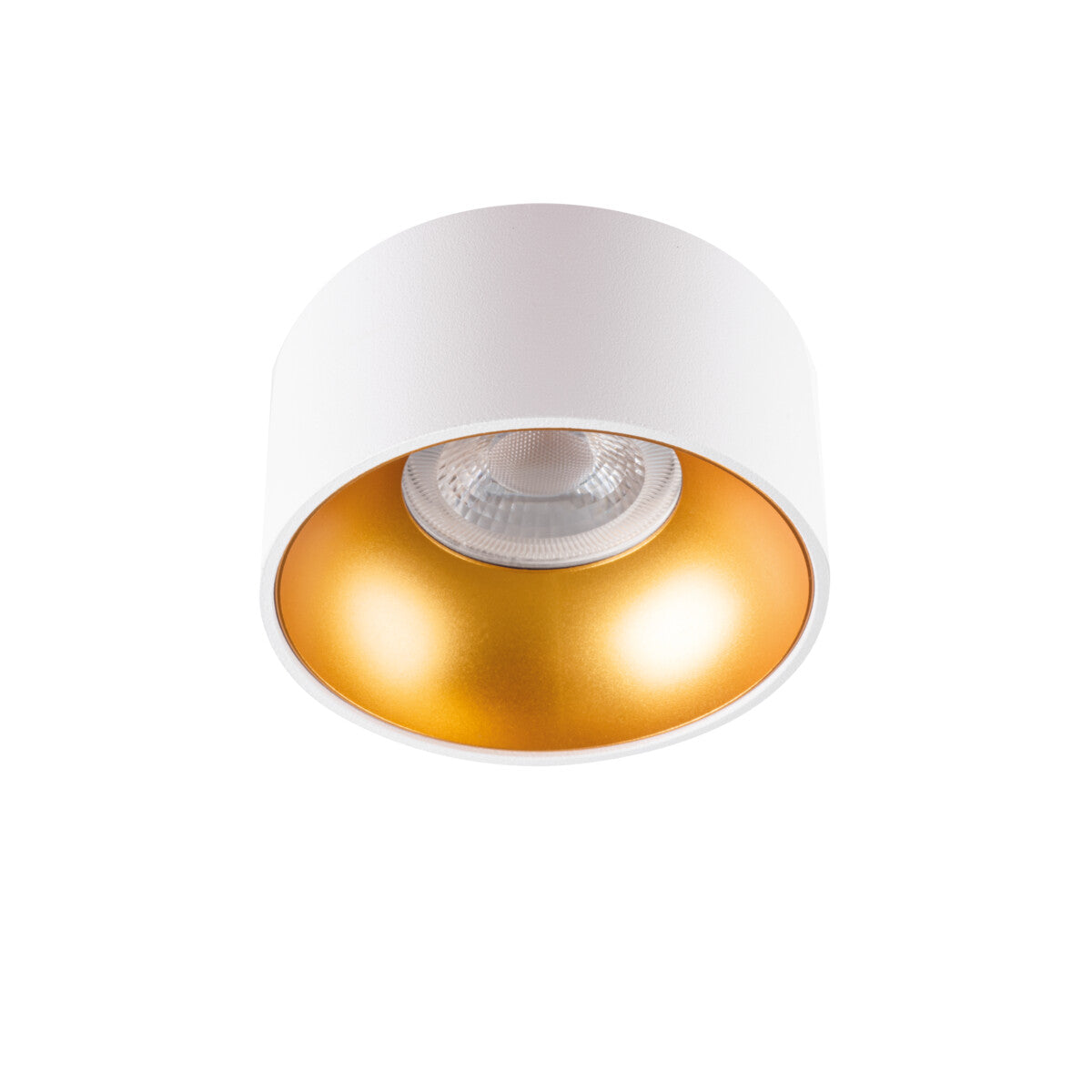

The Mini Riti WG is a compact round LED downlight built around a GU10 lamp holder, taking a PAR16 reflector lamp rated up to 10W on a 220 to 240V AC mains supply. Sitting flush in the ceiling, it gives a neat recessed point of light from a fitting just 85mm across. Buyers in the US will recognise this format as a small recessed can light, where the GU10 lamp drops into the housing and directs the beam downward through the trim.
Because the lamp is not supplied as an integrated source, the spread and brightness depend on the GU10 you fit, so the Mini Riti WG suits hallways, landings, kitchens and living spaces where you want a tidy run of recessed points rather than a single broad wash. Plan the spacing around the beam angle of your chosen lamp and the ceiling height, grouping several fittings for even coverage across a room rather than relying on one. With an IP20 rating this is an indoor fitting only, so keep it to dry rooms and away from bathrooms or any damp or exposed location.
The body is aluminium alloy in a white and gold finish, giving a small trim that recesses into the ceiling with the GU10 holder behind. Overall dimensions are Ø85 by 102mm with a weight of 172g, so it needs only a modest void depth above the plasterboard. Dimming is governed by the lamp you install rather than the fitting itself, so pair it with a dimmable GU10 and a compatible dimmer if you want adjustable output. The Mini Riti range includes matching round downlights in other finishes to suit the rest of a scheme.
Specification
| Power |
max 10W |
| Voltage |
220-240 AC |
| IP rating |
IP20 |
| Mounting |
Recessed Mount In The Ceiling |
| Cap / base |
GU10 |
| Light source |
PAR16 |
| Shape |
Round |
| Dimensions |
Ø85 × 102 mm |
| Weight |
172 g |
| Material |
Aluminium Alloy |
| Finish |
White / Gold |
Downloads
Frequently Asked
What size cut-out hole does it need?
The Mini Riti WG recesses into the ceiling and measures Ø85mm across the fitting, so cut your hole to suit the manufacturer's stated recess diameter rather than the visible trim. The fitting is 102mm deep overall, so check you have enough clear void above the plasterboard before cutting.
Is a GU10 lamp included?
No, the Mini Riti WG is supplied as a fitting that takes a separate GU10 PAR16 lamp rated up to 10W. This lets you choose the colour temperature, beam angle and brightness to suit the room.
Can it be dimmed?
Dimming depends on the GU10 lamp you fit rather than the downlight itself. Use a dimmable GU10 lamp together with a compatible LED dimmer switch to adjust the output.
How do I clean the fitting?
Switch off and let the lamp cool, then wipe the white and gold trim with a soft, dry or barely damp cloth. Avoid solvents or abrasive cleaners, which can mark the finish on the aluminium alloy body.
