Description

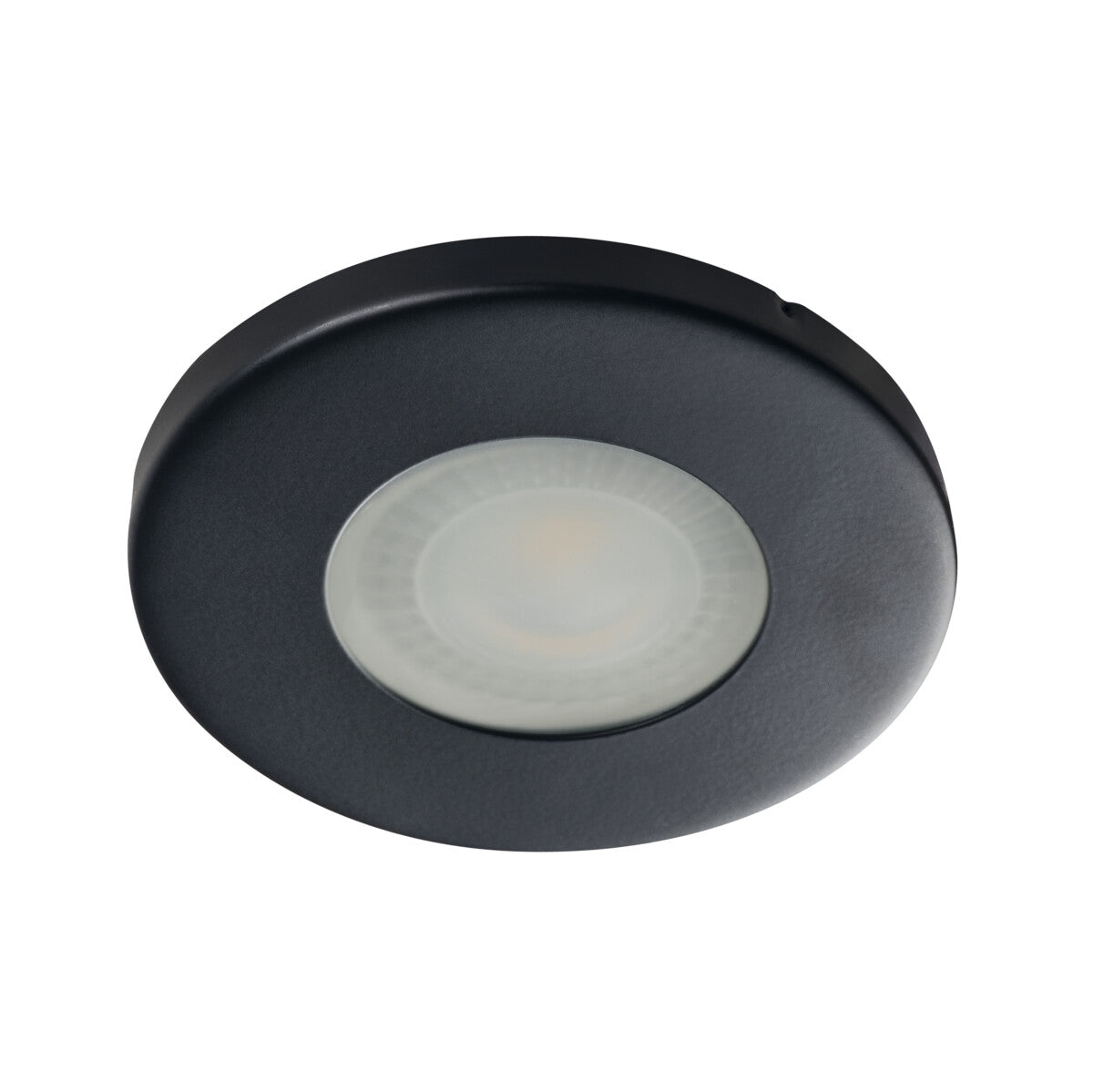

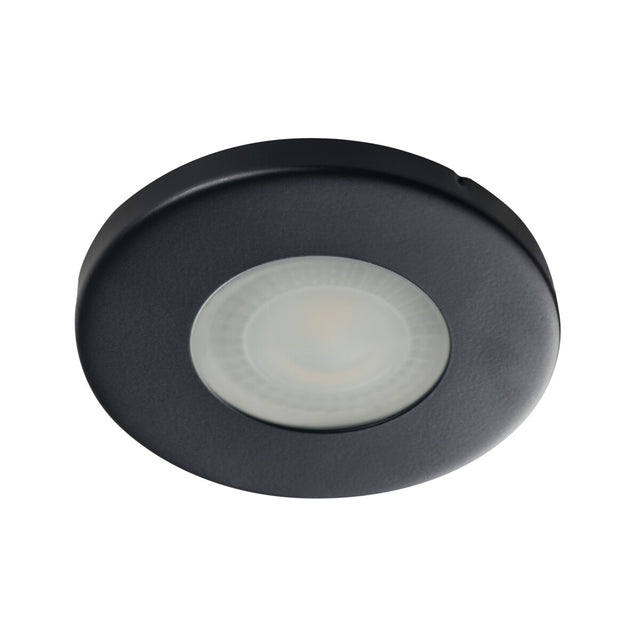

The Marin is a round recessed downlight built to take a single MR16 lamp on a Gx5.3 cap, drawing up to 10W on a 12V supply. It accepts both 12V AC and 12V DC feeds, so it pairs with a standard low-voltage transformer behind the ceiling. The output and beam depend on the MR16 lamp you fit, which means you choose the wattage, colour temperature and spread to suit the spot. North American buyers will know this format as a recessed can light, sized for the common 12-volt MR16 reflector lamp rather than a mains GU10.
Its compact Ø85mm body and slim 37mm depth let it tuck into shallow ceiling voids, which is handy where a deep recess is not available. The IP44 splash rating means it copes with bathroom zones and sheltered covered spots such as a porch soffit or carport ceiling, though it should be kept clear of direct water jets and fully exposed positions. Because brightness comes from the chosen MR16 lamp, the light it gives over a room is set by that lamp, so plan several units across a ceiling for even cover rather than relying on one fitting. Picking a warmer lamp suits a bathroom, while a cooler lamp lifts a task area.
The fixture is made from steel and recesses into the ceiling, fixed through a cut-out in the surface above. A 12V transformer is needed to drive the MR16 lamp from mains, and the lamp itself is supplied separately so you can match wattage and tone to the room. Dimmability follows the lamp and transformer combination chosen rather than the housing. The finish is a black matt that sits flush and reads cleanly against a painted ceiling. The Marin range offers further fittings in the same style for matched runs.
Specification
| Power |
max 10W |
| Voltage |
12 AC; 12 DC |
| IP rating |
IP44/20 |
| Mounting |
Recessed Mount In The Ceiling |
| Cap / base |
Gx5.3 |
| Light source |
MR16 |
| Shape |
Round |
| Dimensions |
Ø85 × 37 mm |
| Weight |
100 g |
| Material |
Steel |
| Finish |
Black Matt |
Downloads
Frequently Asked
What size cut-out does it need?
The Marin has an overall trim diameter of Ø85mm, so the ceiling cut-out is the slightly smaller aperture the body drops through, not the visible trim. Always confirm the exact hole against the fitting before cutting, as the cut-out and the trim diameter are not the same measurement.
Is the MR16 lamp included?
No, the lamp is supplied separately. This lets you choose the MR16 wattage up to 10W and the colour temperature that suits the room, whether a warmer tone for a bathroom or a cooler one for task areas.
Can it be used in a bathroom?
Yes. The IP44 rating makes it splash-resistant and suitable for the appropriate bathroom zones and sheltered covered spots such as a porch. It should not be fitted where it faces direct water jets or full exposure to the weather.
How do I clean the fitting?
Wipe the steel trim with a soft dry or barely damp cloth once the power is off and the lamp is cool. Avoid solvents and abrasive pads, which can mark the black matt finish over time.
