Luxeon Trim Magnetic Recessed L-Connector Track Left On-Off - White

£10499
RRP £15000
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

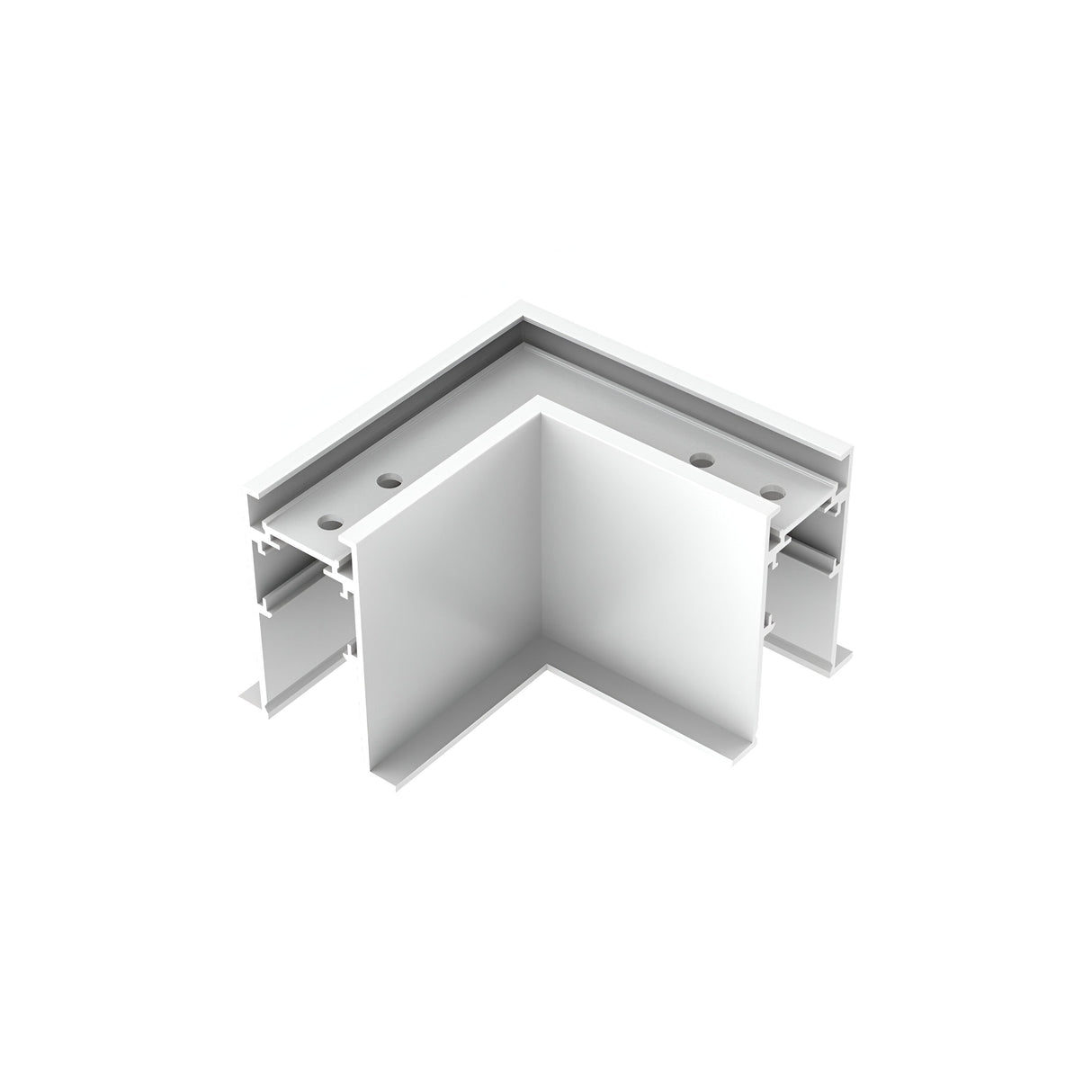

The Luxeon Trim magnetic L-connector joins two sections of recessed magnetic track at a 90-degree angle, configured for left-hand turning layouts. The connector measures 80mm x 80mm at the corner and includes an integrated on-off switch for isolating the circuit section downstream of the connection point.

Designed for retail, residential and commercial magnetic track systems where the track needs to turn a corner while remaining flush with the ceiling plane, the connector fits into a pre-cut L-shaped recess. The magnetic contact strips continue through the corner, maintaining power delivery to track-mounted spotlights and downlights on both arms of the turn. The on-off switch allows a single corner to control lighting on one arm of the track independently from the other.

The connector body is moulded from white plastic with a matt finish that matches standard white ceiling paint and white track sections. The IP20 rating suits dry interior installations in living rooms, galleries, showrooms and offices. The plastic construction keeps the fitting lightweight for ceiling mounting while the magnetic contact design eliminates exposed copper or brass terminals.

Specification
Length (mm) 80
Projection (mm) 80
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'left' mean in the context of this connector?

The 'left' designation refers to the configuration when looking at the track from the feed point. The connector turns the track 90 degrees to the left. If your layout requires a right-hand turn, a separate right-hand version is needed.

What's the purpose of the on-off switch?

The integrated switch isolates power to the track section downstream of the connector. This allows you to turn off lights on one arm of an L-shaped layout while keeping the other arm live, without needing separate circuits.

Does this work with surface-mounted track?

No. This connector is designed specifically for recessed magnetic track installations where the track sits flush with the ceiling. For surface-mounted track, a different connector profile is required.

Is it compatible with other Luxeon Trim magnetic track components?

Yes. The connector is part of the Ideal Lux Luxeon Trim system and works with other recessed magnetic track sections, power feeds, end caps and straight connectors from the same range.
