Luxeon Trim Magnetic Recessed L-Connector Track Left - On-Off, Black

£10499
RRP £15000
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

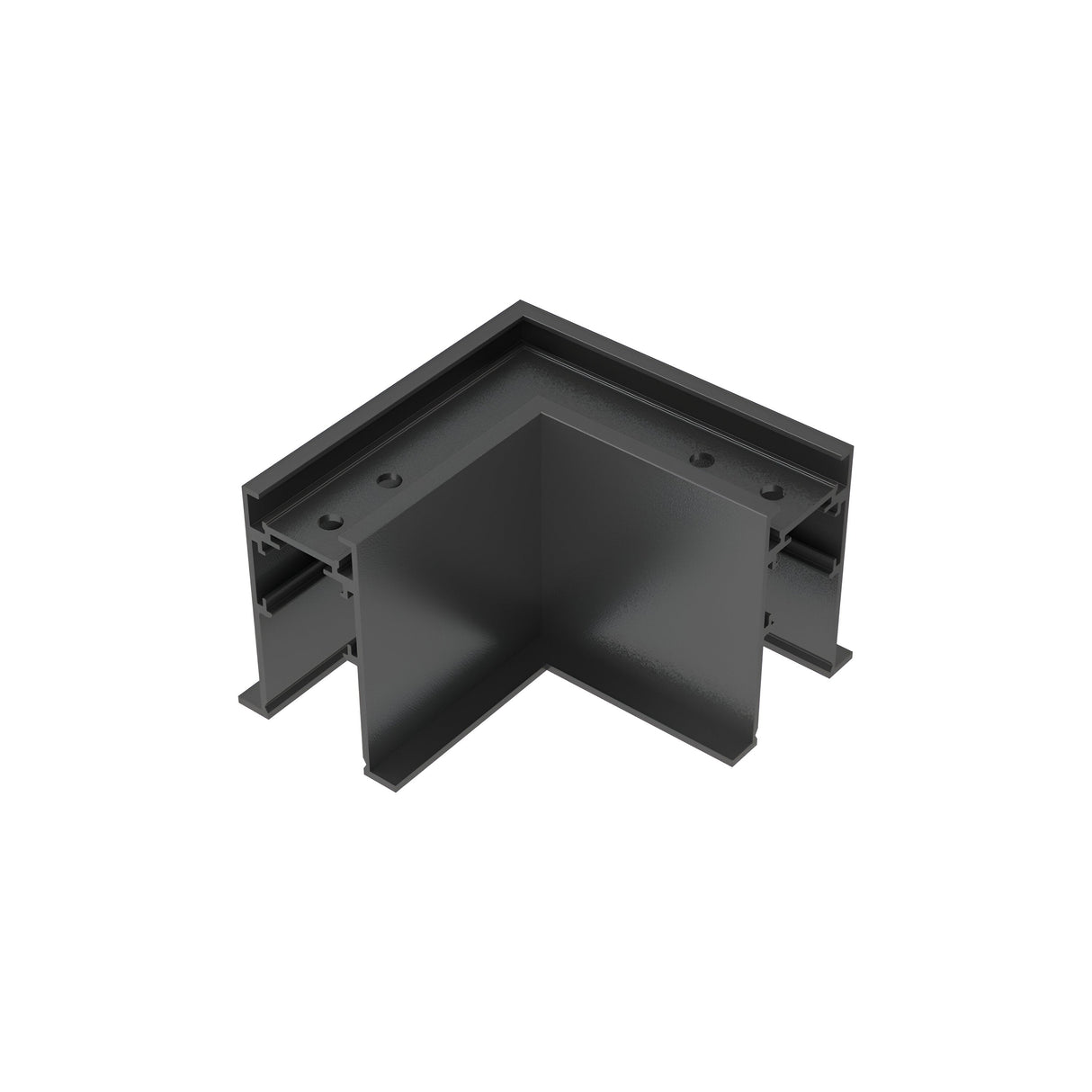

The Luxeon Trim Magnetic Recessed L-Connector is an 80mm x 80mm corner junction piece for recessed magnetic track lighting systems, designed for left-side track joins. Moulded in black plastic with internal electrical contacts, the connector routes power through a 90-degree turn in the track run while providing an on-off switch for the downstream section.

Used in commercial and retail installations where track lighting needs to turn corners at ceiling level, the connector sits flush within the recessed track profile so only the black trim face remains visible once fitted. The magnetic contact system means track heads can be positioned anywhere along the connected sections without needing to align with fixed power points. The on-off function isolates the downstream track section independently, allowing one arm of an L-shaped run to be switched off while the other remains live.

The 80mm footprint matches the standard Luxeon Trim recessed track width, and the connector slots into the track channel using the same fixing clips as straight track sections. The plastic housing carries an IP20 rating for dry indoor use only, suitable for offices, galleries, showrooms and residential spaces with standard ceiling heights. Installation requires access to the ceiling void for wiring connections before the track trim is clipped into place.

Specification
Length (mm) 80
Projection (mm) 80
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What is the on-off function for?

The on-off switch isolates power to the downstream track section connected to this L-connector. This allows you to switch off one arm of an L-shaped track run while keeping the other arm live, giving independent control over different zones in a multi-section installation.

Is this compatible with surface-mounted track?

No. This connector is designed specifically for recessed magnetic track installations where the track profile sits within a ceiling channel. For surface-mounted track systems, Ideal Lux produces separate connector components.

Does it work with magnetic track heads from other manufacturers?

Compatibility depends on the magnetic track voltage and contact configuration. The Luxeon Trim system uses a specific magnetic contact pattern, so track heads designed for this system will fit. Contact us with details of your existing track heads if you need to confirm compatibility before ordering.

What ceiling void depth is needed for installation?

Installation requires access to the ceiling void for wiring the connector before the track trim is clipped into place. A minimum void depth of 100mm is recommended to allow for cable connections and secure fixing of the track channel.
