36W 600x600 LED Backlit Panel - 4000K Cool White

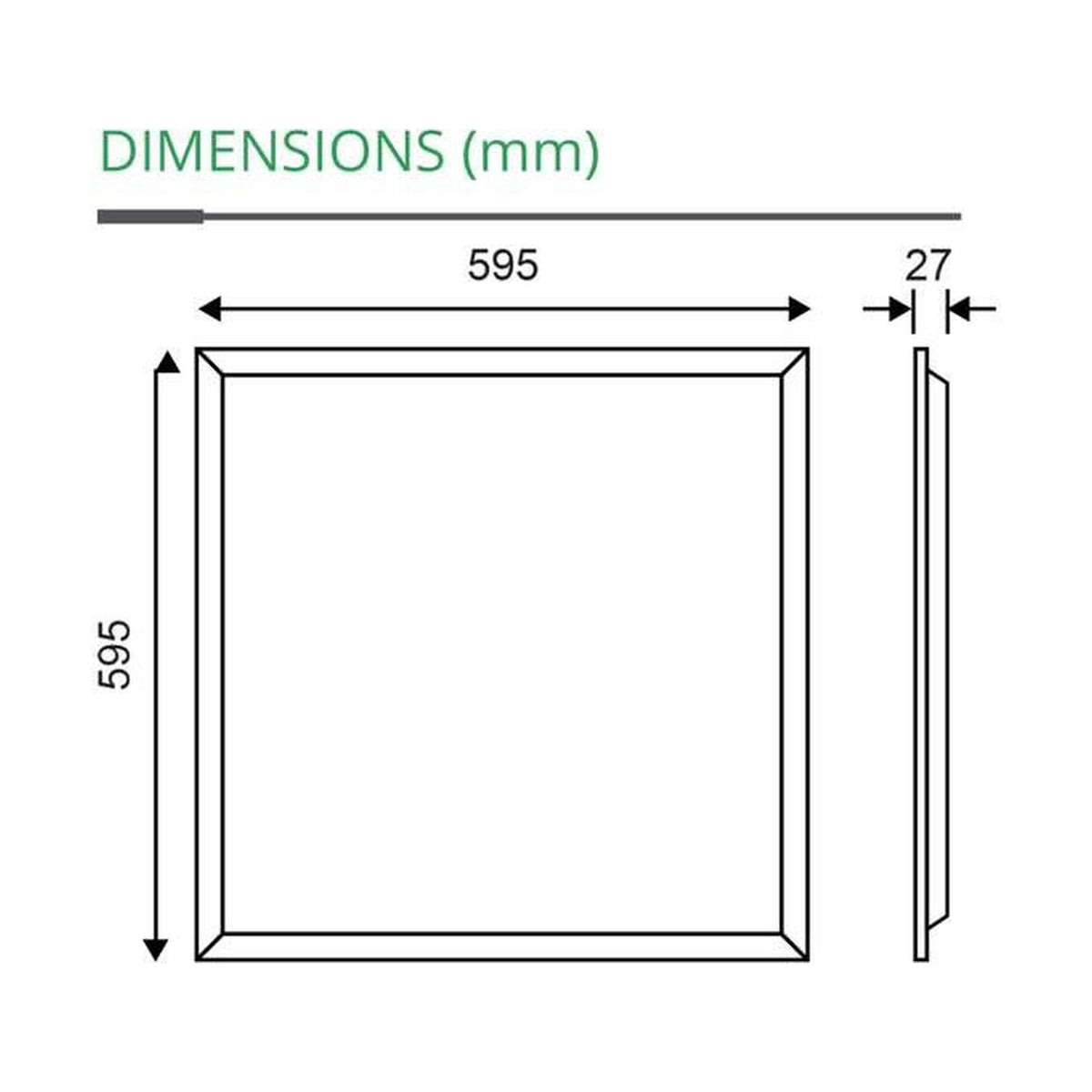

This is a 36W backlit LED panel made for the standard 600 x 600 ceiling module. The dimension drawing gives the panel itself as 595mm square and 27mm deep, and those few millimetres under the nominal figure are the point: it is the clearance that lets the panel sit down into a 600mm grid in place of a ceiling tile. Backlit describes how the light is made. The LED array sits across the back of the panel and fires forward through the diffuser, rather than sitting along the edges and being bounced across a light guide. The supplier specification gives 3800 lumens at 4000K with a 112 degree beam.

That output suits general lighting in a working room rather than accent or mood lighting. A 112 degree spread is wide, so the light lands broadly and evenly instead of falling in pools, which is what you want over desks, benches, counters and walkways. 4000K is a neutral white, cooler and crisper than the 2700K most people put in a living room, and it holds detail and colour well for reading, screen work and anything fiddly. The rating here is IP20, which offers no protection against water at all, so keep these to dry indoor ceilings and away from anywhere they could be splashed or run with condensation.

The panel is not dimmable, so plan it onto a plain switched circuit rather than a dimmer. On the figures supplied that works out at a little over 100 lumens per watt, which is the number worth comparing if you are costing a whole ceiling of them. We sell it as a single panel, with no minimum beyond one, so you can order one replacement for a failed tile or count out the exact number for a whole ceiling. Anything that goes into a grid ceiling should be connected by a qualified electrician.

Will it fit a standard 600 x 600 suspended ceiling grid?

Yes. The dimension drawing gives the panel as 595mm square and 27mm deep, which is the size made to drop into a 600mm modular grid in place of a tile.

Can this panel be dimmed?

No. The supplier specification records it as not dimmable, so run it on a plain switched circuit. Putting it on a dimmer is outside what the maker specifies for it.

What does backlit mean on an LED panel?

The LEDs sit across the back of the panel and shine forward through the diffuser, rather than sitting around the edge and firing sideways into a light guide.

How bright is 3800 lumens, and is 4000K warm or cool?

3800 lumens is general room lighting rather than accent light. 4000K is a neutral cool white, crisper than the 2700K warm white most people use in living rooms.

Where should it not be fitted?

It is rated IP20, which gives no protection against water, so it belongs in dry indoor ceilings only and never outdoors or anywhere exposed to splashing or heavy condensation.

How many panels do I receive?

One panel per unit, with no minimum beyond a single unit, so you can buy one replacement or count out as many as a full ceiling needs.
