Description

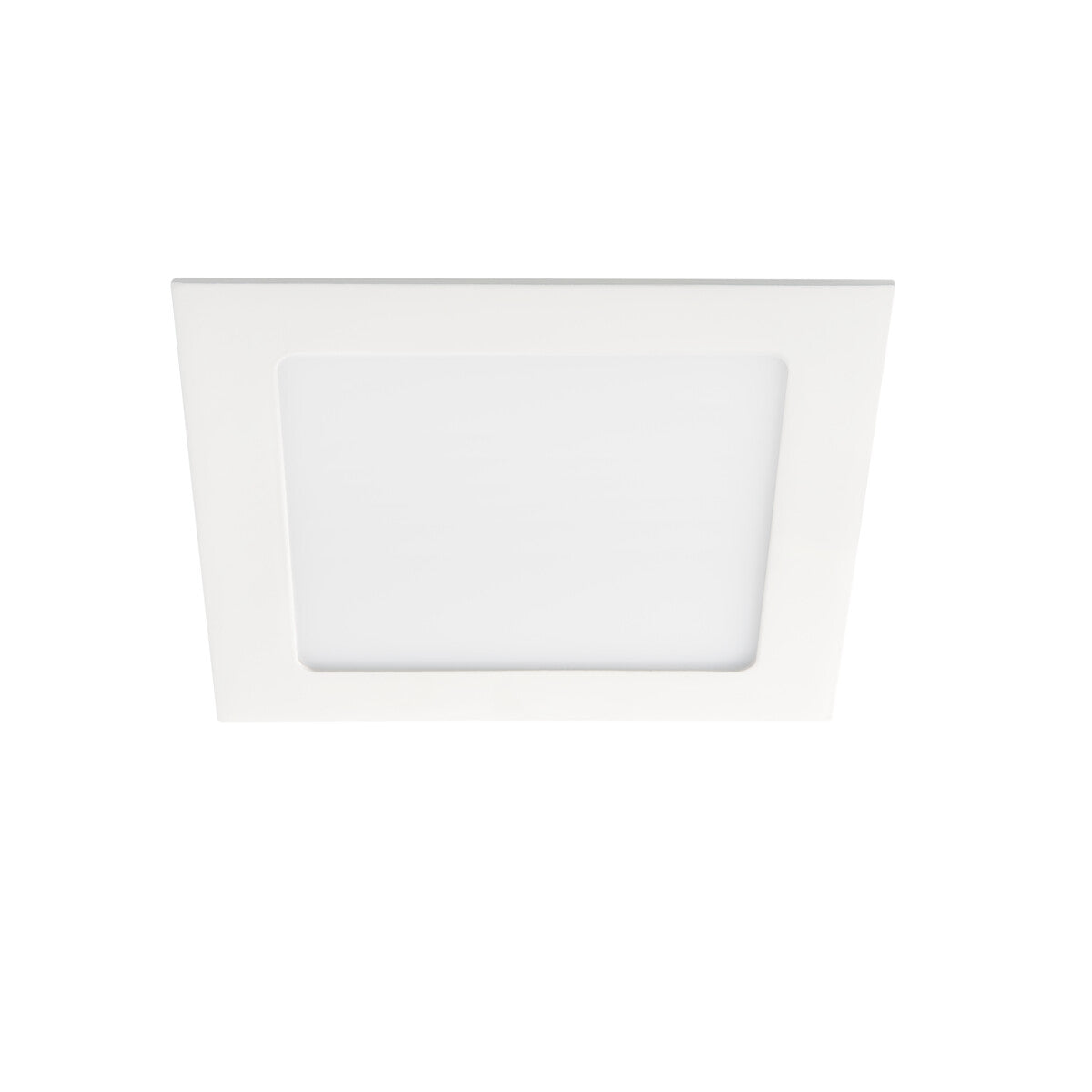

The KATRO is a square recessed downlight that sits flush in the ceiling and pushes out 720 lumens from a 12W LED, drawing from a 220-240V AC mains supply. The 3000K colour temperature gives a warm white tone, and the wide 110 degree beam spreads light evenly rather than throwing a tight pool, which makes it well suited to general fill rather than spotlighting. American buyers shopping for a recessed can light will find this fills the same role, in a compact 170mm square trim.
The fitting works best as one of several spread across a ceiling, since a single unit covers around 2 m² at general lighting levels. That makes it a sensible choice for bathrooms, hallways, kitchens and landings where a run of evenly spaced downlights gives a clean ceiling line. With an IP44 rating it is splash-resistant and copes with bathroom zones and sheltered spots such as a porch or carport, though it should be kept clear of fully exposed positions and direct water jets. The warm 3000K output suits relaxed rooms where a softer tone is wanted over a cooler clinical white.
Built from aluminium alloy with a white finish, the KATRO measures 170 x 170 x 20 mm and weighs 270g, so it slots into a shallow ceiling void. It carries an IP44 rating to the front face and IP20 behind, recesses into the ceiling and is fixed in place with spring clips. This version is not dimmable, so it pairs with a standard switch rather than a dimmer circuit, and the LED is rated for 15,000 hours. The KATRO range includes other wattages and tones if a brighter or cooler option is needed.
Specification
| Power |
12W |
| Voltage |
220-240 AC |
| Luminous flux |
720 lm |
| Efficiency |
60 lm/W |
| Colour temperature |
3000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
110° |
| IP rating |
IP44/20 |
| Dimmable |
No |
| Mounting |
Recessed Mount In The Ceiling |
| Lifespan |
15,000 hours |
| Shape |
Square |
| Dimensions |
170 × 170 × 20 mm |
| Weight |
270 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
What size cut-out does it need?
The KATRO is a 170 x 170 mm square fitting, so you will need a matching square aperture cut into the ceiling for the body to drop into. Check the recess depth against the fitting's 20mm profile before cutting, as this is a shallow-bodied unit. The trim overlaps the edge of the cut-out once the spring clips are engaged.
Can it be used in a bathroom?
Yes, the IP44 splash-resistant rating suits bathroom zones away from direct contact with water. It is also fine for covered outdoor spots such as a porch or carport. It should not be fitted in fully exposed positions or anywhere it could face direct water jets or submersion.
How many do I need for a room?
Each fitting gives 720 lumens and covers roughly 2 m² at general lighting levels, so plan on several spread across the ceiling for even coverage. A typical 12 m² room would suit around six units in a grid. Spacing them evenly avoids dark patches between the wide 110 degree beams.
Is it dimmable?
No, this version of the KATRO is not dimmable and should be run from a standard on/off switch. Wiring it to a dimmer circuit can cause flicker or shorten the LED life. The light is fixed at a warm 3000K tone.
