Description

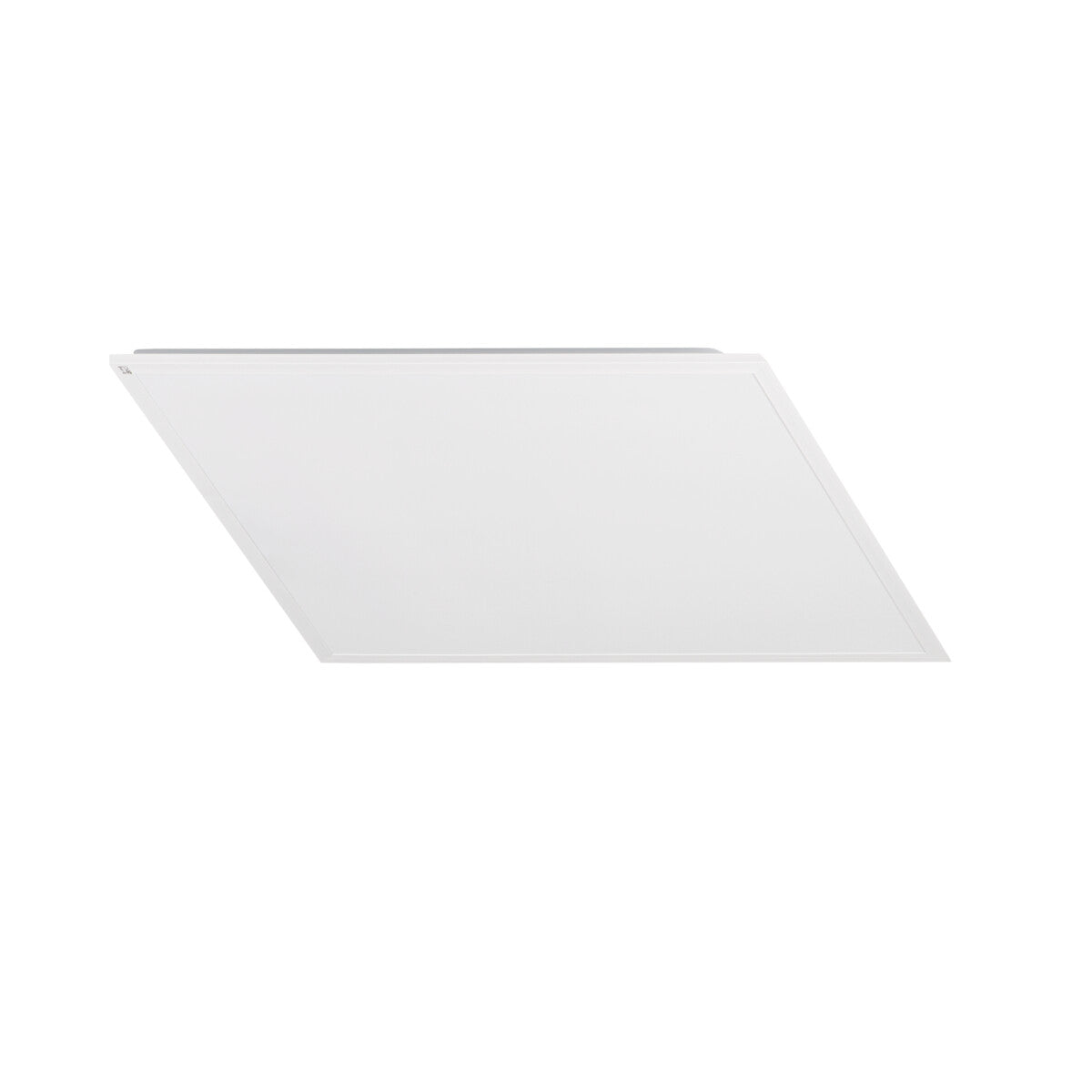

The BLINGO is a square recessed LED panel measuring 595 x 595 mm, drawing 34W from a 220-240V AC mains supply to deliver 3740 lumens of light. It sits into a standard ceiling grid or void rather than fixing to the surface, giving a flush finish flush with the ceiling line. The colour temperature is fixed at a warm 3000K, with a wide 115 degree beam that spreads light evenly across the space below. Across the Atlantic this nominal 600x600 format is known as a 2x2 panel, the recessed troffer size used throughout suspended-ceiling layouts.
The warm 3000K tone and broad spread suit offices, receptions, corridors and retail spaces where a softer light is preferred over a cooler clinical look. At general lighting levels the 3740 lumen output covers around 12 m², so a single unit serves a small office or meeting room, with additional panels added in a grid for larger floors. Because it is a recessed fitting it needs adequate clearance in the ceiling void above the grid, making it best suited to drop or suspended ceilings rather than solid soffits with no plenum space. It is rated IP20 for dry indoor use, so keep it clear of bathrooms, damp areas and any outdoor location.

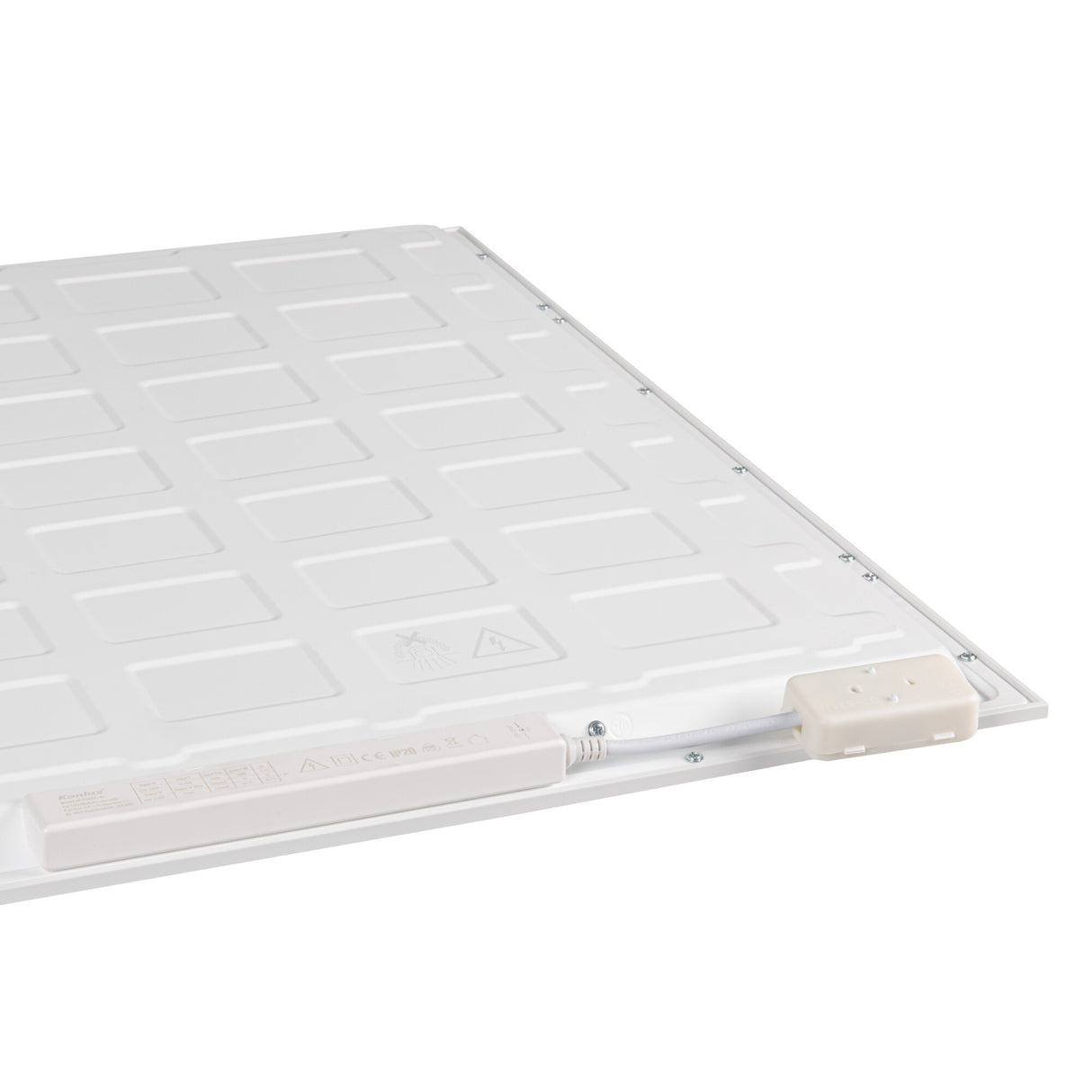

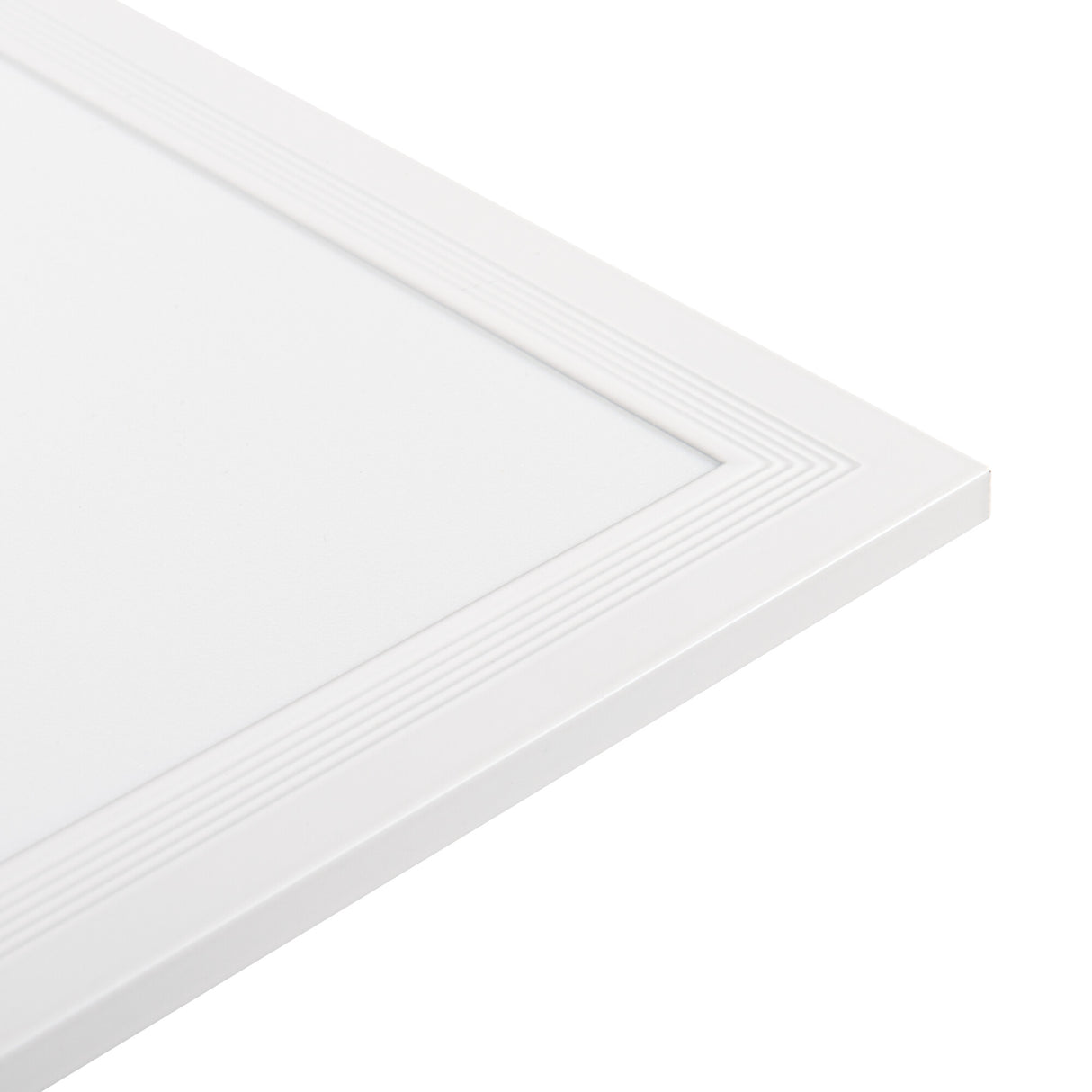

The body is steel with a clean white finish, weighing 1.30 kg and standing just 25 mm deep so it fits neatly within a shallow grid. A driver is included in the box, wiring directly to the mains with no separate component to specify, and the panel is rated for 50,000 hours of service. This version is not dimmable and runs at a constant output. The BLINGO range also includes a matching cool white variant for spaces where a brighter tone is wanted.
Specification
| Power |
34W |
| Voltage |
220-240 AC |
| Luminous flux |
3740 lm |
| Efficiency |
110 lm/W |
| Colour temperature |
3000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
115° |
| IP rating |
IP20 |
| Dimmable |
No |
| Driver included |
Yes |
| Mounting |
Recessed Mount In The Ceiling |
| Lifespan |
50,000 hours |
| Shape |
Square |

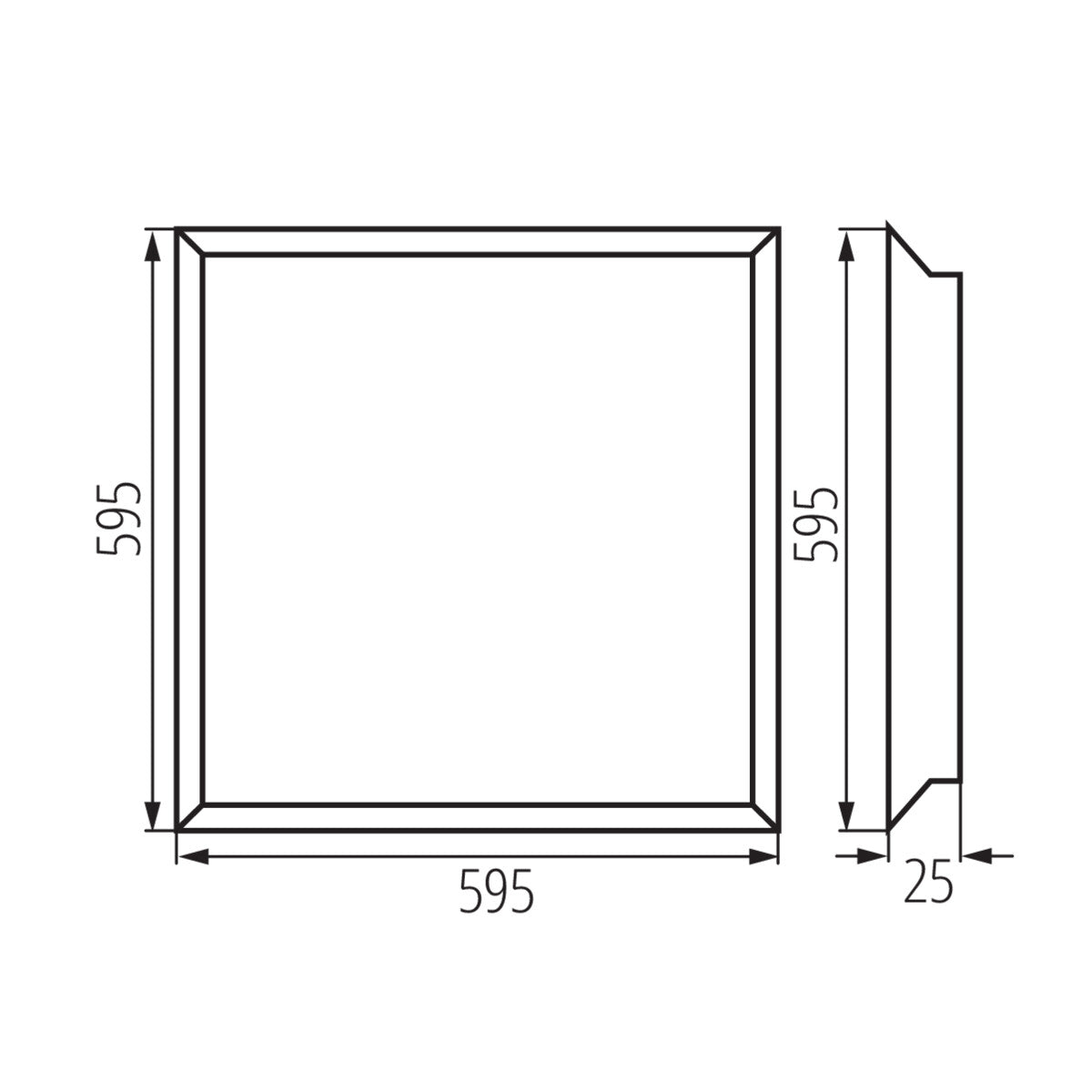

| Dimensions |
595 × 595 × 25 mm |
| Weight |
1.30 kg |
| Material |
Steel |
| Finish |
White |
Downloads
Product Specification Sheet
Range Datasheet
Frequently Asked
Does this panel fit a standard suspended ceiling grid?
Yes. The nominal 600x600 size, known as a 2x2 in the US, drops into a standard modular ceiling grid. At 25 mm deep it needs only a shallow void above, so it suits most drop and suspended ceilings.
How many lumens does it give and what room size does it cover?
It produces 3740 lumens at a fixed 3000K warm white. At general lighting levels that covers around 12 m², enough for a small office or meeting room. For larger floors, fit several panels in a grid layout.
Is this panel dimmable?
No, this version is not dimmable and runs at a constant output. The driver is included and wires directly to the 220-240V mains, so no separate driver needs to be specified.
How do I clean the panel face?
Wipe the diffuser with a soft, dry or slightly damp cloth once the panel is switched off and cool. Avoid abrasive cleaners or solvents that could mark the surface. As an IP20 fitting it is for dry indoor use only, so keep moisture away from the unit.
