IP66 20AX 1G DP Switch - Black

£999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

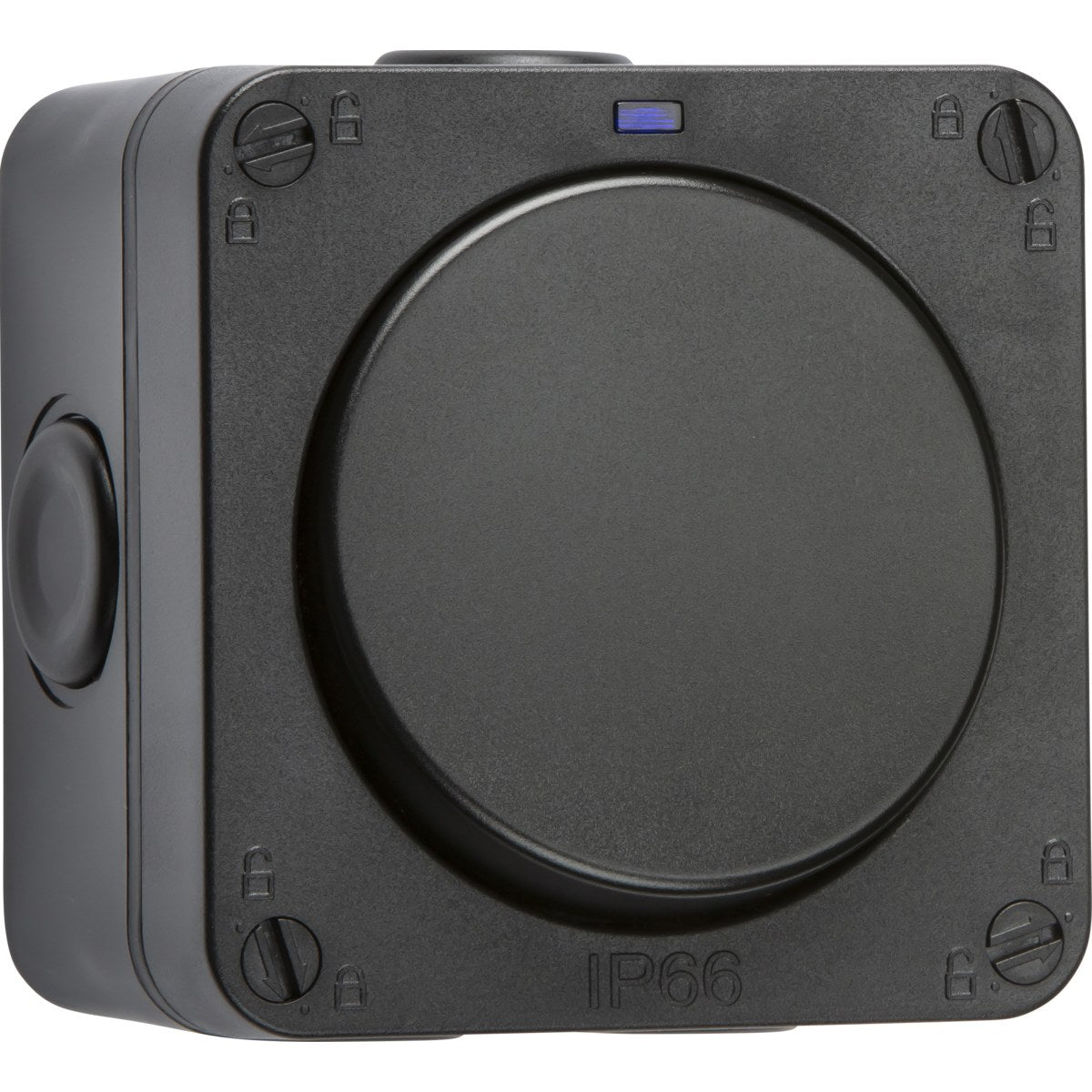

The Knightsbridge IP66 20AX 1G DP Switch is finished with a black moulded faceplate.

It switches a lighting or appliance circuit cleanly and reliably, with the gang and pole configuration stated in the title to suit one-way, two-way or isolation duties.

It is constructed from polycarbonate, with an earth terminal for a compliant installation. It is certified to BS EN 60669-1 and IP66 rated.

Specification
Height 90.5 mm
Width 90.5 mm
Depth 65.9 mm
Projection 65.9 mm
Construction Polycarbonate
Finish Black
Class II
IP Rating IP66
Primary Voltage 230V 50Hz
Earth Terminal Yes
Neon Indicator Yes
Warranty 2 years
Downloads

Product Specification Sheet

Frequently Asked

How do you wire a 2-way light switch?

A 2-way switch lets one light be controlled from two positions; the two switches are linked by strapping wires between their L1 and L2 terminals with the common terminals taking the feed and switch line. Installation should be carried out by a competent person in accordance with BS 7671.

What is the difference between 1-way and 2-way switches?

A 1-way switch controls a light from a single position; a 2-way switch allows control from two positions, such as the top and bottom of a staircase. A 2-way switch can be used in a 1-way circuit.

What does DP mean on a switch?

DP stands for double pole — the switch breaks both the live and neutral conductors when off, fully isolating the connected appliance. It is used on higher-load and appliance circuits.

Can I replace a single switch with a double switch?

Yes, provided the back box is wide enough for the larger plate and the wiring supports the additional gang. Installation should be carried out by a competent person in accordance with BS 7671.
