Description

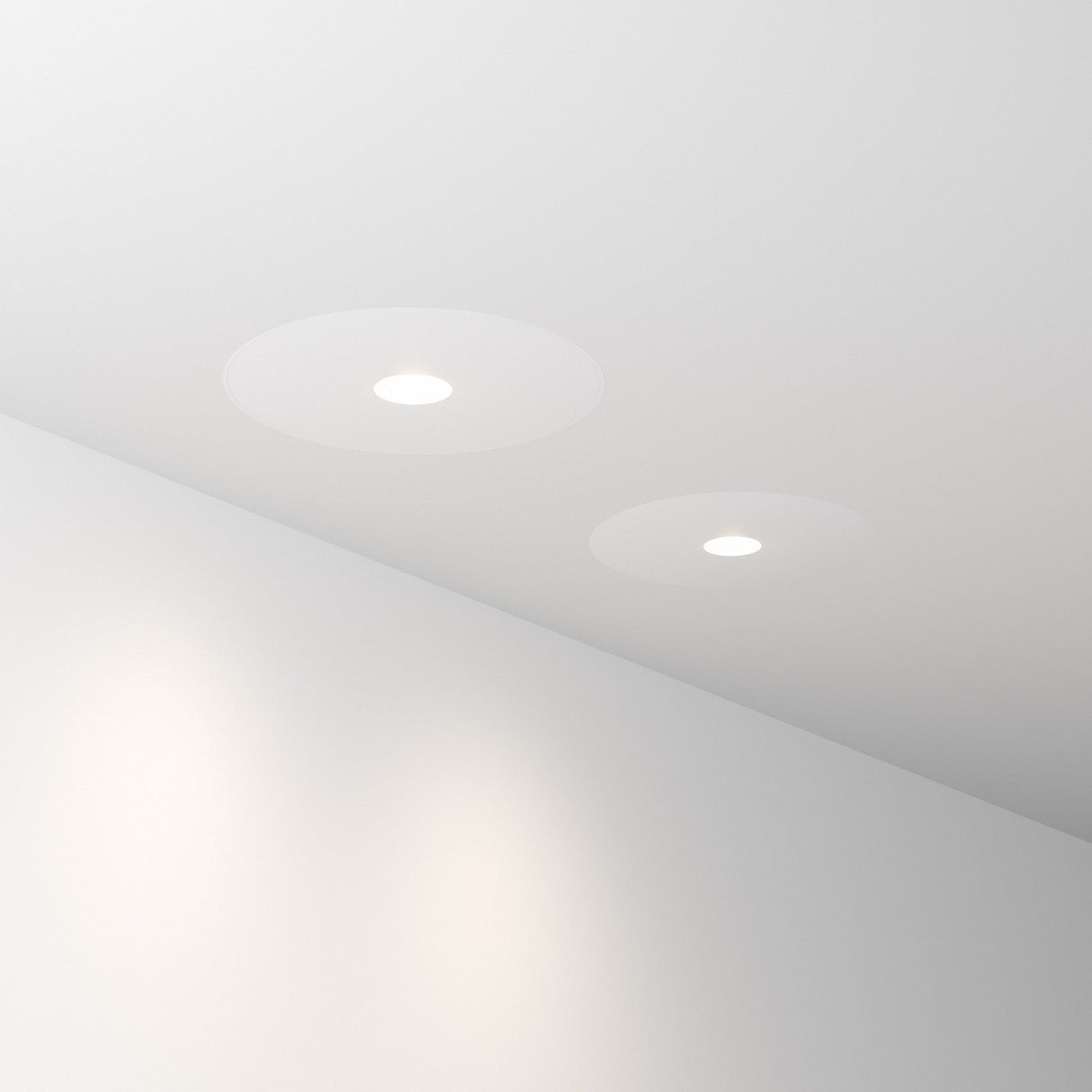

The Infinity trimless is a recessed downlight that vanishes into the ceiling, showing the light and nothing of the frame. It plasters in so the surround is skimmed level with the ceiling, and the white inner cone holds the COB LED back from the opening. Lit, it reads as a clean point of light with the fitting hidden; unlit, the pale aperture sits flush in the plaster rather than marking it with a ring.
Output is a tight 28 degree beam at a warm 3000K, drawing 7W for 520 lumens with colour rendering above 95, so surfaces and objects keep their true colour under it. The narrow spread suits accent and task work, picking out a picture, a worktop or a walkway with little spill, and a UGR below 16 keeps glare low. Set several in a line for an even, frameless run of light.

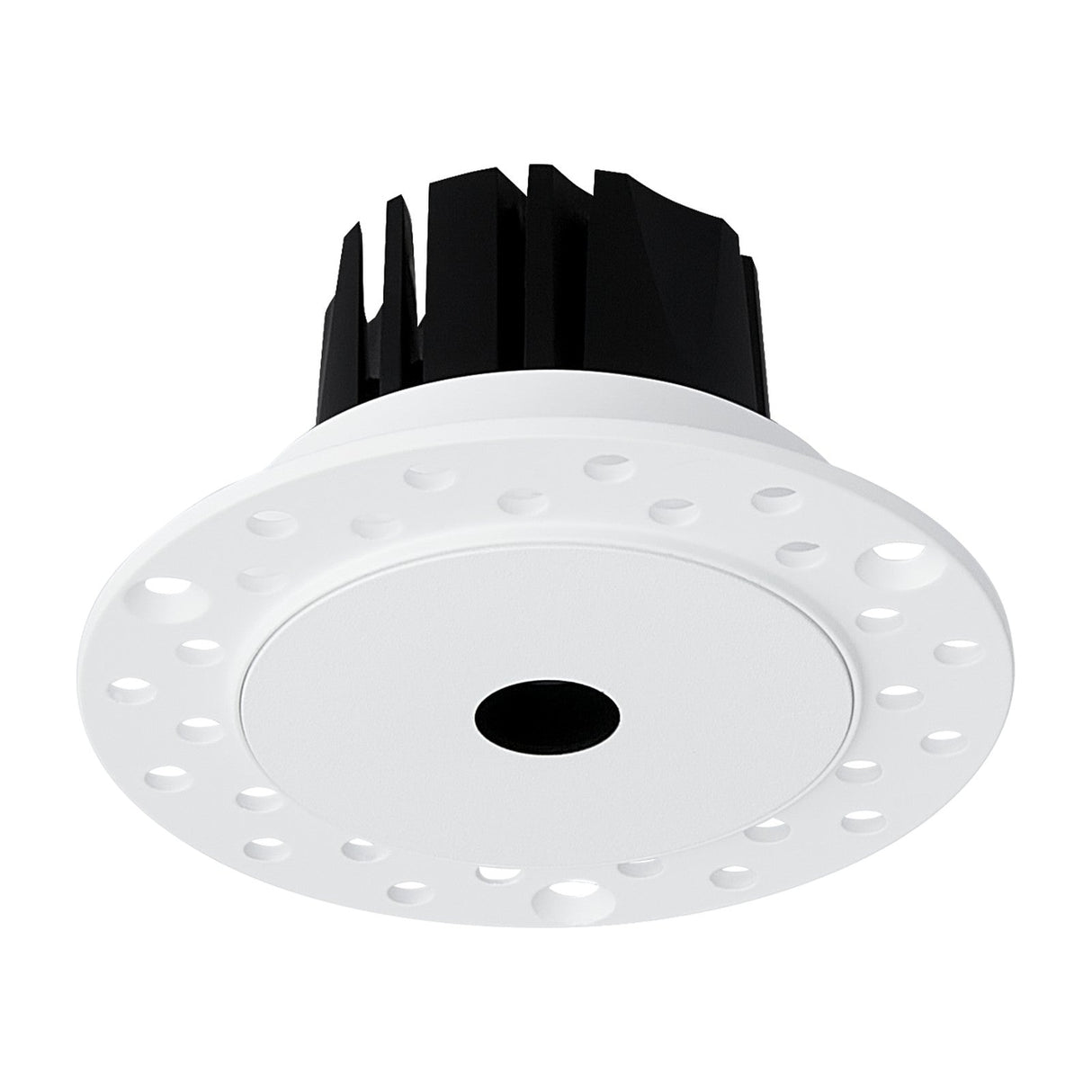

The body is die-cast aluminium and the visible cone is matt white, sitting behind a plaster-in flange for a trimless finish in a plasterboard ceiling. The LED is built in and included, rated for 50,000 hours, with a separate driver supplied. It runs at a fixed level without dimming and is rated IP20 for dry indoor rooms.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 7W total (COB, 50,000h, driver included) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
520lm |
| Colour rendering (CRI) |
> 95 |
| Beam angle |
28 degrees |
| Glare rating (UGR) |
< 16 |
| Diameter |
85mm (plaster-in flange) |
| Recess depth |
47mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off switch) |
| Mounting |
Trimless plaster-in for plasterboard ceilings |
| Frame / Structure finish |
Matt white die-cast aluminium |
| Materials |
die-cast aluminium |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What makes the trimless version different?
It plasters into the ceiling with no visible ring, so only the aperture and the light show. The COB LED sits recessed inside, giving a tight 28 degree beam at a warm 3000K with colour rendering above 95, for a clean frameless look.
Does it come ready to fit?
Yes. The LED is integrated and included, rated at 520 lumens with a 50,000 hour life, and a separate driver is supplied. There is no bulb to buy; it wires to mains and plasters into a plasterboard ceiling.
Can it be dimmed?
No. This version runs at a fixed level with a simple on-off switch and is not dimmable, so no dimmer or extra control gear is needed on the circuit.
How big is it and where does it suit?
The plaster-in flange is 85mm across and it recesses about 47mm deep. The frameless white finish and tight beam suit accent and task lighting in a living room, hallway or kitchen where a clean, hidden fitting is wanted.
