Description
This is a recessed downlight fitting that drops into a 75mm ceiling cut-out and sits flush with the ceiling face. It takes a single GU10 twist-lock lamp, which is supplied separately and is not included. The position is fixed, giving a straight, downward throw that suits even, regular spacing across a ceiling.

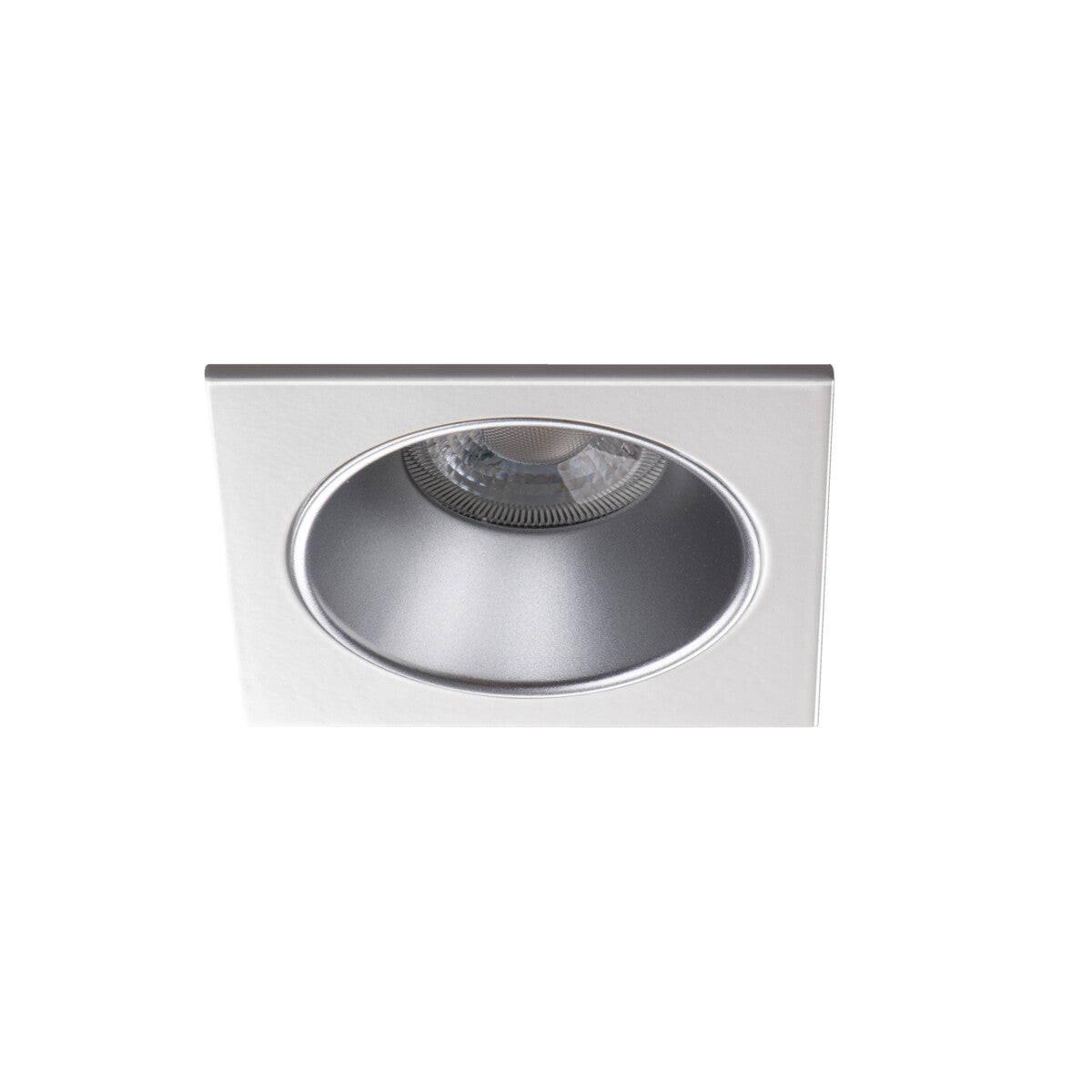

The square aperture measures 88 x 88 mm with a 48 mm recess depth, so check the void above the ceiling allows for the fitting plus the chosen GU10 lamp and its wiring. It is rated IP20, which makes it suitable for dry indoor rooms such as living spaces, hallways, bedrooms and kitchens away from direct splashing. Keep it clear of bathroom zones and any location exposed to moisture.
The body is aluminium alloy in a silver and white finish, a clean square trim that reads neatly against a plain or painted ceiling. It accepts GU10 lamps up to a maximum of 10W, so match the lamp rating accordingly. Dimming depends entirely on the GU10 lamp you fit, not on the housing itself. Wiring is a straightforward connection behind the ceiling, with the spring clips holding the fitting firmly in the cut-out.
Specification
| Fitting type |
Recessed downlight |
| Bulb cap (lamp not included) |
GU10 twist-lock |
| Adjustment |
Fixed |
| Cut-out |
75mm cut-out |
| Max lamp wattage |
max 10W |
| IP rating |
IP20 |
| Material |
Aluminium Alloy |
| Colour / finish |
Srebrny / Biały |
| Dimensions |
88 × 88 × 48 mm |
| Lamp included |
No, supplied without a bulb |
Frequently Asked
Is a bulb included?
No, this fitting is supplied without a lamp. It accepts a separate GU10 twist-lock bulb, which you choose and buy to suit your preferred brightness and colour.
What size cut-out does it need?
It needs a 75mm ceiling cut-out. The visible square trim measures 88 x 88 mm and the fitting recesses 48 mm into the ceiling void, so allow clearance for the lamp and wiring above.
Can I use it in a bathroom or outdoors?
No. It is rated IP20, which means it is for dry indoor use only. Keep it clear of bathroom shower zones and any outdoor or damp location.
What wattage lamp can I fit?
It takes GU10 lamps up to a maximum of 10W. Use an LED GU10 within that rating; whether it dims depends on the lamp you select, not the fitting.
