Description

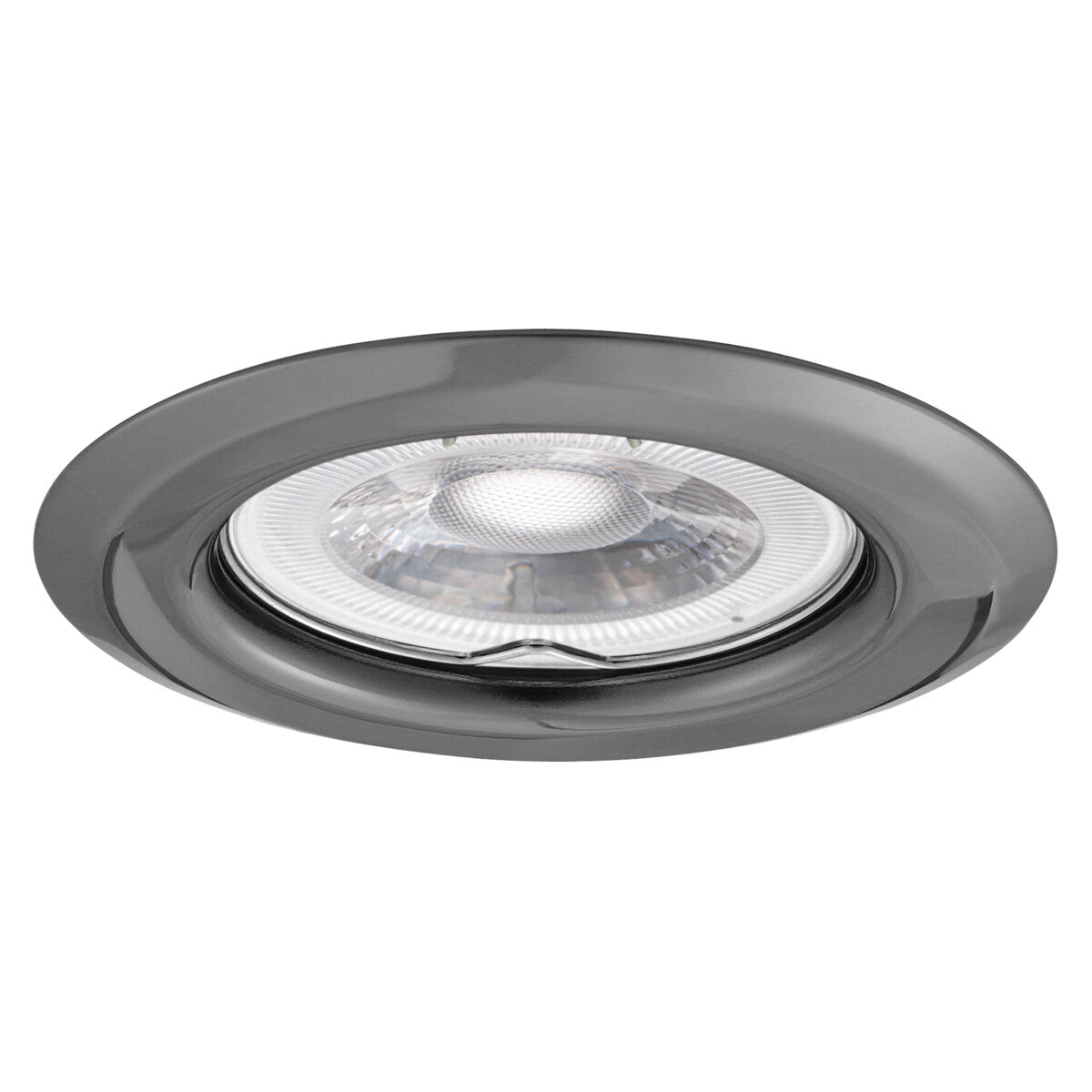

This recessed downlight sits flush into a ceiling, dropping into a 60mm cut-out so only the round graphite trim shows below the surface. It accepts a single GU10 twist-lock lamp, which is not included, leaving the choice of brightness and tone to whichever bulb is fitted. The position is fixed, throwing light straight down for general or accent coverage.
The compact Ø82mm face and shallow 34mm depth suit kitchens, hallways, living rooms and bedrooms where a tidy, low-profile ceiling finish is wanted. Several of these fittings can be spaced across a ceiling to build an even grid of recessed points. As an IP20 fitting it is rated for dry indoor rooms only, so it should be kept clear of bathroom zones and any sheltered outdoor positions.
The housing is steel finished in graphite, holding a GU10 lamp up to 10W. It twist-locks into the GU10 holder for a quick lamp change without tools. Whether the fitting dims depends entirely on the bulb chosen, as the housing itself carries no driver. Supplied without a bulb so the lamp can be matched to the room.
Specification
| Fitting type |
Recessed downlight |
| Bulb cap (lamp not included) |
GU10 twist-lock |
| Adjustment |
Fixed |
| Cut-out |
60mm cut-out |
| Max lamp wattage |
max 10W |
| IP rating |
IP20 |
| Material |
Steel |
| Colour / finish |
Graphite |
| Dimensions |
Ø82 × 34 mm |
| Lamp included |
No, supplied without a bulb |
Frequently Asked
What bulb does this downlight take?
It accepts a single GU10 twist-lock lamp rated up to 10W. The lamp twists into the holder and locks in place.
Is a bulb included?
No, the fitting is supplied without a bulb so you can choose the brightness and colour tone you prefer. Any standard GU10 lamp up to 10W will fit.
What size cut-out do I need in the ceiling?
The fitting drops into a 60mm cut-out. Its overall trim measures Ø82mm with a shallow 34mm recess depth, so it needs only a small void above the ceiling.
Can it be used in a bathroom or outdoors?
No. With an IP20 rating it is for dry indoor rooms only, so it should be kept away from bathroom shower zones and any exposed or sheltered outdoor positions.
