Description

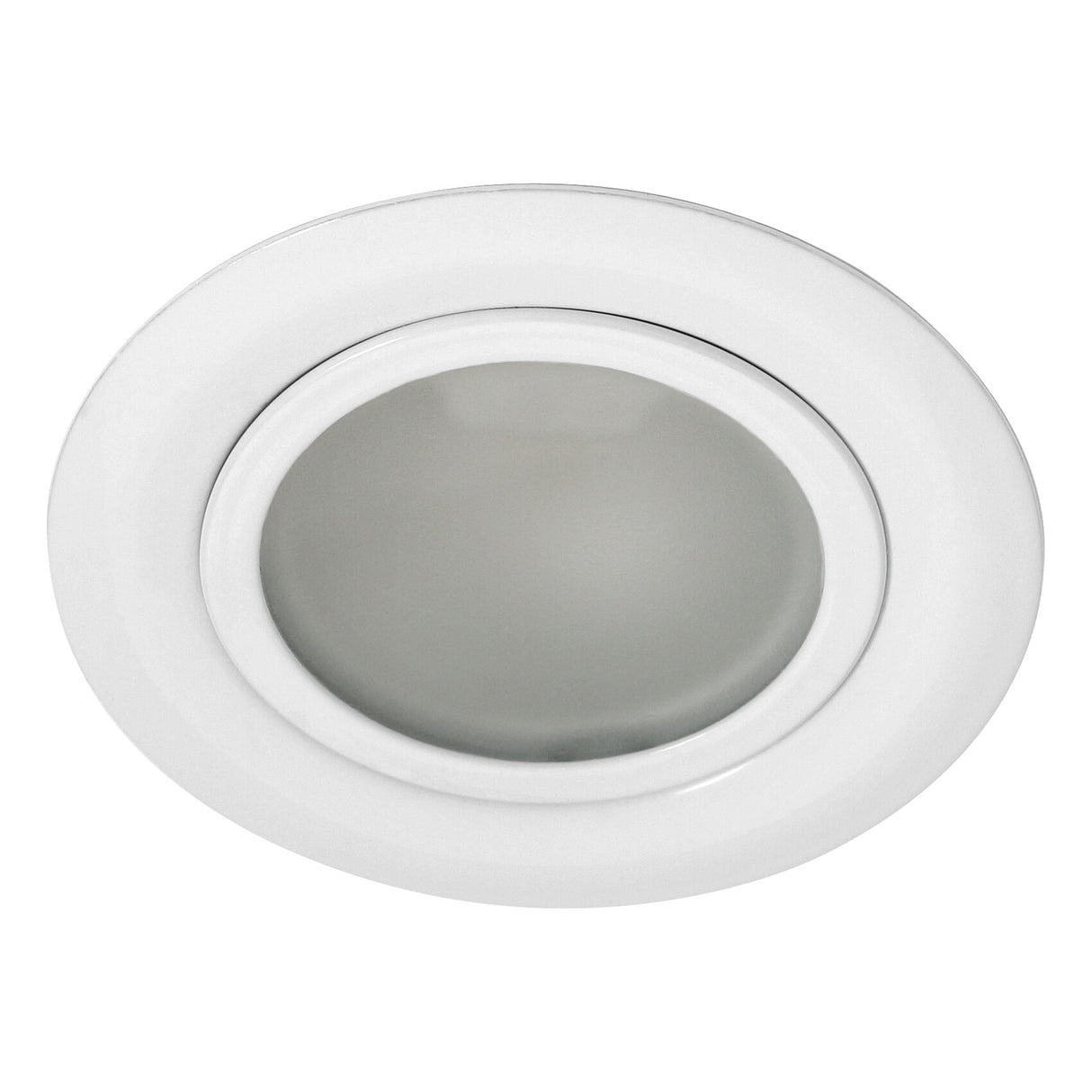

The Gavi is a compact round recessed downlight that drops into the ceiling for a flush, low-profile finish. It takes a G4 capsule lamp rated to a maximum of 10W and runs on a 12V supply (12V AC or 12V DC), so the light it gives depends on the G4 lamp you fit. With a slim 21mm depth and a 73mm overall diameter, it sits neatly into a ceiling void where space behind the plasterboard is tight. In the US this style of small recessed fitting is known as a can light, and the Gavi keeps that trim discreet.

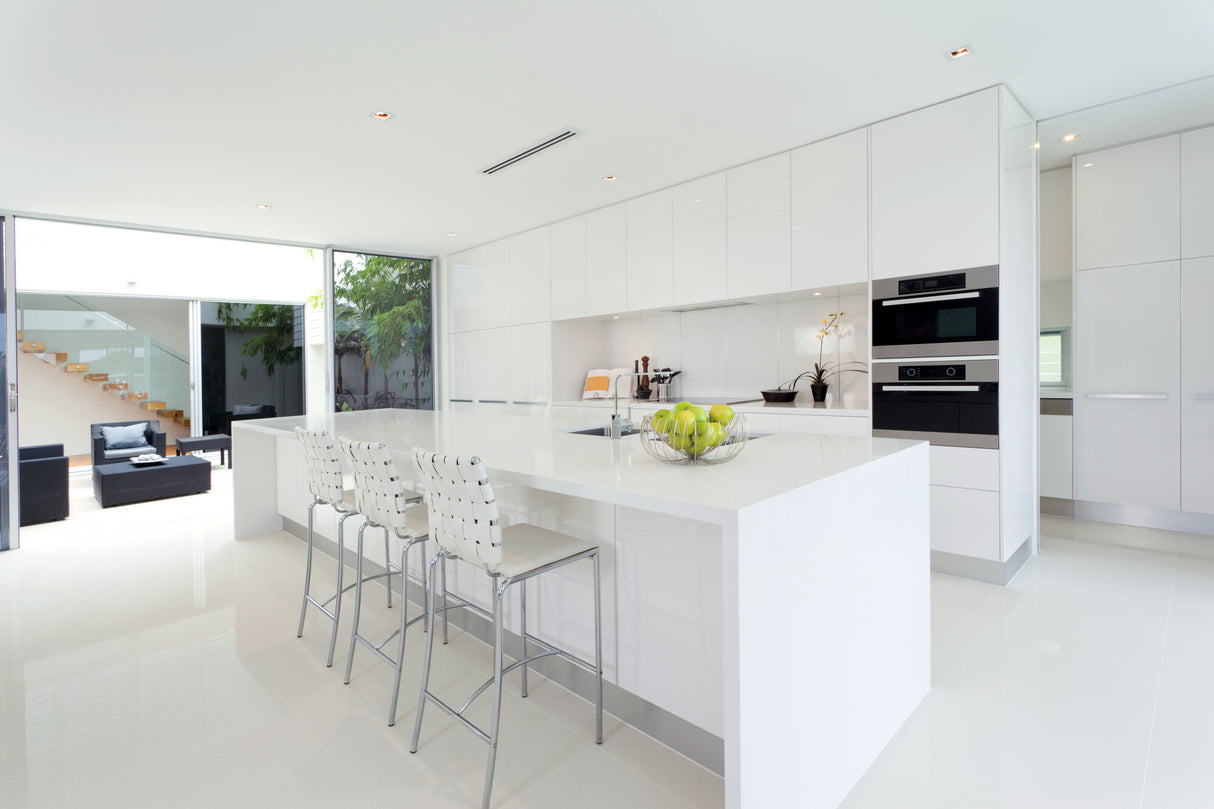

The Gavi suits hallways, landings and smaller rooms where several fittings are spread across a ceiling rather than relying on one central light. Used in a group it builds even, layered coverage, and the modest 10W maximum makes it well suited to accent runs and feature areas alongside a main fitting. It is rated IP20, so it is for dry indoor positions only and should be kept clear of bathrooms, porches and any damp or exposed locations. Plan spacing to the room and ceiling height, and treat it as part of a wider scheme rather than a sole light source.
Built around a steel body with a white finish, the Gavi gives a tidy ring that blends into a painted ceiling. The G4 lamp it carries needs a 12V supply, so a suitable transformer or LED driver must feed the fitting where one is not already in place. It recesses into the ceiling on its retaining clips, not surface-mounted, and weighs only 66g. The round shape keeps the aperture simple and easy to position in a grid.
Specification
| Power |
max 10W |
| Voltage |
12 AC; 12 DC |
| IP rating |
IP20 |
| Mounting |
Recessed Mount In The Ceiling |
| Cap / base |
G4 |
| Shape |
Round |
| Dimensions |
Ø73 × 21 mm |
| Weight |
66 g |
| Material |
Steel |
| Finish |
White |
Downloads
Frequently Asked
What size cut-out does it need?
The Gavi has an overall diameter of 73mm, so the ceiling cut-out is the recess hole the fitting drops into, slightly smaller than that trim diameter. Always confirm the exact aperture against the installation sheet before cutting. Its shallow 21mm depth means it fits where ceiling void space is limited.
Does it need a transformer?
Yes. The Gavi uses a G4 capsule lamp running on a 12V supply, either 12V AC or 12V DC, so it must be fed from a suitable transformer or LED driver rather than wired straight to mains. Check the rating of any existing transformer covers the lamps on the circuit.
Can it be used in a bathroom or outdoors?
No. The Gavi is rated IP20, which means it is for dry indoor use only. Keep it out of bathrooms, porches and any damp or exposed positions, and choose a higher IP-rated fitting for those areas.
How do I keep it clean?
Switch off and let the lamp cool, then wipe the white steel ring with a soft, dry or slightly damp cloth. Avoid solvents or abrasive cleaners, which can mark the painted finish over time.
