Description

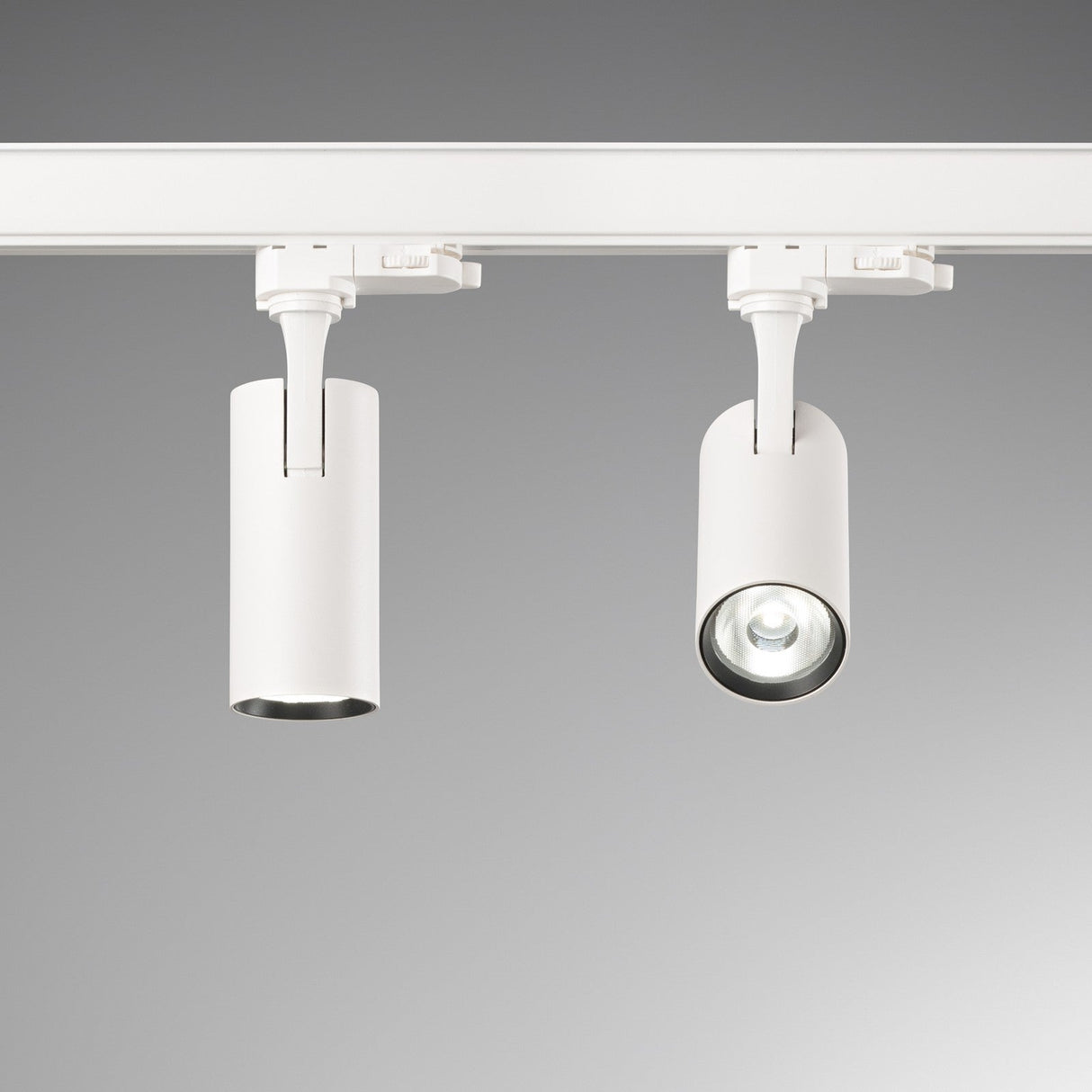

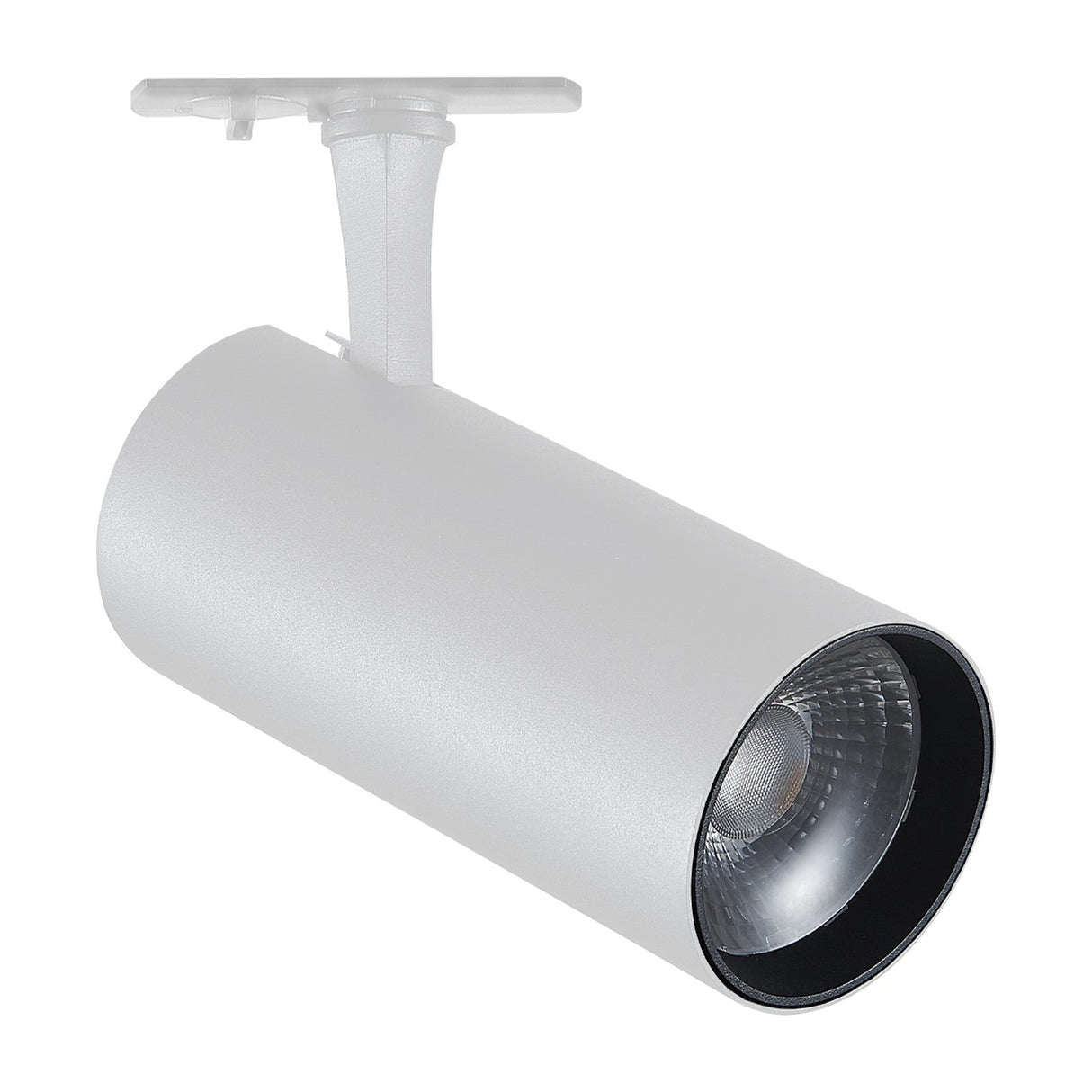

The Fox is a slim cylindrical spotlight that clips onto a single-phase LINK track and aims a pool of light where you point it. The barrel tilts and turns on its adaptor, so you can slide it along the run and set the beam onto a picture, a shelf or a stretch of wall. Lit, it reads as a soft directed circle of warm 3000K light; unlit, the small white tube sits low against a pale ceiling and rail.
This is the compact 8W head, drawing 1000 lumens through a wider 54 degree beam, with a colour rendering index above 90 so wood, fabric and artwork keep their true tone under the light. The matt white barrel measures 81mm across and stands 155mm on the track, the shortest of the Fox heads, its pale finish keeping the fitting quiet so the light does the work. The broader spread suits general accent light across a wall or a run of shelving rather than a single tight spot.
The source is a built-in LED rated to 50,000 hours, so there is no bulb to fit or replace, and it runs at a fixed output on a plain on-off switch straight from the track circuit. It carries an IP20 rating for dry indoor rooms. It needs a live single-phase LINK track to seat on, which we can supply alongside with the feeds and end pieces.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 8W total (1000lm, 3000K, CRI>90, 50,000h, included) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
1000lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
54 degrees |
| Length |
81mm |
| Height |
155mm |
| Projection |
51mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off) |
| Control |
On-off, via track circuit |
| Mounting |
Single-phase LINK track |
| Adjustment |
Head tilts and rotates |
| Frame / Structure finish |
Matt white powder-coated aluminium |
| Materials |
Cylindrical extruded aluminium body |
Downloads
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Fox spotlight give?
One aimed beam of warm 3000K light with a colour rendering index above 90, so colours stay true. This compact head runs a wider 54 degree spread and draws 1000 lumens at 8W, laying general accent light across a wall or shelving. The barrel tilts and turns to point the beam.
Does it use a bulb?
No. The LED is built in and included, rated to 50,000 hours, so there is nothing to source or replace. The head clips onto a single-phase LINK track and lights from the rail once seated.
Can it be dimmed?
No. This is the on-off head, switched from the circuit feeding the track, running at a fixed 3000K output. We are happy to advise on switching and track layout before you order.
What does it need to run and where does it suit?
A live single-phase LINK track rather than a plain ceiling point. At 81mm across and 155mm tall, the wider 54 degree beam suits shops, studios and halls wanting soft aimable accent light across a wall. Rated IP20, it is for dry indoor rooms.
