Description

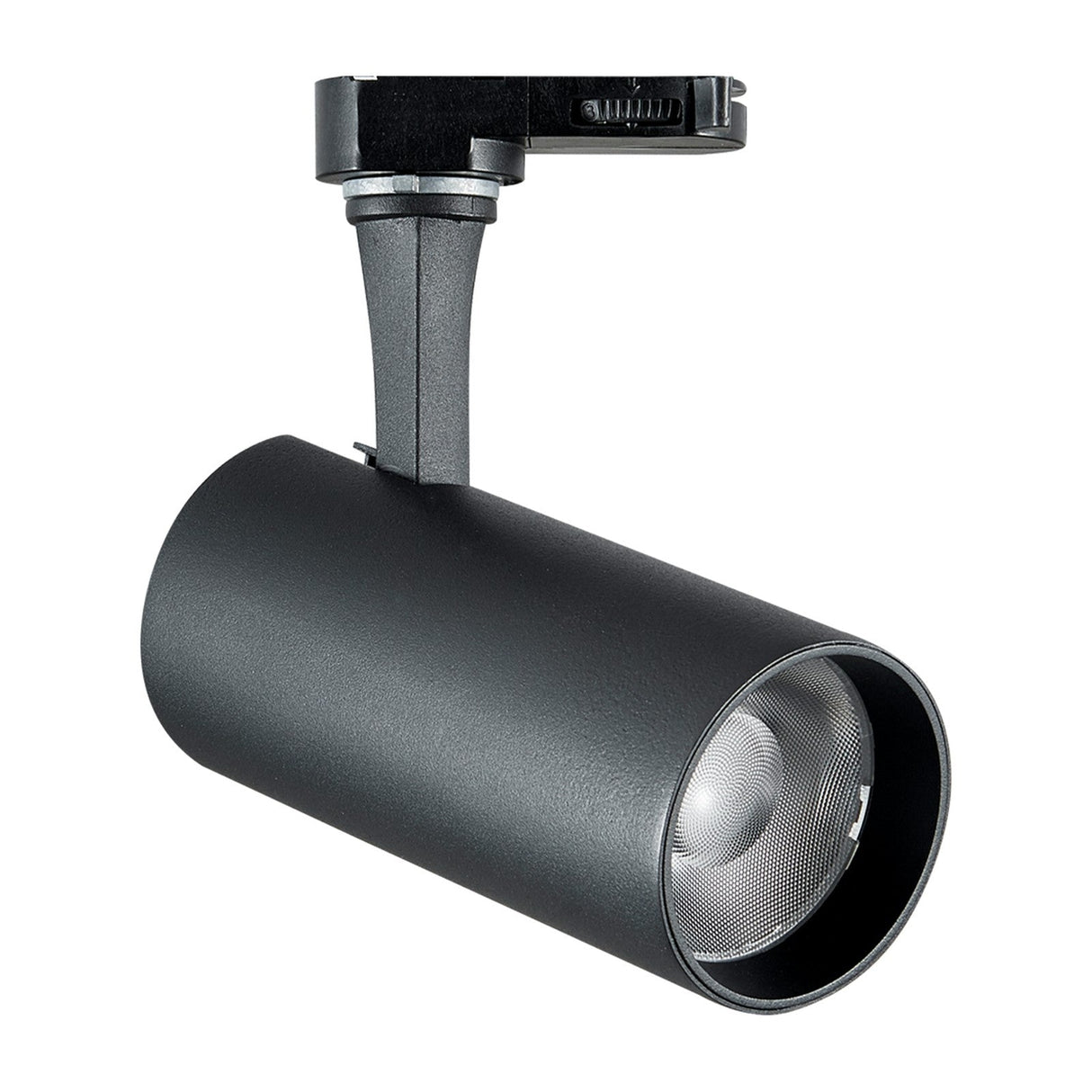

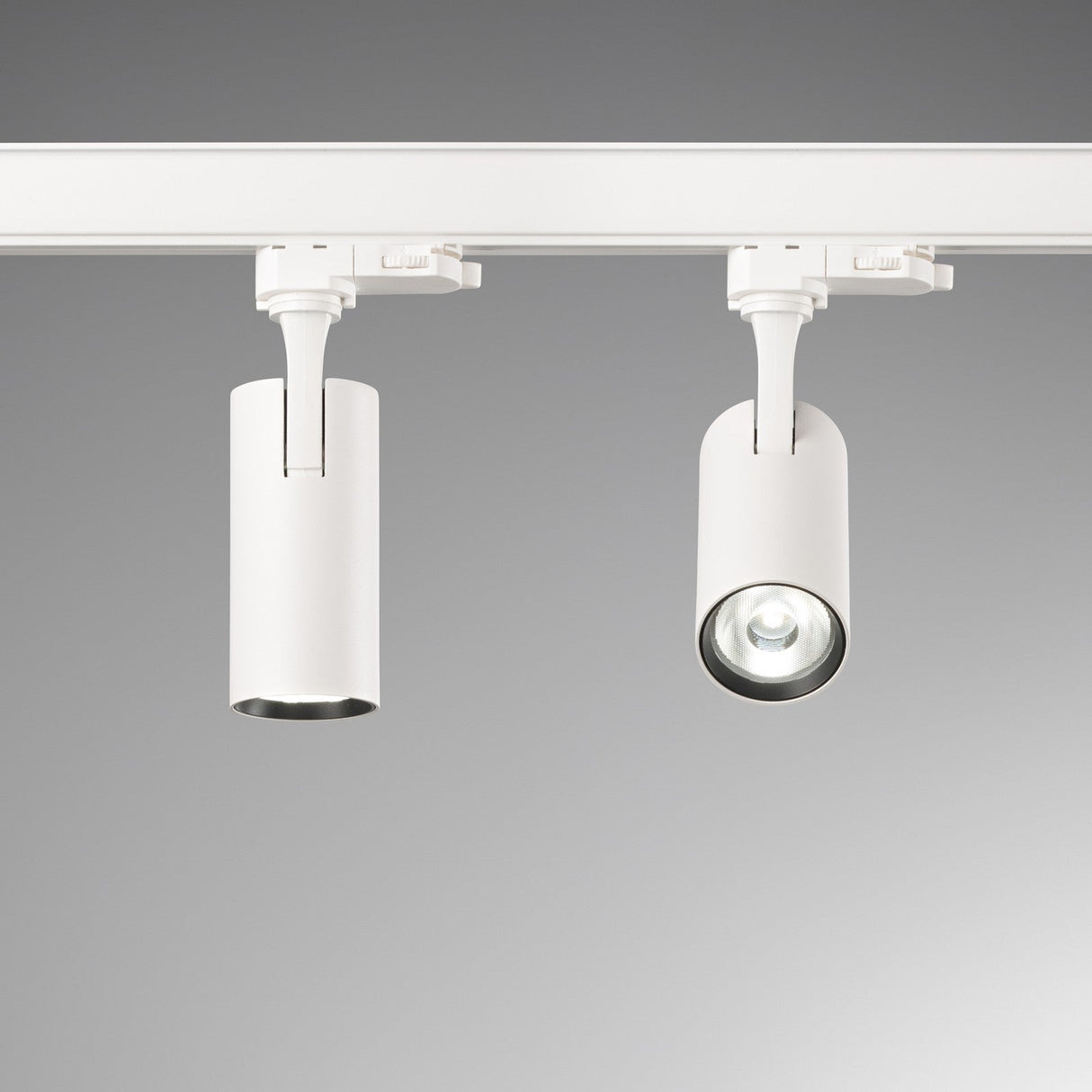

The Fox is a slim cylindrical spotlight that clips onto a single-phase LINK track and aims a defined pool of light where you point it. The barrel tilts and turns on its adaptor, so you can slide it along the run and lock the beam onto a picture, a shelf or a stretch of wall. Lit, it reads as a clean directed circle of warm 3000K light; unlit, the narrow black tube sits low on the rail.
This is the brightest 25W head, drawing 3000 lumens through a narrow 35 degree beam, with a colour rendering index above 90 so artwork, wood and fabric hold their true tone under the light. The matt black barrel measures 81mm across and stands 204mm on the track, taller than the lower-wattage heads to house the larger LED, its dark finish letting the fitting recede so the eye follows the beam rather than the body. The tight spread and high output suit a tall wall, a large canvas or a double-height space where the light has further to travel.
The source is a built-in LED rated to 50,000 hours, so there is no bulb to fit or replace, and it runs at a fixed output on a plain on-off switch straight from the track circuit. It carries an IP20 rating for dry indoor rooms. It needs a live single-phase LINK track to seat on, which we can supply alongside with the feeds and end pieces.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 25W total (3000lm, 3000K, CRI>90, 50,000h, included) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
3000lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
35 degrees |
| Length |
81mm |
| Height |
204mm |
| Projection |
70mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off) |
| Control |
On-off, via track circuit |
| Mounting |
Single-phase LINK track |
| Adjustment |
Head tilts and rotates |
| Frame / Structure finish |
Matt black powder-coated aluminium |
| Materials |
Cylindrical extruded aluminium body |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Fox spotlight give?
One aimed beam of warm 3000K light with a colour rendering index above 90, so colours stay true. This is the brightest head, running a narrow 35 degree spread and drawing 3000 lumens at 25W, so it reaches a tall wall or a large canvas. The barrel tilts and turns to point the beam.
Does it use a bulb?
No. The LED is built in and included, rated to 50,000 hours, so there is nothing to source or replace. The head clips onto a single-phase LINK track and lights from the rail once seated.
Can it be dimmed?
No. This is the on-off head, switched from the circuit feeding the track, running at a fixed 3000K output. We are happy to advise on switching and track layout before you order.
What does it need to run and where does it suit?
A live single-phase LINK track rather than a plain ceiling point. At 81mm across and 204mm tall, the high 3000 lumen output and 35 degree beam suit galleries, showrooms and double-height halls that want strong aimable accent light. Rated IP20, it is for dry indoor rooms.
