Description

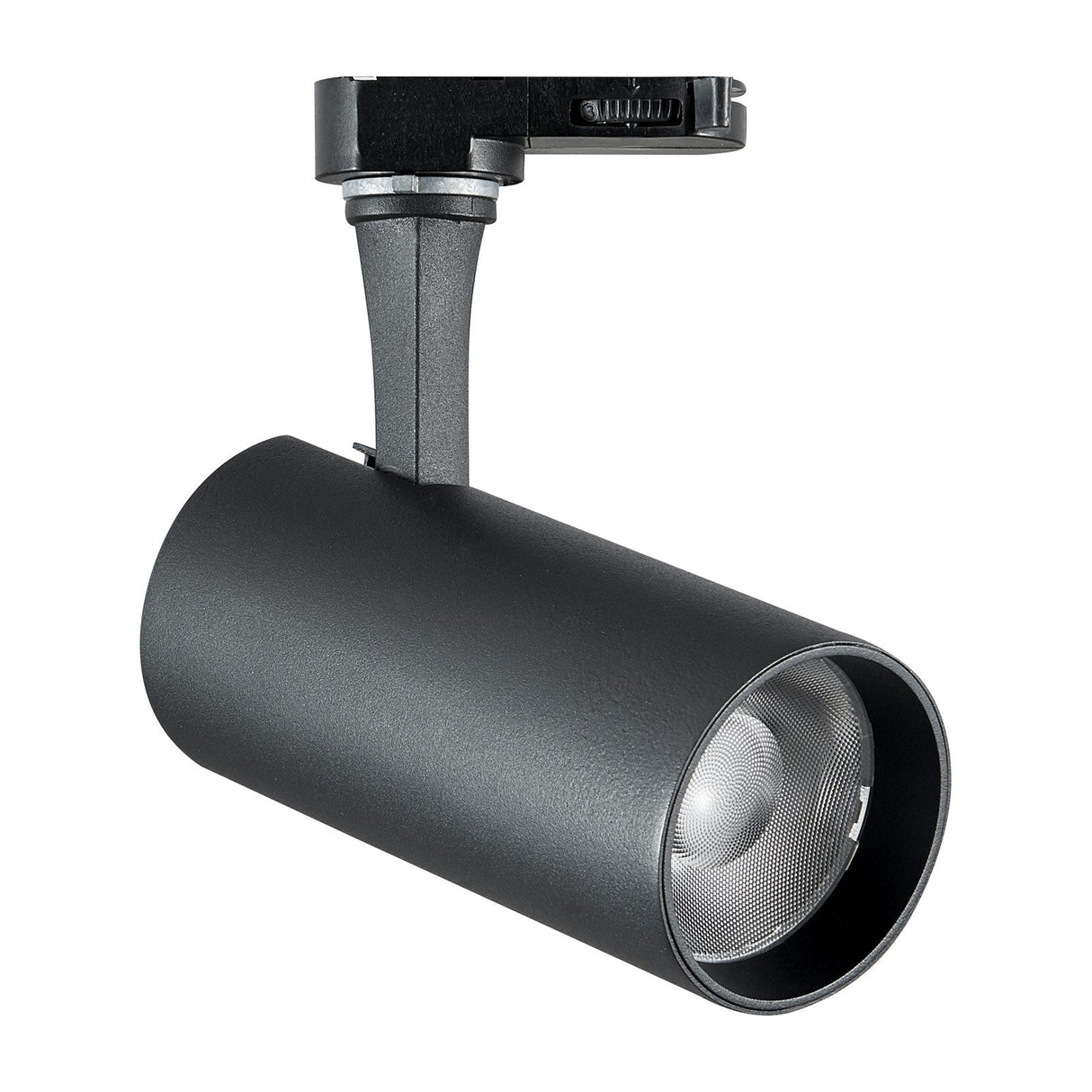

The Fox is a slim cylindrical spotlight that clips onto a three-phase mains track, giving you one aimable integrated-LED head you can slide along the rail and lock where light is wanted. The barrel tilts on its yoke and turns on the track, so the beam follows a picture, a plinth or a display as the room changes. Lit, it throws a tight bright circle of warm light; off, the matt black body stays discreet on the run.
Its COB LED runs at 25W and gives 2800 lumens, around 2130 of them usable on the surface below, at a warm 2700K with a colour rendering above 90 so paint, wood and fabric read true under the beam. The optic is fixed at a narrow 35 degrees, the tightest in the range, which carries its output down from a higher ceiling or picks out a single object with punch. The driver sits inside the barrel, so nothing hangs off the track, and the head still repositions by hand.
The body is extruded aluminium finished matt black and the fitting is rated IP20 for dry indoor rooms. The LED is built in and included, rated to 50,000 hours, so there is no bulb to fit or replace, and it is switched on and off at the mains rather than dimmed. It runs on a three-phase LINK track, which we can supply alongside; the head and its driver come ready, and the track adaptor is chosen to match your run.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED (COB), 25W total (50,000h) |
| Luminous flux |
2800lm (2130lm useful) |
| Colour temperature |
2700K (warm white) |
| Colour rendering (CRI) |
Ra > 90 |
| Beam angle |
35 degrees (fixed) |
| Head diameter |
70mm |
| Width |
75mm |
| Height |
214mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off) |
| Voltage |
220-240V AC (driver in-built and included) |
| Mounting |
Three-phase LINK track (adaptor sold separately) |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Fox 25W give?
A tight, bright circle of warm 2700K light with a colour rendering above 90. The beam is fixed at a narrow 35 degrees and the head draws 25W for 2800 lumens, so it reaches down from a taller ceiling or spotlights a single object with punch.
Does it use a bulb?
No, the COB LED is built in and included, rated to 50,000 hours. There is nothing to fit or replace, and the driver sits inside the barrel; the head simply clips onto a three-phase mains track and lights once seated.
Can it be dimmed?
This is the on-off version, switched at the mains without dimming. It is made for spaces that are turned on and off as a whole rather than set to scenes.
What does it need to run?
A three-phase LINK track and its adaptor, not a plain ceiling point. The head locks onto the rail and can be slid and re-aimed later, so we can supply the track and feeds to build the run. The head is 70mm across and stands 214mm tall on the rail.
