Description

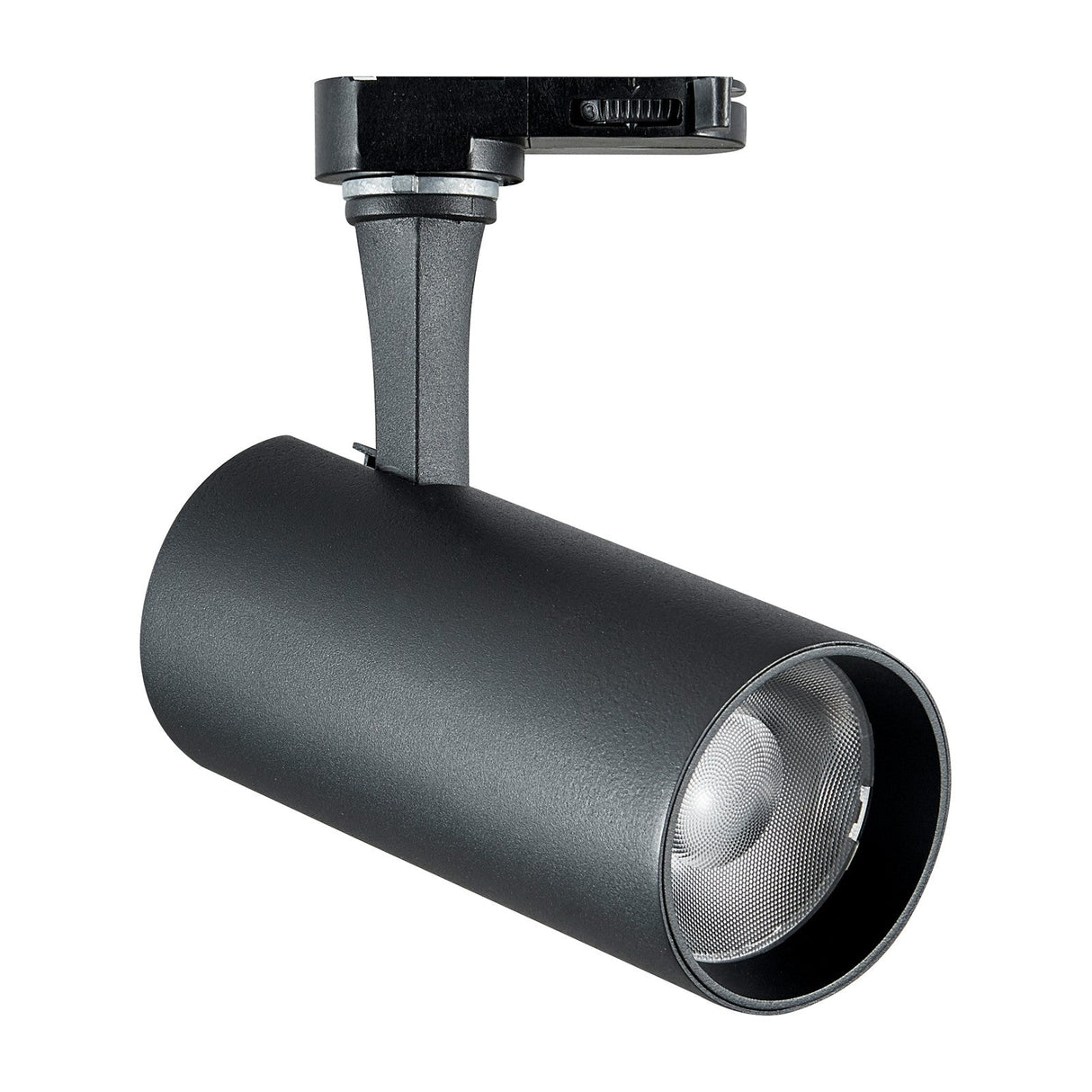

The Fox is a slim cylindrical spotlight that clips onto a three-phase mains track, giving you one aimable integrated-LED head you can slide along the rail and lock where light is wanted. The barrel tilts on its yoke and turns on the track, so the beam follows a picture, a shelf or a worktop as the room changes. Lit, it reads as a controlled circle of warm light; off, the narrow matt black body keeps a low profile on the run.
Its COB LED runs at 15W and gives 1550 lumens, around 1310 of them usable on the surface below, at a warm 2700K with a colour rendering above 90 so paint, wood and fabric read true under the beam. The optic is fixed at a mid 39 degrees, tighter than the 8W head, which lets it pick out a framed piece or a section of shelving with a defined edge rather than a broad wash. The driver sits inside the barrel, so nothing hangs off the track, and the head is light enough to reposition by hand.
The body is extruded aluminium finished matt black and the fitting is rated IP20 for dry indoor rooms. The LED is built in and included, rated to 50,000 hours, so there is no bulb to fit or replace, and it is switched on and off at the mains rather than dimmed. It runs on a three-phase LINK track, which we can supply alongside; the head and its driver come ready, and the track adaptor is chosen to match your run.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED (COB), 15W total (50,000h) |
| Luminous flux |
1550lm (1310lm useful) |
| Colour temperature |
2700K (warm white) |
| Colour rendering (CRI) |
Ra > 90 |
| Beam angle |
39 degrees (fixed) |
| Head diameter |
60mm |
| Width |
75mm |
| Height |
172mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off) |
| Voltage |
220-240V AC (driver in-built and included) |
| Mounting |
Three-phase LINK track (adaptor sold separately) |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Fox 15W give?
A defined circle of warm 2700K light with a colour rendering above 90. The beam is fixed at a mid 39 degrees and the head draws 15W for 1550 lumens, so it picks out framed art or shelving with a cleaner edge than the wider 8W version.
Does it use a bulb?
No, the COB LED is built in and included, rated to 50,000 hours. There is nothing to fit or replace, and the driver sits inside the barrel; the head simply clips onto a three-phase mains track and lights once seated.
Can it be dimmed?
This is the on-off version, switched at the mains without dimming. It is made for spaces that are turned on and off as a whole rather than set to scenes.
What does it need to run?
A three-phase LINK track and its adaptor, not a plain ceiling point. The head locks onto the rail and can be slid and re-aimed later, so we can supply the track and feeds to build the run. The head is 60mm across and stands 172mm tall on the rail.
