FireNova IC Downlight Bracket - Steel

£199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

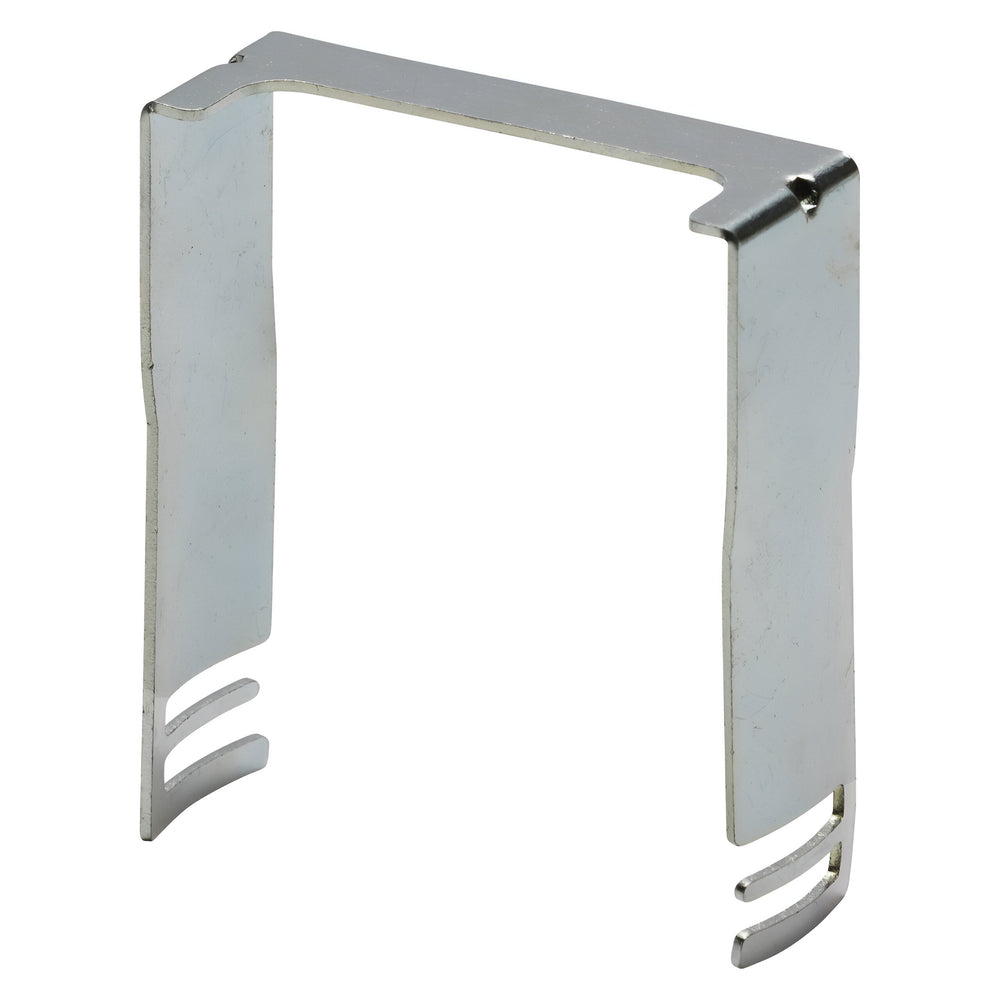

The FireNova IC bracket is a steel mounting frame designed for Knightsbridge FireNova fixed and tilt downlights, allowing them to be installed beneath insulation layers while maintaining IC (insulation contact) safety rating. The bracket creates a protective void around the downlight fitting, preventing direct contact between insulation material and the heat-generating components of the lamp.

Designed for loft and ceiling installations where thermal insulation is laid directly above plasterboard ceilings, the bracket ensures compliance with Building Regulations thermal barrier requirements without requiring insulation to be cut away around each downlight. The steel construction withstands typical loft temperatures and supports downlights fitted with LED lamps up to 7W output. The 120mm minimum void depth requirement means the bracket suits most residential ceiling constructions with joist depths of 150mm or greater.

The bracket measures 77mm in length, 62.5mm in height and 22mm in width, fitting snugly around the downlight body without adding significant bulk to the ceiling void. The open frame design allows airflow around the fitting while preventing insulation from collapsing into the lamp zone. Installation involves clipping the bracket onto the downlight body before pushing the assembly up into the ceiling cutout.

Specification
Length 77mm
Height 62.5mm
Width 22mm
Minimum Void 120mm
Construction Steel
Warranty 1 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

Which downlights is this bracket compatible with?

The bracket is designed specifically for Knightsbridge FireNova fixed and tilt downlights. Check the downlight product page or datasheet to confirm IC bracket compatibility before ordering.

What does IC-rated mean?

IC stands for insulation contact. An IC-rated bracket allows the downlight to be installed in direct contact with thermal insulation without creating a fire risk or overheating, which is required by Building Regulations in most insulated ceiling installations.

What ceiling void depth is needed?

A minimum 120mm void depth is required between the ceiling surface and the underside of the joists or insulation layer. This allows the bracket to sit around the downlight body with sufficient clearance.

Can I use this bracket with higher-wattage lamps?

The bracket is rated for LED lamps up to 7W. Using higher-wattage lamps may cause overheating and void the warranty, as the thermal barrier is designed for the heat output of a 7W LED.
