Description

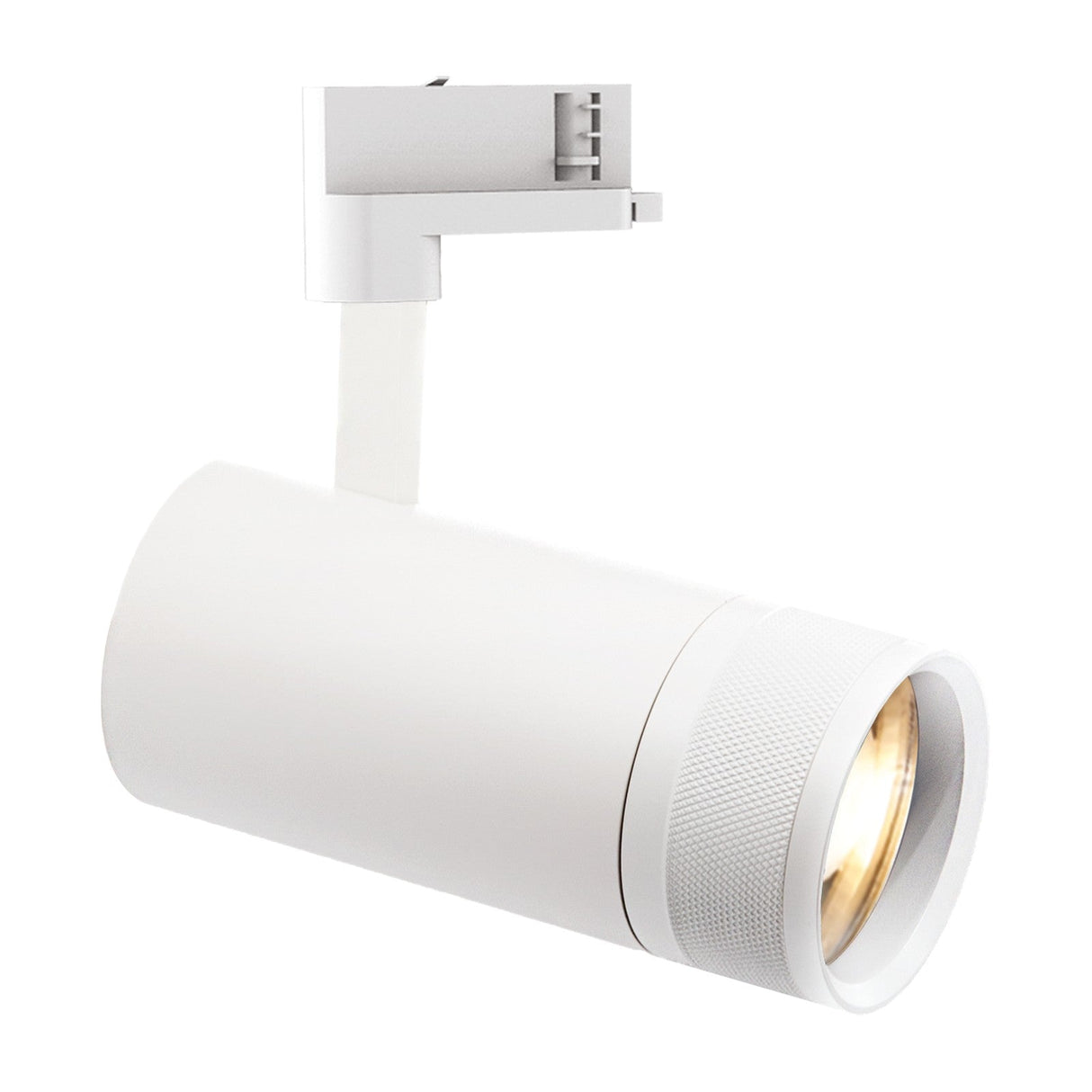

The Eos is an adjustable spotlight that clips onto a three-phase mains track, giving you one aimable integrated-LED head you can slide along the rail and lock where light is wanted. The head turns a full 355 degrees on its base and tilts up to 90, and the optic opens or closes without tools, so a single fitting can pick out one picture or wash a wider bay. Lit, it reads as a clean directed pool of warm light; off, the cylindrical matt white body sits neatly on the run.
Its COB LED runs at 25W and pushes out 2900 lumens, around 2040 of them usable on the surface below, at a warm 2700K with a colour rendering above 90 so timber, fabric and skin hold their true tone under the beam. The optic is the draw here: a stepless zoom from a tight 20 degree spot to a broad 55 degree flood, aimed by hand, which lets the same head cover a shop display, a gallery wall or a big open room as the layout shifts. The driver sits inside the barrel, so nothing hangs off the track.
The body is extruded aluminium finished matt white and the fitting is rated IP20 for dry indoor rooms. The LED is built in and included, rated to 50,000 hours, so there is no bulb to fit or replace, and it is switched on and off at the mains rather than dimmed. It runs on a three-phase LINK track, which we can supply alongside; the head and its driver come ready, and the track adaptor is chosen to match your run.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED (COB), 25W total (50,000h) |
| Luminous flux |
2900lm (2040lm useful) |
| Colour temperature |
2700K (warm white) |
| Colour rendering (CRI) |
Ra > 90 |
| Beam angle |
20 to 55 degrees (variable, tool-free) |
| Head diameter |
72mm |
| Width |
70mm |
| Height |
230mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off) |
| Voltage |
220-240V AC (driver in-built and included) |
| Adjustment |
Head rotates 355 degrees and tilts 90 degrees |
| Mounting |
Three-phase LINK track (adaptor sold separately) |
| Frame / Structure finish |
Matt white aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Eos spotlight give?
One aimable beam of warm 2700K light with a colour rendering above 90. A tool-free zoom moves it from a tight 20 degree spot to a broad 55 degree flood, drawing 25W for 2900 lumens, so the same head can pick out one object or cover a wider area.
Does it use a bulb?
No, the COB LED is built in and included, rated to 50,000 hours. There is nothing to fit or replace, and the driver sits inside the barrel; the head simply clips onto a three-phase mains track and lights once seated.
Can it be dimmed?
This is the on-off version, switched at the mains without dimming. It is made for spaces that are turned on and off as a whole rather than set to scenes.
What does it need to run?
A three-phase LINK track and its adaptor, not a plain ceiling point. The head locks onto the rail and can be slid and re-aimed later, so we can supply the track and feeds to build the run. The head measures 72mm across and stands 230mm tall on the rail.
