Description

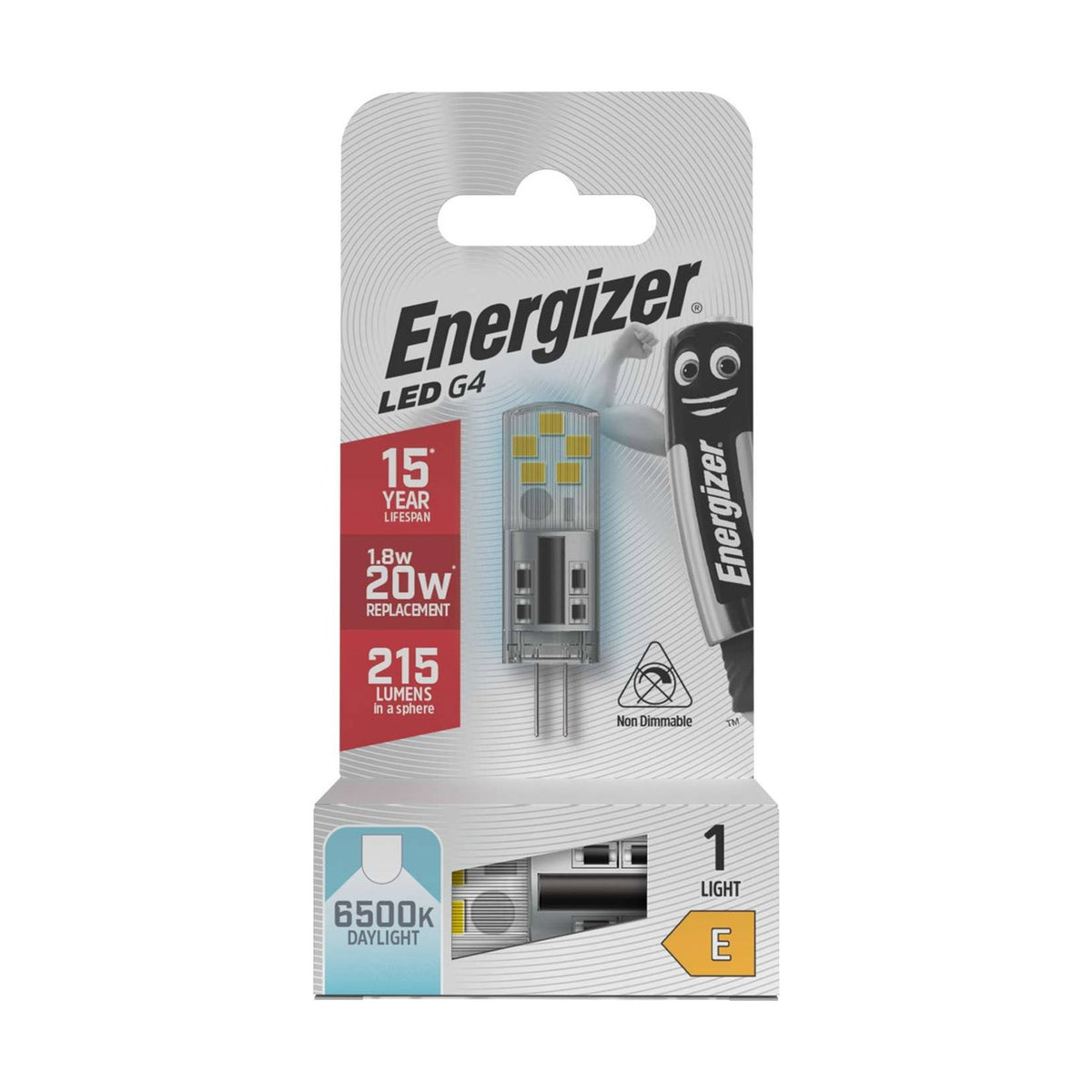

The Energizer G4 LED capsule bulb consumes 1.8W whilst delivering 215 lumens at a 6500K daylight colour temperature, replacing traditional 20W halogen G4 capsules. The twin-pin G4 base fits standard low-voltage fittings operating on 12V supply, commonly found in under-cabinet lighting, bathroom mirrors, display cabinets and desk lamps.
Designed for task lighting where clarity is needed — kitchens, workshops, bathrooms and home offices — the 6500K daylight output provides a crisp, neutral white light that enhances visibility for food preparation, detailed work and grooming. The 300° beam angle distributes light across a wide area from the capsule, reducing the need for multiple fittings in compact spaces. The bulb is non-dimmable and rated for a 15-year average lifespan under typical domestic use.
The capsule measures approximately 12mm diameter and 35mm length, making it suitable for compact fittings where space behind the lens or diffuser is limited. The G4 pins are spaced 4mm apart and the bulb operates on 12V AC or DC supply. Unlike halogen capsules which generate significant heat, the LED design runs cooler, reducing the thermal load on enclosed fittings and reducing the risk of heat damage to surrounding materials.
Specification
| Wattage |
1.8W |
| Lumen |
215 |
| Lamp Shape |
Capsule |
| Lamp Base |
G4 |
| Energy Rating |
E |
| Kelvin |
6,500K |
| Colour Temperature |
Daylight |
| Dimmable |
No |
| Beam Angle |
300 |
| LED or Halogen |
LED |
Frequently Asked
What voltage does this bulb require?
This G4 LED capsule operates on 12V AC or DC supply. Most G4 fittings in the UK run on 12V supply via a transformer from mains. Check your existing fitting before purchase — this bulb will not work on 230V mains.
Can this replace a halogen G4 capsule directly?
Yes, provided your fitting operates on 12V. The 1.8W LED replaces a 20W halogen capsule whilst delivering the same 215 lumens output. Some older transformers designed for halogen loads may need replacing with LED-compatible drivers if the bulb flickers on installation.
What is the physical size of the bulb?
The capsule measures approximately 12mm in diameter and 35mm in length, with the G4 pins adding a further 8-10mm to the overall length. This compact size suits most fittings designed for halogen G4 capsules.
Is 6500K suitable for living areas?
6500K is a cool daylight colour temperature that works best in task-focused areas like kitchens, bathrooms and workshops. For living rooms and bedrooms, a warmer 2700K-3000K bulb typically provides a more comfortable ambient light.
