Description

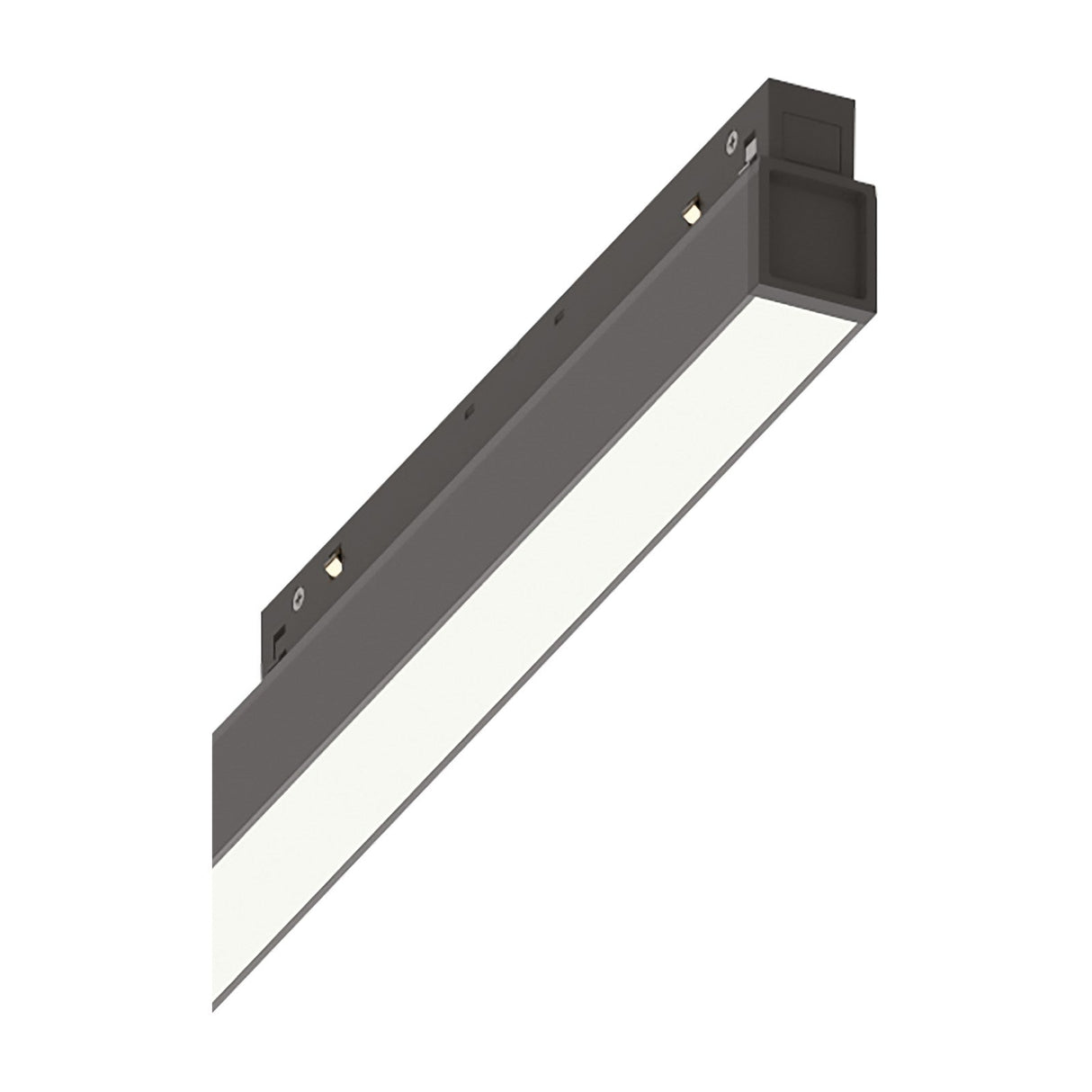

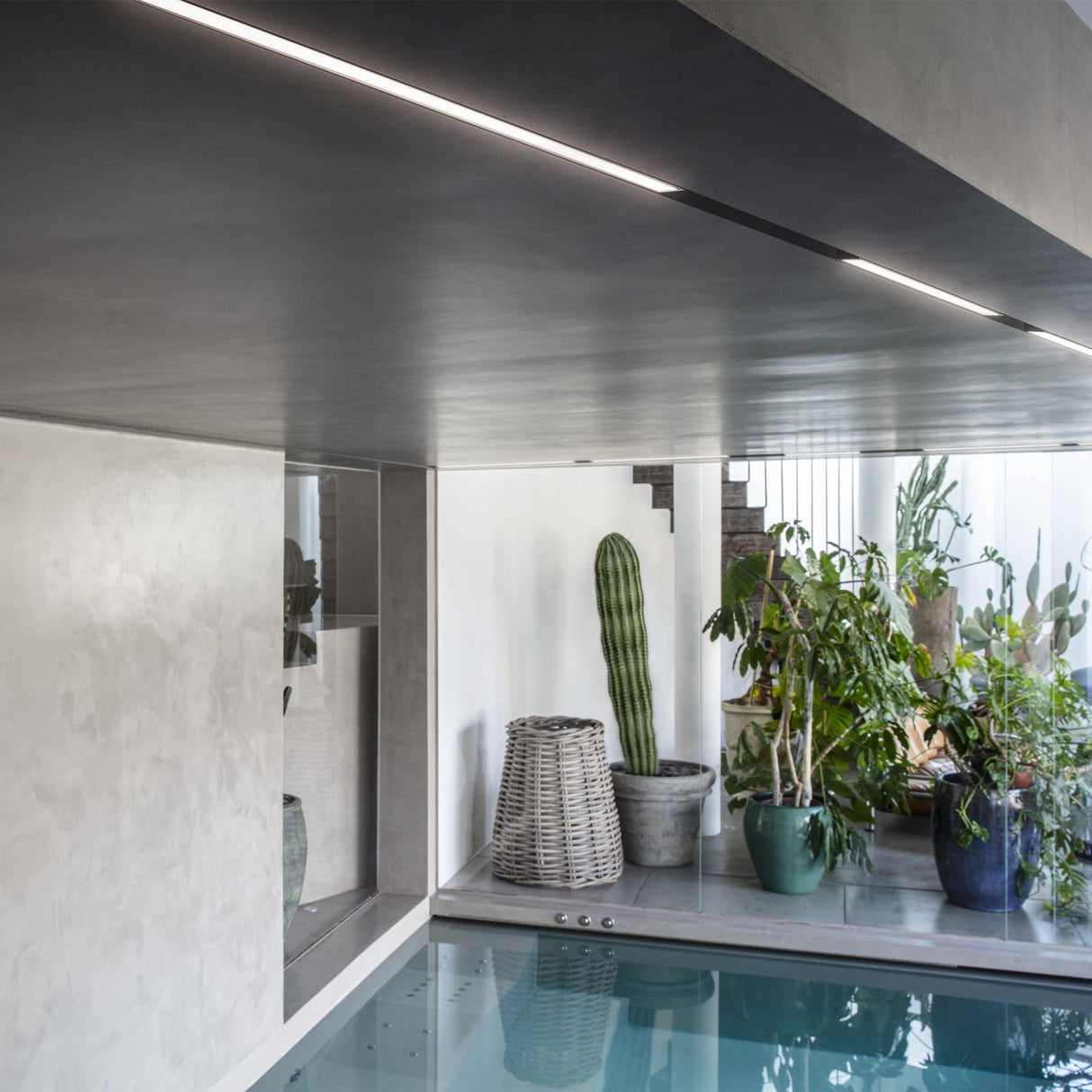

The Ego wall washer is a slim 564mm bar that clips onto the Ego 48V magnetic track and spreads a broad 110 degree wash rather than a narrow spot. The integrated LED runs the length of the body behind a lens, so it reads as a clean line of light that fills a run of ceiling, a wide wall or an open work area evenly. At 43mm tall and only 22mm proud of the rail, the head sits close to the track and keeps the source out of direct view. Lit, it lays a soft even field of warm light; off, the matt black bar marks a neat line on the run.
The built-in LED draws 13W for around 1350 lumens at a warm 2700K, with a colour rendering above 90 so plaster, timber and fabric hold their true tone under the wash. The wide 110 degree spread suits general fill where a spot would leave dark gaps: one bar covers a good stretch of ceiling, or several space along the track to light a room evenly. This is the on-off version, switched from the circuit feeding the track, which keeps the wiring simple where dimming is not needed.
The body is extruded aluminium finished matt black to match the black Ego rail. The LED is integrated and included, rated for 50,000 hours, so there is no bulb to source or replace. Rated IP20, it is made for dry indoor rooms and holds to a live Ego 48V magnetic track magnetically, taking its supply through the rail. It needs the track and a driver, which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 13W total (50,000h) |
| Colour temperature |
2700K (warm white) |
| Lumen output |
1350lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
110 degrees (wide) |
| Length |
564mm |
| Height |
43mm |
| Projection |
22mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off version) |
| Control |
On-off, via track circuit |
| Voltage |
48V DC (driver required) |
| Mounting |
Magnetic, for Ego 48V track |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Ego wall washer give?
A broad even wash at 110 degrees rather than a narrow beam. The integrated LED runs the length of the 564mm bar, so it fills a run of ceiling or a wide wall with warm 2700K light at a colour rendering above 90, drawing 13W for around 1350 lumens.
Does it come ready to light?
Yes. The LED is built in and included, rated at 13W and around 1350 lumens with a 50,000 hour life, so there are no bulbs to buy. The bar clips onto a live Ego 48V magnetic track, which carries the supply, and lights once seated.
How is it switched or dimmed?
This head is the on-off version, switched from the circuit feeding the track. It is not a dimming model; for smooth level control the Ego wall washer is also made in a DALI version at the same 13W and 2700K.
How big is it and where does it suit?
The bar is 564mm long, 43mm tall and only 22mm proud of the rail. Its wide 110 degree spread suits general fill over a work area, kitchen or open-plan room, on an Ego magnetic track in black.
