Description

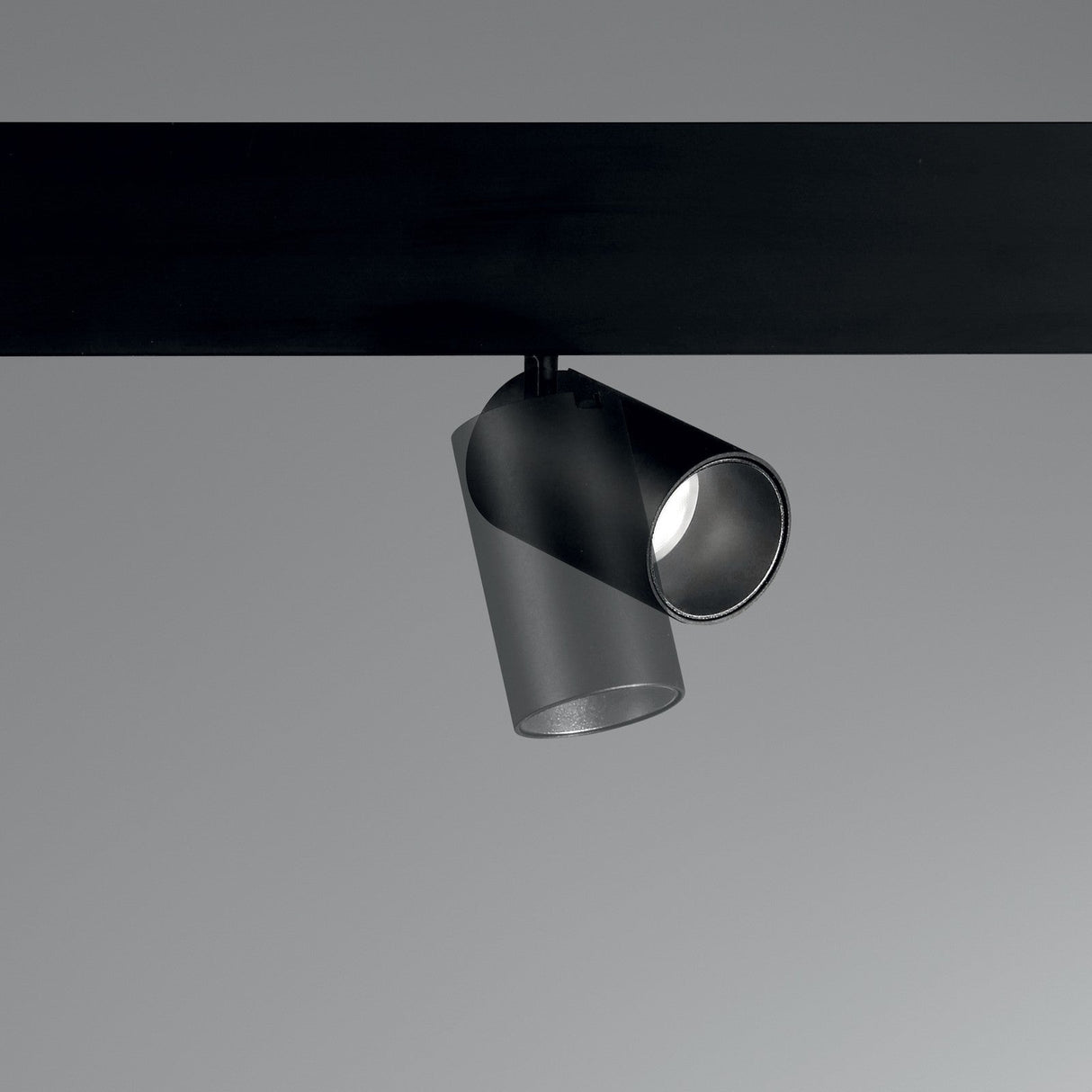

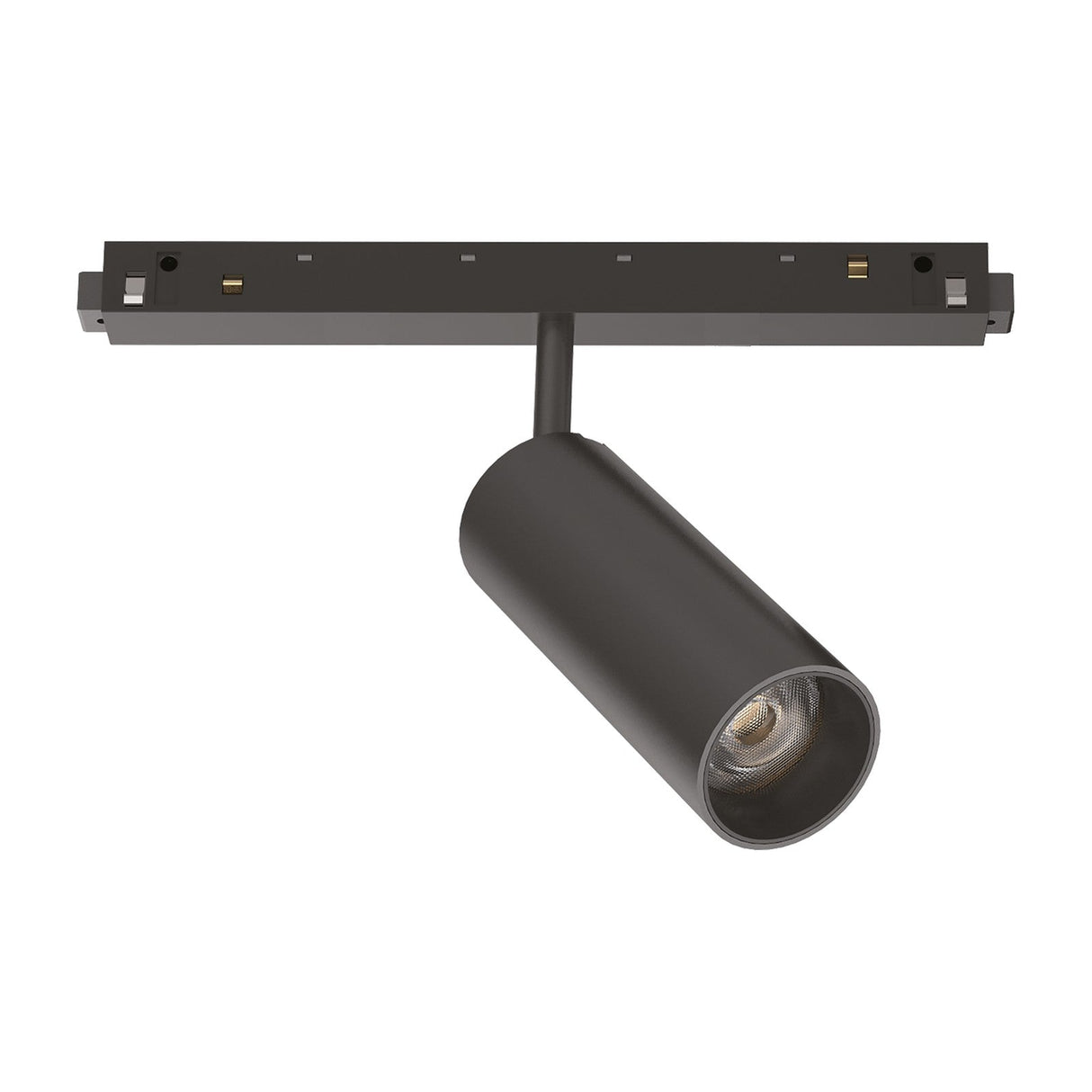

The Ego spot is an aimable head that clips onto the Ego 48V magnetic track and throws a single defined circle of light where you point it. The barrel tilts and rotates on the rail, so one head can pick out a picture, a product or a section of worktop, then follow it when the layout shifts. Its beam holds a tight 30 degrees, keeping the light contained on the target rather than spilling across the room. Lit, it reads as a clean warm pool; off, the matt black body sits low on the run.
The built-in LED draws 12W for around 1050 lumens at a warm 2700K, brighter than the 8W head, with a colour rendering above 90 so timber, artwork and fabric keep their true tone under the beam. This is the on-off version, switched straight from the circuit feeding the track, which keeps the wiring simple where dimming is not needed. Because it lives on a magnetic track, several heads share one low-voltage line and each aim at a separate point, then reposition by hand whenever a hang or display changes, which suits a shop, a studio or a gallery wall.
The head measures 223mm on its longest axis and stands 160mm tall on the track, a taller barrel than the 8W version, in aluminium finished matt black to match the black Ego rail. The LED is integrated and included, rated for 50,000 hours, so there is no bulb to source or replace. Rated IP20, it is made for dry indoor rooms and holds to a live Ego 48V magnetic track magnetically, taking its supply through the rail. It needs the track and a driver, which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 12W total (50,000h) |
| Colour temperature |
2700K (warm white) |
| Lumen output |
1050lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
30 degrees |
| Length |
223mm |
| Height |
160mm |
| Projection |
40mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off version) |
| Control |
On-off, via track circuit |
| Voltage |
48V DC (driver required) |
| Mounting |
Magnetic, for Ego 48V track |
| Adjustment |
Head tilts and rotates |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Aluminium body |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Ego spot give?
A single aimable beam at a tight 30 degrees, in a warm 2700K tone with a colour rendering above 90. The head draws 12W for about 1050 lumens and tilts and rotates on the rail, so it picks out one picture or product rather than washing the room.
Does it come ready to light?
Yes. The LED is built in and included, rated at 12W and around 1050 lumens with a 50,000 hour life, so there are no bulbs to buy. The head clips onto a live Ego 48V magnetic track, which carries the supply, and lights once seated.
How is it switched or dimmed?
This head is the on-off version, switched from the circuit feeding the track. It is not a dimming model; for smooth level control the same Ego spot is also made in a DALI version at the same 12W and 2700K.
How does it differ from the 8W spot?
This head is brighter at 12W and around 1050 lumens, on a taller 160mm barrel, so it lights a larger or further target. The 8W spot suits closer work where a softer, more contained pool is enough.
