Description

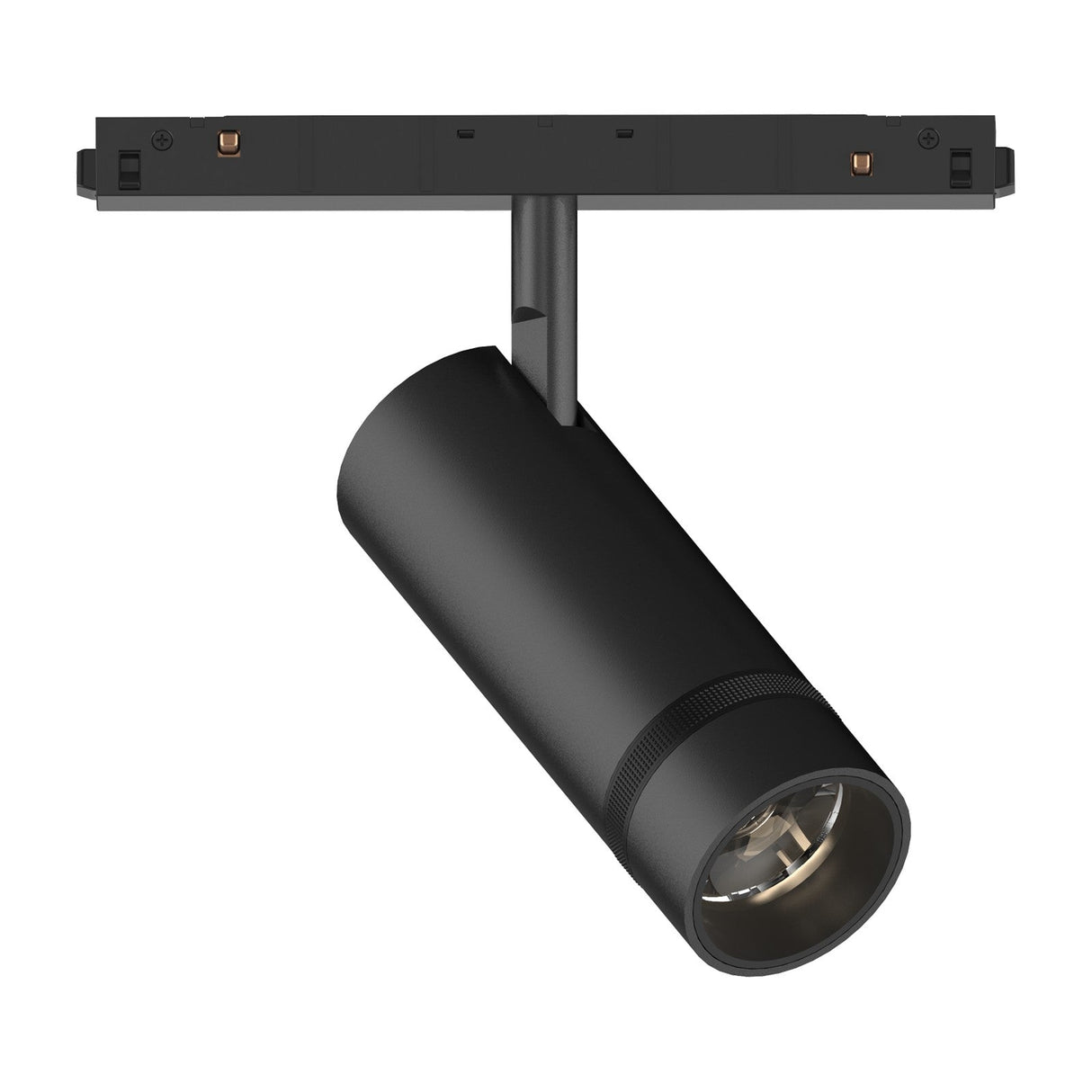

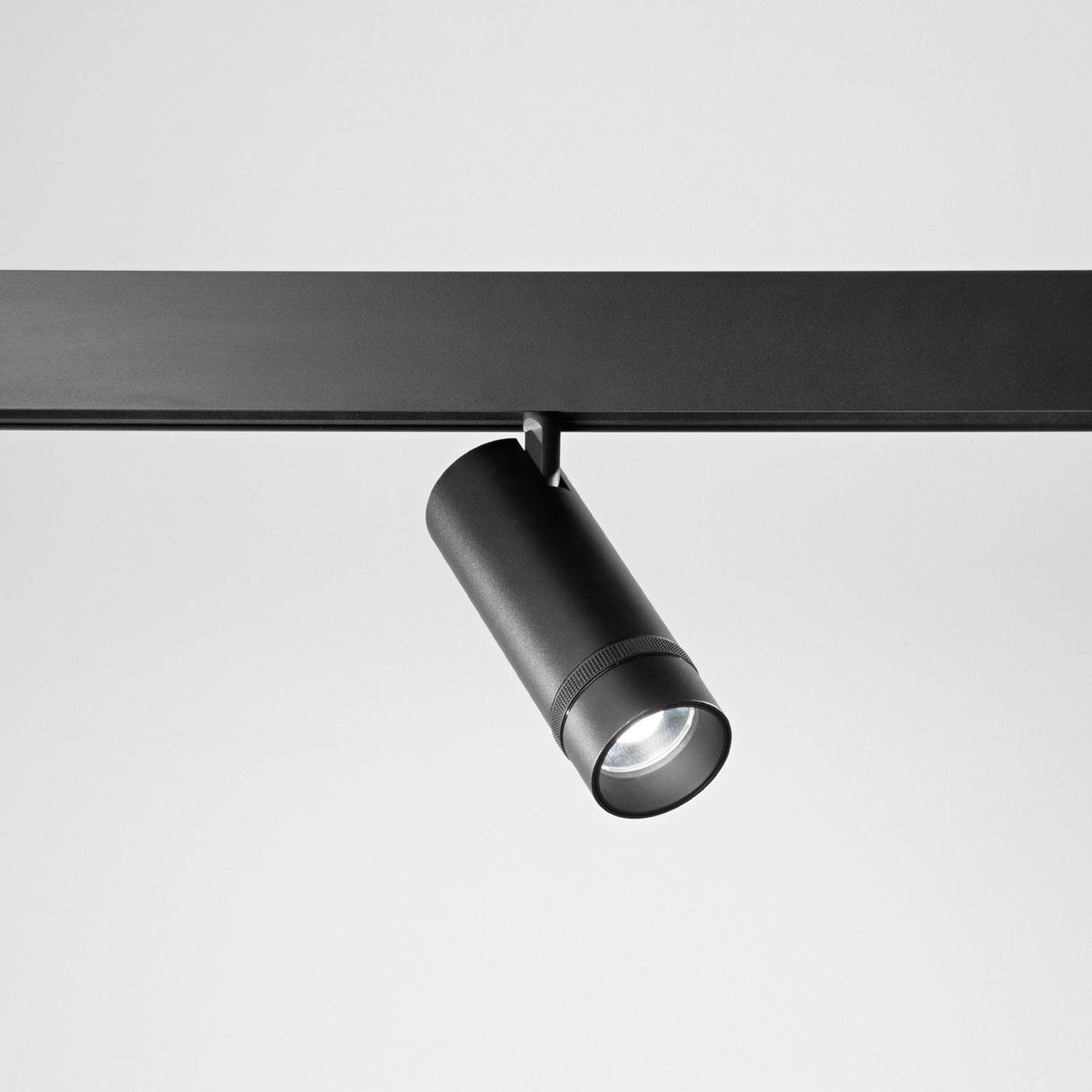

The Ego spot is an adjustable head that clips onto the Ego 48V magnetic track and aims a defined circle of light where you point it. The optic zooms from a tight 20 degree spot to a broader 40 degree pool, so one head can pick out a single object or wash a wider area without changing the fitting. The barrel tilts and rotates on the rail, letting the beam follow artwork, a worktop or a display as the layout changes.
Output is a crisp neutral 4000K, drawing 10W for 1150 lumens with a colour rendering above 90, so colours and edges stay clean and true under the beam. This is the on-off version, switched straight from the circuit feeding the track, which keeps the wiring simple where dimming is not needed. That makes it a straightforward choice for shops, studios and kitchens that want directional accent light on a plain switch.
The head measures 190mm on its longest axis and stands 199mm tall on the track, in aluminium finished matt black to match the black Ego rail. The LED is built in and included, rated for 50,000 hours, so there are no lamps to source. Rated IP20, it is made for dry indoor rooms and holds to a live Ego 48V magnetic track magnetically, taking its low-voltage supply through the rail.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 10W total (50,000h) |
| Colour temperature |
4000K (neutral white) |
| Lumen output |
1150lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
20 to 40 degrees (zoom adjustable) |
| Length |
190mm |
| Height |
199mm |
| Projection |
55mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off version) |
| Control |
On-off, via track circuit |
| Mounting |
Magnetic, for Ego 48V track |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Aluminium body |
Downloads
Datasheet
Assembly Instructions
Frequently Asked
What kind of light does the Ego spot give?
A directional beam you can zoom. The optic adjusts from a tight 20 degree spot to a wider 40 degree pool, running at a crisp 4000K with a colour rendering above 90. It draws 10W for 1150 lumens and the head tilts and rotates to aim.
Does it come ready to light?
Yes. The LED is built in and included, rated at 10W and 1150 lumens with a 50,000 hour life, so there are no bulbs to buy. It clips onto a live Ego 48V magnetic track, which carries the supply, and lights once seated.
How is it switched or dimmed?
This head is the on-off version, switched from the circuit feeding the track. It is not a dimming model; for smooth level control the same Ego spot is also made in a DALI version.
How big is it and where does it suit?
The head is 190mm on its longest axis and 199mm tall on the rail. The zoom optic and neutral 4000K light suit shops, studios and kitchens that want aimable accent light on a plain switch, on an Ego magnetic track in black.
