Description

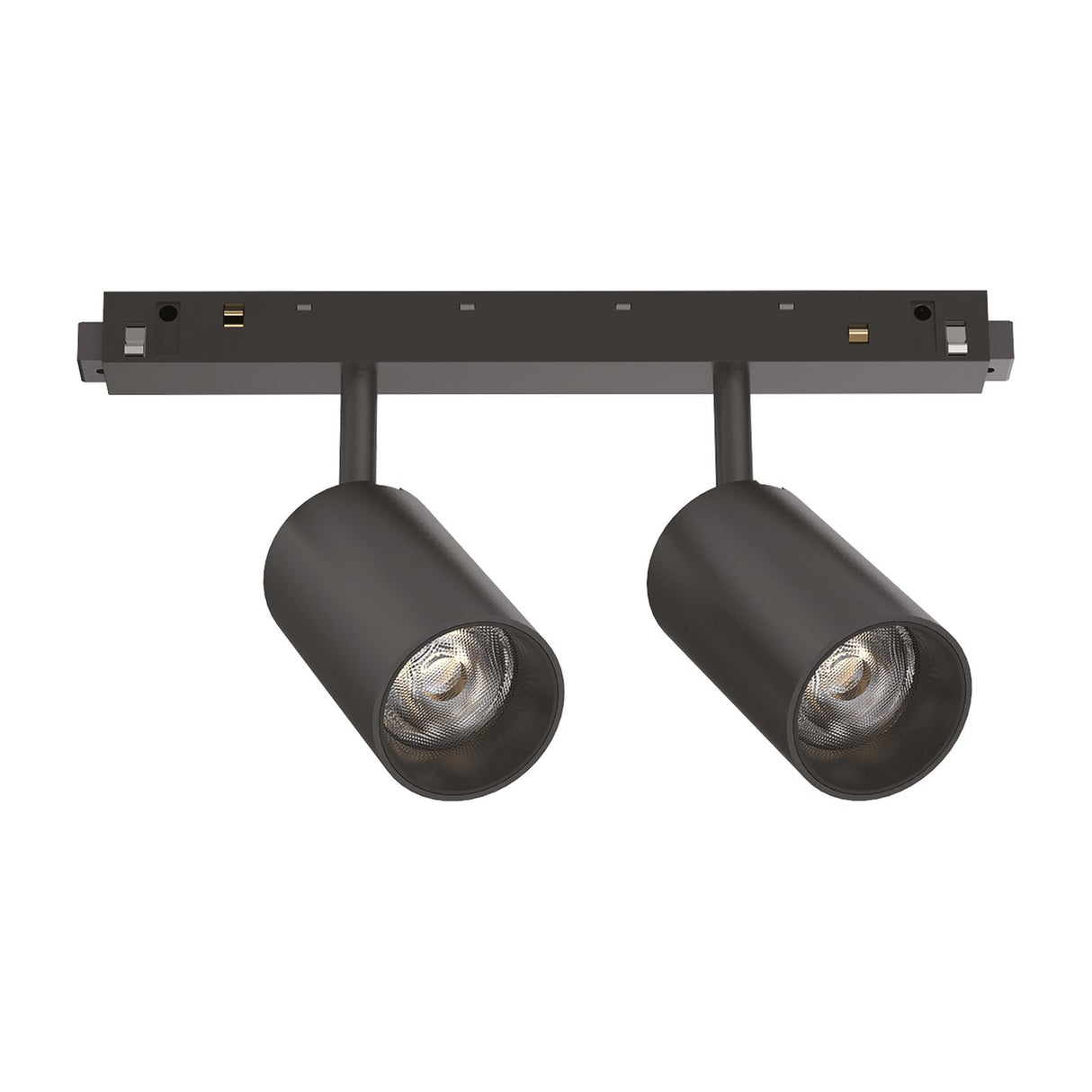

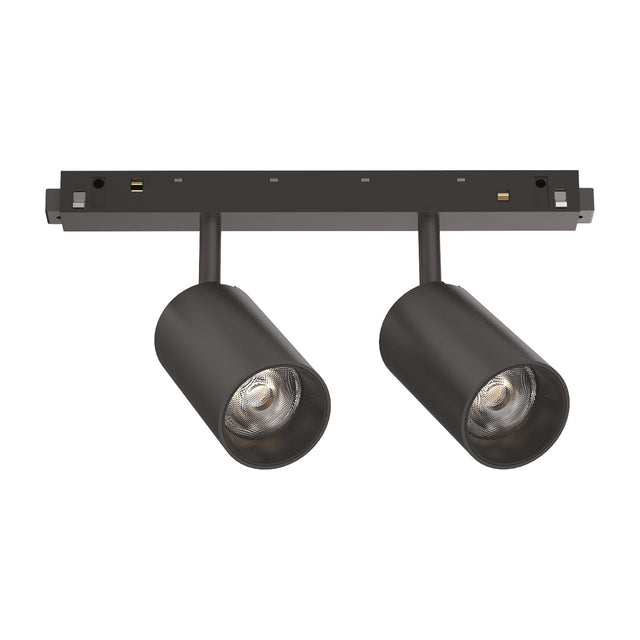

The Ego double spot pairs two aimable heads on a single body that clips onto the Ego 48V magnetic track. Each head tilts and rotates on its own, so the two beams can cross onto one object for extra punch or split to light two points from a single track position. It doubles the output of a single head without taking up a second slot on the rail, which keeps a run of track tidy.
Output is warm at 2700K, drawing 16W across the pair for 1400 lumens with a colour rendering above 90, so artwork, stock and surfaces hold their true tone under the beams. This is the on-off version, switched straight from the circuit feeding the track, which keeps the wiring simple where dimming is not needed. That makes it a straightforward pick for shops, studios and dining rooms that want two aimed beams on a plain switch.
The body measures 223mm across and stands 128mm tall on the track, in aluminium finished matt black to match the black Ego rail. Both LEDs are built in and included, rated for 50,000 hours, so there are no lamps to source. Rated IP20, it is made for dry indoor rooms and holds to a live Ego 48V magnetic track magnetically, taking its low-voltage supply through the rail.
Specification
| Number of lights |
2 |
| Light source |
Integrated LED, 16W total (50,000h) |
| Colour temperature |
2700K (warm white) |
| Lumen output |
1400lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
36 degrees |
| Length |
223mm |
| Height |
128mm |
| Projection |
40mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off version) |
| Control |
On-off, via track circuit |
| Mounting |
Magnetic, for Ego 48V track |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Aluminium body |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Ego double spot give?
Two directional beams from one body. Each head tilts and rotates on its own, so they can cross onto a single object or split to light two points. Together they run at a warm 2700K with a colour rendering above 90, drawing 16W for 1400 lumens.
Does it come ready to light?
Yes. Both LEDs are built in and included, rated at 16W and 1400 lumens combined with a 50,000 hour life, so there are no bulbs to buy. It clips onto a live Ego 48V magnetic track, which carries the supply, and lights once seated.
How is it switched or dimmed?
This head is the on-off version, switched from the circuit feeding the track. It is not a dimming model; for smooth level control the same Ego double spot is also made in a DALI version.
How big is it and where does it suit?
The body is 223mm across and 128mm tall on the rail, carrying two aimable heads. That twin-head form suits shops, studios and dining rooms that need two aimed beams from one track position, on an Ego magnetic track in black.
