Description

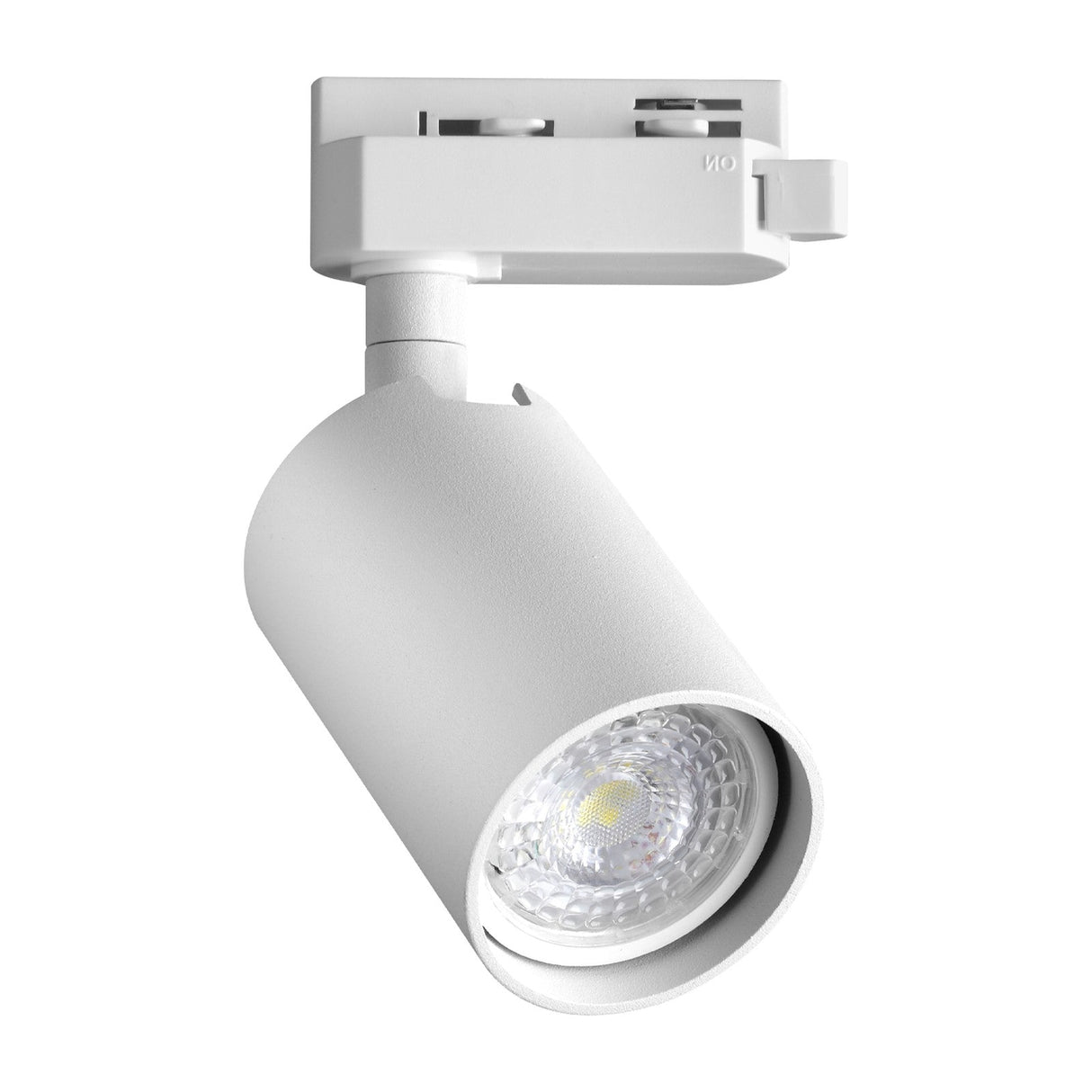

The Dynamite is a compact adjustable spot on a small round head, built to clip onto a single-phase track and aim light rather than fill a room. The head tilts and turns on the track, so one fitting can be pointed down a wall, angled onto a picture or swung to graze a shelf, and it slides along the rail to sit exactly over the target. Lit, it throws one clean directed beam; off, the round white barrel reads as a neat, low form on the track.

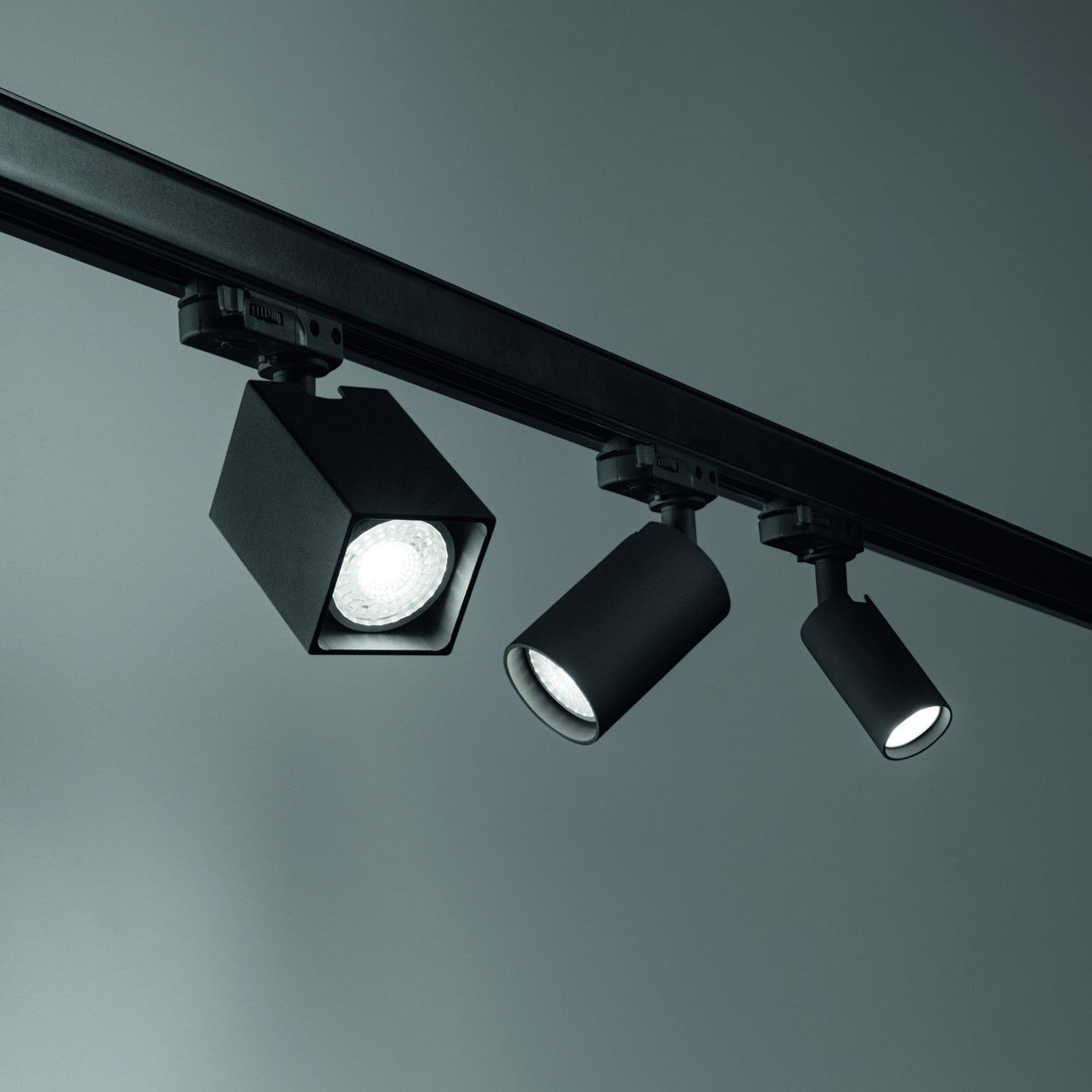

Because it runs on track, several of these can share one rail and each be aimed independently, so a line of spots can pick out a row of artwork, a run of shelving or a display of stock. The 160mm height holds the head clear of the ceiling line so the beam can be swung without fouling, which makes it useful in a gallery, a shop or over a kitchen run.
The frame is powder-coated, plated or brushed metal and the fitting is rated IP20 for dry indoor rooms. It takes one GU10 lamp, supplied with the spot, so it arrives ready to use. The GU10 cap is replaceable, so brightness, beam angle or colour tone can be changed later by swapping the lamp. The Link single-phase track it mounts on is ordered separately.
Specification
| Number of lights |
1 |
| Light source |
1 x GU10 (max 28W, bulb included) |
| Colour temperature |
Depends on bulb fitted |
| Length |
85.5mm |
| Height |
160mm |
| Projection |
57mm |
| IP rating |
IP20 (indoor) |
| Dimmable |
No (dimmable with a dimmable GU10 bulb) |
| Adjustment |
Head tilts and turns; repositions along the track |
| Power system |
Link single-phase track (track sold separately) |
| Frame / Structure finish |
White metal |
| Materials |
Powder-coated metal frame |
Downloads
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Dynamite give?
One directed beam you can aim. The head tilts and turns on the track and slides along the rail, so the single GU10 spot can be pointed at a picture, a shelf or a display rather than washing the whole room.
Does it come with a bulb?
Yes. It is supplied with one GU10 lamp, so it works from the moment it is fitted to a live track. The GU10 cap is replaceable, so the lamp can be swapped later to change brightness, beam angle or colour tone.
Can it be dimmed?
There is no dimmer built in, but because it runs a standard GU10 you can dim it by fitting a dimmable GU10 lamp on a compatible track dimmer or circuit.
What track does it need?
It mounts on Link single-phase track, which is ordered separately. Because it clips and slides on the rail, several spots can share one run and each be aimed at its own target.
