Description
This dimmable LED driver is the small power unit that sits behind an LED light and keeps it running. A driver turns 220-240V, 50/60Hz mains into the steady supply that LEDs need, and because this one is dimmable it suits a circuit where you want softer levels as well as full brightness. The housing is white plastic, a low box 16.5cm long, 8cm wide and 3.7cm high, and it weighs just 0.16KG. Its IP20 rating settles where it belongs: indoors and dry, well away from moisture.
We stock it for customers replacing a driver that has stopped working, and for anyone putting together LED lighting that calls for one. It has no lamp socket of its own, so it gives no light by itself; it is the part that powers the LEDs in a fitting. Being compact and light, it slips into the tight spaces where drivers usually sit. Before you order, check that your light needs a dimmable driver of this kind; the label on the existing driver is the quickest way to compare.

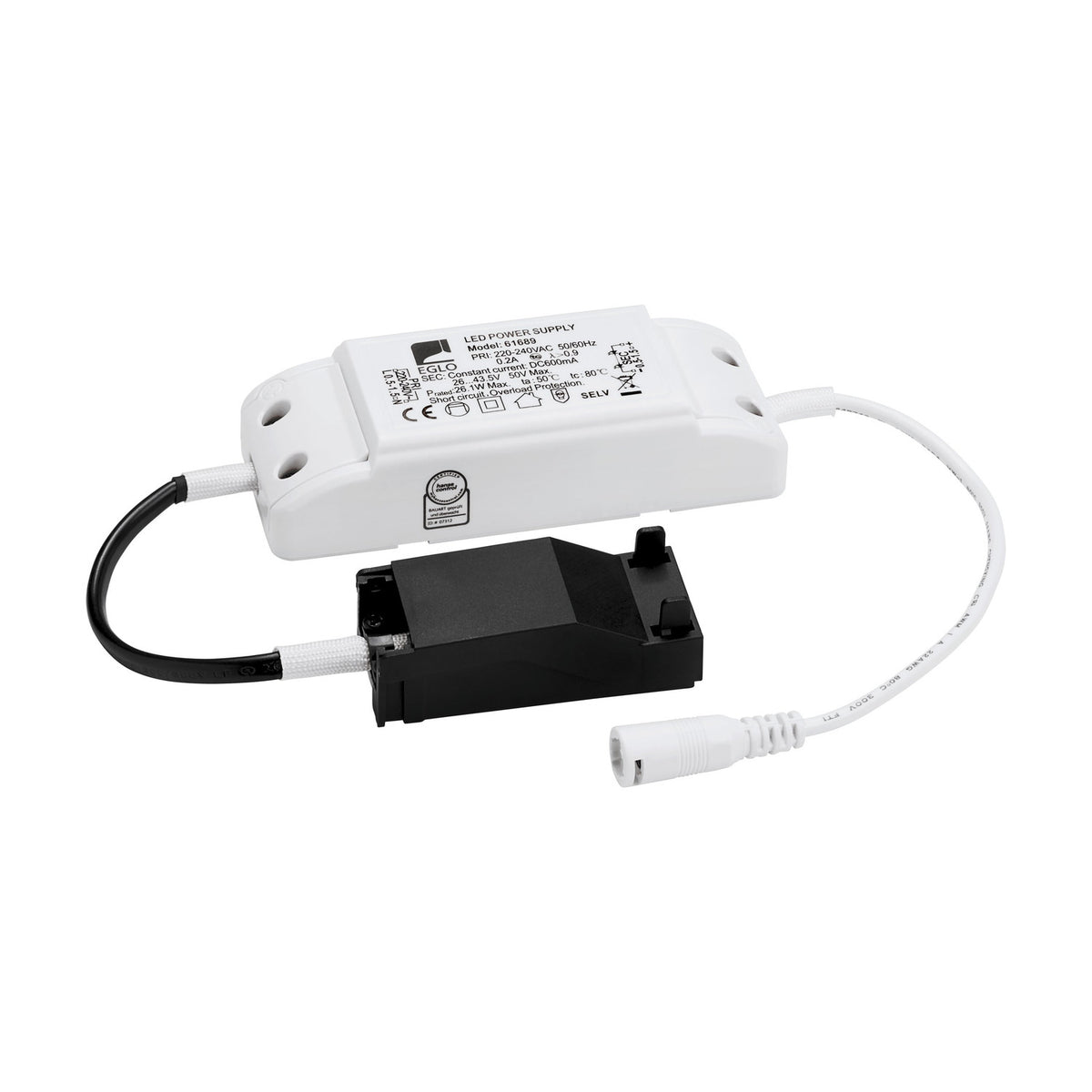

The white plastic case keeps the electronics fully enclosed, with fixing holes moulded into each end and a black connector block on one side. On the other, a short white lead finishes in a small round socket connector. Like any wired-in mains lighting part, it is installed by a qualified electrician. Care is simple: keep it dry, and wipe the case with a dry cloth if dust gathers. Tucked away somewhere dry, it is a small part that quietly does an important job.
Specification
| Material |
Plastic |
| Colour |
White |
| IP Rating |
IP20 |
| Light Source |
without lamp socket |
| Features |
Dimmable |
| Length |
16.5cm |
| Width |
8cm |
| Height |
3.7cm |
| Weight |
0.16KG |
| Protection Class |
Class II |
| Voltage |
220-240V, 50/60Hz |
| Operating Voltage |
220-240V, 50/60Hz |
Frequently Asked
Is this LED driver dimmable?
Yes. It is a dimmable driver, so it suits LED lighting on a circuit where you want to lower the brightness as well as run it at full output.
Can the driver go in a bathroom or outdoors?
No. It is rated IP20, which means indoors and dry only, so keep it away from bathrooms, outdoor spots and anywhere damp.
How big is the driver?
It is 16.5cm long, 8cm wide and 3.7cm high and weighs 0.16KG, so it fits neatly into small, tucked-away spaces.
What mains voltage does it need?
It runs from 220-240V, 50/60Hz mains, which covers the standard everyday household supply found in UK homes.
What material is the case?
The case is white plastic, a light and compact housing with moulded fixing holes at each end so it can be held firmly in position.
