Description

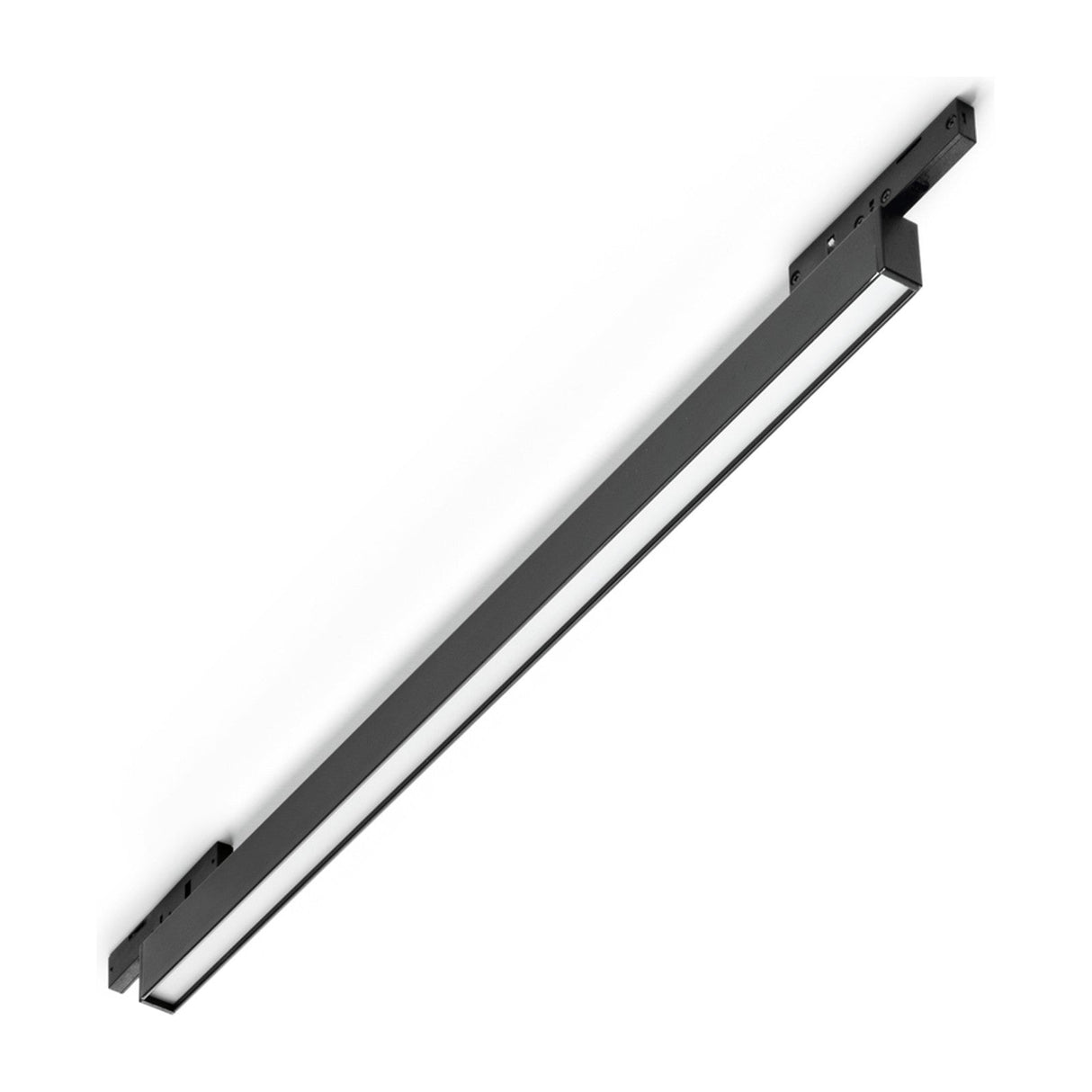

The Deva Wide Outer is a linear module that clips onto the Deva magnetic track and spreads a soft band of light rather than a spot. This is the shorter 8W section, holding by magnet on the 24V rail with an outward-facing emitter that throws a wide, even wash. Lit, it reads as a short line of warm light; off, the slim black bar sits low along the black profile within the run.

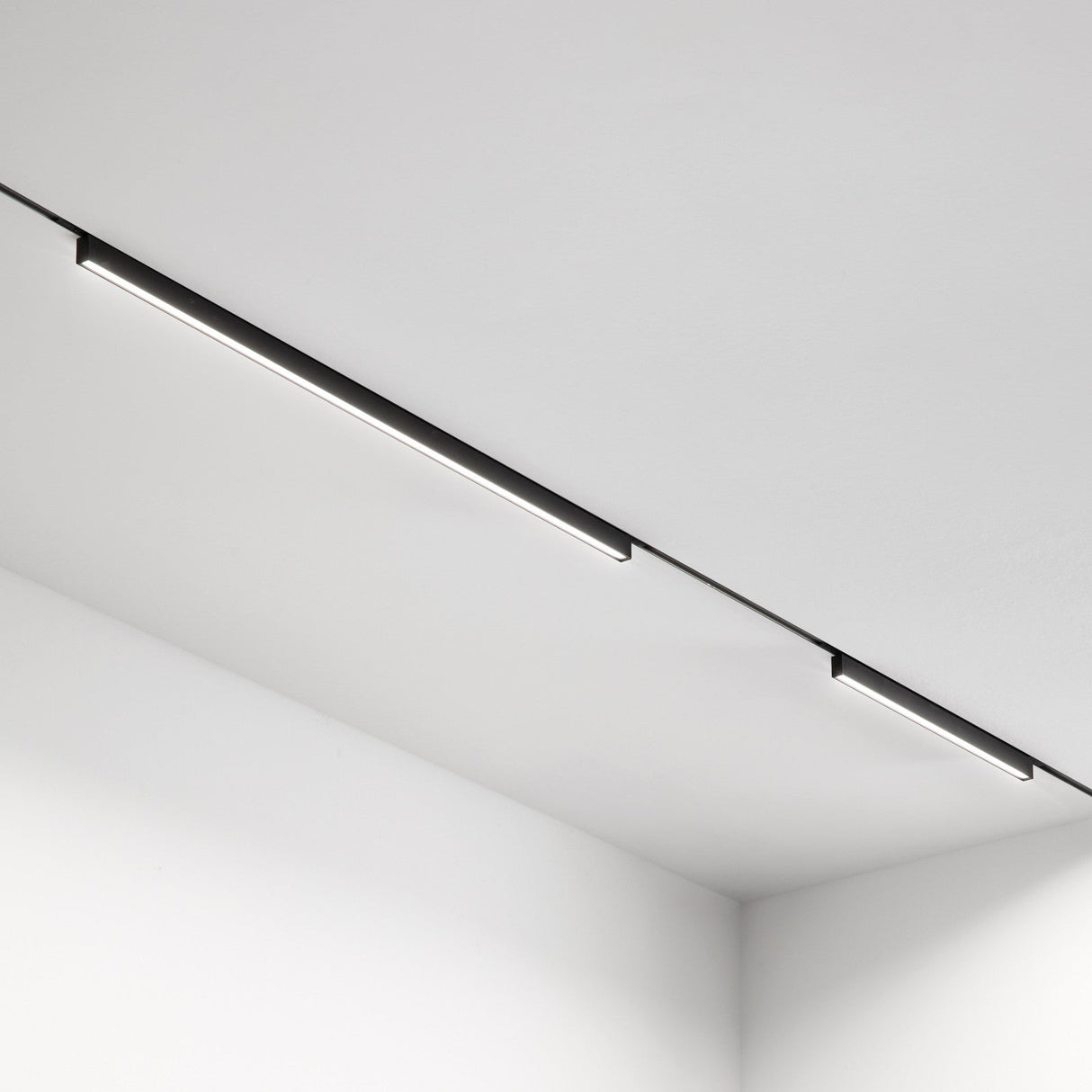

The bar is 346mm long, 30mm tall and projects 10.5mm, a compact section that suits a shorter stretch or can join other Deva modules to make up a longer line. Its wide spread gives general and grazing light, so it works over an alcove, a short corridor or a section of wall where you want an even field rather than separate pools, drawn from a track that can also carry spots and disc heads.
The body is coated matt black aluminium with an integrated LED giving 900 lumens at 3000K warm white, at a CRI above 90 so colours read true. It is an ON-OFF module rated IP20 for dry indoor rooms, powered from the Deva track and its separate 24V driver rather than from a mains feed of its own.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 8W total (900lm, CRI >90, included) |
| Colour temperature |
3000K (warm white) |
| Beam angle |
Wide |
| Width / Length |
346mm |
| Height |
30mm |
| Projection |
10.5mm |
| IP rating |
IP20 (indoor) |
| Dimmable |
No (ON-OFF) |
| Adjustment |
Fixed line; repositions on the magnetic track |
| Power system |
Deva 24Vdc magnetic track (separate driver required) |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium profile |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does this Deva Wide Outer give?
A short, even sheet of light. The integrated LED gives 900 lumens at 3000K warm white from a wide outward-facing emitter, so it lays a band across a wall or surface rather than a directed beam. Its CRI is above 90, so colours stay accurate.
Does it need a bulb or a driver?
No bulb, as the LED is integrated and included. It does need the Deva track and a separate 24V driver, because it draws power from the rail, so it is fitted as part of a Deva track run rather than wired on its own.
How does it compare with the longer Wide Outer?
This is the 346mm 8W section giving 900 lumens; the longer module is 646mm at 12W with 1350 lumens. Both share the same 30mm-deep outward-facing form, so you can mix lengths along one track to fit the wall.
Where does it suit?
It is a wall-wash and general-light module for a Deva track over an alcove, a short corridor or a wall section. Its compact 346mm length makes it easy to combine with other Deva sections for a run that fits the space.
