Description

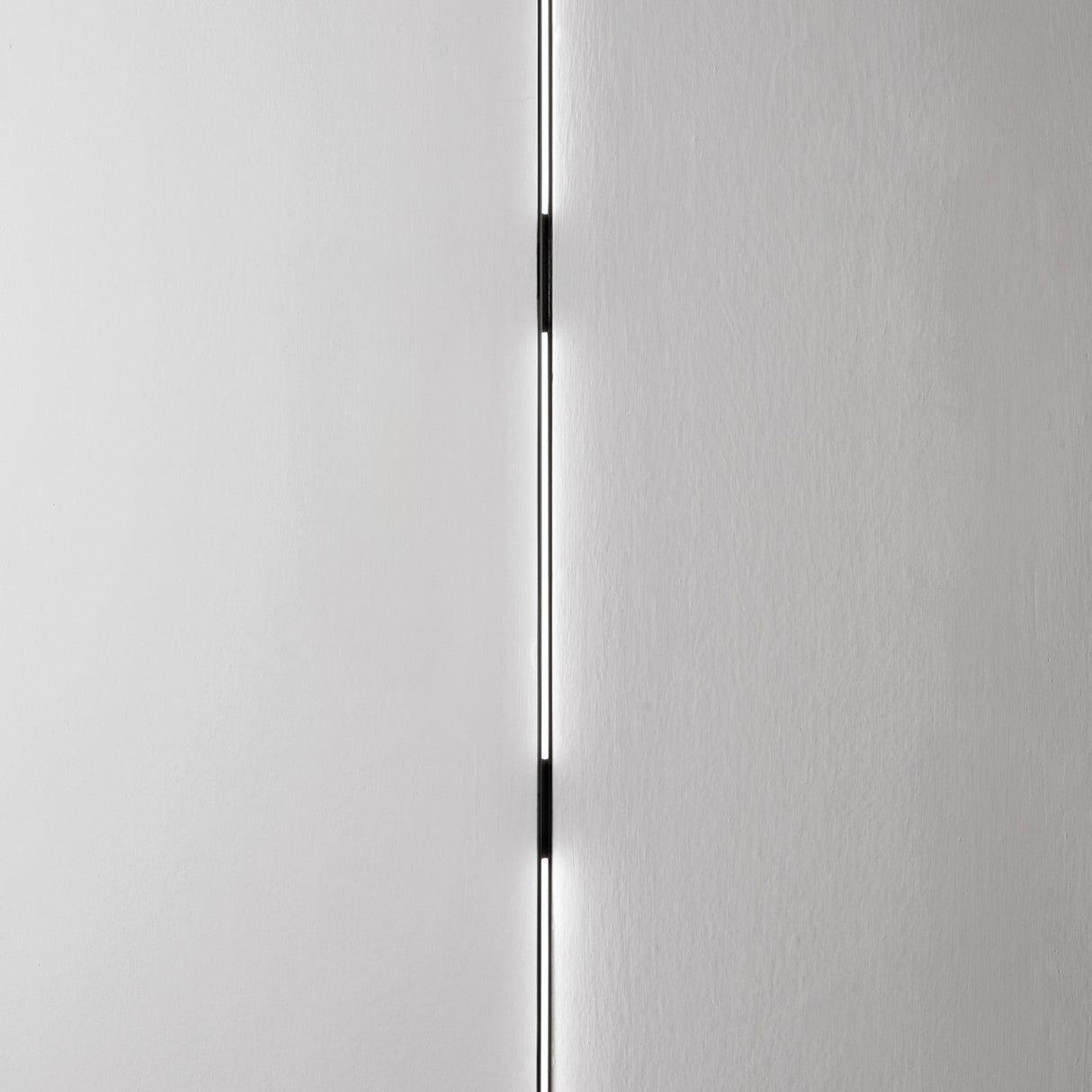

The Deva Wide Inner is a slim linear module that clips into the Deva magnetic track and runs a low, even line of light. It holds by magnet on the 24V rail, its emitter set within the profile so the light reads as a flush strip rather than a raised bar. Lit, it gives a continuous band of warm light along the track; off, the thin black line all but disappears into the black profile.

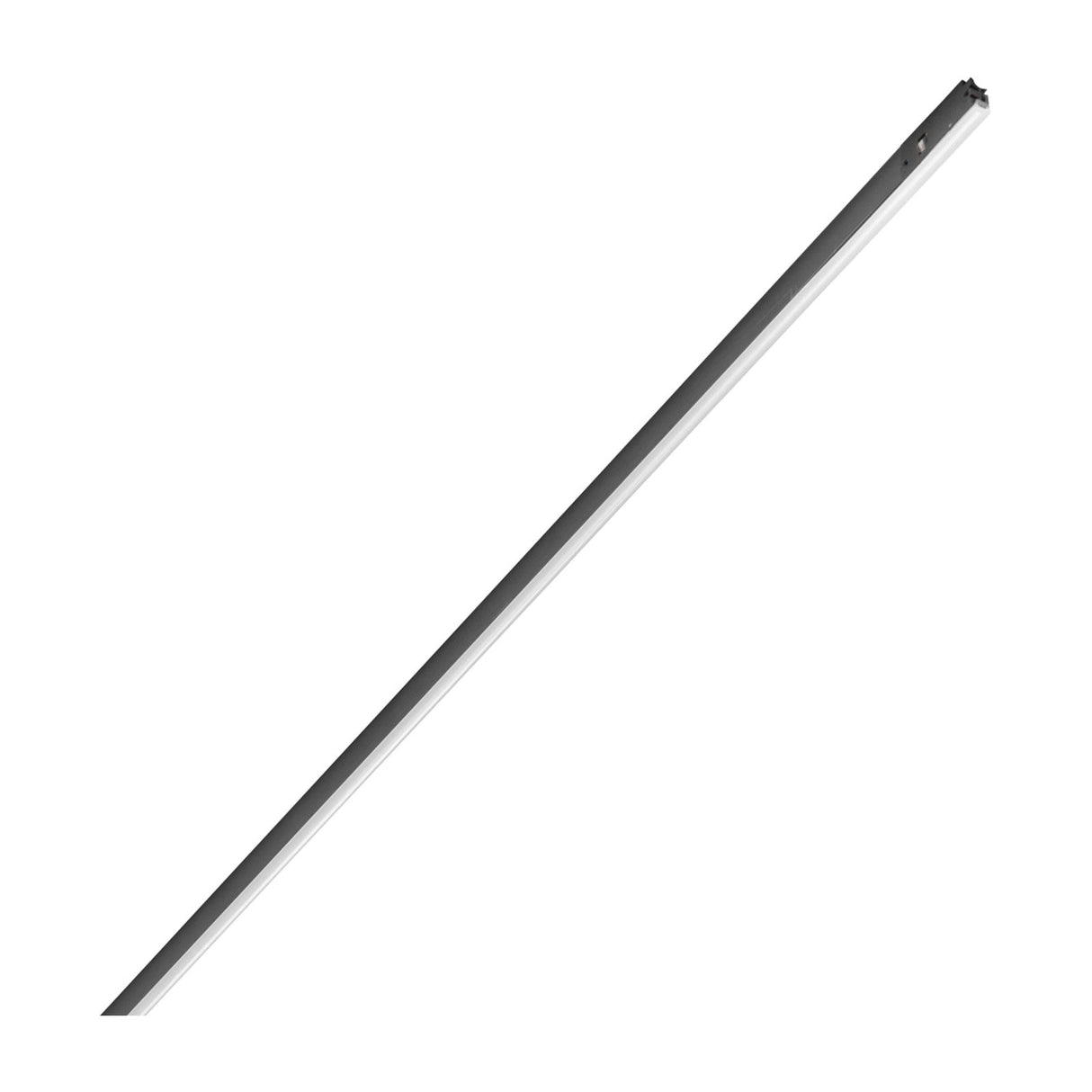

The module is 900mm long and only 12mm tall, projecting 4.6mm, the longest and slimmest of the Deva wall washer sections. Its low-profile line suits a clean, built-in look, so it works along a ceiling channel, a shelf edge or a corridor where you want an even run of light with almost no visible fitting, drawn from a track that can also carry spots and disc heads.
The body is coated matt black aluminium with an integrated LED giving 1950 lumens at 3000K warm white, at a CRI above 90 so colours read true. It is an ON-OFF module rated IP20 for dry indoor rooms, powered from the Deva track and its separate 24V driver rather than from a mains feed of its own.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 16W total (1950lm, CRI >90, included) |
| Colour temperature |
3000K (warm white) |
| Beam angle |
Wide |
| Width / Length |
900mm |
| Height |
12mm |
| Projection |
4.6mm |
| IP rating |
IP20 (indoor) |
| Dimmable |
No (ON-OFF) |
| Adjustment |
Fixed line; repositions on the magnetic track |
| Power system |
Deva 24Vdc magnetic track (separate driver required) |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium profile |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Deva Wide Inner give?
An even, low-profile line of light. The integrated LED gives 1950 lumens at 3000K warm white from an emitter set within the track, so it reads as a flush band rather than a raised bar or a spot. Its CRI is above 90, so colours stay accurate.
Does it need a bulb or a driver?
No bulb, as the LED is integrated and included. It does need the Deva track and a separate 24V driver, because it draws power from the rail, so it is fitted as part of a Deva track run rather than wired on its own.
How does Wide Inner differ from Wide Outer?
Wide Inner is the slim in-profile line, 12mm tall and 4.6mm deep, so it sits nearly flush for a built-in look. Wide Outer is a deeper module (30mm tall, projecting 10.5mm) with an outward-facing emitter for a fuller wall wash. Choose Inner for a clean, recessed-looking line.
Where does it suit?
It is a low-profile line module for a Deva track along a ceiling channel, shelf edge or corridor. At 900mm it is the longest wide section in the range, giving a strong, even run of light with almost no visible fitting.
