Description

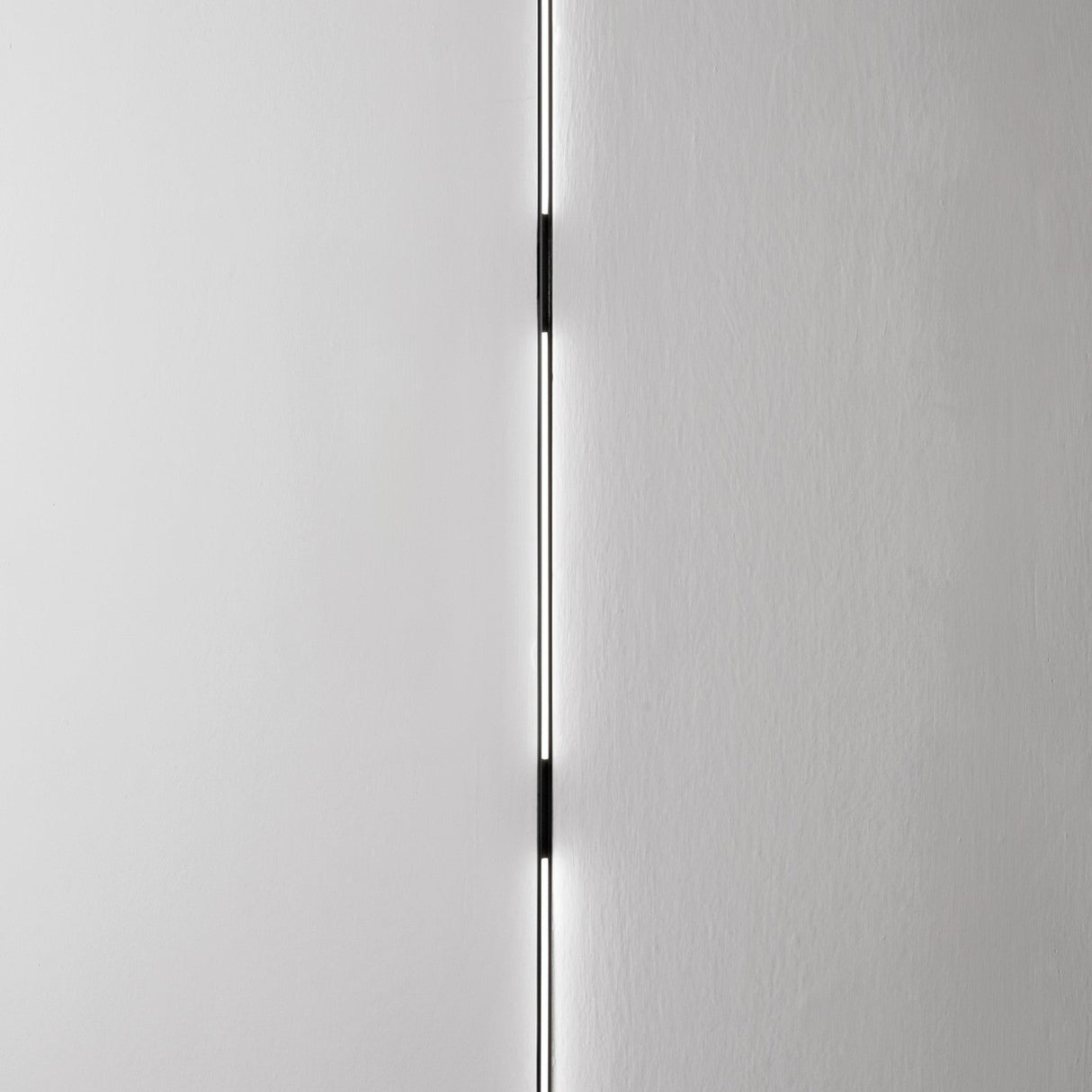

The Deva Wide Inner is a slim linear module that clips into the Deva magnetic track and runs a low, even line of light. This is the 600mm 11W section, holding by magnet on the 24V rail with its emitter set within the profile so the light reads as a flush strip rather than a raised bar. Lit, it gives a continuous band of warm light along the track; off, the thin black line all but disappears into the black profile.

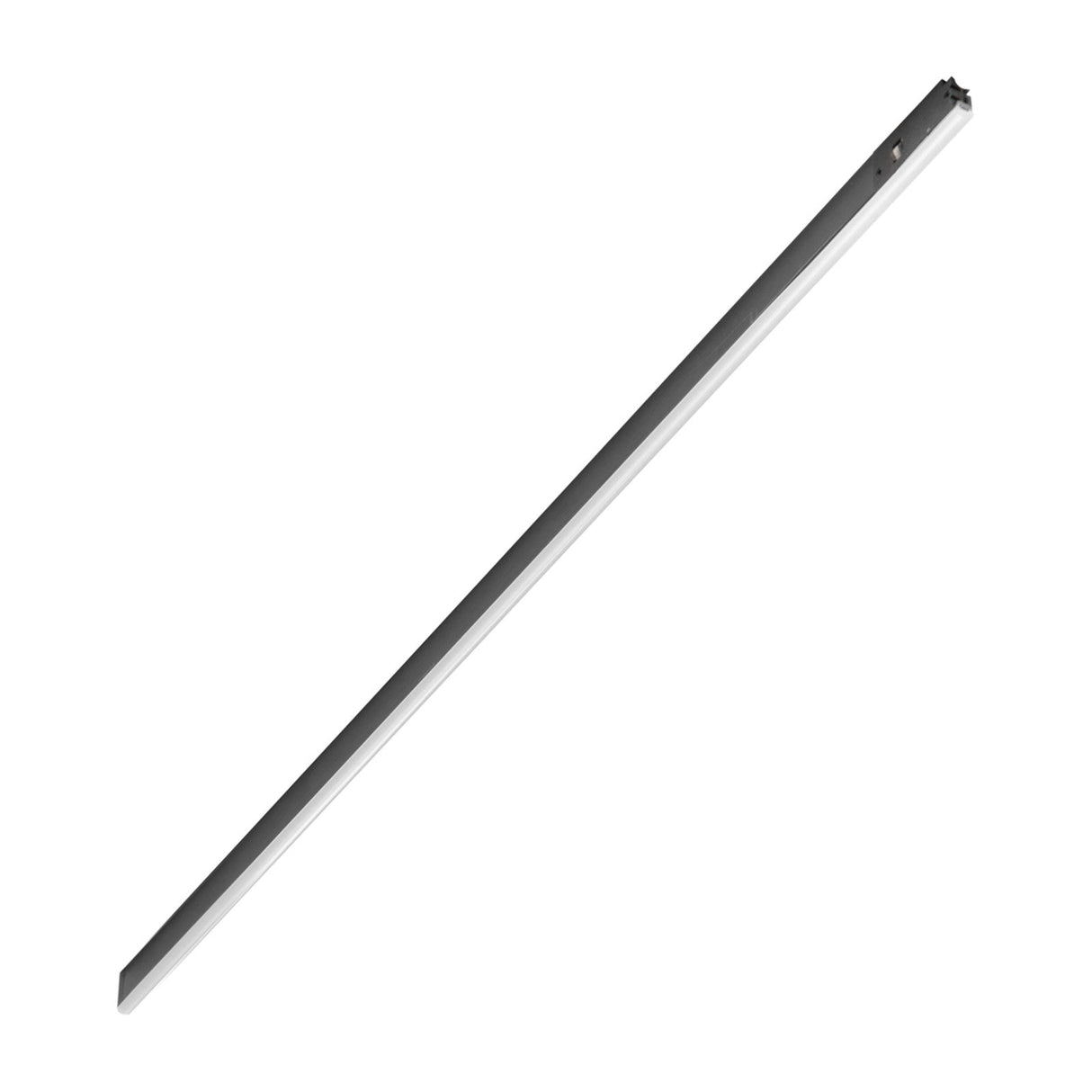

The module is 600mm long and only 12mm tall, projecting 4.6mm, a mid-length low-profile section that can join other Deva parts to build a run. Its clean, near-flush line suits a built-in look, so it works along a ceiling channel, a shelf edge or above a worktop where you want an even stretch of light with almost no visible fitting, drawn from a track that can also carry spots and disc heads.
The body is coated matt black aluminium with an integrated LED giving 1200 lumens at 3000K warm white, at a CRI above 90 so colours read true. It is an ON-OFF module rated IP20 for dry indoor rooms, powered from the Deva track and its separate 24V driver rather than from a mains feed of its own.
Specification
| Number of lights |
Linear / continuous |
| Light source |
Integrated LED, 11W total (1200lm, CRI >90, included) |
| Colour temperature |
3000K (warm white) |
| Beam angle |
Wide |
| Width / Length |
600mm |
| Height |
12mm |
| Projection |
4.6mm |
| IP rating |
IP20 (indoor) |
| Dimmable |
No (ON-OFF) |
| Adjustment |
Fixed line; repositions on the magnetic track |
| Power system |
Deva 24Vdc magnetic track (separate driver required) |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium profile |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does this Deva Wide Inner give?
An even, low-profile line of light. The integrated LED gives 1200 lumens at 3000K warm white from an emitter set within the track, so it reads as a flush band rather than a raised bar or a spot. Its CRI is above 90, so colours stay accurate.
Does it need a bulb or a driver?
No bulb, as the LED is integrated and included. It does need the Deva track and a separate 24V driver, because it draws power from the rail, so it is fitted as part of a Deva track run rather than wired on its own.
How does it compare with the longer Wide Inner?
This is the 600mm 11W section giving 1200 lumens; the longer module is 900mm at 16W with 1950 lumens. Both share the same slim 12mm-tall in-profile form, so you can mix lengths along one track for a continuous flush line.
Where does it suit?
It is a low-profile line module for a Deva track along a ceiling channel, shelf edge or worktop. At 600mm it forms a mid-length run and combines easily with other Deva sections for a clean, near-flush stretch of light.
