Citronic PLX3600 Class H 2U Rackmount Power Amplifier

£69999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

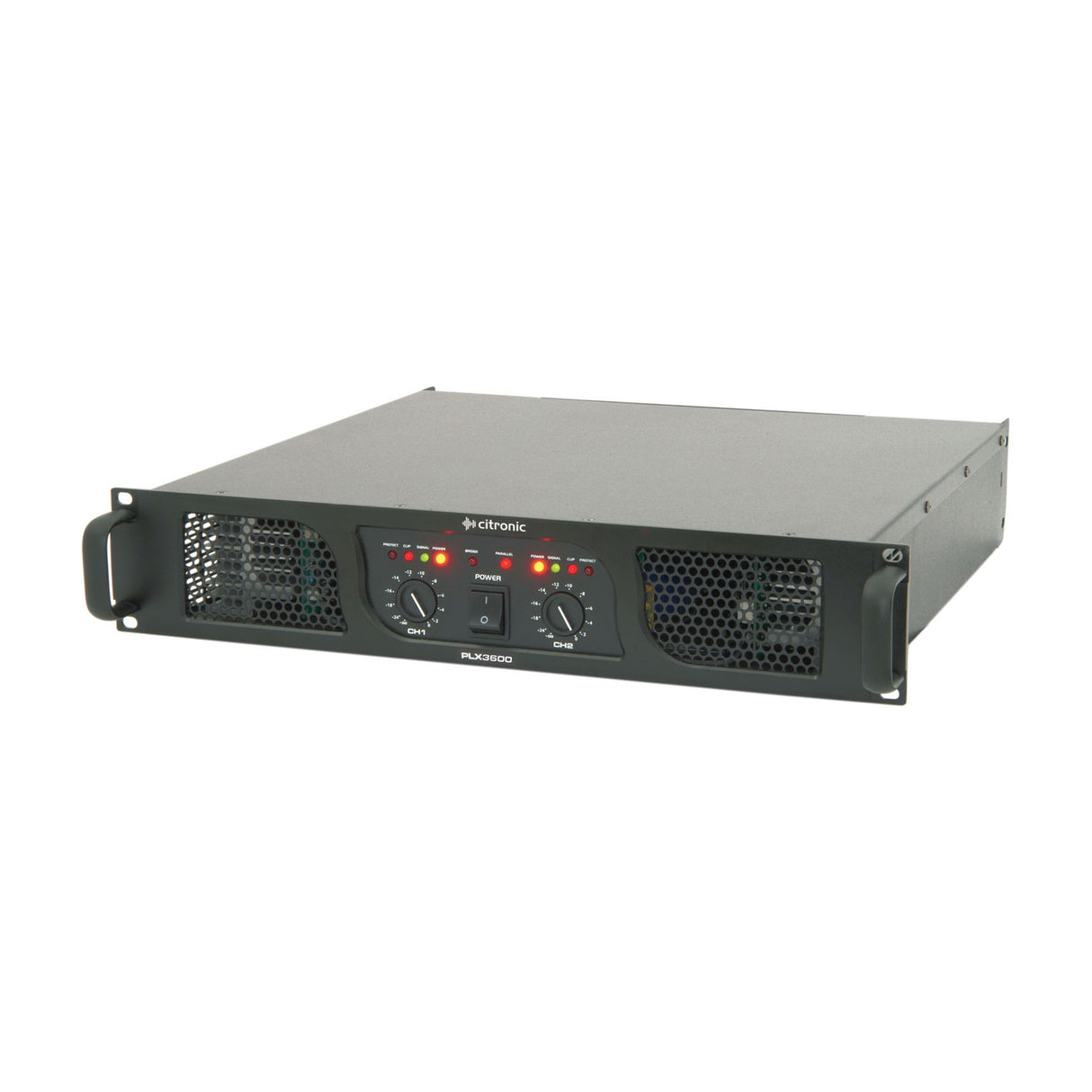

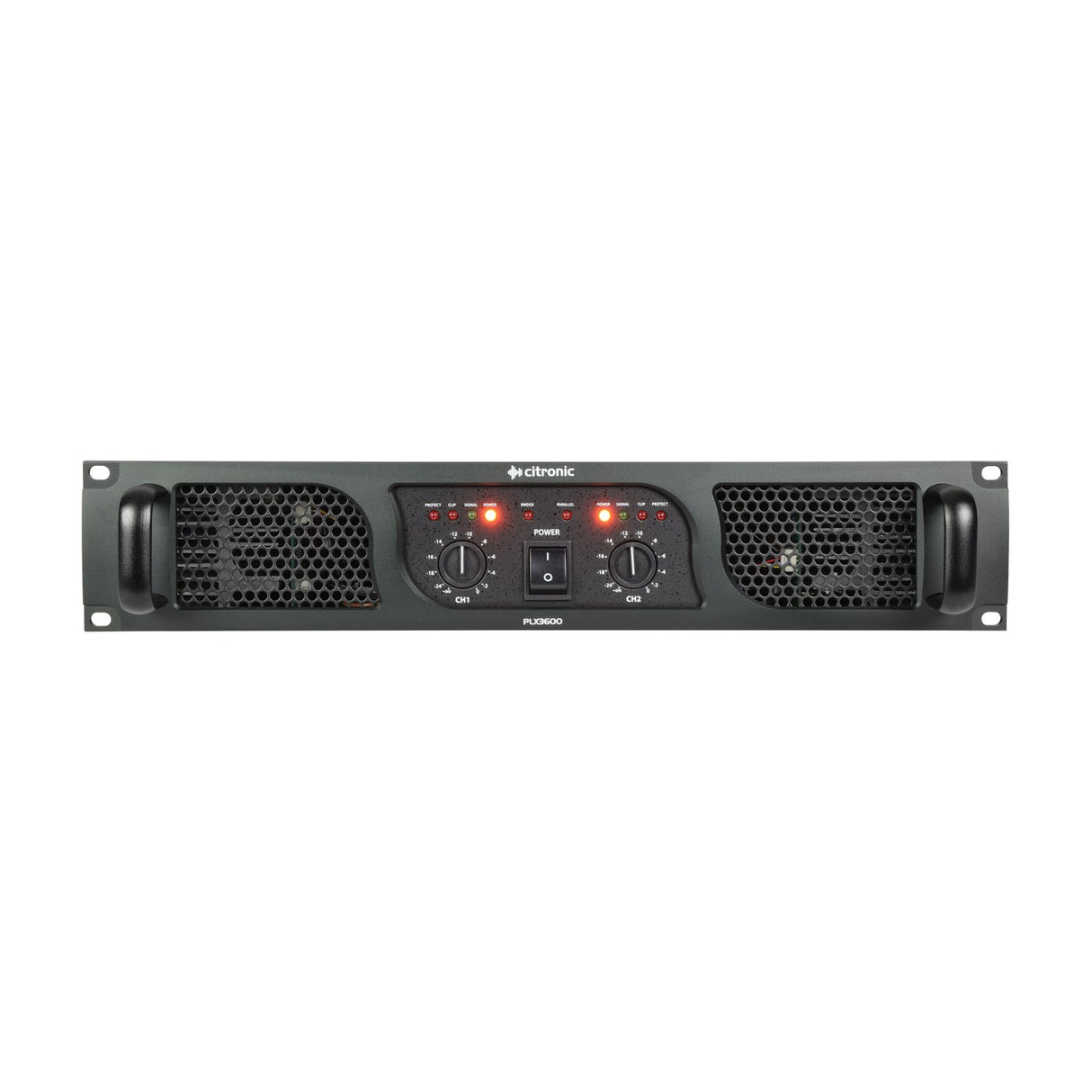

The Citronic PLX3600 is a two-channel power amplifier built into a 19" 2U rackmount case. It delivers 2 x 1350W into 4 Ohms, with output stable down to 2 Ohms per side. When you need more power from a single output, bridge mode combines both channels for high power mono operation into a 4 Ohm load. Class H architecture keeps power delivery efficient and reliable, and dual fan cooling helps the amp run steadily through long sessions.

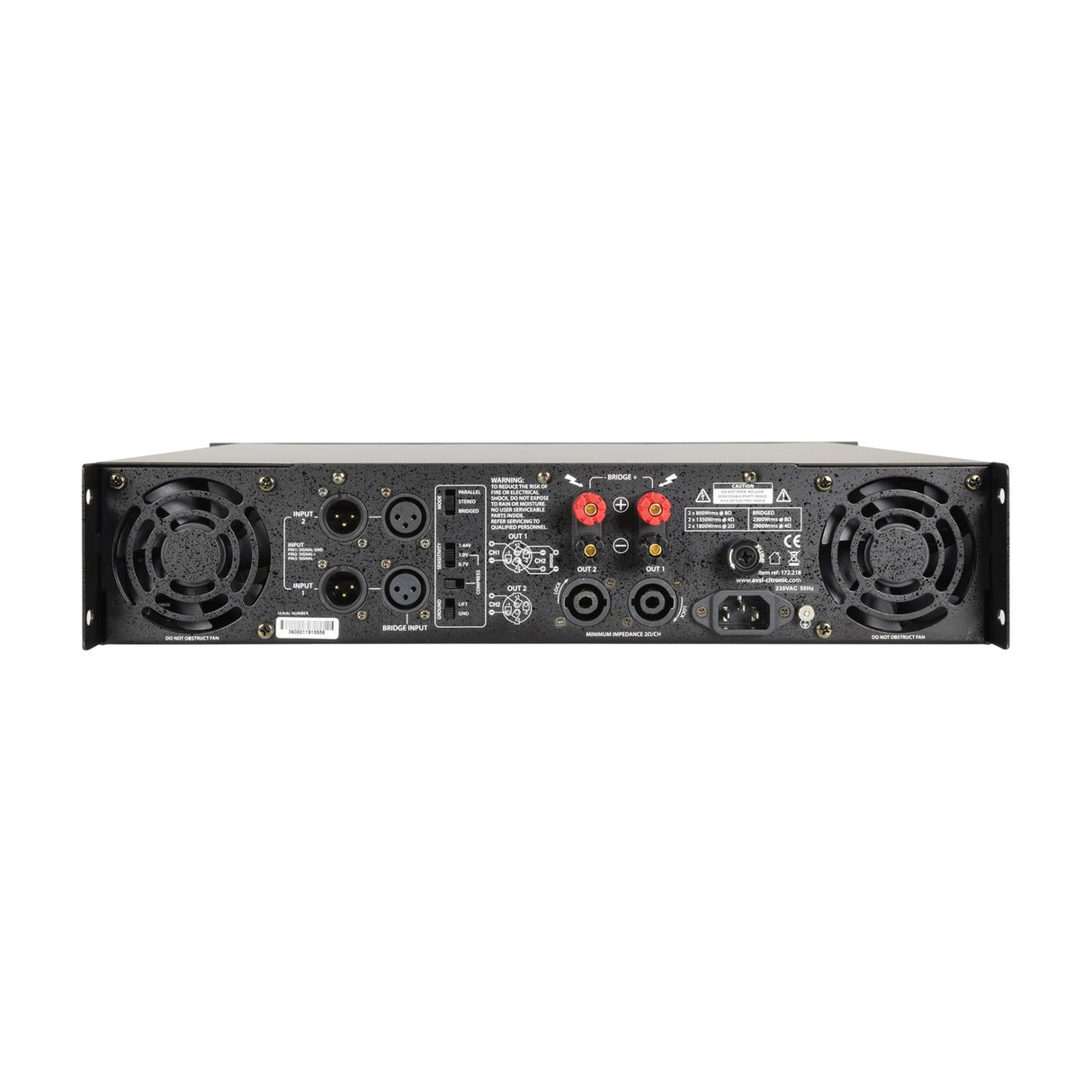

Connections are straightforward for live and installed setups. Balanced inputs are on XLR sockets, so you can run signal in from a mixer or processor with good noise rejection. Speaker outputs are provided on two Speakon (SPK) connectors and on 4mm binding posts, giving you a choice depending on your cabling. Front panel controls cover level for each channel, ground, mode and the clip limiter. The switchable ground lift helps deal with hum loops, while the switchable clip limiter protects your speakers by holding back the signal before it distorts hard.

The amp measures 482 x 453 x 88mm and runs from a 230Vac, 50Hz IEC mains supply. Frequency response spans 5Hz to 50kHz, with total harmonic distortion of 0.05% and a damping factor above 400 for tight control over connected drivers. A slew rate of 40V/us and 20k Ohm input impedance round out the electrical figures. Built-in protection guards against short-circuit, overload, D.C. faults and thermal problems, so the PLX3600 keeps working safely when pushed. It suits mobile PA, club and fixed install use where you want dependable power in a compact rack space.

Specification
Power supply 230Vac, 50Hz (IEC)
Controls Level channel 1, level channel 2, ground, mode, clip limiter
Input impedance 20k ohms
Frequency response 5Hz - 50kHz
Total harmonic distortion 0.05%
Slew rate 40V/us
Damping factor >400
Protection Short-circuit, overload, D.C. and thermal protect
Dimensions 482mm x 453mm x 88mm (2U)
Downloads

Product Manual

Frequently Asked

How much power does the PLX3600 produce?

It delivers 2 x 1350W into 4 Ohms. Output is stable down to 2 Ohms per side, and both channels can be bridged into a 4 Ohm load for high power mono.

What speaker connections does it have?

Speaker outputs are on two Speakon (SPK) connectors and 4mm binding posts, so you can wire it up to suit your cabling.

What inputs does it use?

Balanced inputs are on XLR sockets, with an input impedance of 20k Ohms and a switchable ground lift to help reduce hum.

How much rack space does it take?

It fits a standard 19" rack and takes up 2U of height. Full dimensions are 482 x 453 x 88mm.

What protection features are included?

The amp has short-circuit, overload, D.C. and thermal protection, plus a switchable clip limiter to guard your speakers from hard distortion.

How is the amplifier kept cool?

It uses dual fan cooling alongside Class H architecture to keep power delivery efficient and reliable during long periods of use.
