Description

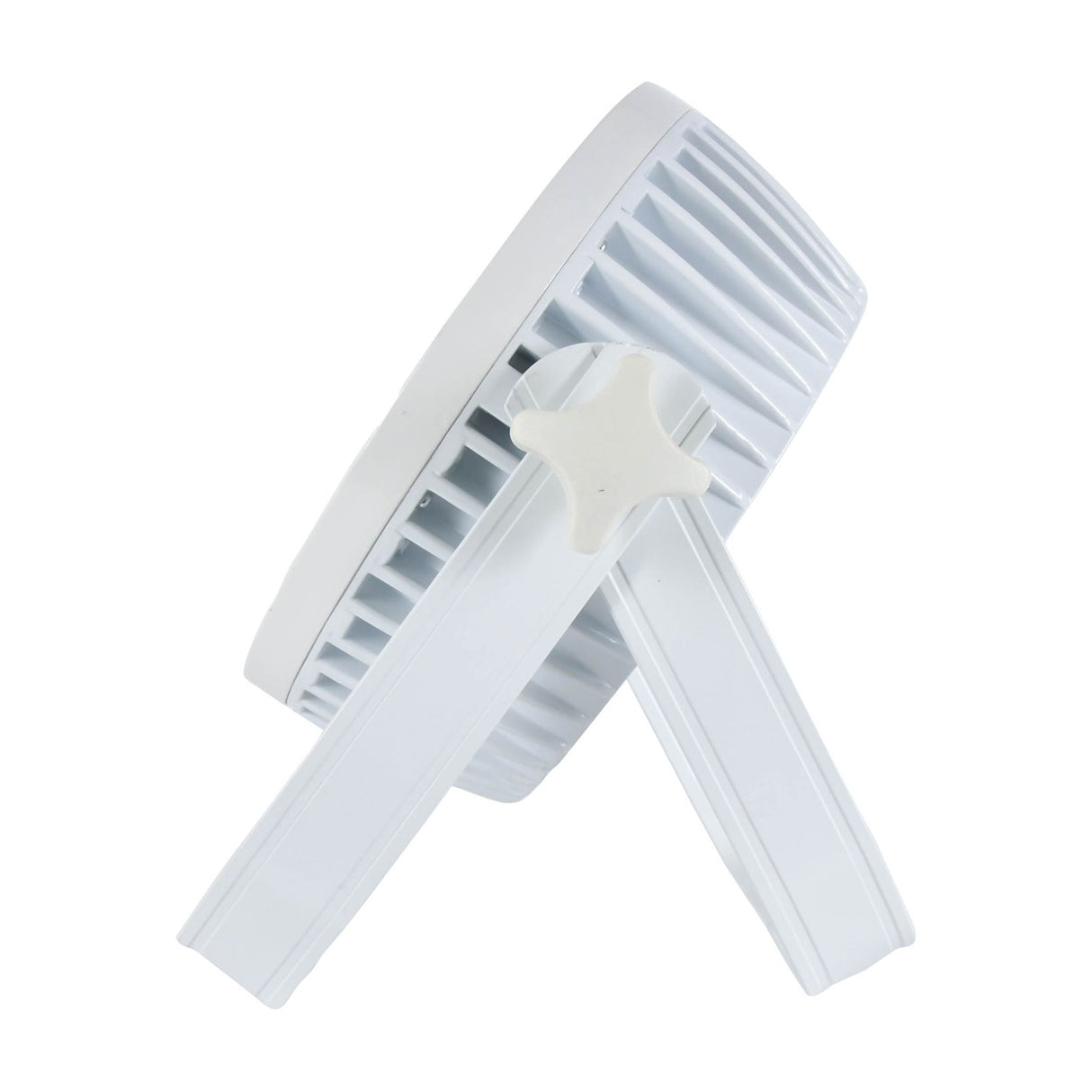

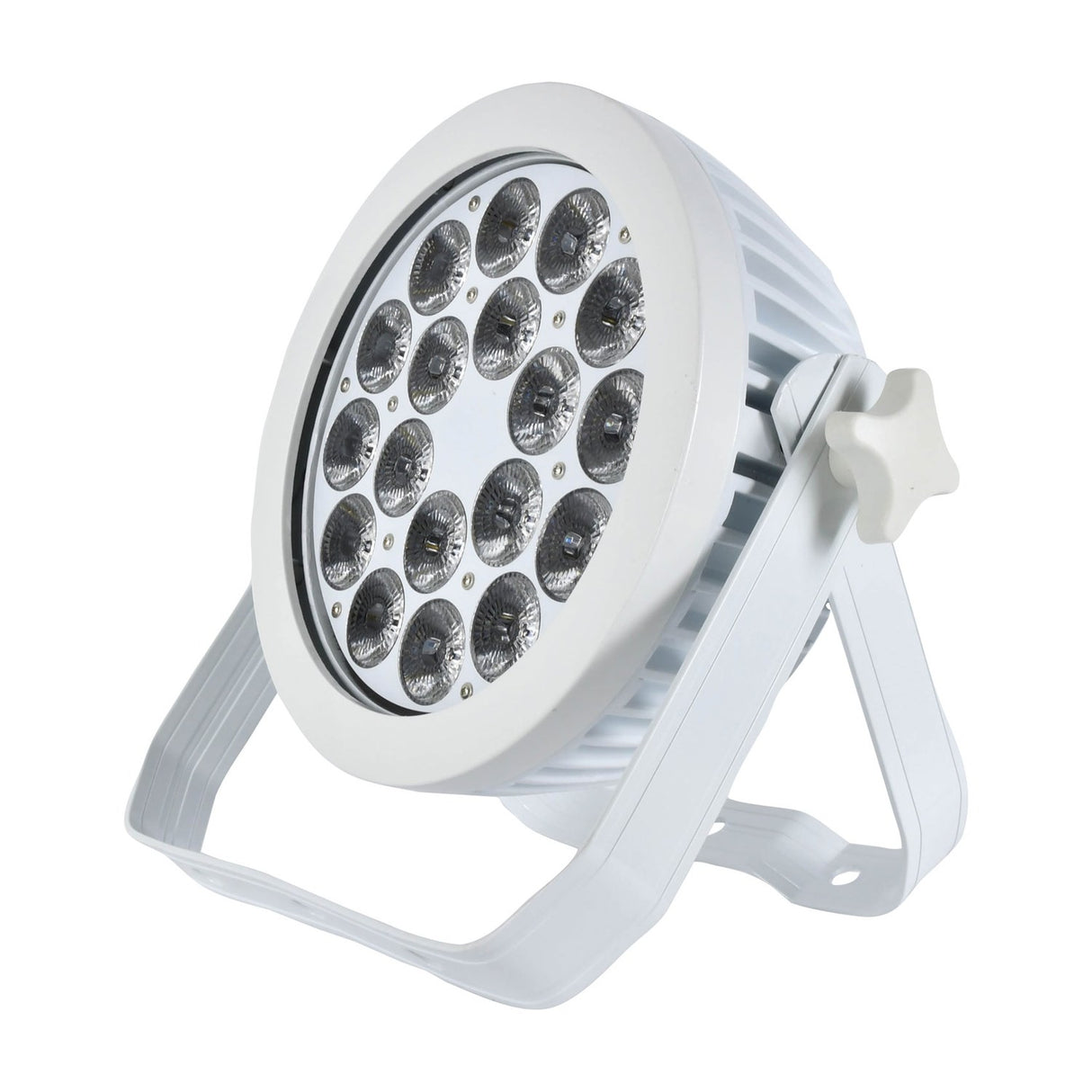

The Citronic MagicPAR-220W is a fanless PAR can (par light) built for venues where noise matters, such as places of worship and study spaces. Instead of a cooling fan, it uses a range of internal and external heatsinks to dissipate heat, so it runs in total silence while still putting out bright washes of colour. The heavy duty metal chassis and stand/bracket keep everything strong and rigid, and it's available in black and white finishes to suit your rig.

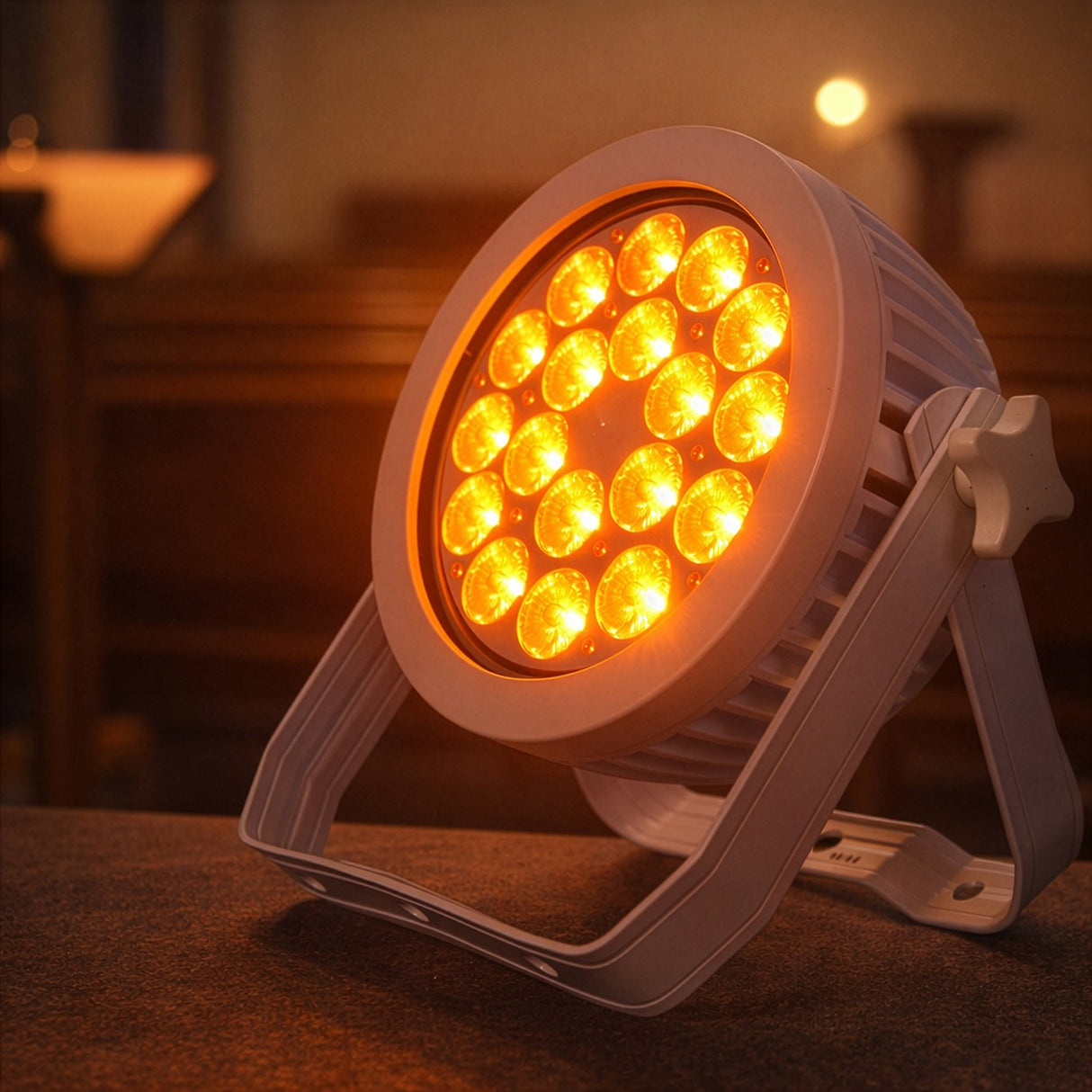

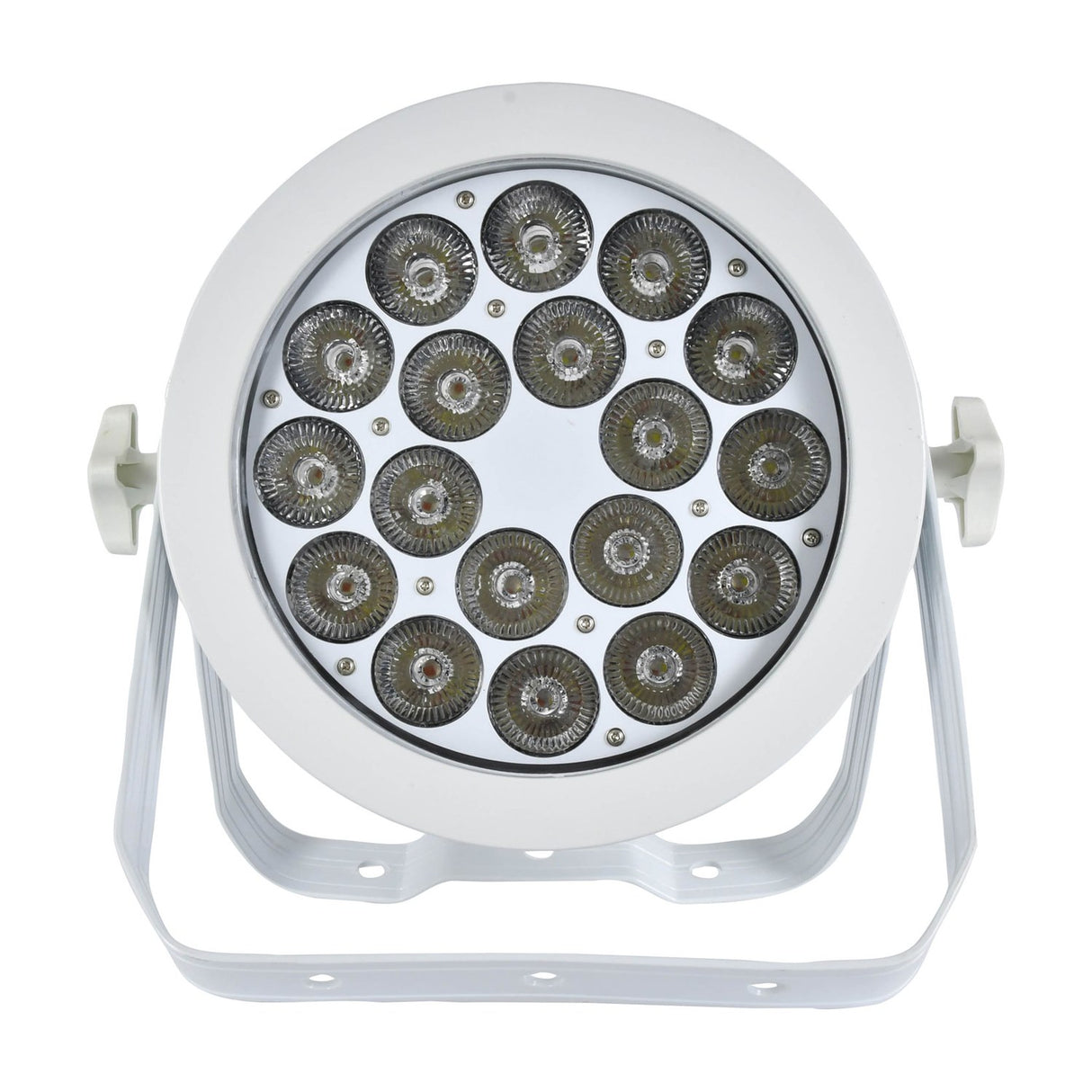

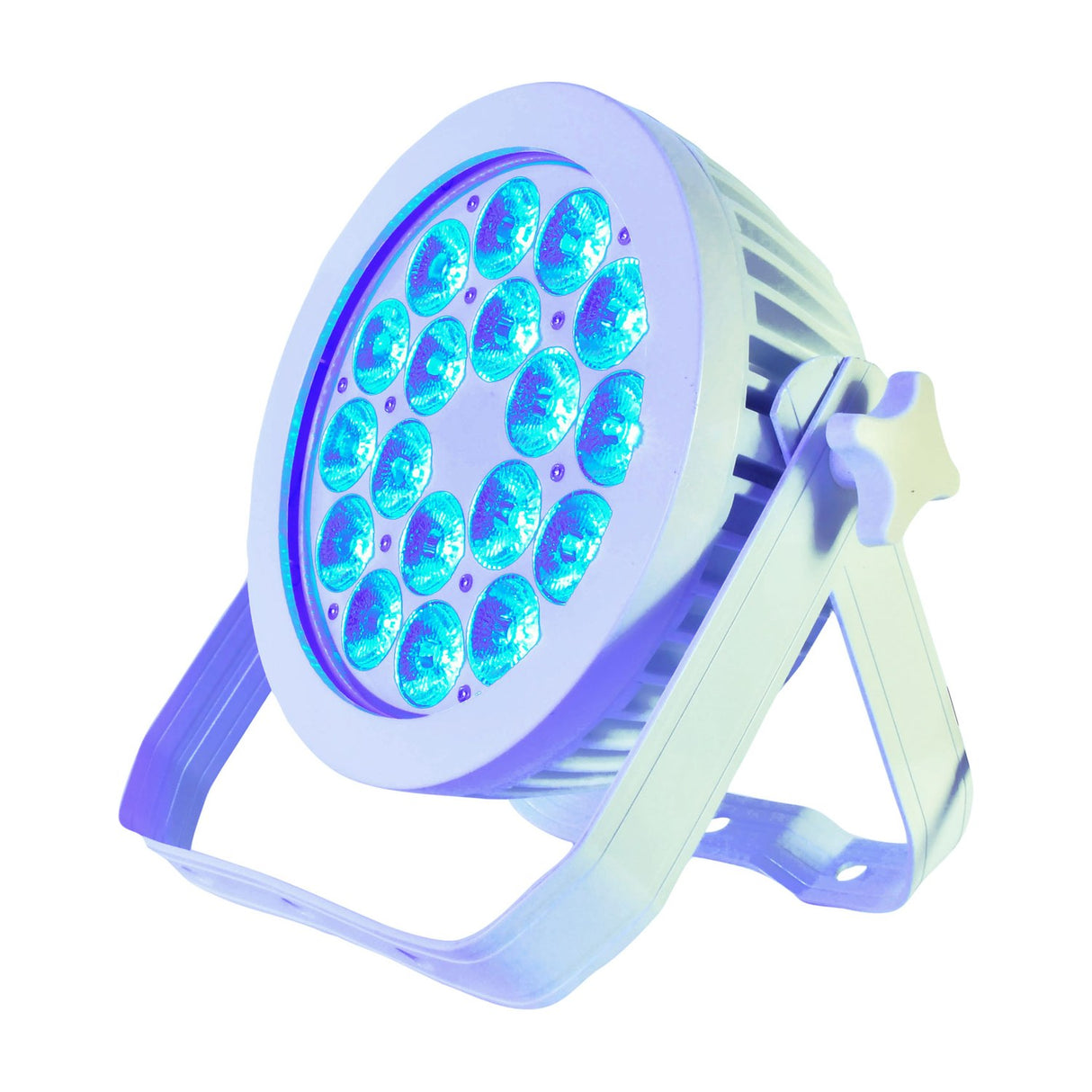

Light comes from 18 x 12W 6-in-1 RGBWA/UV LEDs, giving you red, green, blue, white, amber and UV in a single unit with a 20 degree beam angle. You can run the built-in auto, sound-activated and static programs straight from the control panel on the back, or connect it over DMX-512 in 6 or 10 channel mode when you want fuller control from a lighting desk. That makes it easy to use as a standalone fixture or as part of a larger setup.

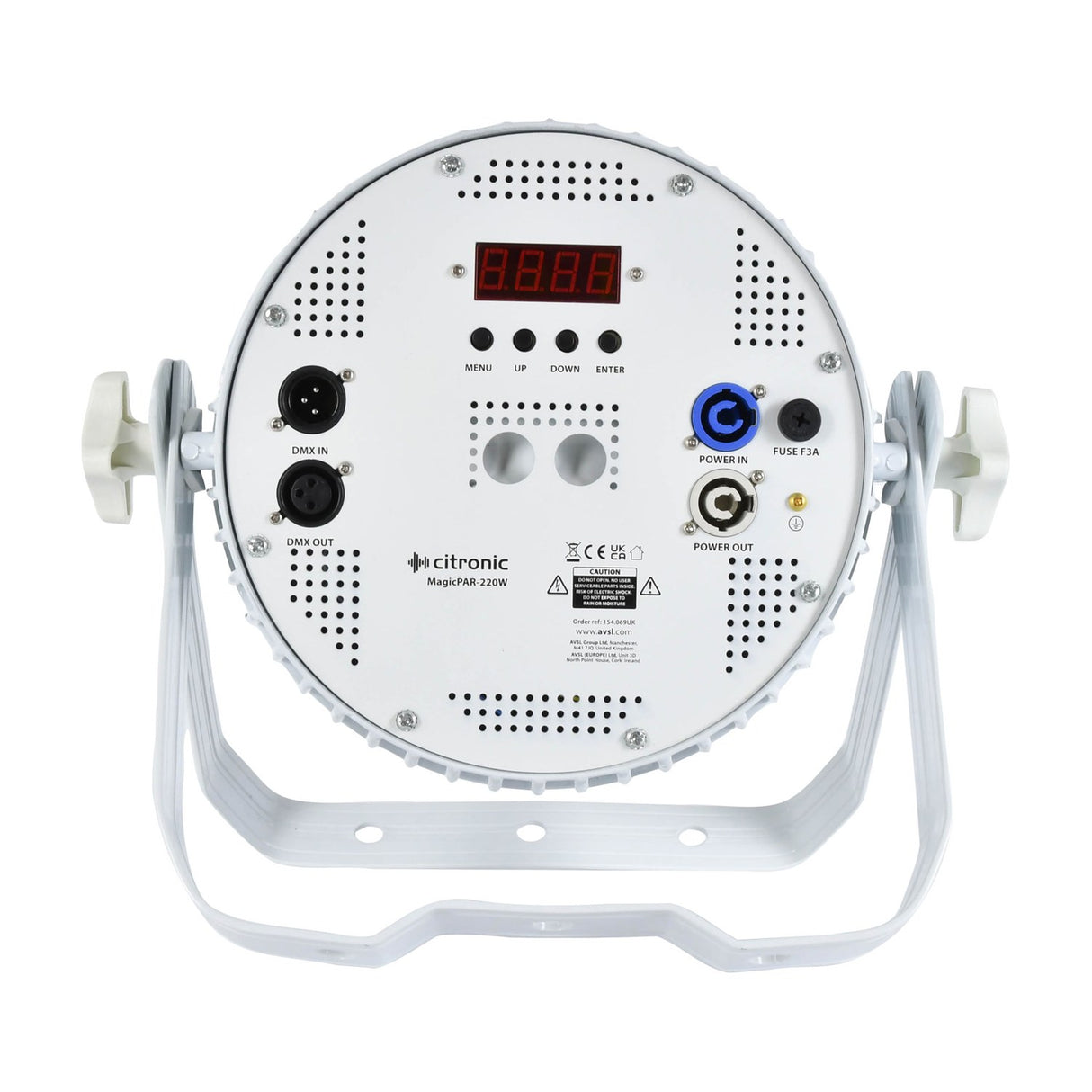

Power runs on AC100-240V at 50/60Hz with a consumption of 220W, so it works across mains supplies wherever you are. The twist and lock power connections in and out let you daisy-chain fixtures with a secure, professional fit, and DMX in and out use standard 3-pin XLR (3-pin XLR) sockets. At 265 x 265 x 245mm and 5.39kg, it's compact enough to mount or stand where you need it, with an F3A fuse fitted for protection.
Specification
| Power supply |
AC100-240V, 50/60Hz |
| Power consumption |
220W |
| LED : power |
18 x 12W RGBWA/UV LEDs |
| DMX channels |
6 or 10CH |
| Beam angle |
20° |
| Connections |
Power in/out (twist and lock), DMX in/out (3pin XLR) |
| Dimensions |
265mm x 265mm x 245mm |
| Weight |
5.39KG |
| Fuse rating |
F3A |
Downloads
Product Manual
Frequently Asked
Is the MagicPAR-220W really silent?
Yes. It has no cooling fan and relies on internal and external heatsinks to manage heat, so it runs with no fan noise. That makes it a good fit for churches, study rooms and other quiet venues.
How do I control the light?
You can use the built-in auto, sound-activated and static programs via the control panel on the back, or connect it over DMX-512 in 6 or 10 channel mode for control from a lighting desk.
What colours can it produce?
It uses 18 x 12W 6-in-1 RGBWA/UV LEDs, giving red, green, blue, white and amber colour mixing plus a UV output, all from one fixture.
Can I link several units together?
Yes. It has twist and lock power in and out plus DMX in and out on 3-pin XLR, so you can daisy-chain power and data between fixtures.
What are the dimensions and weight?
The unit measures 265 x 265 x 245mm and weighs 5.39kg. It comes with a stand/bracket for mounting or floor use.
What power supply does it need?
It runs on AC100-240V at 50/60Hz with a power consumption of 220W and an F3A fuse rating.
